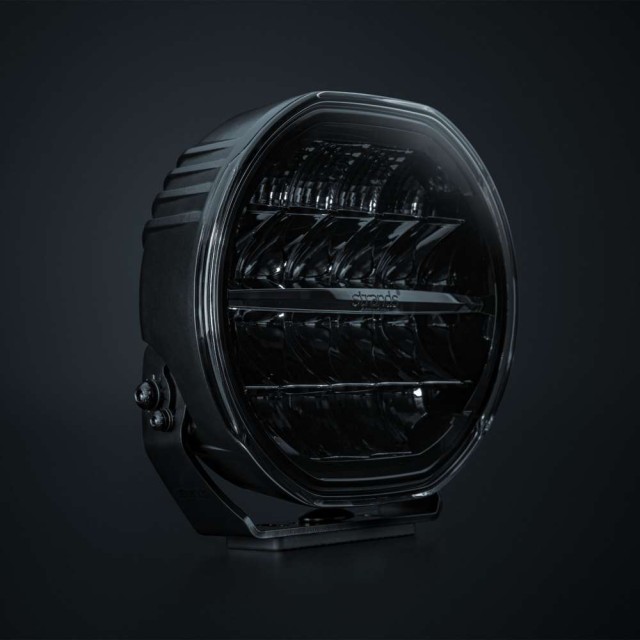

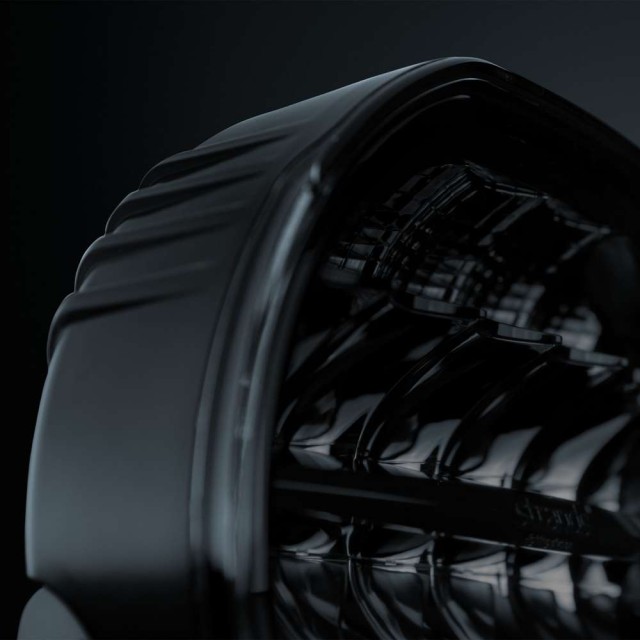

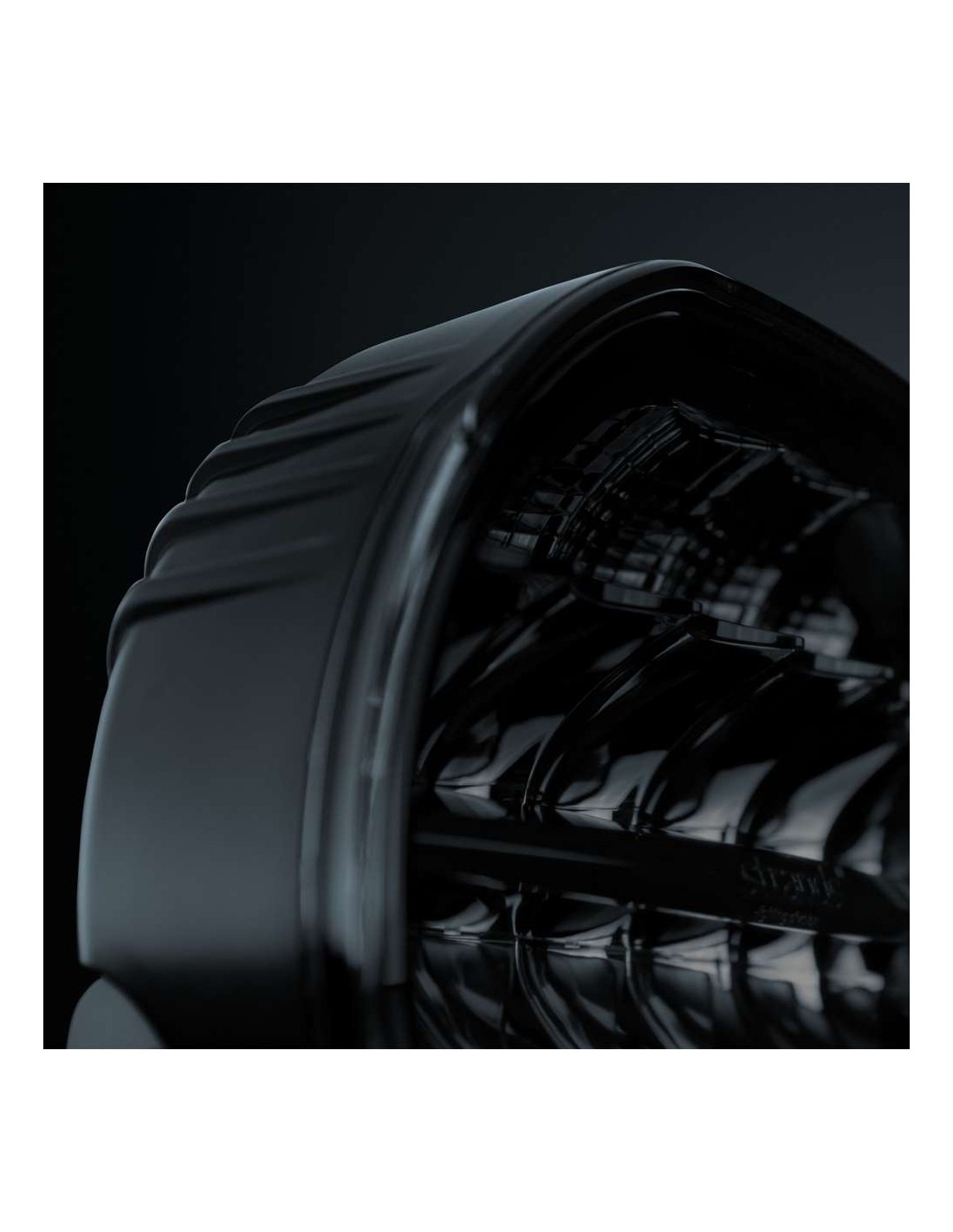

NUUK D-Line 9" LED driving light

The Nuuk D-Line range has a new addition. This 9” driving light has a range of +800 meters in Xperience mode thanks to its 13400 actual lumens. The beam pattern features a new design that combines the best of both width and range, far and near the vehicle. Now, you don’t have to choose between long-range or close-range visibility: the Nuuk D-Line has you covered. The E-mode is E-approved (R148/R149) with reference number 20. The D-Line driving light features a new position light design. It is built into the reflector, fully utilizing the mirror-like surface to create a vibrant glow with white and amber light. It is IP-rated IP69K, constructed with sturdy materials, and protected by a new coating. You can be sure this driving light will be a long-lived addition to your vehicle, and Strands’ 3-year warranty covers it.

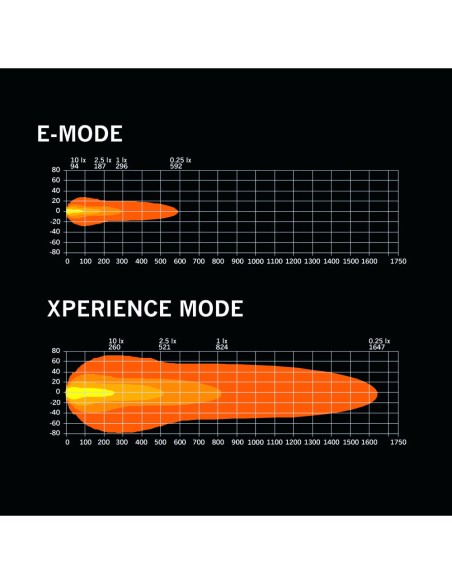

1 lux @ +800 meters

The Nuuk D-Line driving light has a new beam pattern. Thanks to the light's unique construction, the output is fuller, longer, and broader than that of the average combo or long-distance beam. With 13,400 actual lumens and 1 lux @ +800 meters in Xperience mode, you can be sure to spot any obstacles from far away. Other lights with this kind of range often have a reduced width and power closer to the vehicle, but the Nuuk D-Line does not, making it easier to spot wildlife and other dangers to the side of the road.

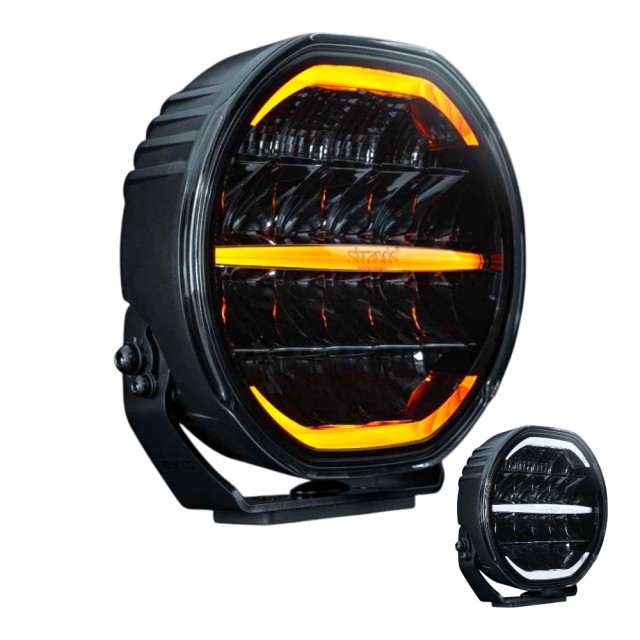

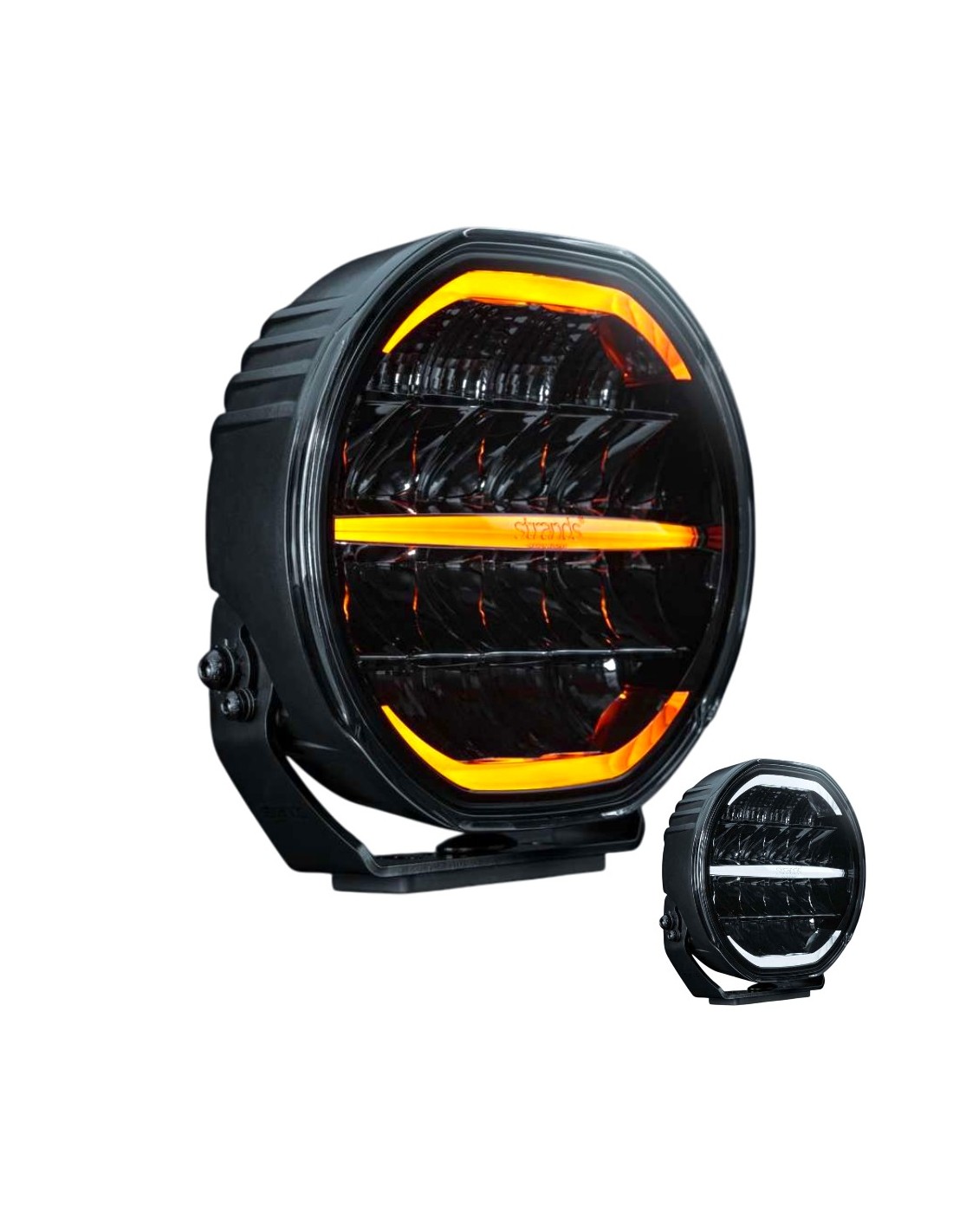

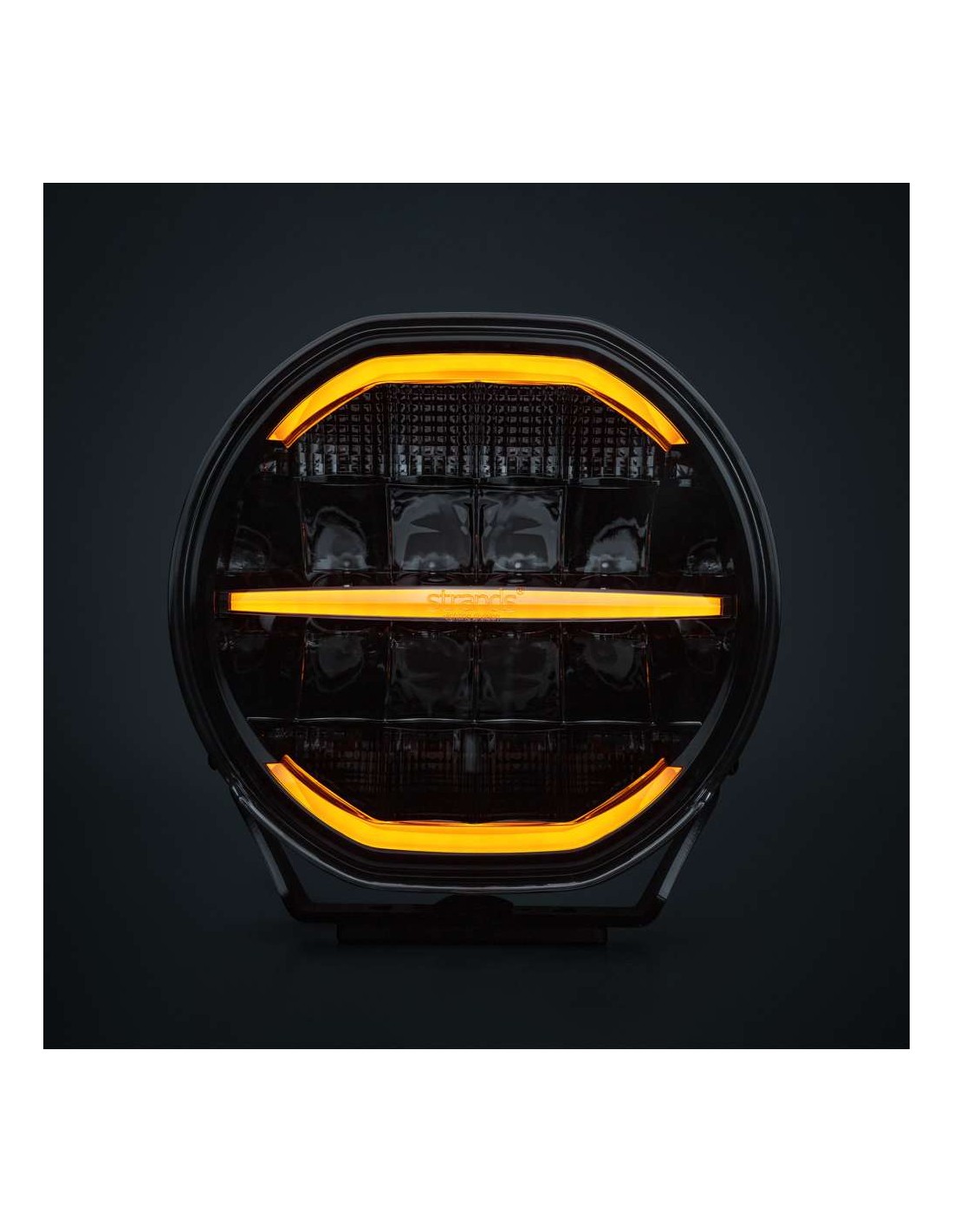

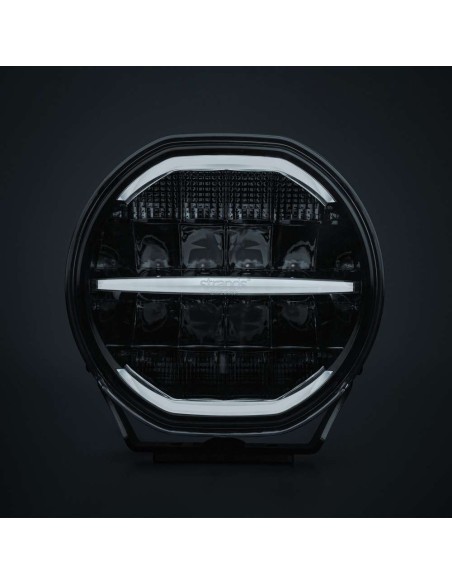

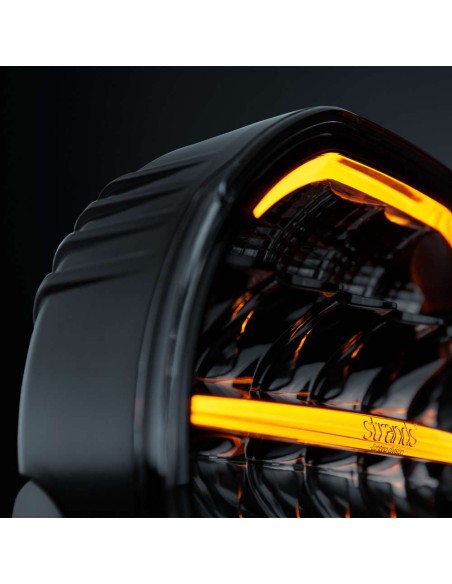

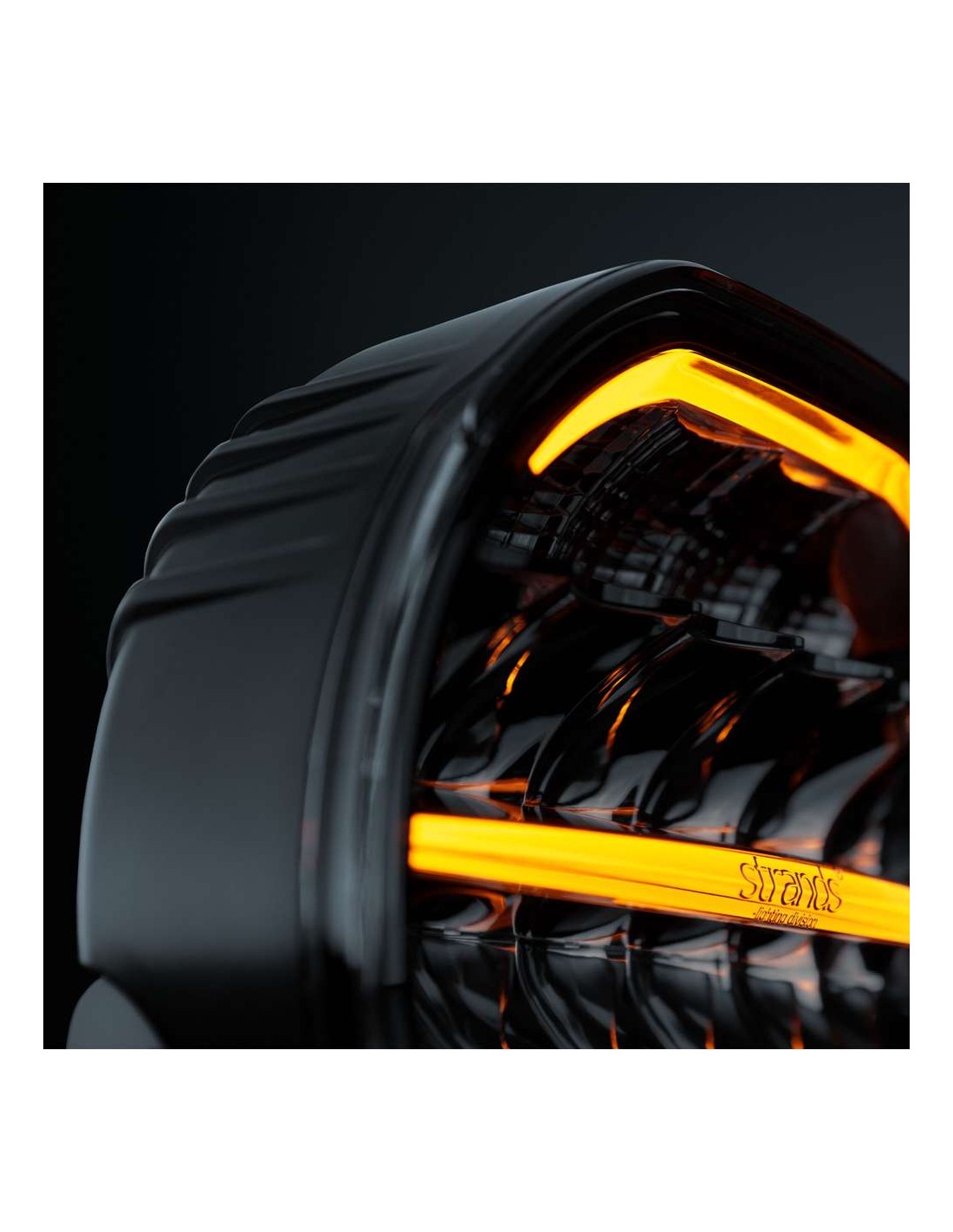

New dual-color position light

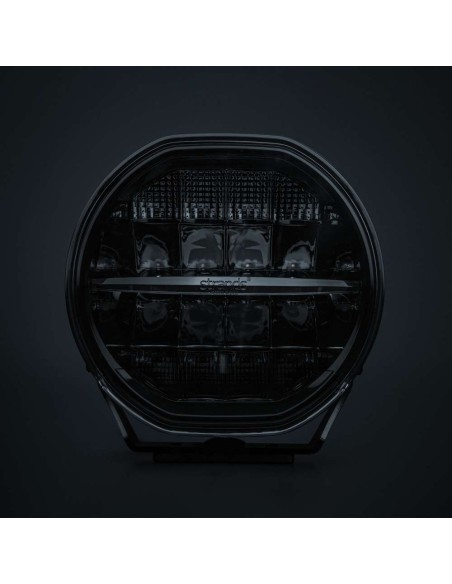

With white and amber position lights, the Nuuk D-Line will look good on any vehicle. But it’s more than that. The position light diodes are built into the reflector, dark and invisible when not in use, and emit a deep, vibrant color when on. The reflector produces a mirror-like effect on the position lights, giving a smooth, lively impression.

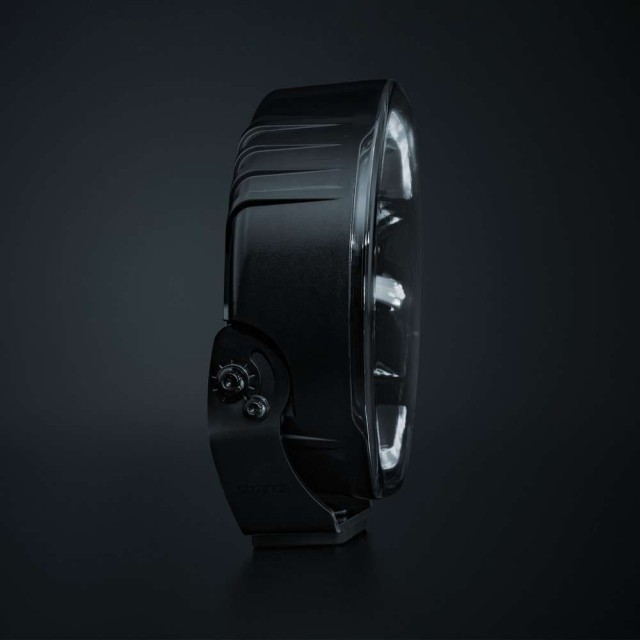

Made for durability

From the inner components and material to the finish of the coating, the D-Line driving light is designed to withstand harsh weather and exposure to the elements. It is IP-rated IP69K, giving it supreme protection against dirt and water. The coating is made to withstand the rigors of the road, with salt, ice, dirt, and temperature changes.

Technical data:

• Unit - PCS
• Voltage (DC) - 10-32V DC
• Theoretical effect - 185W
• Consumption - 171W
• Functions - Amber Pos., White pos., Driving beam
• Consumption specific function - White pos. 1W, Amber pos. 1W, E-mode 22W, X-mode 171W
• Theoretical lumen - 18000lm
• Actual lumen - 13400lm
• 1 lux @ - 824m
• Color temperature - 5700K
• Beam pattern - Long-distance beam
• Beam angle - 13.6°

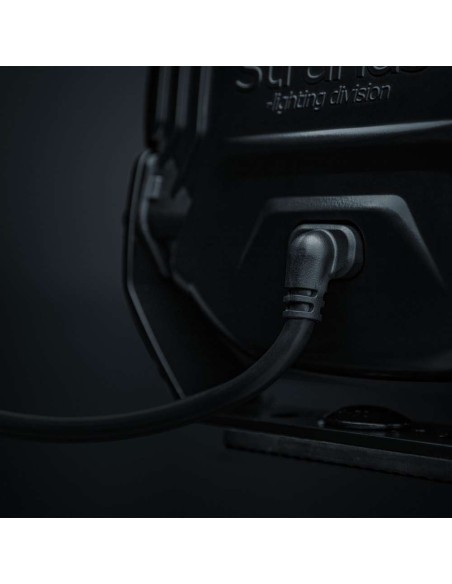

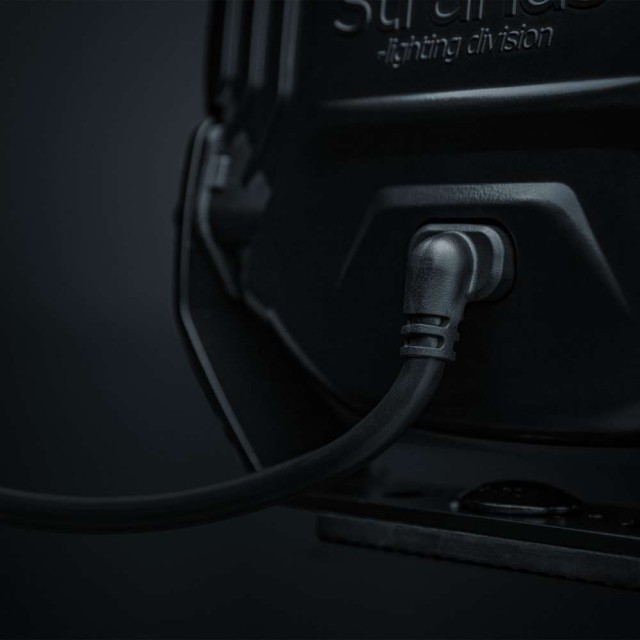

• Connection - Cable
• Cable length - 2500mm
• Color housing - Black
• Color lens - Clear
• Color LED's - White | Amber

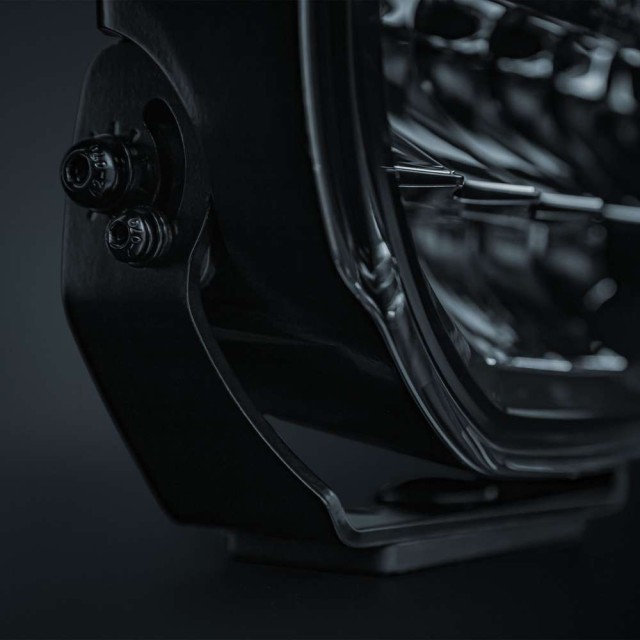

• Material bracket - Stainless Steel
• Material housing/chassi - Aluminium
• Material lens - Polycarbonate
• Length - 220mm
• Depth - 82mm
• Height - 208mm
• Height including bracket - 233mm
• Weight - 2.61kg
• Diameter - 220mm
• IP-class - IP69K
• Operating temperature - -40 - +60°C
• E-approved - Yes
• ECE approval - R10.06, R148, R149
• Reference number - 20
