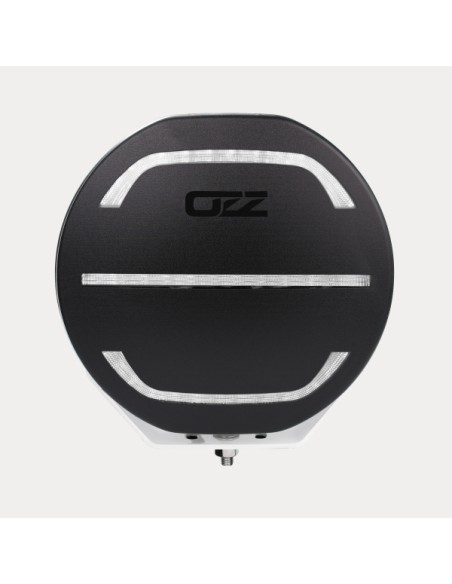

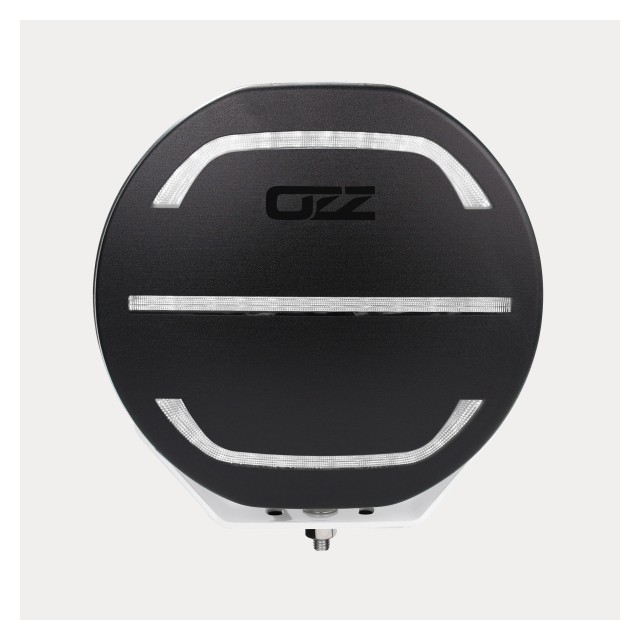

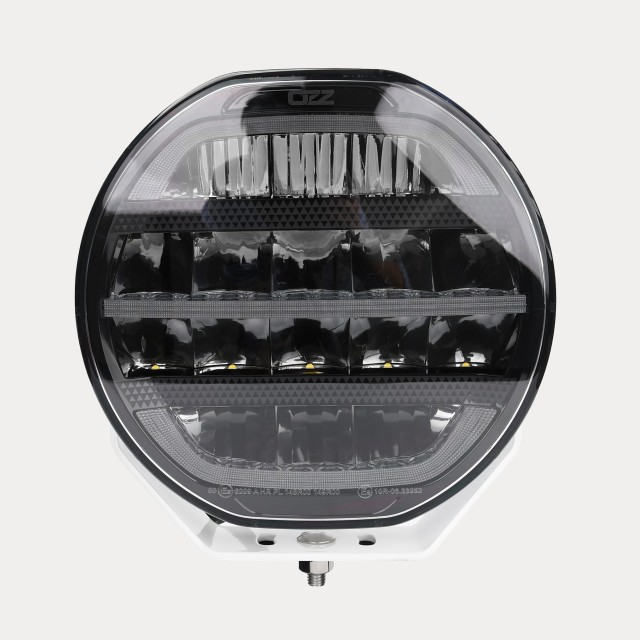

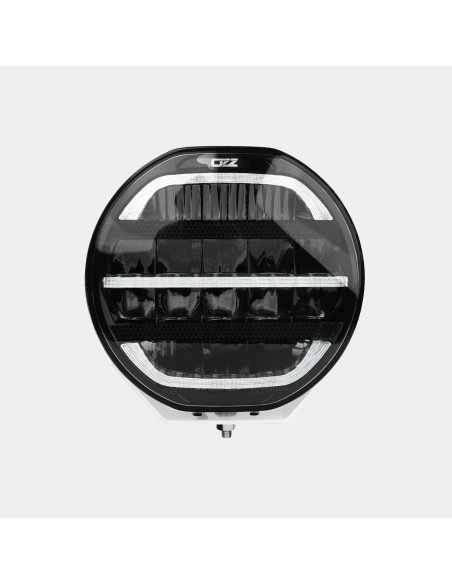

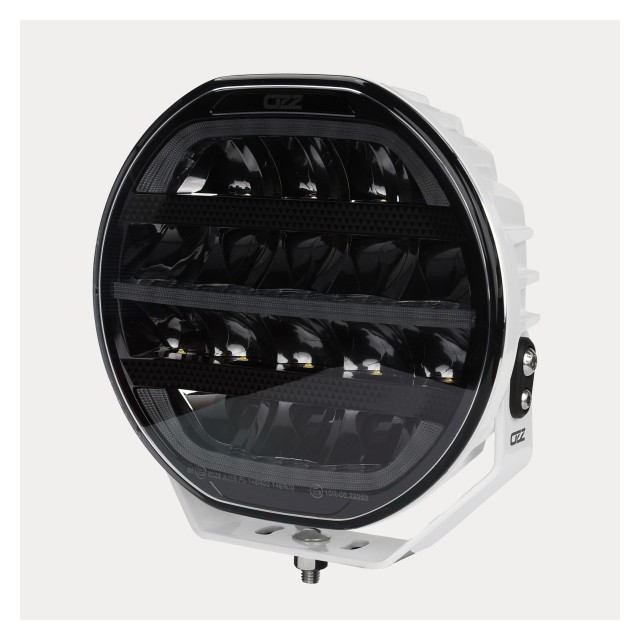

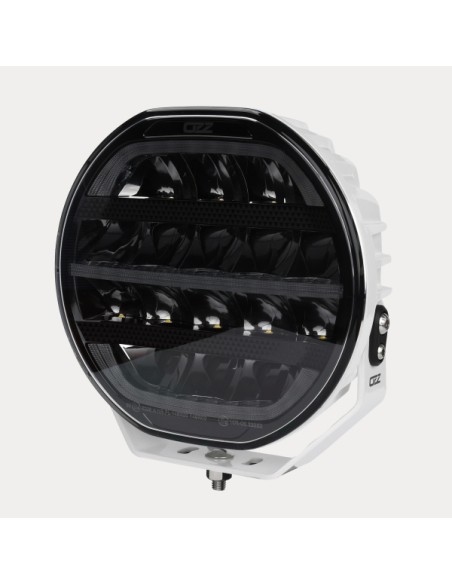

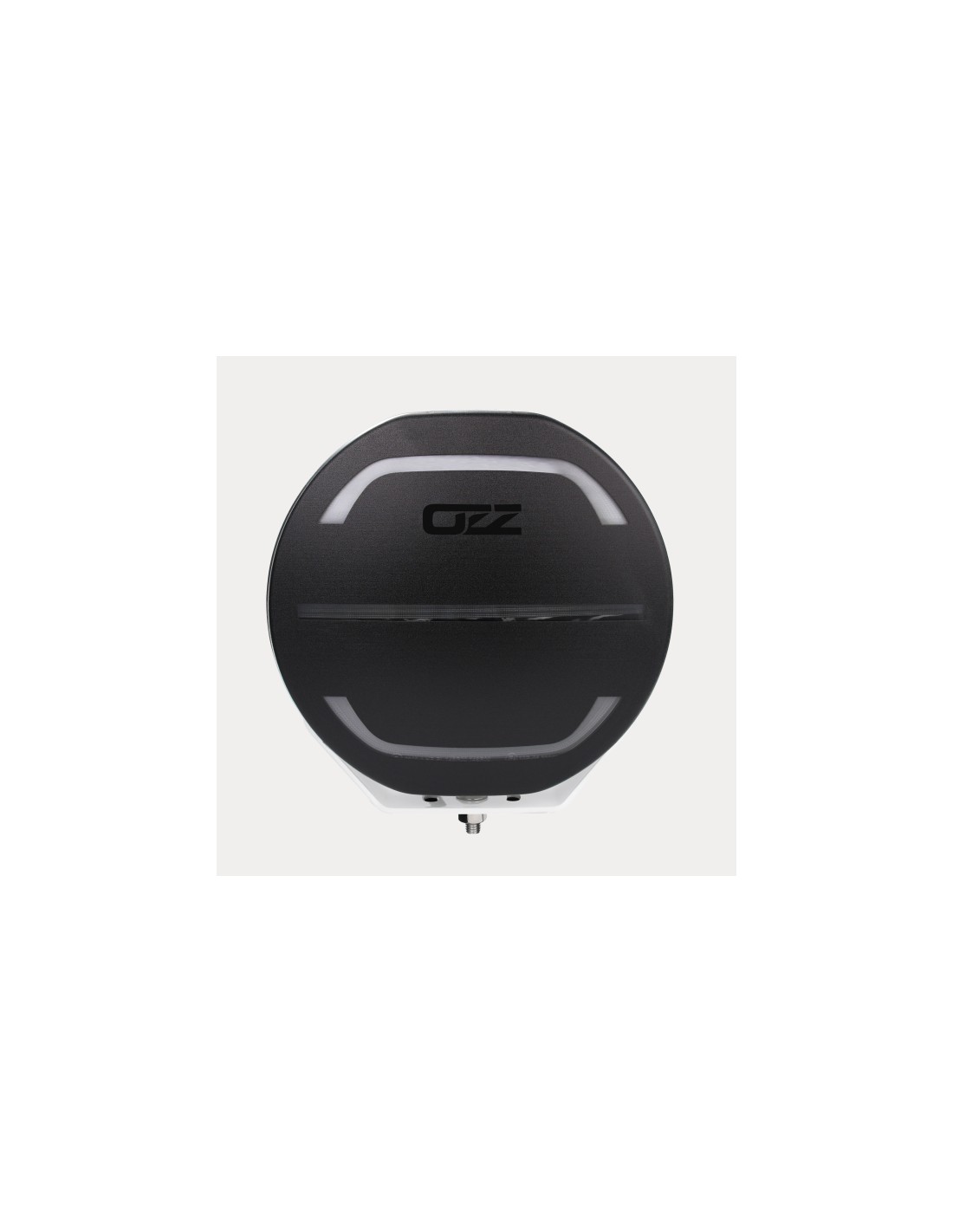

OZZ XR2 P9" LED driving lamp with white housing

Experience the power of light with OZZ XR2 P9″. These 220 mm lights feature a dynamic start-up position light in white and amber. The innovative successor to the original OZZ light series offers a new prominent startup pattern for an impressive visual effect upon ignition. With a boost function, the OZZ XR2 P9″ emits 10 600 lumen, providing 1 lux at a distance of 680 meters. The driving beam pattern ensures optimal visibility with a wide and long-range reach. The lights have a color temperature of 5000 K, offering pleasant illumination in all conditions.

Technical data:

• Type of lamp - LED
• Type of LED - Osram
• Pcs LED - 16
• Voltage - 10-35V DC
• Theoretical effect (W) 12V - 160
• Theoretical effect (W) 24V - 160
• Actual effect (W) 12V - R112: 74W, boost: 134W
• Actual effect (W) 24V - R112: 73W, boost: 130W
• Nominal current at 12 V - 10.5 A
• Nominal current at 24 V - 5.2 A
• Theoretical lumen (Lm) - 15000
• Actual lumen (Lm) - R112: 7010, boost: 10600
• 1 lux @ (m) R112: 480, boost: 680
• Kelvin (K) - 5000
• IP-class (IP) - IP68/IP69K
• Beam pattern - Driving

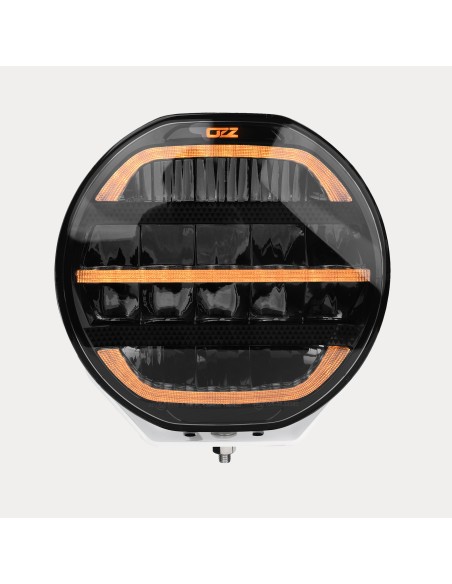

• Position light - dynamic white and amber
• Connection - 4-pin DT male + female
• Cable length (mm) - 1000
• Material bracket - Stainless steel
• Material chassi - Aluminum
• Material lens - Polycarbonate

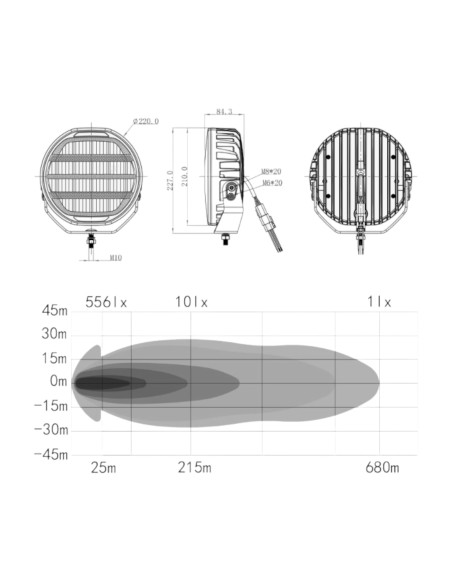

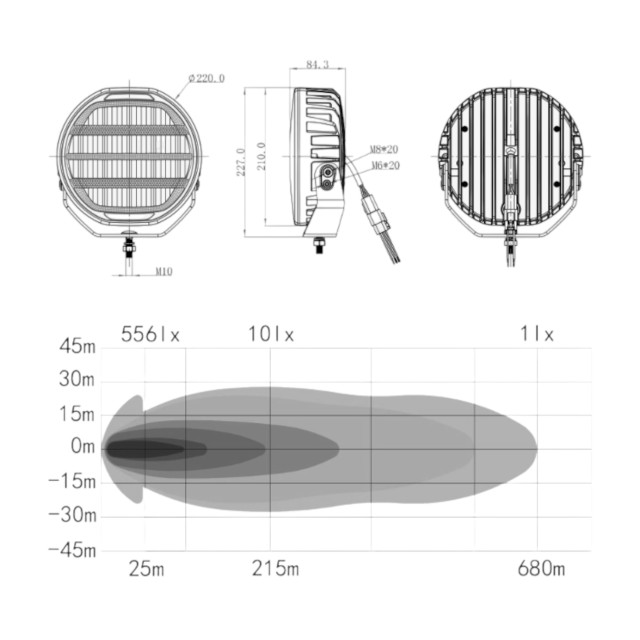

• ØxDxH (mm) - 220×84,3×210/227
• Operating temperature - -40 – +60°C
• E-mark approval - R112, R7
• EMC - ECE R10
• Ref. no. - 50
• Weight (kg) - 2,6
• Warranty - 3 years
• EAN code - 7333213101435
