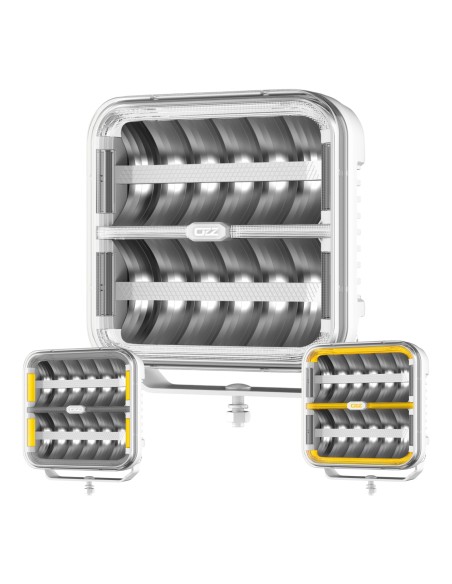

OZZ SQR 9" White LED driving light with strobe, white housing

OZZ lights just broke the circle. A new era of driving lights begins here. The OZZ SQR series breaks the mold, literally. With a squared design that defi es convention and redefi nes what’s possible in vehicle lighting. Meet the fi rst in a new generation of driving lights. Wrapped in a square body designed to mount tighter, beam stronger, and look cleaner than anything before it.

Every detail is intentional. From the curved lens that adds a premium fi nish, to the dynamic position light with depth effect, and the integrated strobe mode for on-demand intensity.

The SQR series is built to blend in, but designed to stand out. It’s available in two sizes – 7” and 9”. Each size comes in two colors – black and Arctic Edition. Both with fully color-matched components in every detail.

Engineered with precision and wrapped in a clean, square body, the SQR series is built to mount tighter and look sharper than anything on the road. It´s fully E-approved, making it compliant for road use across Europe. But when you need that extra punch, the boost function unleashes the lamp’s full potential giving you maximum output with 1 lux at 950 meters for the 9″ and 1 lux at 650 meters for the 7″.

Technical data:

• Type of lamp - LED
• Pcs LED - 24
• Voltage - 9-32V DC
• Functions - High beam, dynamic position light, boost mode, warning light
• Theoretical effect (W) 12V - 240
• Theoretical effect (W) 24V - 240
• Actual effect (W) 12V - E-approved: 60W, Boost: 160W
• Actual effect (W) 24V - E-approved: 60W, Boost: 160W
• Nominal current at 12 V - E-approved: 5A, Boost: 13,5A
• Nominal current at 24 V - E-approved: 2,5A, Boost: 7A
• Theoretical lumen (Lm) - 21000
• Actual lumen (Lm) - E-approved: 5000, Boost: 12000
• Kelvin (K) - 5000
• Beam pattern - Driving
• 1 lux @ (m) - E-approved: 480 m, Boost: 950 m

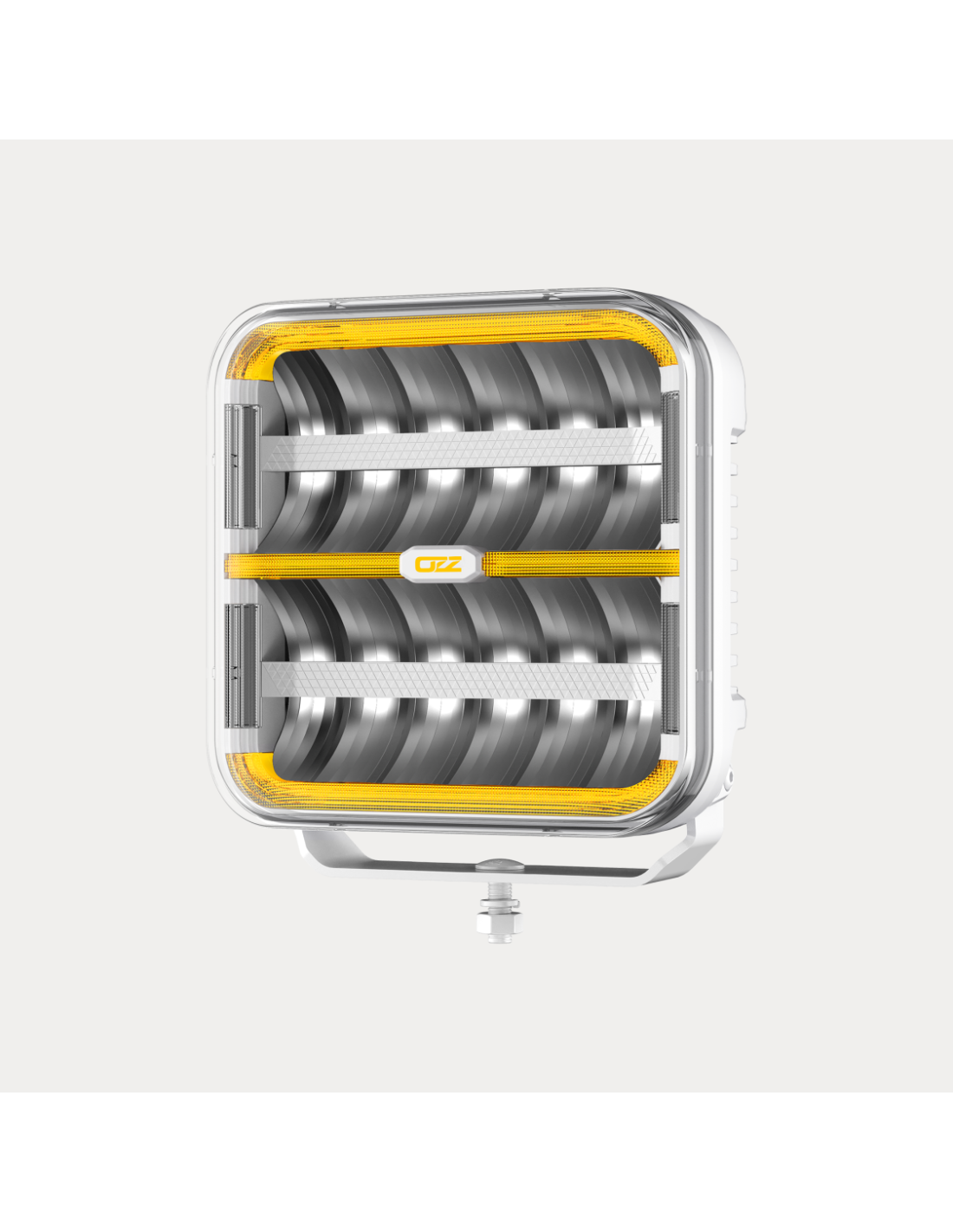

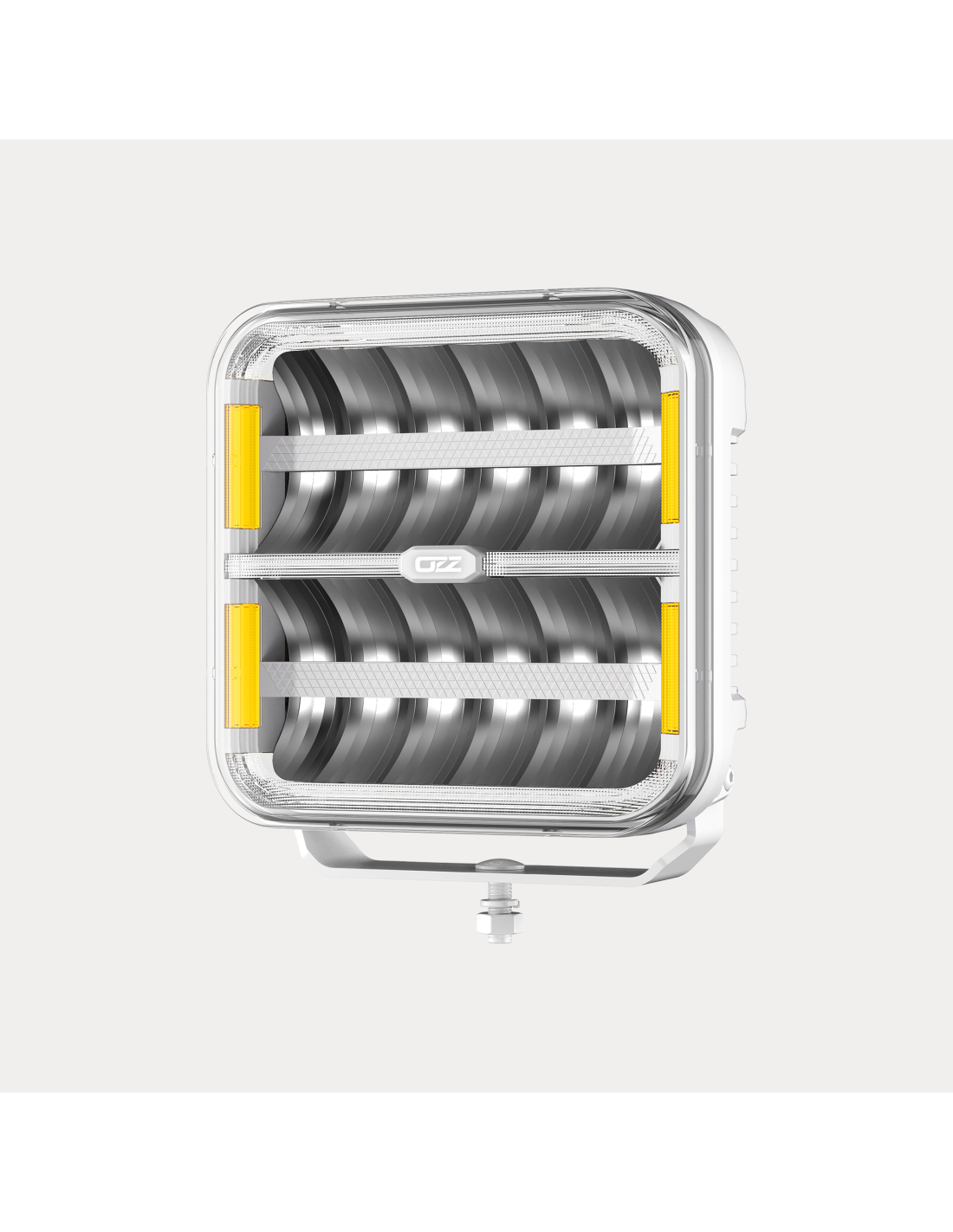

• Position light - Dynamic white and amber
• Flash light patterns - Double
• IP-class (IP) - IP68/IP69K
• Connection - 2-pin DTP male + female + 5 cables
• Cable length (mm) - 1000 (800+200)
• Material lens - Polycarbonate
• Material chassi - Aluminum
• Material bracket - Stainless steel
• LxDxH (mm) - 210x95x210/231
• Operating temperature - -40°C – +60°C
• E-mark approval - ECE R149, R148, R65
• Ref. no. - 50
• EMC - ECE R10
• Weight (kg) - 2,6
• Warranty - 3 years
