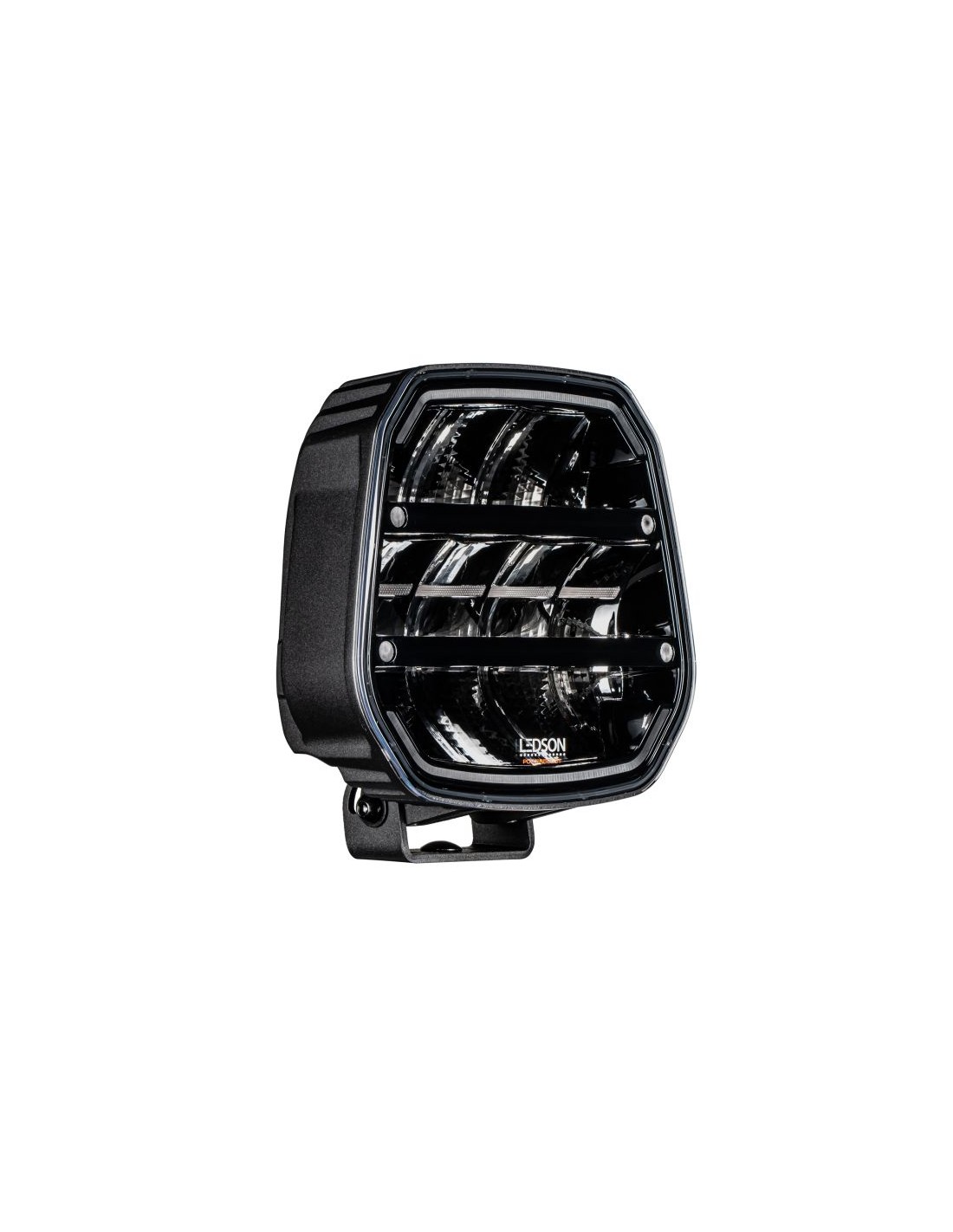

EPIX9+ Strobe LED driving light with strobe, black housing

Epix9+ with a wide beam for enhanced illumination!

Strobe with five different flash modes (one R65-approved)

Swedish design by Ledson with a unique look

The Epix9+ with a wide beam high beam provides an even wider beam!

The wide beam high beam features a 40° beam angle (compared to 20° for a high beam), covering a larger area and ensuring optimal visibility even in the most challenging conditions. The wide beam helps you spot animals and other unexpected hazards early, increasing your safety and that of other road users.

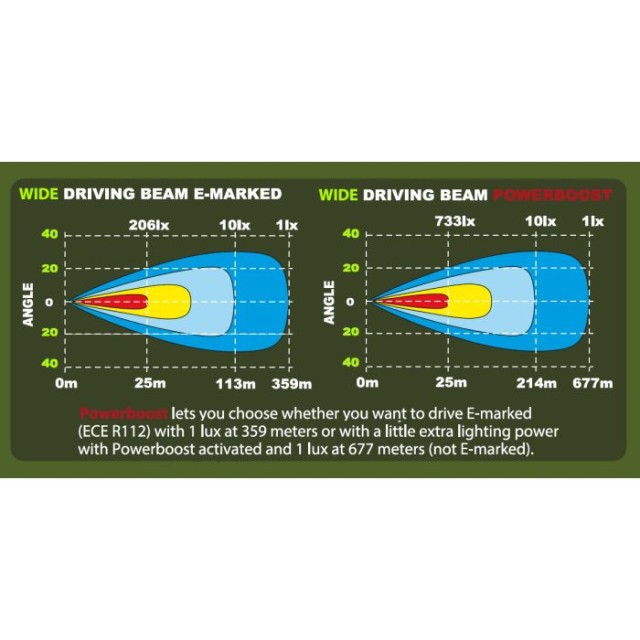

Despite its wide beam, the Epix9+ maintains an impressive range of 677 meters in Powerboost mode (359 meters in E-approved mode), offering a balanced combination of width and range.

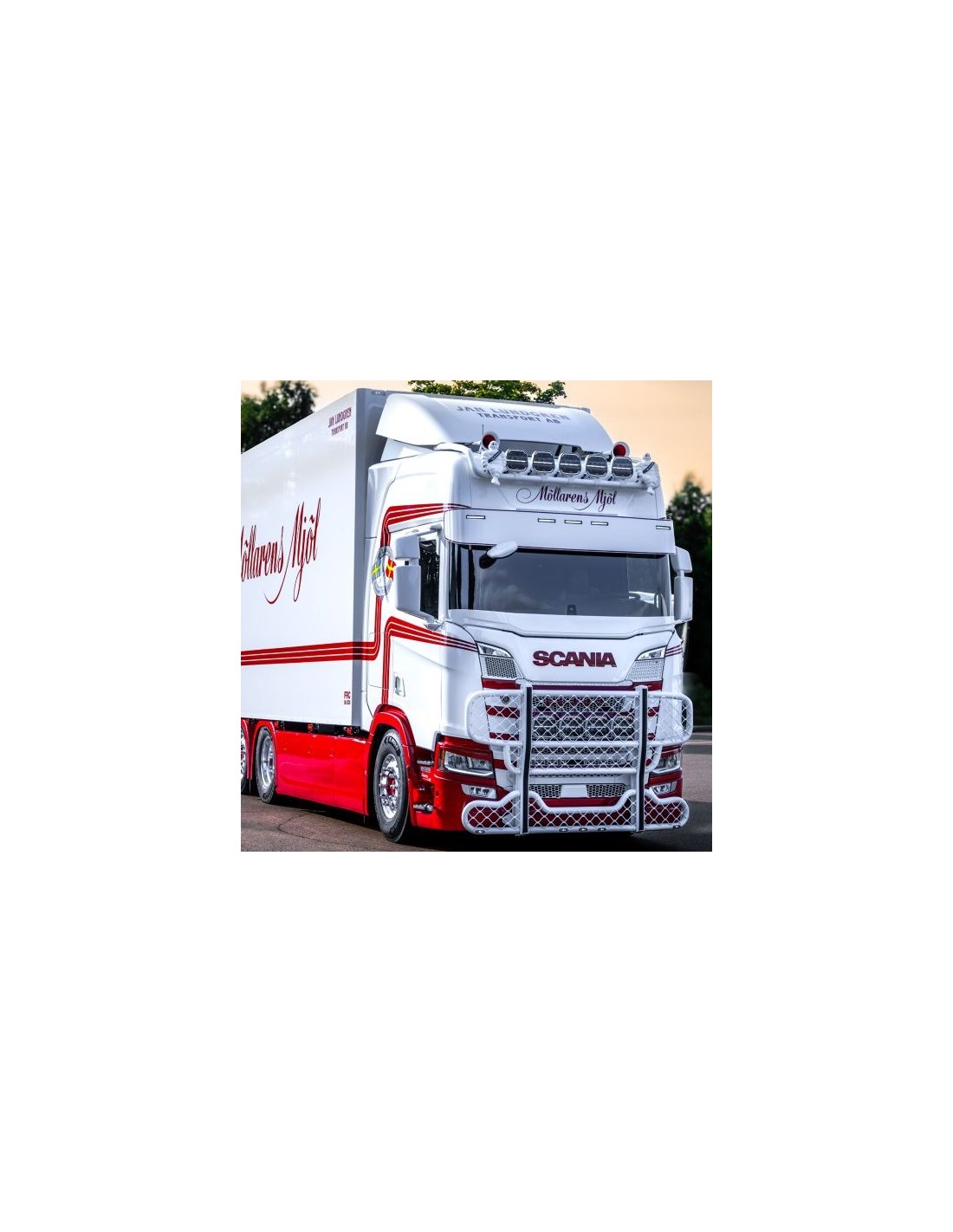

The Epix9+ Strobe by Ledson is an innovative series of auxiliary lights that will take your vehicle to the next level. The light also features five different flash patterns, including one with R65 homologation. Thanks to Swedish design (developed by Ledson) and exceptional performance, these auxiliary lights will give your vehicle a truly unique and exclusive look that is sure to attract attention! Enjoy exceptional brightness and design in perfect harmony.

Flash Patterns

• Single flash (ECE R65 homologation), double flash, triple flash, quadruple flash, continuous hyper flash.

Synchronization and Alternating Flash Pattern

The Epix9+ Strobe can be synchronized with each other, meaning all lights use the same flash pattern and synchronize with each other. You can also use the alternating flash mode, which means the auxiliary lights can be divided into two groups so they flash alternately (e.g., right/left or up/down). You can synchronize and use the alternating flash modes with an infinite number of lights, meaning there is no limit to the number of lights you can use.

Dynamic Position Lights

The Epix9+ dynamically activates the position lights with an impressive, fluid motion that elegantly shifts the light from one side of the auxiliary light to the other before fully illuminating. This effect gives you and your vehicle a unique and unmistakable character.

Pulse-Control PowerBoost – It Couldn't Get Smoother

The Epix9 features PowerBoost – an additional power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light output to your needs. Thanks to Ledson's new generation PowerBoost technology, you can seamlessly switch between high beam modes in just a few simple steps, as shown below. Note: Your auxiliary light is supplied in an E-approved mode. Follow the instructions to activate PowerBoost mode.

Features and technical specifications:

• Wide beam of light with a 40° beam angle (compared to 20° for a beam of light)

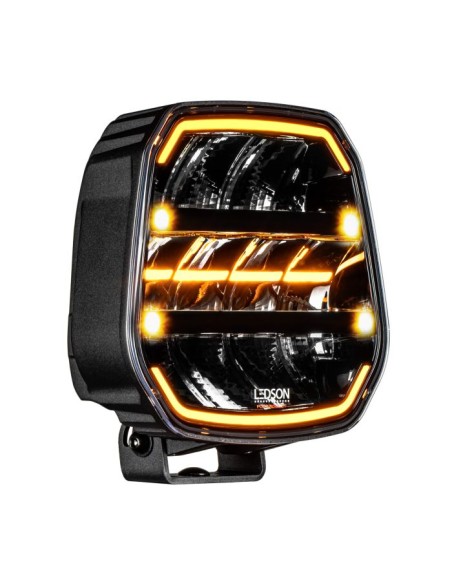

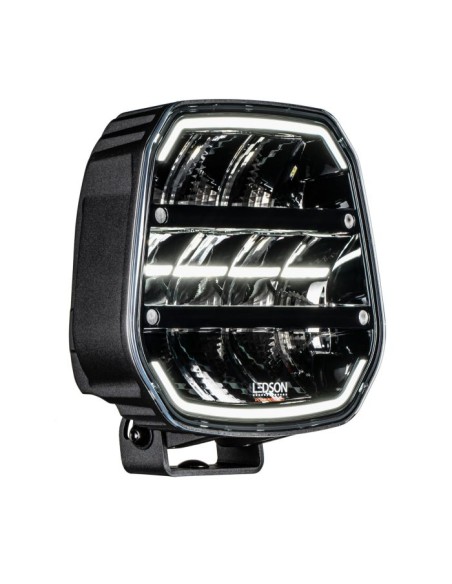

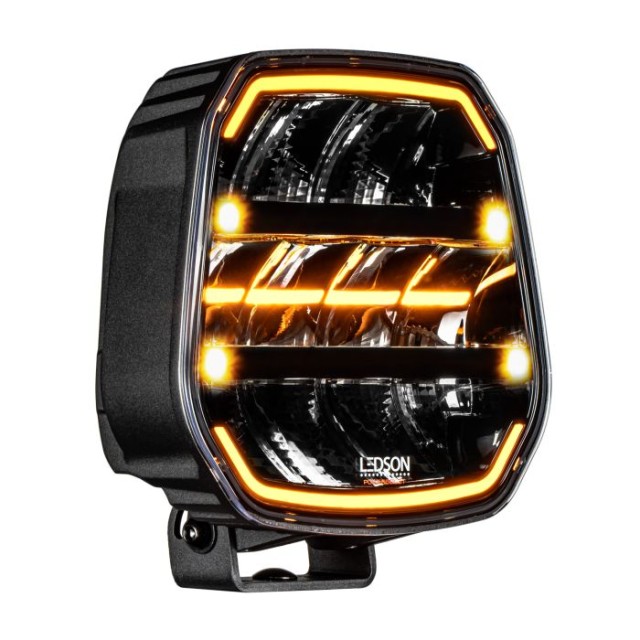

• Strobe lamp with five different flash patterns, including one with R65 approval. Selectable position light with dynamic activation (yellow-amber or xenon white, choose your color)
• Range in E-type approval mode: 359 m (1 lux)
• Range in Powerboost mode: 677 m (1 lux)
• E-marking: ECE R112 (Ref. 30), R7 (white position light) - More information on UNECE regulations can be found here
• EMC certification: ECE R10 (does not interfere with radio transmission)
• E-type approval mode: 2640 lumens (theoretical), 2112 lumens (actual)
• Powerboost mode: 15,000 lumens (theoretical), 11,000 lumens (actual)
• Neutral white light: 5000 K
• ETM (Electronic Thermal Management): Adjusts the LED output depending on temperature, ensuring Optimal service life
• Side reflection optics
• Pressure equalizing membrane
• Aluminum heat sink

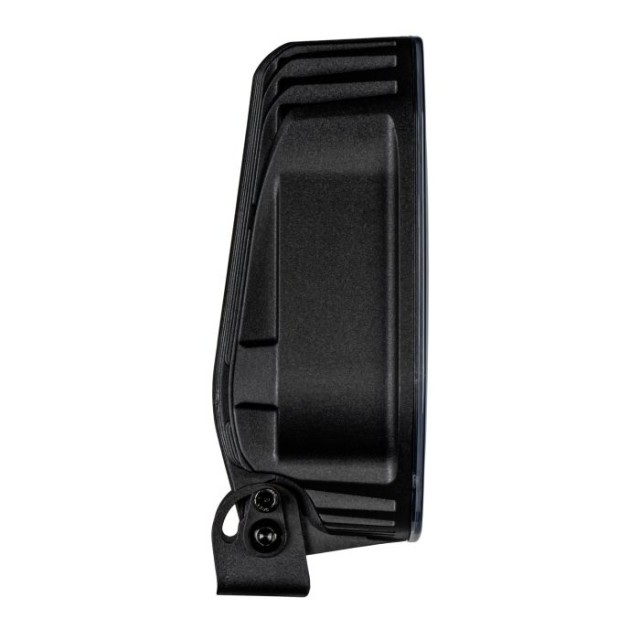

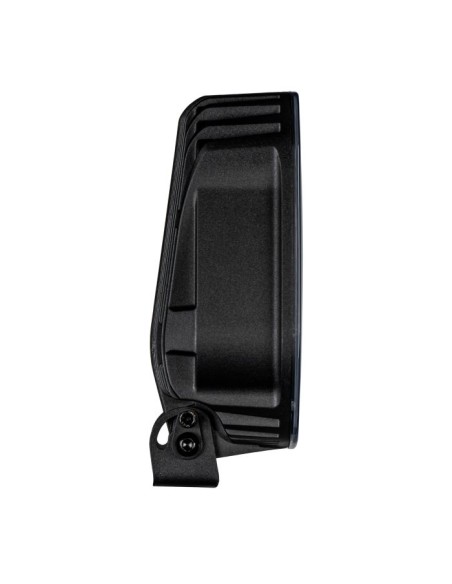

• Adjustable stainless steel bracket
• Polycarbonate lens
• 36-month warranty

Technical specifications:

• 180 W (4 x 20 W Cree LED + 4 x 10 W Cree LED), 12 W strobe lights (4 x 3 W LED)
• Rated power: 154 W (Powerboost)
• IP69K (waterproof and dustproof)
• Cable with 6-pin DT connector
• Voltage: 9-36 V
• Load in E-type approval mode: 2.2 A at 12 V and 1.1 A at 24 V (high beam only, no position light)
• Load in Powerboost high beam mode: 12.6 A at 12 V and 5.6 A at 24 V (high beam only, no position light) (with position light)

Dimensions and weight:

• Width: 225 mm
• Height: 223 mm (with bracket)
• Depth: 86 mm
• Weight: 2.23 kg

Included:

• One Ledson Epix9+ Strobe LED 9" auxiliary light
• Mounting bracket, screws, and bolts for single or dual mounting
• DT connector (6-pin) (you will also need a DT harness, which you can find here)

Connection instructions:

Wiring instructions (detailed instructions included)

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position light (- Ground)
• White: Position light (+) White light
• Yellow: Position light (+) Yellow-amber light
• Green: Strobe light (+)
• Blue: Sync and pattern (+)
• Brown: Alternating (+)

Note: The DT connector must not be cut as this increases the risk of moisture damage and will void the warranty.
