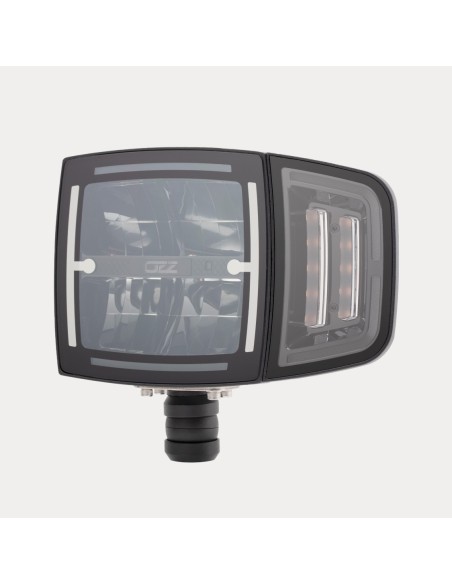

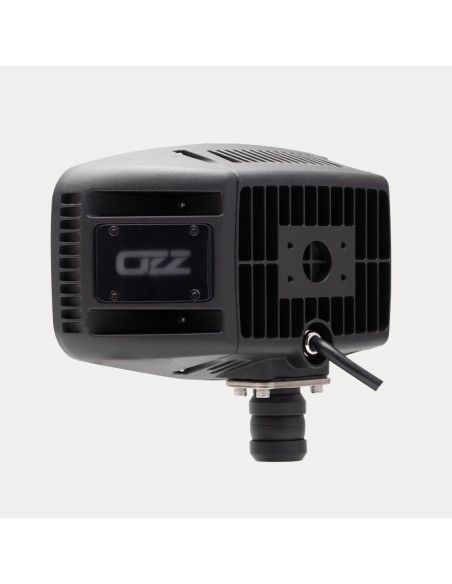

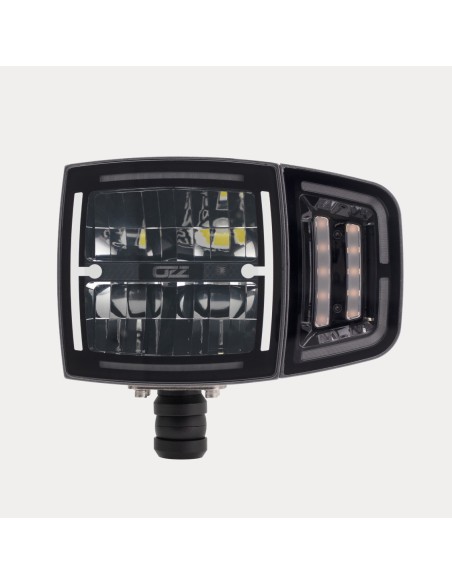

OZZ XH1 Multifunctional headlamp with heating

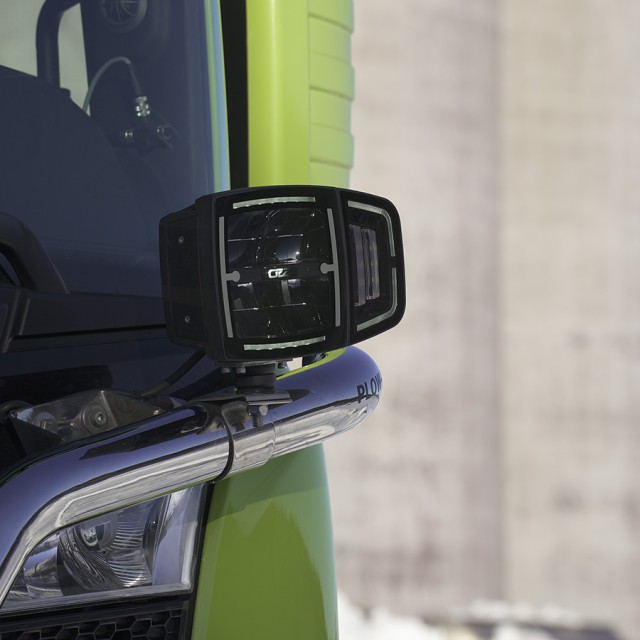

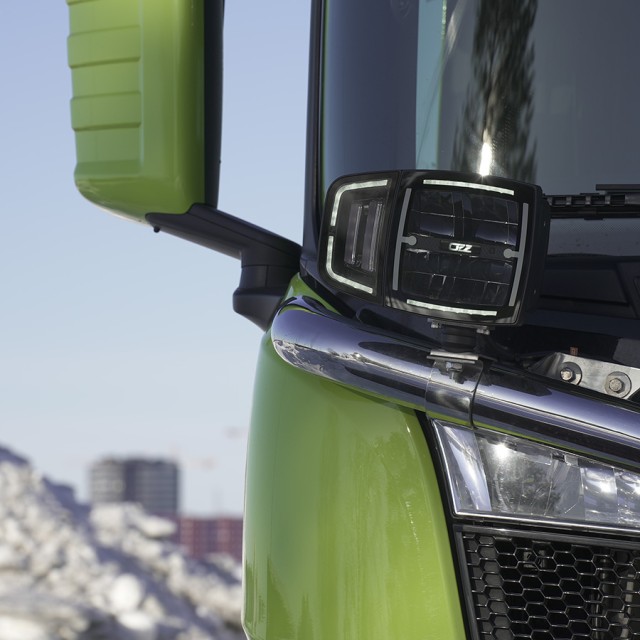

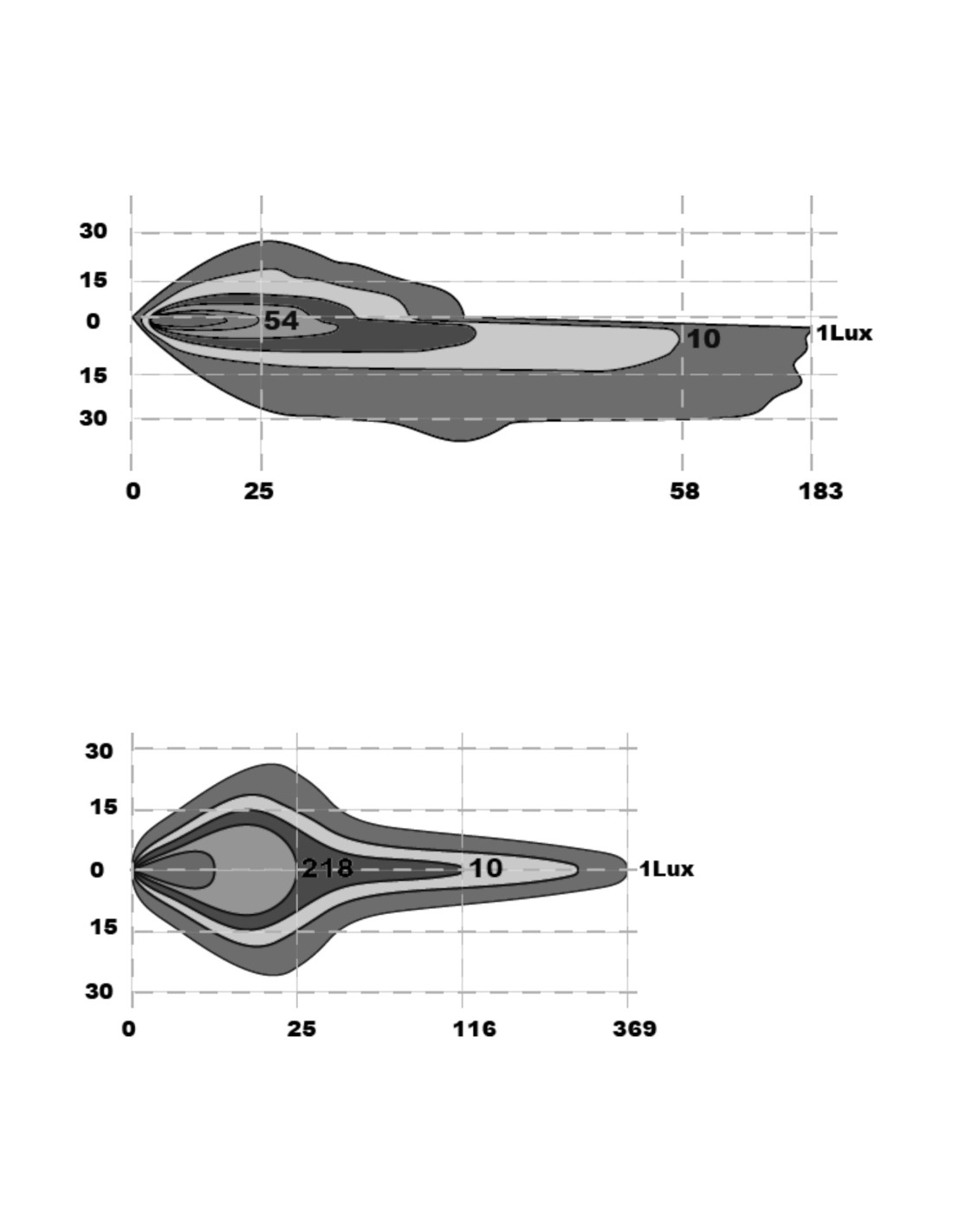

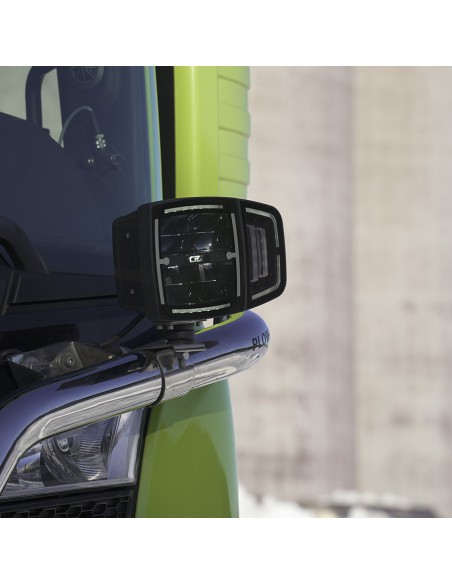

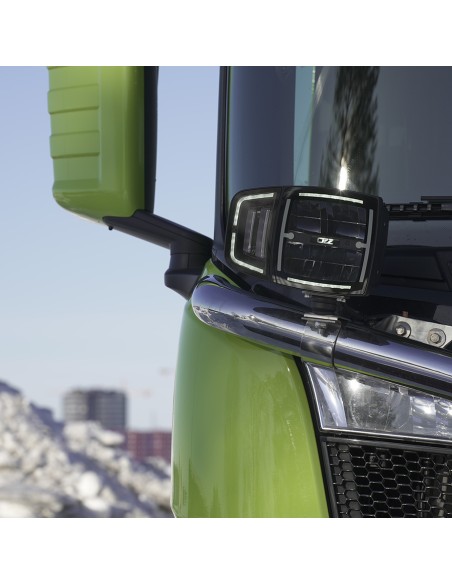

Introducing OZZ XH1 — a headlight/snowplow lamp that redefines versatility. Emitting 1700 lumens in low beam and an impressive 3100 lumens in high beam, it’s your go-to solution on the road. The automatic heated lens ensures clarity in all conditions, and with a 1 lux reach of 183 meters (low beam) and 365 meters (high beam), visibility is unmatched. OZZ XH1 seamlessly blends functionality with style, providing a natural 5000 K light. OZZ XH1 offers indicator and dual position light in white and amber as well as universal mounting on either side of your vehicle. The side unit is easily adjustable based on your installation, thanks to its flexible and detachable design.

Technical data:

• Type of lamp - LED
• Type of LED - LP
• Pcs LED - 49
• Voltage - 10-30V DC
• Actual effect 12V - High beam: 48W, low beam: 22.8W, indicator: 12W, position light: 2.4W, heater: 30W
• Actual effect 24V - Hight beam: 48W, low beam: 24W, indicator: 12W, position light: 2.4W, heater: 21.6W
• Nominal current at 12V - High beam: 4A, low beam: 1.9A, indicator: 1A, position light: 0.2A, heater: 2.5A
• Nominal current at 24 V - Hight beam: 2.0A, low beam: 1.0A, indicator: 0.5A, position light: 0.1A, heater: 0.9A
• Theoretical lumen (Lm) - Low beam: 2400, high beam: 4500
• Actual lumen (Lm) - Low beam: 1700, high beam: 3100
• Kelvin (K) - 5000
• IP-class (IP) - IP68/IP69K
• Beam pattern - Driving

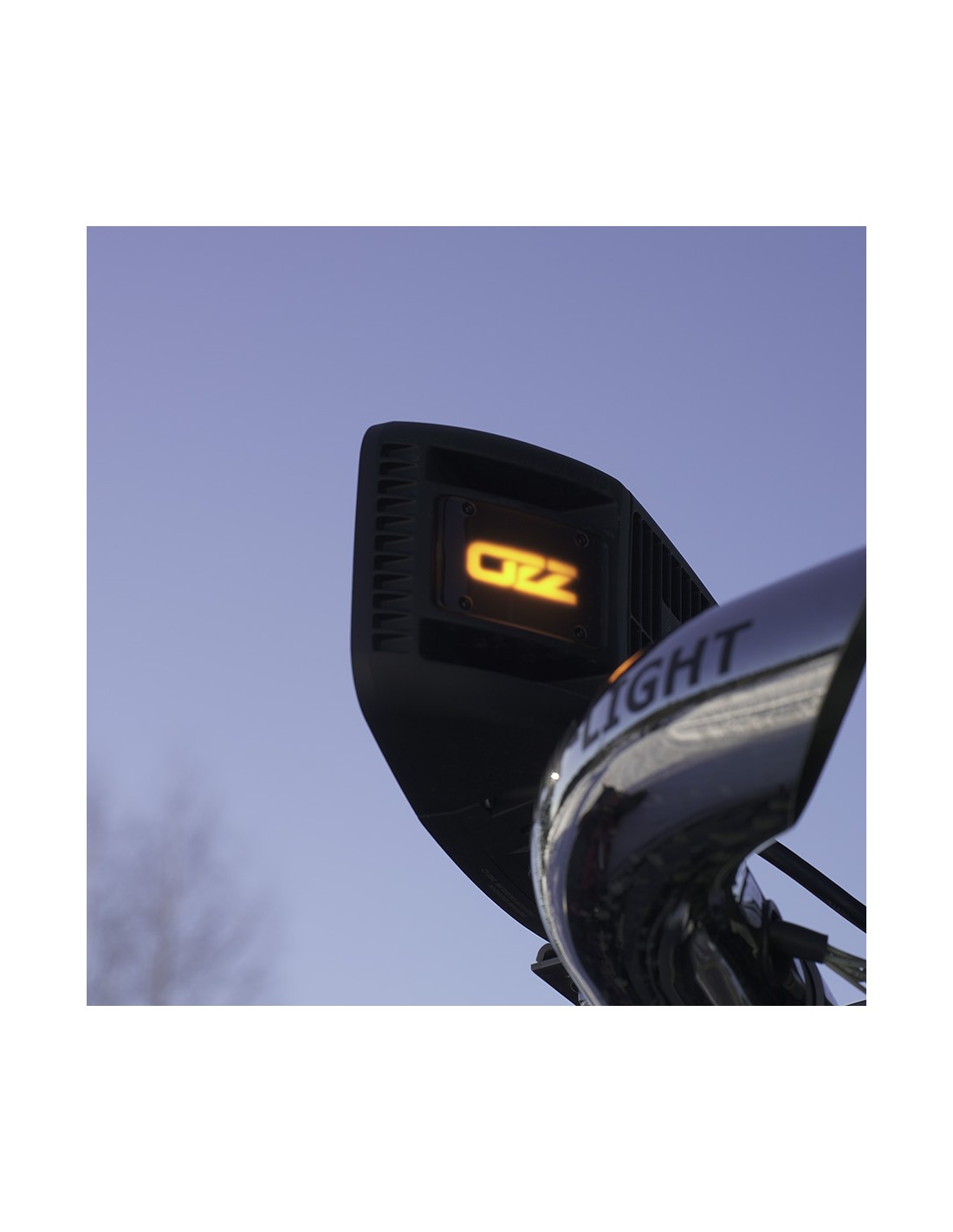

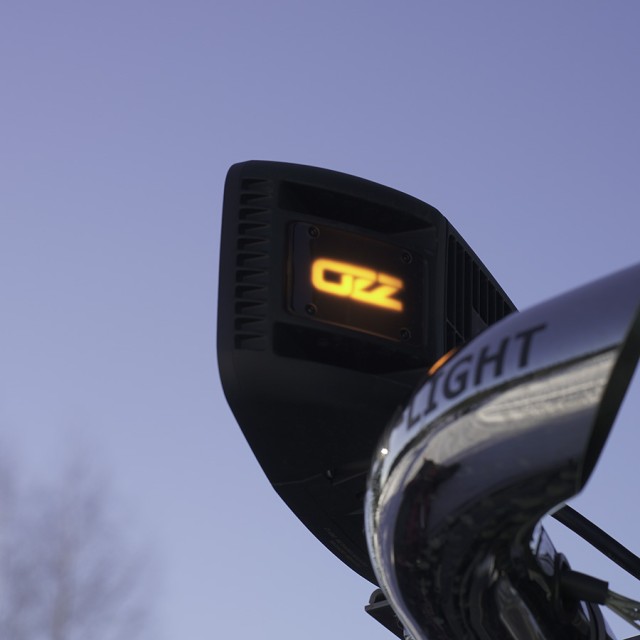

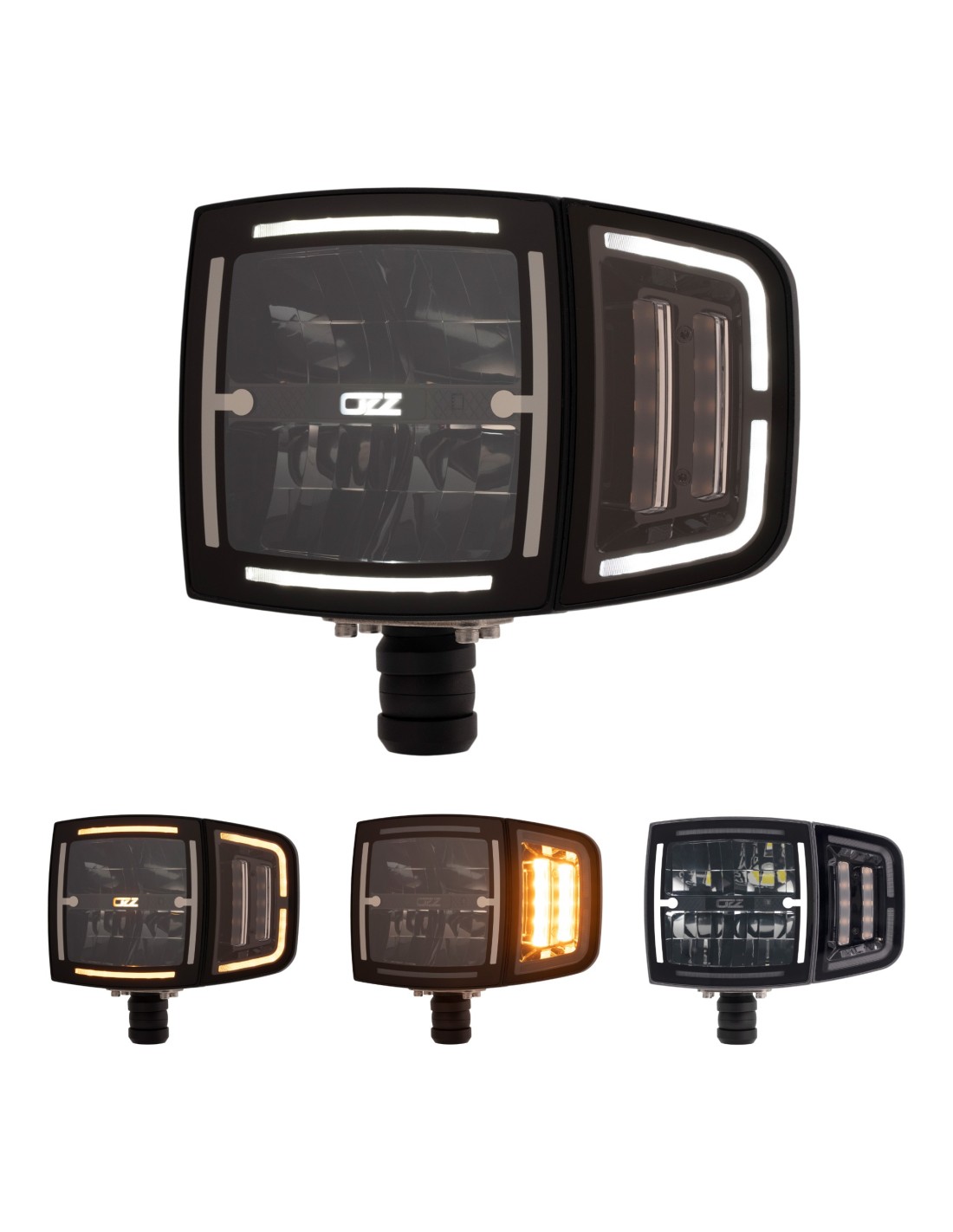

• Position light - White and amber
• Connection - 6-pin DT
• Material chassi - Aluminum
• Material lens - Hardened glass
• LxDxH (mm) - 224,5x80x150
• Height including bracket (mm) - 176
• Operating temperature - -40 – +60°C
• E-mark approval - R148 (R7, R6), R149 (R112)
• EMC - ECE R10
• Ref. no. - 27,5
• Weight (kg) - 1,75
