OZZ XR2 P7" LED driving light, white housing

Experience the power of light with OZZ XR2 P7″. These 178 mm lights feature a dynamic start-up position light in white and amber. The innovative successor to the original OZZ light series offers a new prominent startup pattern for an impressive visual effect upon ignition. The OZZ XR2 P7″ emits 5800 lumen, providing 1 lux at a distance of 470 meters. The driving beam pattern ensures optimal visibility with a wide and long-range reach. The lights have a color temperature of 5000 K, offering pleasant illumination in all conditions.

Technical data:

• Type of lamp - LED
• Type of LED - Osram
• Pcs LED - 16.0
• Voltage - 12-35V DC
• Theoretical effect (W) 12V - 80
• Theoretical effect (W) 24V - 80
• Actual effect (W) 12V - 78
• Actual effect (W) 24V - 75,6
• Nominal current at 12V - 5.68 A
• Nominal current at 24V - 2.6 A
• Theoretical lumen (Lm) - 7200
• Actual lumen (Lm) - 5800
• 1 lux @ (m) - 470
• Kelvin (K) - 5000
• IP-class (IP) - IP68/IP69K
• Beam pattern - Driving
• Position light - Dynamic white and amber
• Connection - 4-pin DT male + female
• Cable length (mm) - 800+200
• Material bracket - Stainless steel
• Material chassi - Aluminum
• Material lens - Polycarbonate

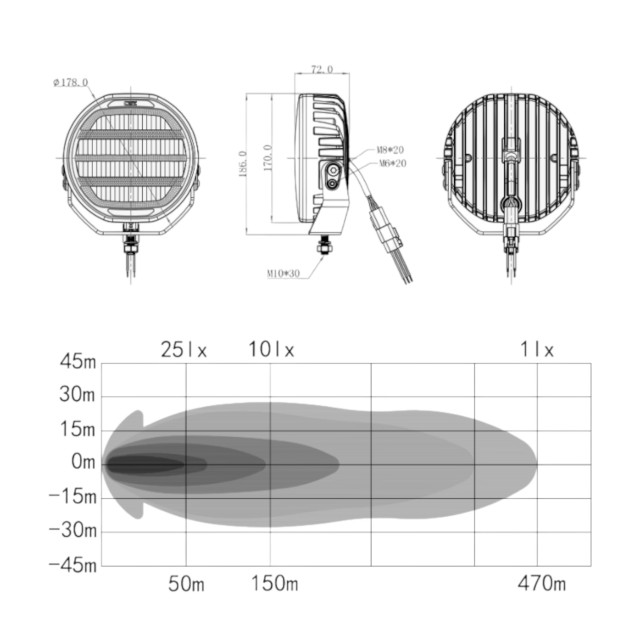

• ØxDxH (mm) - 178x72x170/186
• Operating temperature - -40 – +60°C
• E-mark approval - R112, R7
• EMC - ECE R10
• Ref. no. - 50
• Weight (kg) - 2
• Warranty - 3 years
