IZE LED OG 9" LED driving light

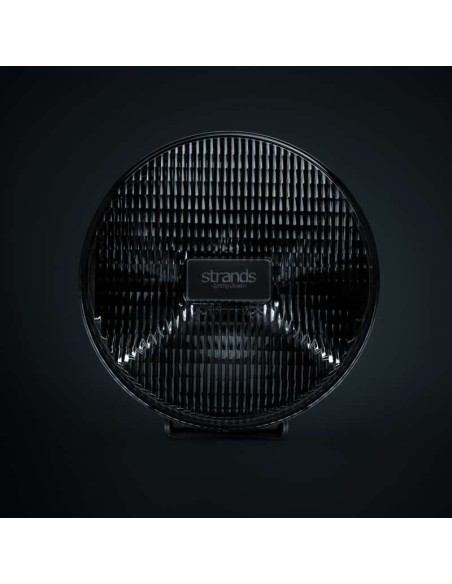

Modern power and old-school style. The IZE LED OG provides top-notch illumination with 12000 actual lumens and a 500-meter range in Xperience mode. The E-mode is E-approved R148/149 with reference number 20. It’s suitable for European roads and poor weather conditions, as it lessens glare from snow and rain. The extended beam pattern has a color temperature of 4500 K. A dual-color position light in white and amber creates a stunning old-school glow, just like in old times. The position light diodes are invisible when not used, so that you can enjoy the old-school design and expression of the lens. It’s inspired by the classic glass lenses but made from durable polycarbonate for modern quality. Thanks to the IP rating of IP68/69K, it can withstand both dirt and water. It’s covered by Strands’ 3-year warranty to guarantee a long lifespan.

Technical data:

• Unit - pcs
• Voltage - 12-36V DC
• Theoretical effect - 180W
• Functions - High beam, Amber and white position light
• Consumption specific function - Xperience mode: 172W / E-mode: 30W / White pos. light: 1W / Amber pos. light: 1W
• Theoretical lumen - 13500lm
• Actual lumen - E-mode: 3220lm / Xperience mode: 12000lm
• 1 lux @ E-mode: 273m / Xperience mode: 506m
• Color temperature - 4500K
• Beam pattern - Extended beam
• Beam angle - 33,2°
• Connection - Cable
• Cable length - 2500mm
• Color housing - Black
• Color lens - Clear
• Color LED´s - White/amber
• Material bracket - Stainless steel
• Material housing/chassi - Aluminium
• Material lens - Polycarbonate
• Depth - 94,8mm
• Height including bracket - 225,4mm
• Diameter - 215mm
• Weight - 2,0kg
• IP-class - IP68/69K
• Operating temperature - -40 - +60°C
• E-approved - Yes
• ADR-approved - No
• According to regulation - ECE R148, R149
• Reference number - 20
• EMC - ECE R10
• Warranty - 3 years
