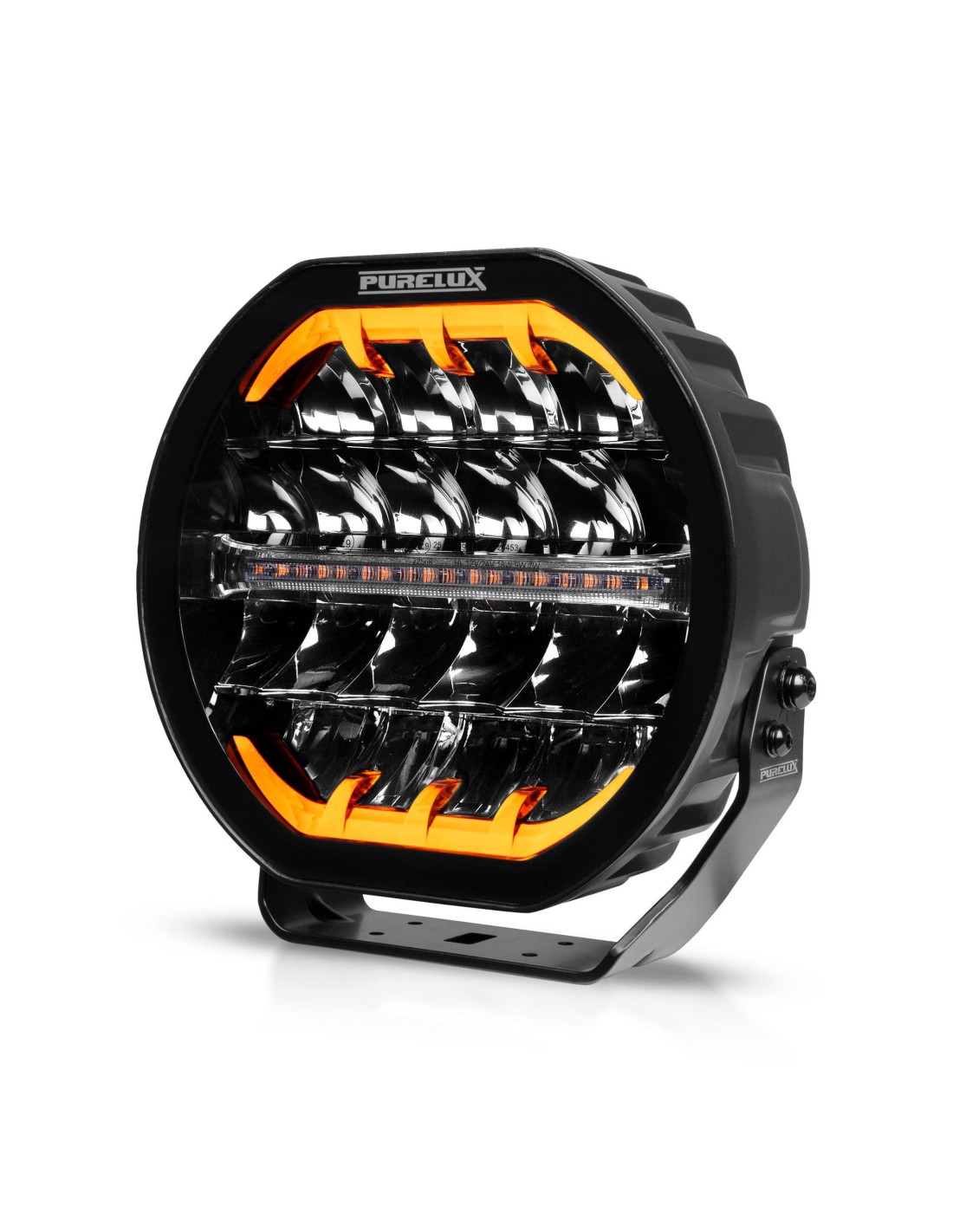

Purelux Ranger 9 LED Driving Lamp

A 9" auxiliary light with a unique combination beam, two different power modes and an R65-approved warning light, especially for higher installation locations. The stunning design and dynamic parking light that creates depth in the lens, which lights up in orange or white, bring a striking appearance to the fierce performance. Measured light output 11632 lumens, range 840 m @ 1 lux.

Delivery content (1 pc)

• Purelux Ranger 9
• Mounting foot
• Power cord with DTP-2 connector
• Connection and installation instructions (FI/SE/NO/DK)

Specification

• Brand and model: Purelux Ranger 9
• Intended use: As an auxiliary light in cars / work machines
• Operating voltage: 10-30 V (DC)
• Reference number: 25
• Rated power: 188 W
• Power consumption measured by the light bulb
• Purelux PowerBoost®: 5.98A @ 24V
• Road mode: 0.69A @ 24V
• Power measured by the light bulb
• Purelux PowerBoost®: 143.7 W
• Road mode: 16.6 W
• Parking lights: 7.3 W
• Luminous efficacy measured by laboratory: 11632 lm (Purelux PowerBoost®) / 1365 lm (Road mode)
• Range measured by the light tower: 840 m @ 1 lux / 1680 m @ 0.25 lux (Purelux PowerBoost®)
• Range measured by the beacon: 315 m @ 1 lux / 630 m @ 0.25 lux (Road mode)
• Range with multiple lights, measured (PowerBoost® / E-approved, @ 1 lux):
  With two: 1188 m / 445 m (@ 1 lux)
  With three: 1455 m / 546 m (@ 1 lux)
  With four: 1680 m / 630 m (@ 1 lux)
• Manufacturer's stated color temperature: 5700 K
• Measured by laboratory: 6060 K
• Mounting: Mounting foot
• Connector: DTP-2
• Parking lights and hazard warning lights + separate wires
• Cable length: approx. 700 mm

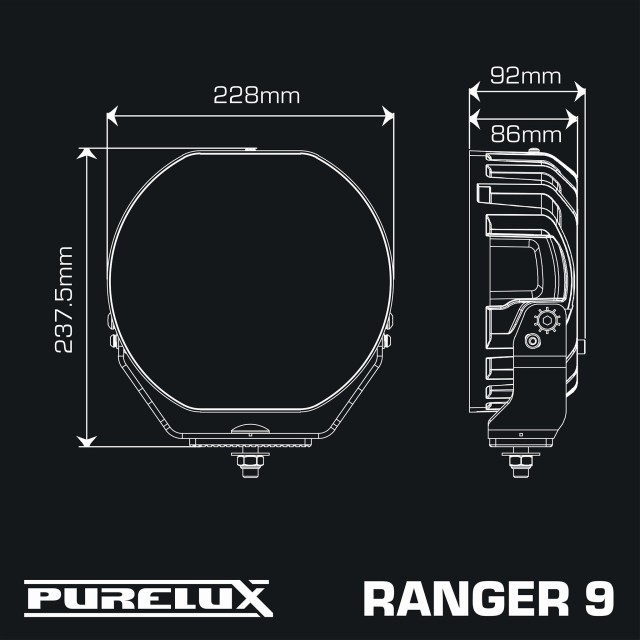

• Dimensions: 228 x 209 x 92 mm (Width x Height x Depth)
• Height with mounting foot: 237.5 mm
• Weight: 3000g
• IP rating: IP69K
• Approvals: ECE R10, R148, R149, R65, CE, RoHS
• Road traffic approval does not apply to Purelux PowerBoost® mode
• Warranty: 24 months
