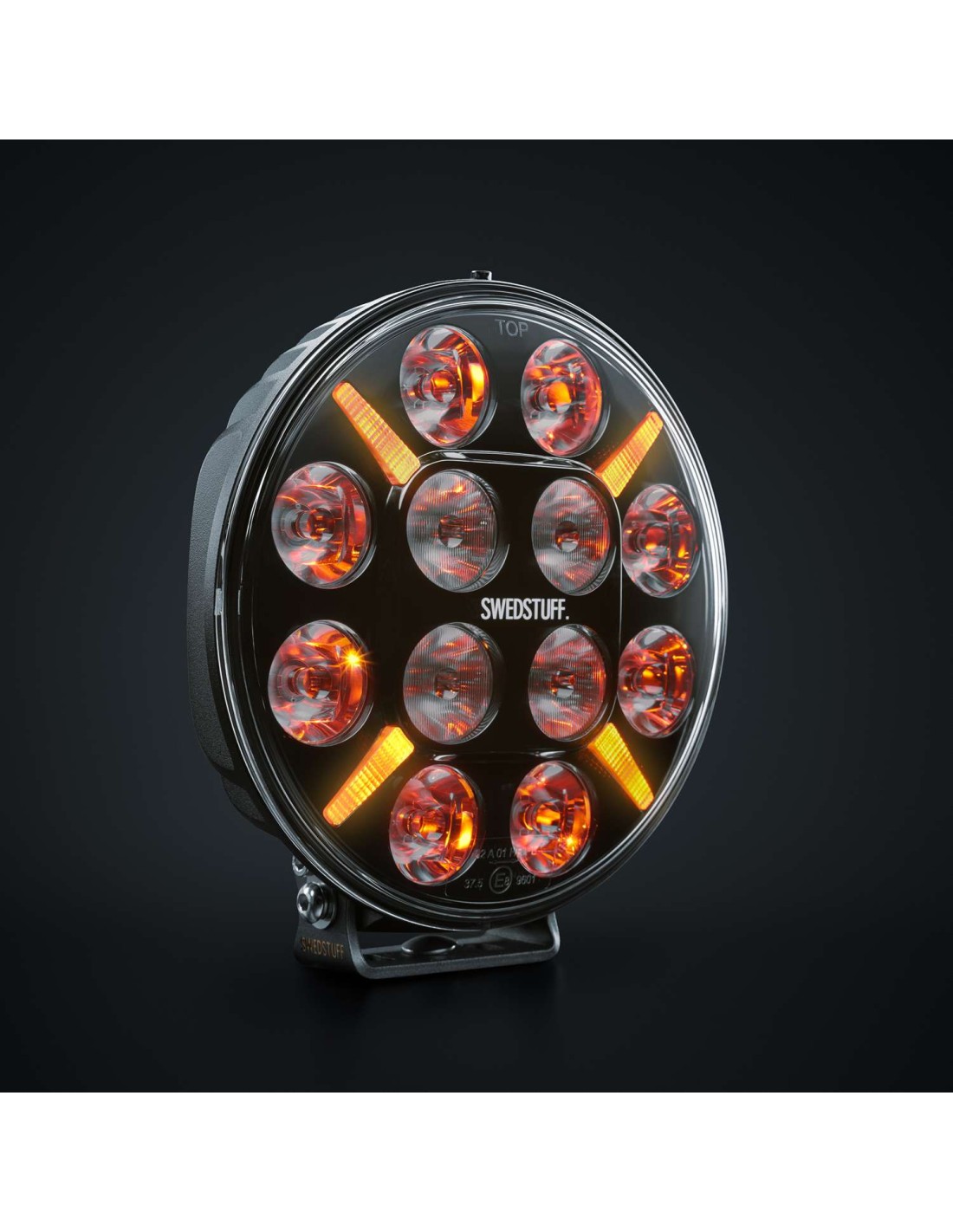

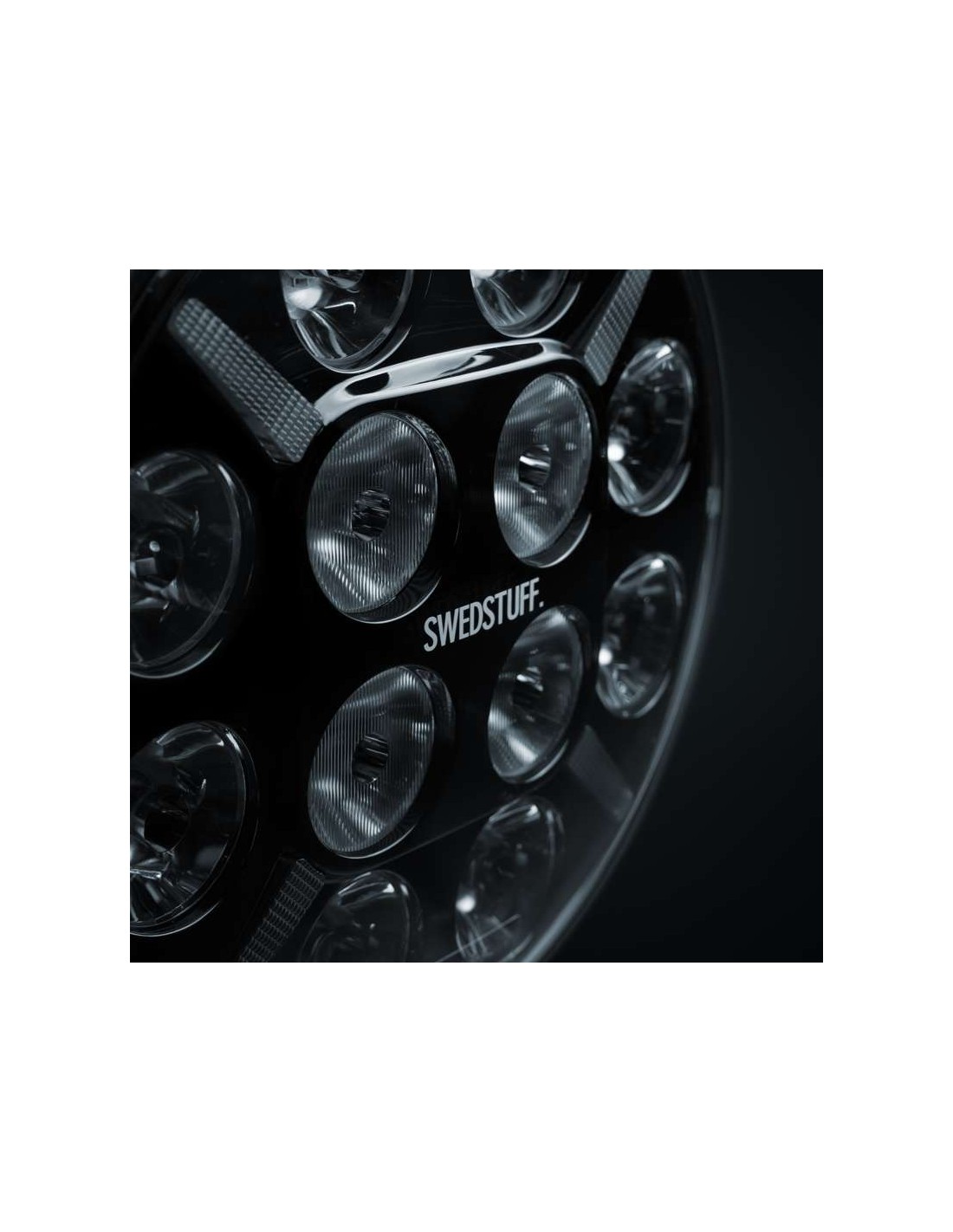

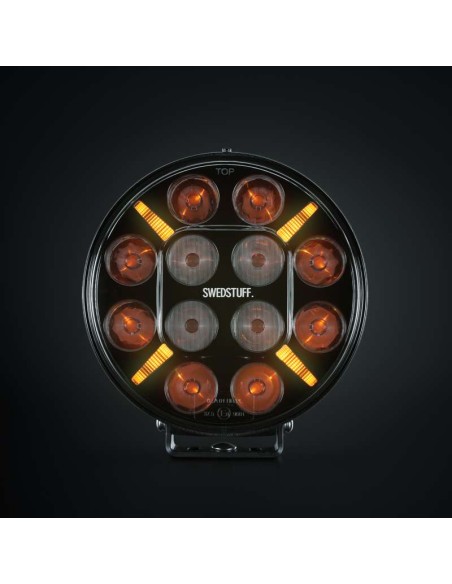

Swedstuff LDL-04 LED Driving light
270799
Number of customers interested in this product: 5

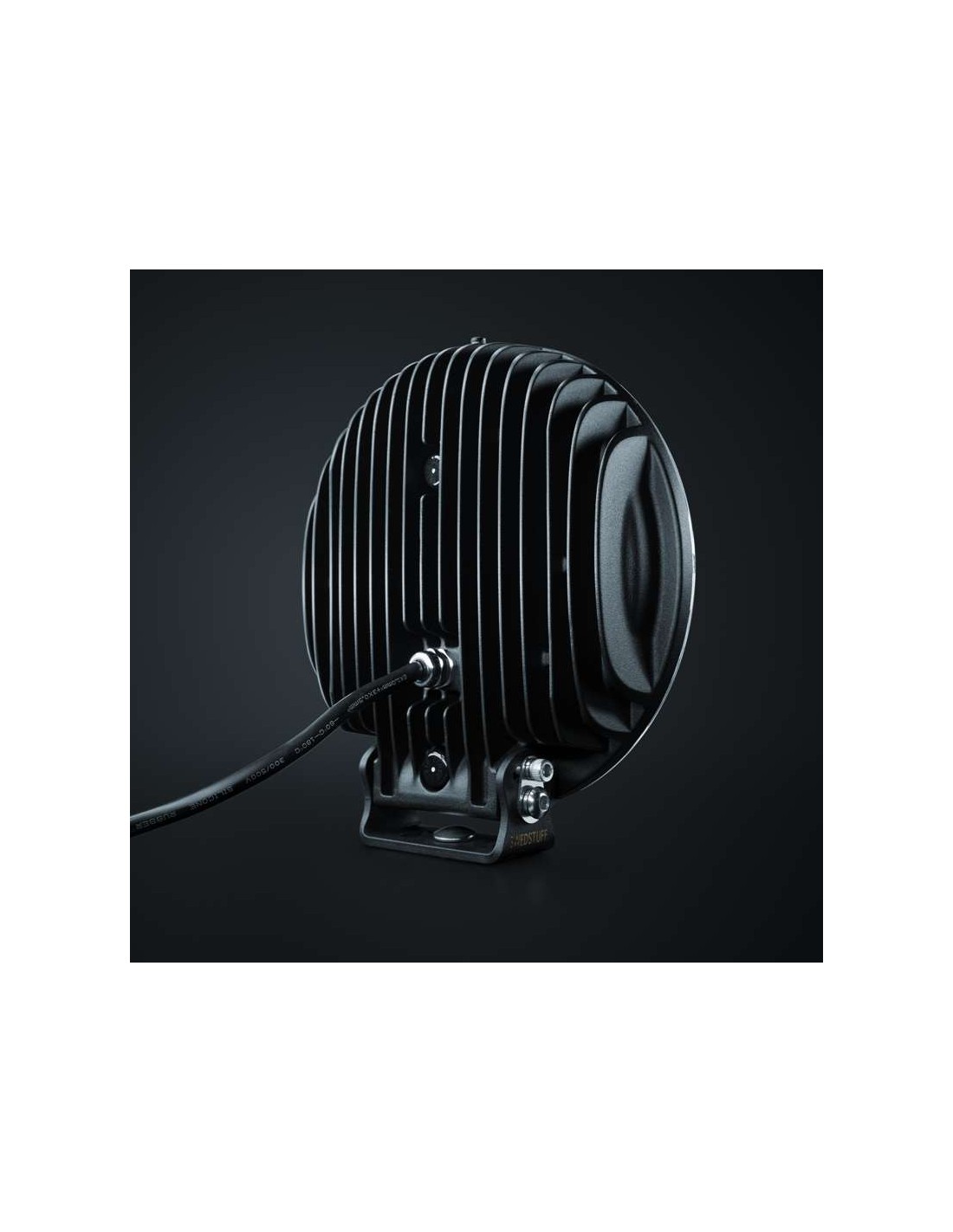

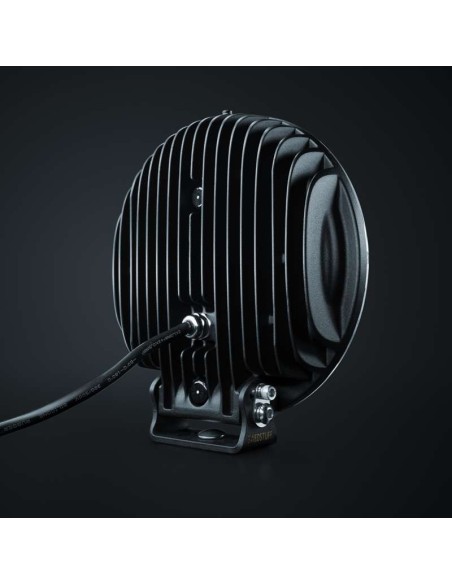

Experience a new level with the new LDL-04. The slim 9″ LED driving light for those who want to move away from the traditional look. LDL-04 is modern, efficient and durable. Comes with a duo position light – where you choose the colour between white and orange. The placement of the four position lights forms an eye-catching pattern that creates character and enhances the overall impression of your vehicle. The lamp gives you a very efficient light on the road, 1 LUX at 650 metres. Moreover, it gives you a softer and more pleasant lighting experience with a new light colour temperature of 5000 Kelvin. The light mimics and enhances the car’s original headlights. An extended combination of length and width, perfect for a varied driving experience. The LDL-04’s TIR (total inner reflection) reflectors contribute to efficiency far more than traditional reflectors. Light is reflected, packaged and directed before being emitted. So – no unnecessary waste of useful light. On the back of the lamp are heat sinks that effectively cool the lamp when needed. By carefully drilling a hole through the heat sinks, they can also be used to mount stabilisation bars.
Technical data:
- Unit - pcs
- Voltage - 10-36V DC
- Theoretical effect - 120W
- Consumption - 115,0W
- Consumption specific function - Xperience mode: 115W / E-mode: 46W / White position light: 1,2W / Yellow position light: 1,2W
- Theoretical lumen - 13000lm
- Actual lumen - E-mode: 4600lm / Xperience mode: 9600lm
- 1 lux @ - E-mode: 435m / Xperience mode: 650m
- Color temperature - 5000K
- Beam pattern - Extended beam
- Beam angle - 23,9°
- Connection - DT-4PIN
- Cable length - 500mm
- Color housing - Black
- Color lens - Clear
- Material bracket - Stainless steel
- Material housing/chassi - Aluminum Alloy Die Castings(ADC12)
- Material lens - Polycarbonate
- Depth - 70mm
- Height including bracket - 233,5mm
- Diameter - 218mm
- Weight - 1,82kg
- IP-class - IP68/69K
- Operating temperature - -40 - +62°C
- E-approved - Yes
- According to regulation - ECE R7, R112
- Reference number - 37,5
- EMC - ECE R10
- Warranty - 1 year
