PURELUX Panther Aero C1050 Curved - 103 cm 216W LEDBAR

A low and aerodynamically shaped led bar, which is equipped with e.g. With PowerBoost® technology, a wonderful combination beam and two-color parking light! Thanks to the curved and slim frame, it is easy to fit the bar to any car! Measured light output 16984 lm, measured range 469 m @ 1 lux.

Curved body, wide beam

Two power modes (Purelux PowerBoost®)

16984 lumens, 469 meters (@ 1 lux)

Pleasant 5000K color temperature

Aerodynamic and slim structure

Stylish two-color parking light

Frameless Lexa polycarbonate lens

Easy attachment with end or bottom brackets

The Purelux Panther Aero C1050 is an aerodynamically shaped led bar, which is the latest addition to its manufacturer's slim-frame Panther Aero product family. This led bar combines both a modern appearance and a great size-to-power ratio, which together elevate it to the best of single-row led bars. Externally, the bar is understatedly stylish thanks to its dark optics, low structure, frameless lens and two-color parking light (orange and white), but inside it hides a tremendous performance for its size. The Aero C1050 has two different power modes, i.e. it can be switched on either the limited power mode approved for road traffic or the Purelux PowerBoost® mode that releases full power, where the light output reaches 16984 lumens with a measured range of 469 meters @ 1 lux.

"Notorious Panther performance"

Unlike usual, you don't need to connect or disconnect any extra wires to activate the lamp's different power modes, instead switching between PowerBoost® and road mode is unprecedentedly easy by pressing the button at the end of the lamp. The power mode that was last used remains in the lamp's "memory", and thus you don't have to worry, e.g. when driving on the road, that the lamp always turns on at maximum power when the power is turned off in between and the car starts moving again.

Note! You can clearly see the difference between Purelux PowerBoost® and road traffic mode - PowerBoost® mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

The beam of the Panther Aero C1050 consists of a rectangular wide main beam, which is the perfect combination of both range and width. Thanks to the curved design, the bar spreads light laterally over a very wide area, so that roadsides, ditches and forest edges can be illuminated effectively right from the front of the car. In the vertical direction, the light beam is softly delimited, which is why it is especially optimal for bumber installations. Despite the height-limited beam, there is still enough light for driving on hilly terrain and for roof installations.

The differences between the curved and straight Panther can be found in the light beam: in both models, the beam is sufficient to illuminate the entire road from side to side, but in the curved bar, the main beam is approx. 50% wider, and it is also slightly narrower in the vertical direction than in the straight model. The efficiently lit area is therefore wider in the curved model, while the straight model maximizes the range of the spotlight. If the goal is to find the widest possible light pattern, a curved bar is the right choice, and if you want a bit more range, a straight model is the right choice. Because in the curved model the spotlight is straighter at the top and bottom, it is a slightly better option for really low installations.

Along with the precisely finished light beam, a feature that significantly improves the driving experience is the light's neutral color temperature of 5000 Kelvin. Neutral color temperature is optimal for road traffic, as it facilitates the observation of terrain shapes and obstacles, and does not distort the color of objects. In addition, it dazzles less cool tones from e.g. snow cover or in fog and rain, and reduces the strain on the eyes. The 5000K color temperature perfectly matches newer cars with standard LED or Xenon lights, and brings the desired brightness and sharpness even alongside traditional halogen lights.

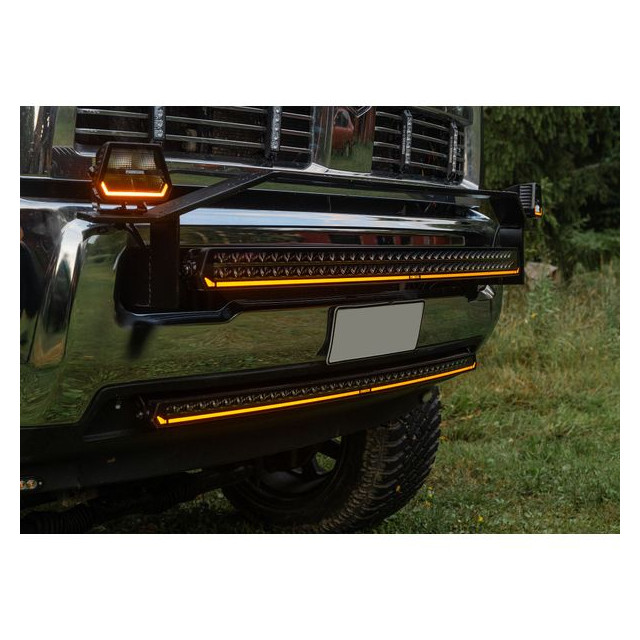

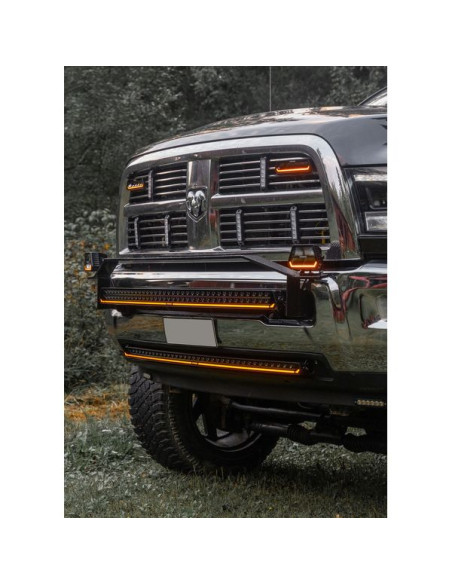

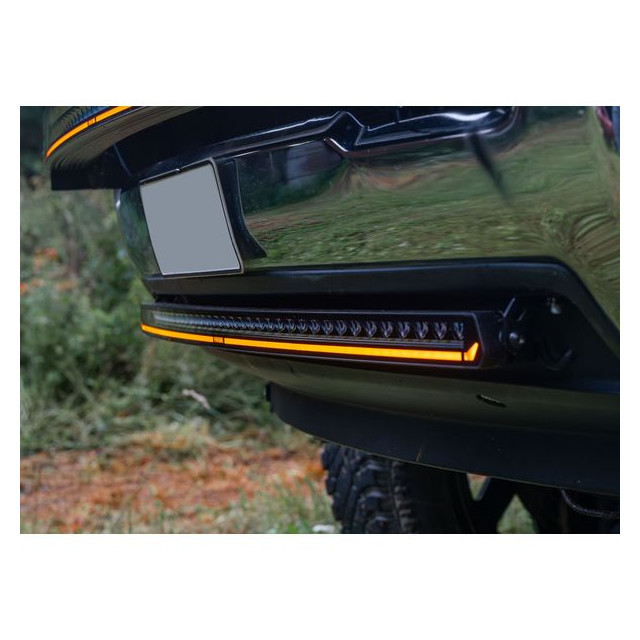

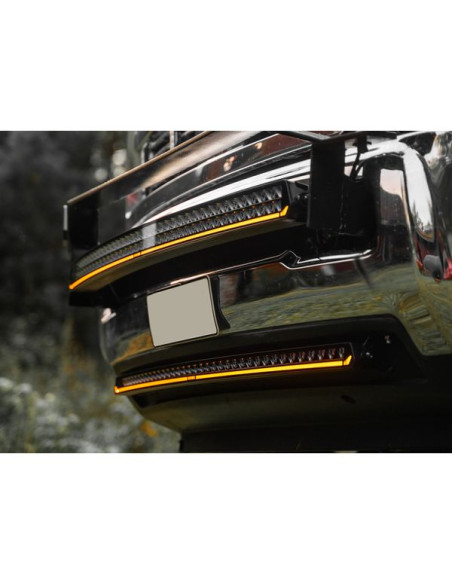

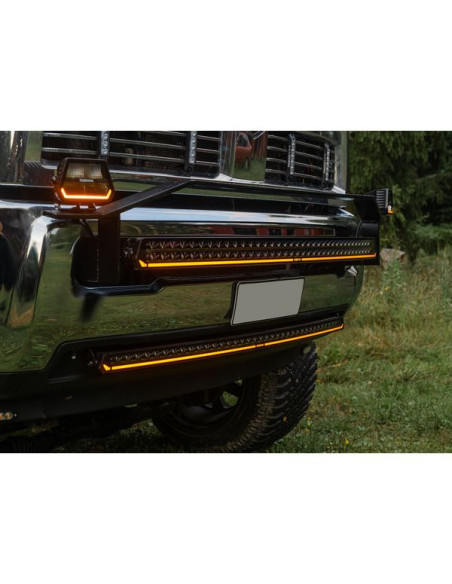

The Panther Aero C1050's aerodynamics, stylish black profile, dark optics, and the orange or white parking light running beautifully at the bottom of the light make the bar a finished and modern addition to any vehicle. In addition to visibility and great lighting properties, the lamp is also very durable, as evidenced by, for example, its highest possible tightness rating IP69K. The body of the lamp is made of powder-coated aluminum, which has been treated with a special coating that is excellently resistant to oxidation, the sun's harmful UV rays, variable weather conditions and also protects against dirt. The lamp's lens is impact-resistant and high-quality Lexa polycarbonate, which can withstand the inevitable stone blows and scratches from branches when driving. The front of the light is designed completely flat, meaning there is no frame around the lens that collects snow, ice or dirt.

"Purelux Panther series is made with uncompromising quality and top of the line performance. Every feature is finely tuned to fit any type of situation and vehicle. Don't hesitate, ride with the Panther!” - Purelux

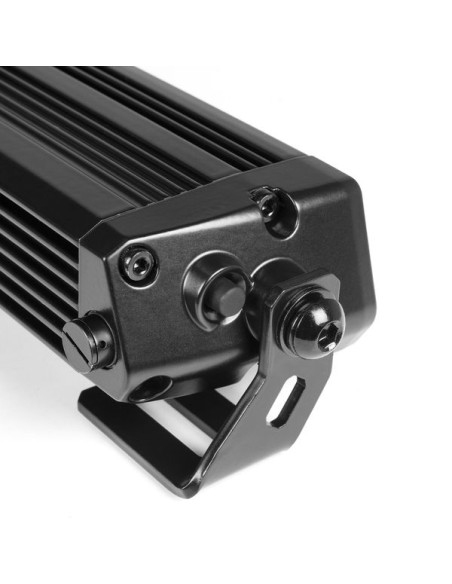

The light comes with both the traditional end legs and the width-adjustable rail mounts below the light, so it can be easily attached to different objects. The bar's exceptionally low structure enables installation even in tight installation spaces, and the wide operating voltage range (9-36 V) enables connection to both 12V and 24V systems. The Panther Aero C1050 is also radio interference protected according to the ECE R10 standard. Two-year (24 months) warranty!

Basic delivery content

Purelux Panther Aero C1050

2 x Width-adjustable lower legs

2 x End feet

Power cable counterpart

Connection and installation instructions (FI/SE/NO/DK)

Specifications

Brand and model: Purelux Panther Aero C1050

Purpose: As an additional light in cars / Off-Road vehicles / work machines

LED: 36 x 6W

Operating voltage: 9-36 V (DC)

Reference number: 50

Calculated power: 216 W

Power consumption measured by laboratory

Purelux PowerBoost®: 10A @ 24V

Road mode: 4.25A @ 24V

Power measured by laboratory

Purelux PowerBoost®: 240W @ 24V

Road traffic mode: 102 W @ 24V

Light output stated by the manufacturer: 17000 lm

Measured by laboratory: 16984 lm (Purelux PowerBoost®)

Measured by laboratory: 8258 lm (Road traffic condition)

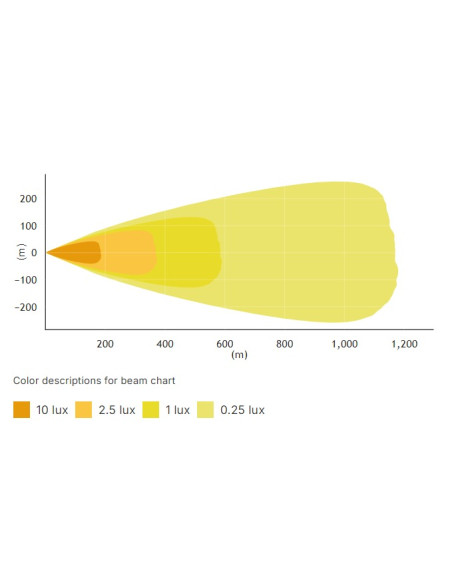

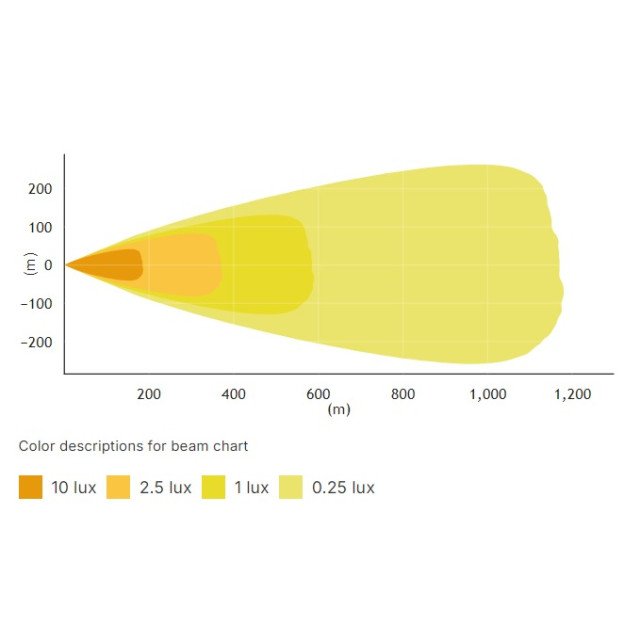

Range measured by laboratory: 469 m @ 1 lux / 938 m @ 0.25 lux / (Purelux PowerBoost®)

Range measured by laboratory: 337 m @ 1 lux / 674 m @ 0.25 lux (Traffic mode)

Color temperature stated by the manufacturer: 5000 K, Measured by laboratory: 5055 K

Fastening: End legs, width-adjustable lower legs

Connector: No connector, straight wires

Cable length: 220 cm

Dimensions: 1026 x 42 x 62 mm (Width x Height x Depth)

Height with end legs: 57 mm

Height with lower legs: 62 mm

Weight: 3013 g

Radius of curvature: 2800 mm

IP rating: IP69K

Approvals: ECE R10, R148, R149*

*Road traffic approval does not apply to PowerBoost® mode

Warranty: 24 months
