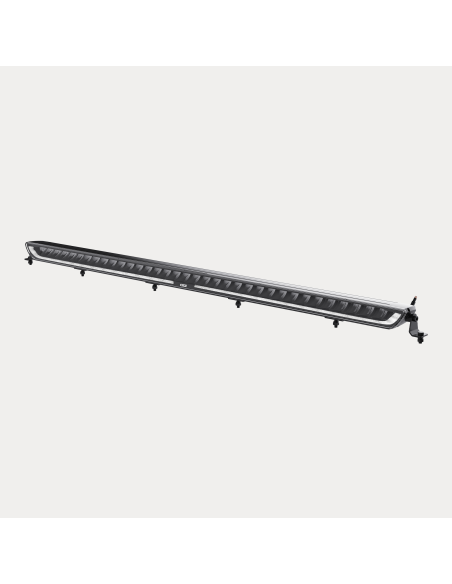

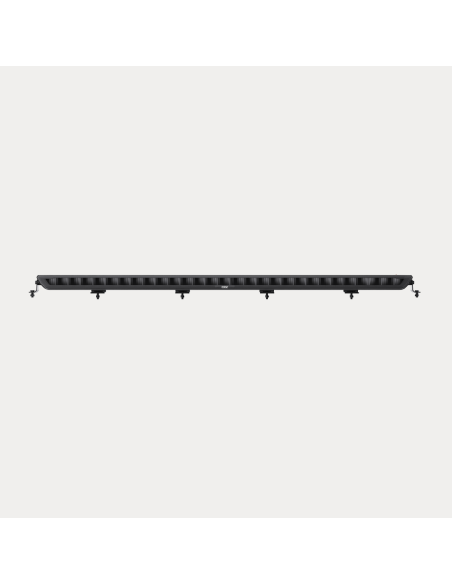

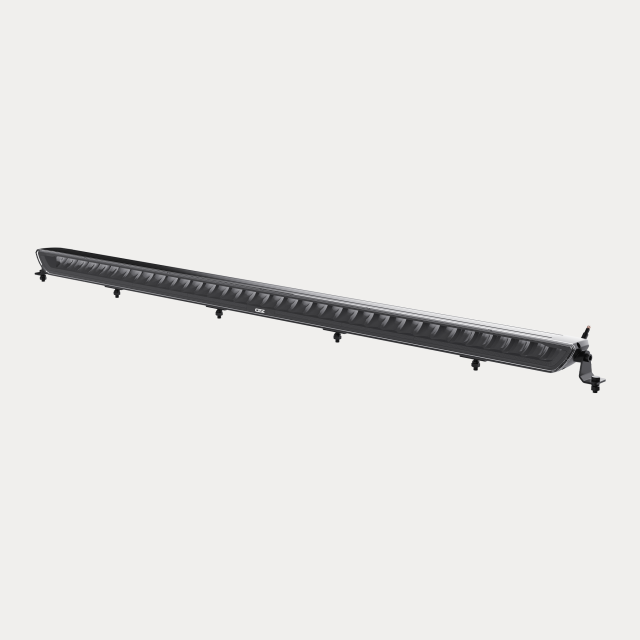

OZZ XB1 P52" Black, ledbar with position light, black housing

OZZ XB1 P52” black LED light bar is designed to boost safety and style in all driving conditions. Seamlessly integrating with OZZ’s lighting range, the XB1 P52” offers a sleek, modern design that enhances any vehicle. This high-performance light bar feature dynamic dual position light in white and amber, and delivers 14400 lumens increasing to 19800 in boost mode. Its 1 lux range reaches up to 480 meters and 980 meters in boost mode, significantly improving road awareness. Built for durability, the XB1 P52” features aluminum housing, polycarbonate lens, and stainless steel brackets. Fully compliant with ECE R112 and R10 standards, this light bar guarantees safety and reliability, backed by a 3-year warranty.

Technical data:

• Type of lamp - LED
• Pcs LED - 36
• Voltage - 10-32V DC
• Actual effect (W) 12V - R112: 80W, boost: 265W
• Actual effect (W) 24V - R112: 80W, boost: 265W
• Nominal current at 12V - R112: 6,66 A, boost: 22,08 A
• Nominal current at 24V - R112: 3,33 A, boost: 11,04 A
• Theoretical lumen (Lm) - 36000
• Actual lumen (Lm) - R112: 14400, boost: 19800
• 1 lux @ - R112: 480 m, boost: 980 m
• Kelvin (K) - 5000
• IP-class (IP) - IP68/IP69K
• Beam pattern - Driving
• Position light - dynamic white and amber
• Connection - 2 pin DTP male + female
• Cable length (mm) - 2700
• Material bracket - Stainless steel
• Material chassi - Aluminum
• Material lens - Polycarbonate

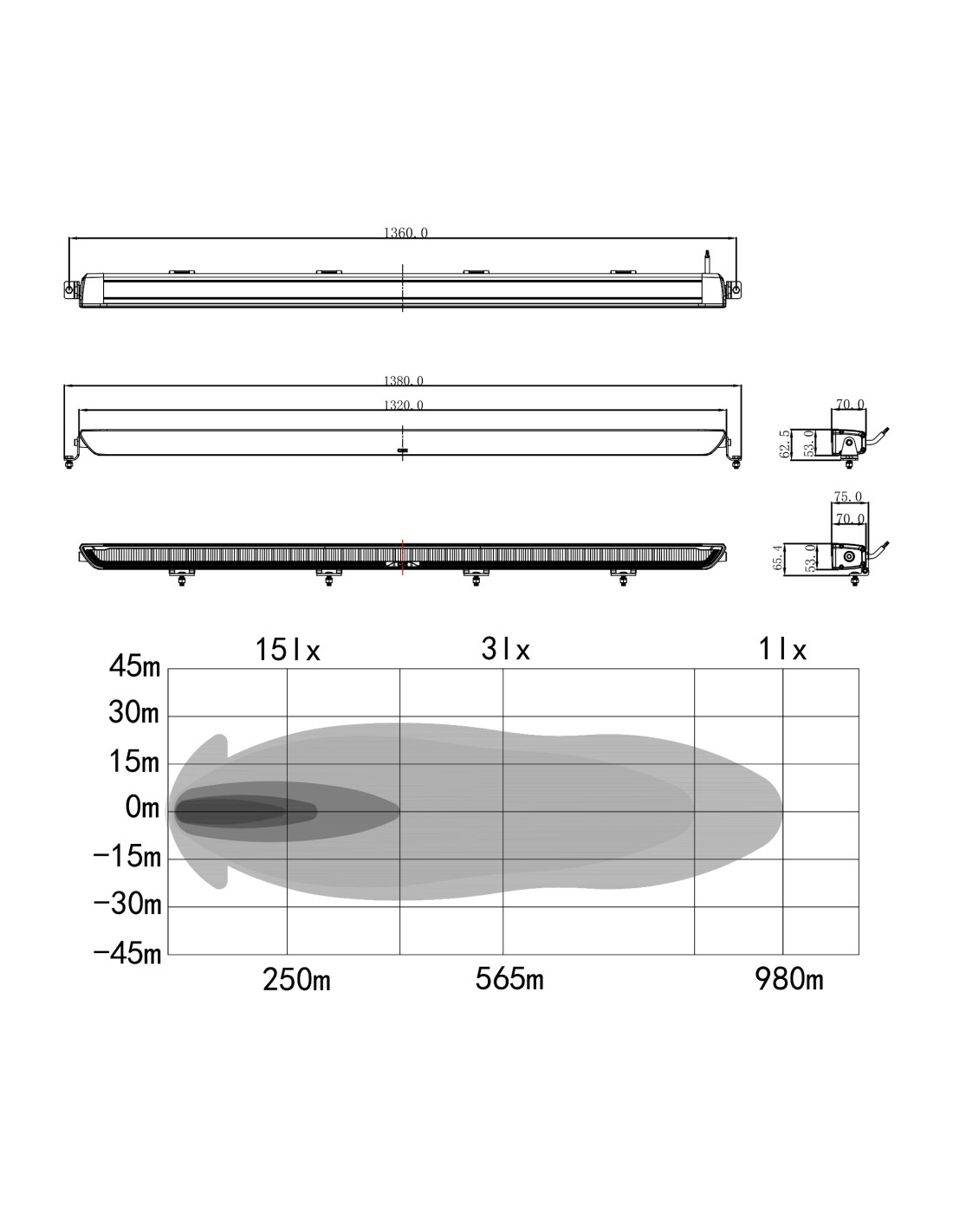

• LxDxH (mm) - 1320x70x53
• Height including bracket (mm) - 61/63,9
• Operating temperature - -40 – +60°C
• E-mark approval - R112, R7
• EMC - ECE R10
• Ref. no - 50
• Weight (kg) - 6
• Warranty - 3 years
