PURELUX Panther C1050 Curved - 103 cm 432W LEDBAR

A curved led bar designed for demanding users, which offers great performance and is equipped with e.g. with two different power modes and a really wide combination light pattern! The light also includes an orange and white parking light and a neutral 5000K color temperature. Measured light output 25187 lm, measured range 591 m @ 1 lux.

PowerBoost® technology

Unfathomable size-performance ratio!

A long-range combination beam

25187 lumens, 591 meters (@ 1 lux)

Pleasant 5000K color temperature

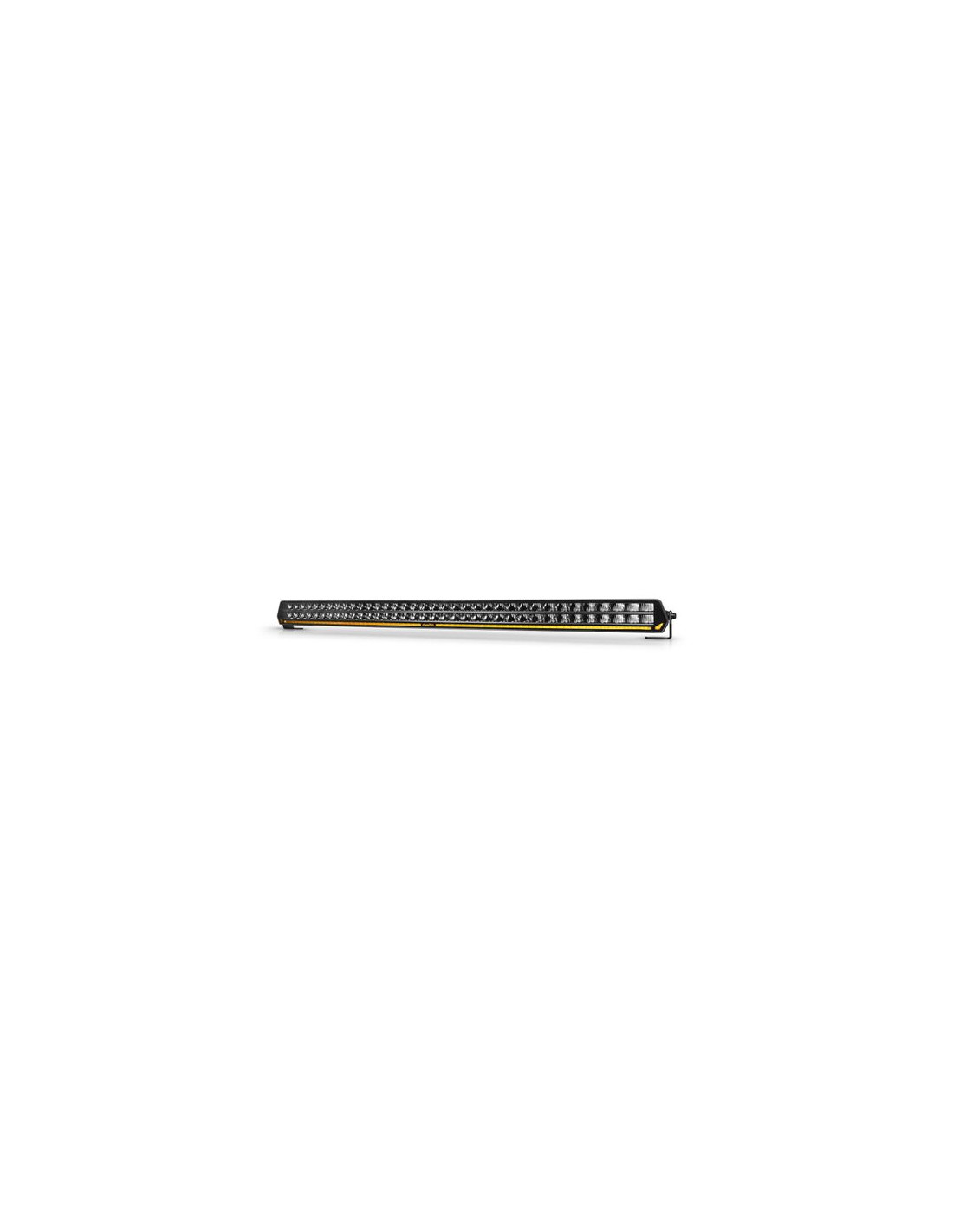

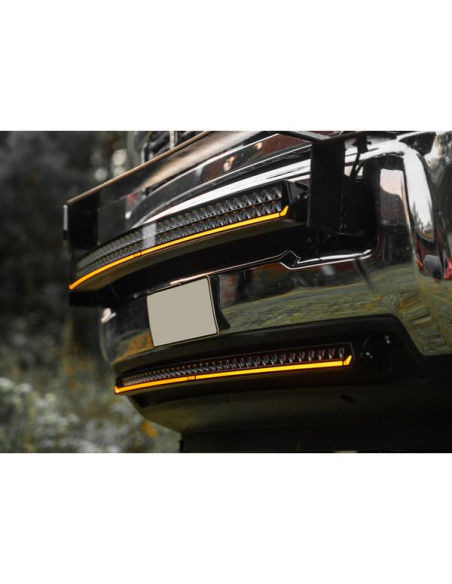

Stylish two-color parking light

Frameless Lexa polycarbonate lens

Easy attachment with end or bottom legs

The Purelux Panther C1050 is the largest and most powerful model of the curved Panther led bars, whose incredible performance, wide combined light beam and stylish appearance will convince even more experienced drivers. The light has two different power modes, thanks to which it is possible to switch on either the more moderate power mode intended for road traffic or the PowerBoost® mode that releases untamed light power, which releases a light power of up to 25187 lumens in front of the vehicle and increases the range to 591 meters (@ 1 lux). The power mode can be changed easily by pressing the button on the frame, so there is no need to make laborious connections! Explosive performance and a wide composite light pattern combined with a curved shape and a wonderful design elevate the Panther C1050 to the best of its size class.

"Notorious Panther performance"

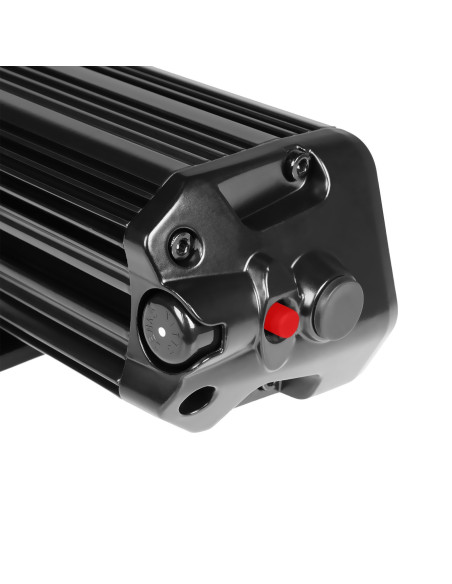

Unlike usual, no extra cord needs to be connected or disconnected to activate the lamp's different power modes, but switching between PowerBoost® and road mode is unprecedentedly easy by pressing the button at the end of the lamp. The last used power mode remains in the lamp's "memory", and thus there is no need, for example, in road traffic use, to ensure that the lamp always turns on at maximum power, when the power is turned off in between and the car starts moving again.

Note! You can clearly see the difference between Purelux PowerBoost® and road traffic mode - PowerBoost mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

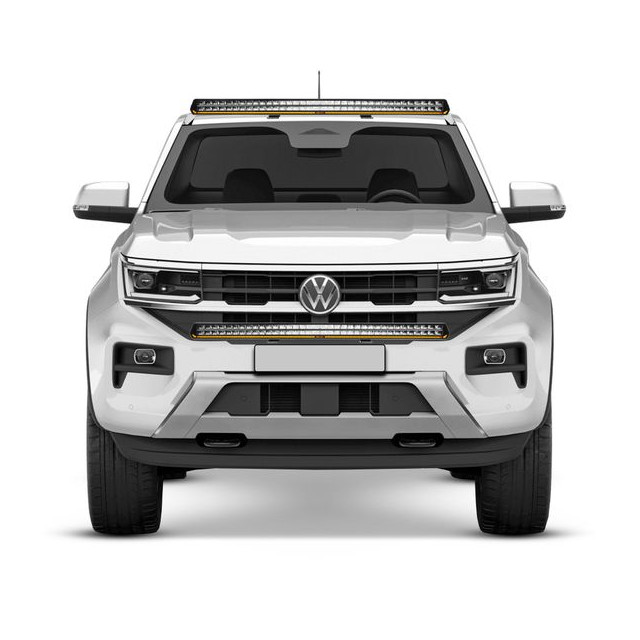

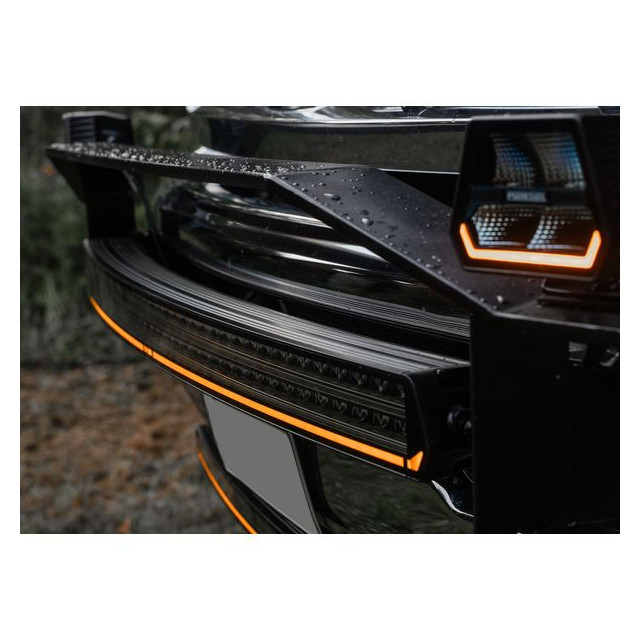

The beam of the Panther C1050 consists of a rectangular wide main beam, which is the perfect combination of both range and width. Thanks to the curved design, the bar spreads light laterally over a very wide area, so that roadsides, ditches and forest edges can be illuminated effectively right from the bow. In the vertical direction, the light beam is softly defined, which is why it is especially optimal for bow installations. Despite the height-limited beam, there is still enough light for driving on hilly terrain and for roof installations.

The differences between the curved and straight Panther can be found in the light beam: in both models, the beam is sufficient to illuminate the entire road from side to side, but in the curved bar, the main beam is approx. 50% wider, and it is also slightly narrower in the vertical direction than in the straight model. The efficiently lit area is therefore wider in the curved model, while the straight model maximizes the range of the spotlight. If the goal is to find the widest possible light pattern, a curved bar is the right choice, and if the range is a bit more, the straight model is the right choice. Because in the curved model the spotlight is straighter at the top and bottom, it is a slightly better option for really low installations.

Along with the precisely finished light beam, a feature that significantly improves the driving experience is the light's neutral color temperature of 5000 Kelvin. Neutral color temperature is optimal for road traffic, as it facilitates the observation of terrain shapes and obstacles, and it does not distort the color of objects. In addition, it dazzles less cool tones from e.g. snow cover or in fog and rain, and reduces the strain on the eyes. The 5000K color temperature perfectly matches newer cars with standard LED or Xenon lights, and brings the desired brightness and sharpness even alongside traditional halogen lights.

In addition to excellent lighting properties, the Panther C1050 has been created to withstand the stresses of the environment, as evidenced by e.g. the highest possible tightness rating (IP69K), a practically unbreakable Lexa polycarbonate lens, a frame made of strong aluminum and a special coating that guarantees the bar excellent durability against UV radiation, corrosion, chemicals and changing weather conditions. In addition to protection, the high-quality coating also gives the bar body a slightly shiny surface that exudes dignity, quality and style. The wonderful overall look is crowned by black mounting screws and dark optics, which have also been brought to the parking light in a modern way to guarantee elegance even when the bar is off.

"Purelux Panther series is made with uncompromising quality and top of the line performance. Every feature is finely tuned to fit any type of situation and vehicle. Don't hesitate, ride with the Panther!” - Purelux

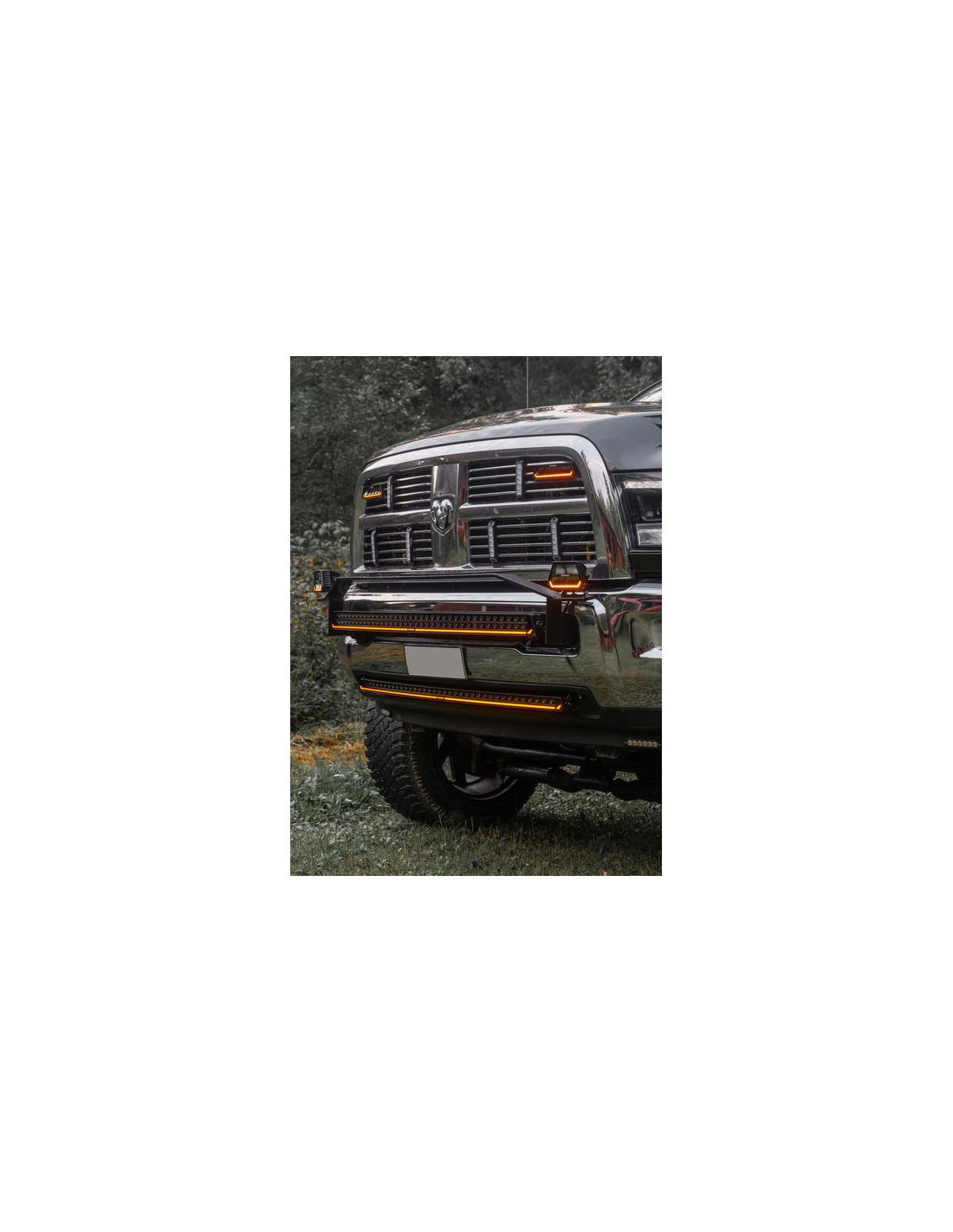

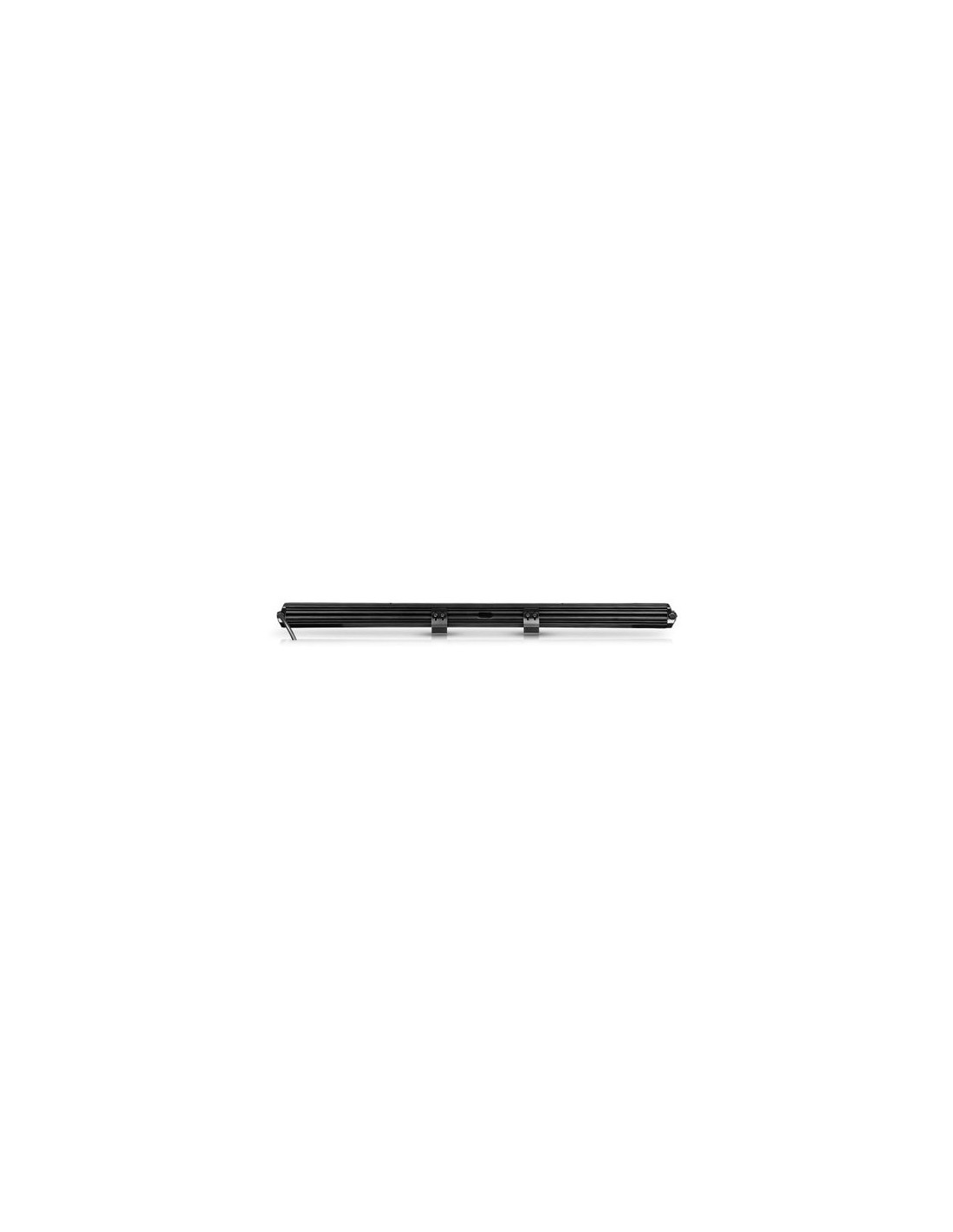

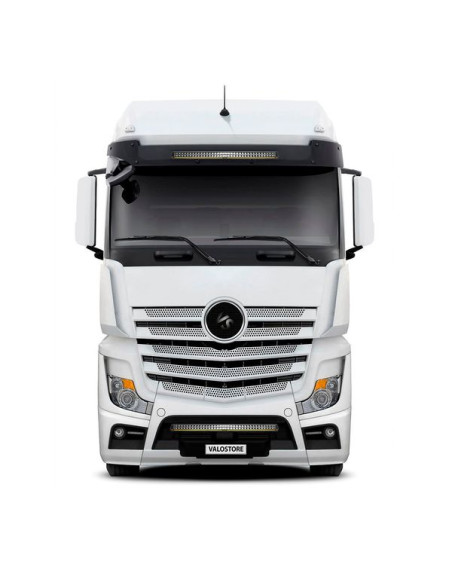

The light comes with both the traditional end legs and the width-adjustable rail mounts below the lamp. The installation is made easier by the ready-made attachment points for support irons in the bar body (the use of support irons is not necessary, if the installation can otherwise be carried out securely). The wide operating voltage range (9-36V) enables installation in both 12V and 24V systems. In addition, the lamp is protected against radio interference in accordance with the ECE R10 standard. Two-year (24 months) warranty!

Basic delivery content

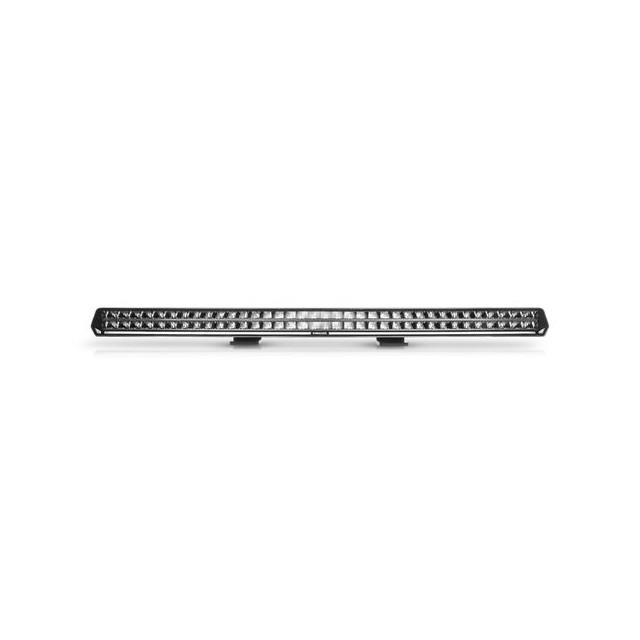

Purelux Panther C1050

2 x Width-adjustable lower legs

2 x End feet

Connection and installation instructions (FI/SE/NO/DK/EN)

Specifications

Brand and model: Purelux Panther C1050

Purpose: As an additional light in cars / Off-Road vehicles / work machines

LED: 72 x 6W

Operating voltage: 9-36 V (DC)

Reference number: 50

Calculated power: 432 W

Power consumption measured by laboratory

Purelux PowerBoost®: 14.5A @ 24V

Road mode: 3.5A @ 24V

Power measured by laboratory

Purelux PowerBoost®: 350W @ 24V

Road traffic mode: 84 W @ 24V

Parking light: 6 W

Light output declared by the manufacturer: 26600 lm (Purelux PowerBoost®)

Measured by laboratory: 25187 lm (Purelux PowerBoost®)

Measured by laboratory: 8609 lm (Traffic condition)

Range measured by laboratory: 591 m @ 1 lux / 1182 m @ 0.25 lux (Purelux PowerBoost®)

Range measured by laboratory: 334 m @ 1 lux / 668 m @ 0.25 lux (Traffic mode)

Color temperature stated by the manufacturer: 5000 K, Measured by laboratory: 5054 K

Fastening: End legs, width-adjustable lower legs

Connector: Straight wires, no connector

Cable length: 220 cm

Dimensions: 1028 x 66 x 70 mm (Width x Height x Depth)

Height with end legs: 78 mm

Height with lower legs: 81.5 mm

Weight: 4600 g

Radius of curvature: 2800 mm

IP rating: IP69K

Approvals: ECE R10, R148, R149*

*Road traffic approval does not apply to the Purelux PowerBoost® mode

Other: The panel has ready-made places for stabilizers

Warranty: 24 months
