OZZ XB1 P20" White, ledbar with position light, white housing

Experience the power of light with OZZ XB1 P20″ dynamic LED light bar. This innovative light bar features dynamic start-up position light in white and amber, creating a modern look for your vehicle. This 544 mm light bar delivers 7000 lumen, providing 1 lux at a distance of 610 meters. The driving beam pattern ensures optimal visibility with a wide and long-range reach. The light has a color temperature of 5000 K, offering pleasant illumination in all conditions.

Technical data:

• Type of lamp - LED
• Type of LED - CREE
• Pcs LED - 14
• Voltage - 10-32V DC
• Theoretical effect (W) 12V - 140
• Theoretical effect (W) 24V - 140
• Actual effect (W) 12V - R112: 77W, boost: 98W
• Actual effect (W) 24V - R112: 73W, boost: 109W
• Nominal current at 12V - R112: 6,39 A, boost: 8,14 A
• Nominal current at 24V - R112: 3,01 A, boost: 4,54 A
• Theoretical lumen (Lm) - 11200
• Actual lumen (Lm) - R112: 4900, boost: 7000
• 1 lux @ - R112: 480 m, boost: 610 m
• Kelvin (K) - 5000
• IP-class (IP) - IP68/IP69K
• Beam pattern - Driving
• Position light - dynamic white and amber
• Connection - 4-pin DT male + female
• Cable length (mm) - 1000
• Material bracket - Stainless steel
• Material chassi - Aluminum
• Material lens - Polycarbonate

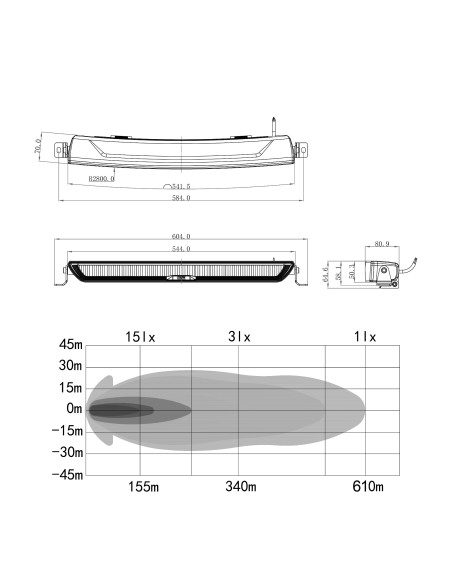

• LxDxH (mm) - 541,5/544×80,9×50,3
• Height including bracket (mm) - 58,1/64,6
• Operating temperature - -40 – +60°C
• E-mark approval - R112, R7
• EMC - ECE R10
• Ref. no - 50
• Weight (kg) - 1,58
• Warranty - 3 years
