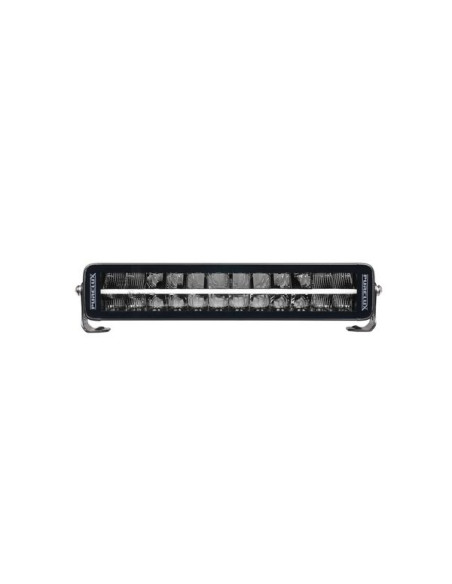

PURELUX Black Boost S360 Gen3 - 36 cm 120W LEDBAR

A stylish two-row led bar, which is equipped with e.g. with two-color dynamic parking light and two different power modes. Great performance at a great price! Measured light output 7723 lm, measured range 558 m @ 1 lux.

The Purelux Black Boost S360 Gen3 is part of its manufacturer's updated Black auxiliary light series, which brings top quality and strong performance to an affordable price range. The S360 Gen3 has the familiar two different power modes from the previous version, a wide combination beam and, of course, an edgy appearance. As a novelty, the two-color (orange or white) parking light has been updated to be dynamic, and switching between power modes has been made even easier. Black Boost S360 is now even more stylish and at the same time more user-friendly! Thanks to the two different power modes, the panel can be used with a selection integrated into the user interface (see more below) to switch on either the more moderate power mode approved for road traffic, or the more powerful PowerBoost® mode designed for off-road use. In the power mode approved for road traffic, the S360 Gen3 offers a light output of a measured 3650 lumens, and when unlimited PowerBoost® is switched on, the measured light output from the panel rises to 7723 lumens with a range of 558 meters @ 1 lux, which is an impressive performance for a panel of this size.

Note! You can clearly see the difference between Purelux PowerBoost® and road traffic mode - PowerBoost® mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

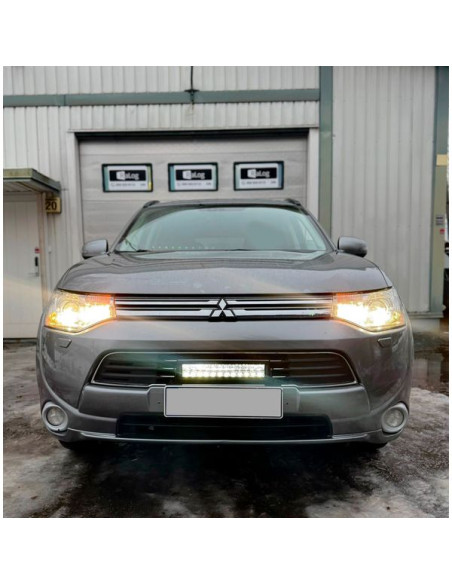

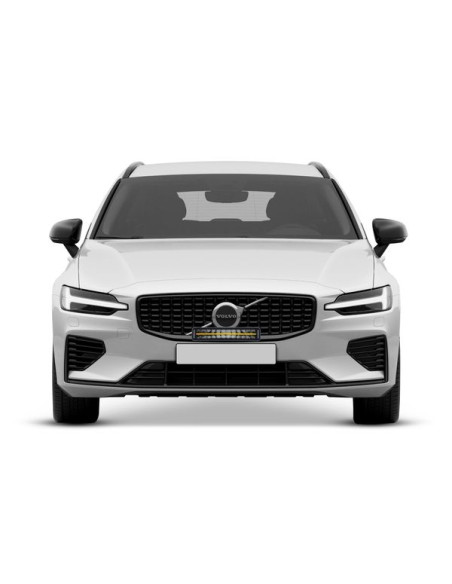

The beam of the S360 Gen3 combines elements optimized for road traffic: in the center of the light pattern there is a bright and clear main spot offering a long range, with a wide beam opening laterally from the side of the road to the side - right from the bow. The light beam is shaped flat with the help of reflectors, so that the light is not unnecessarily directed in front of the bow or at the tops of the trees. The color temperature of the panel is 5700 Kelvin. S360 Gen3 is so efficient for its size that it works well as the vehicle's only additional light, but thanks to its compact size, they can also be installed, for example, two in parallel, which doubles the light output.

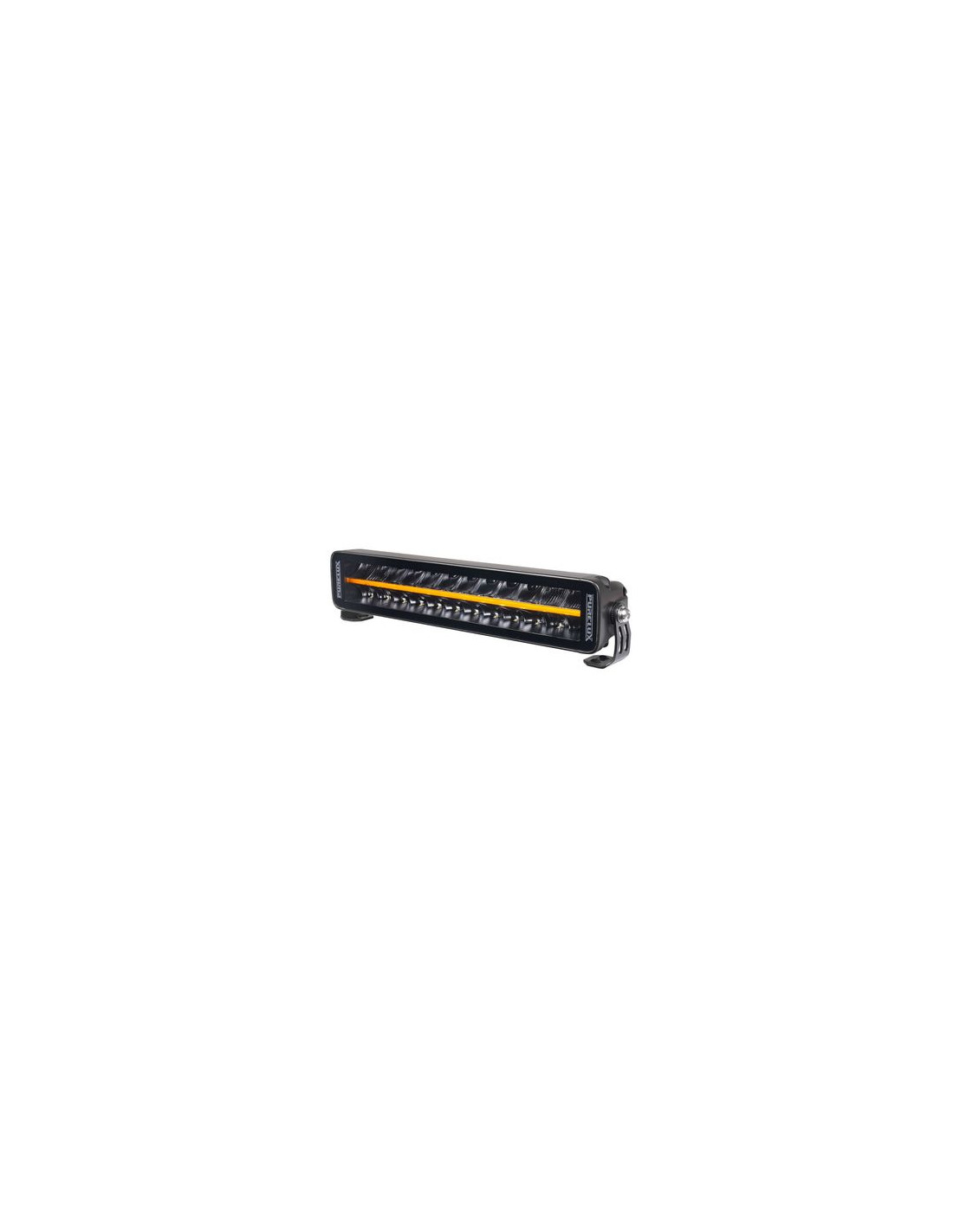

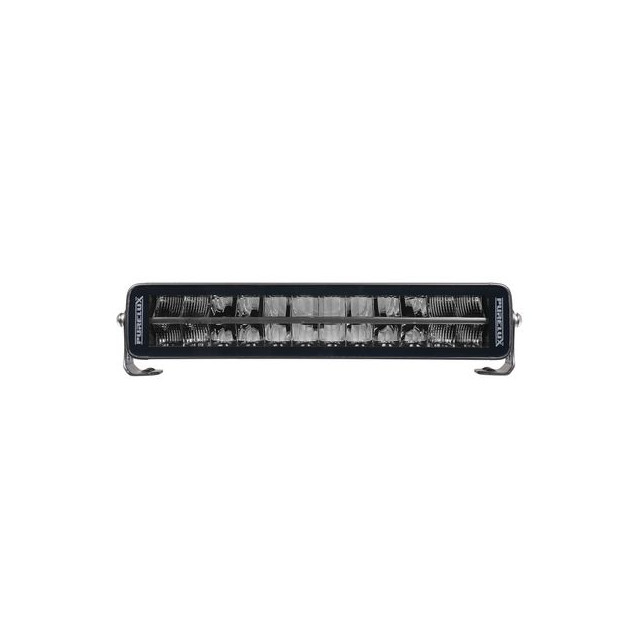

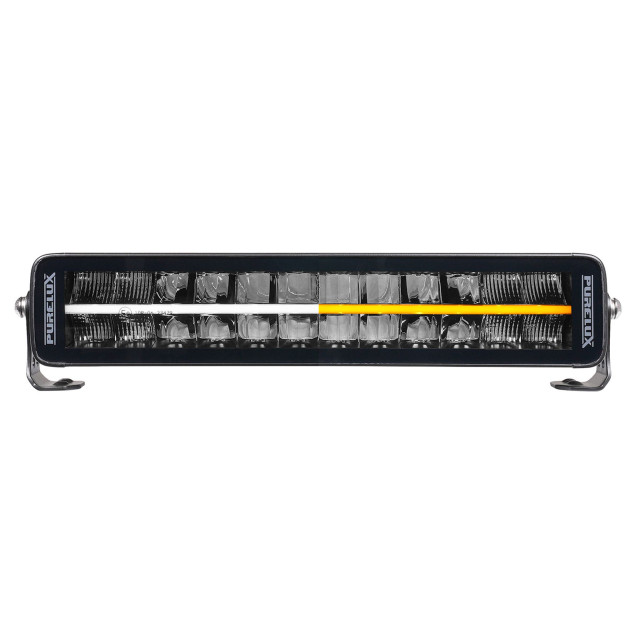

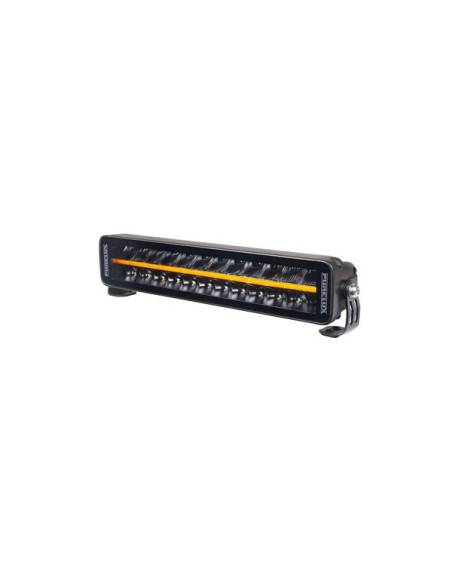

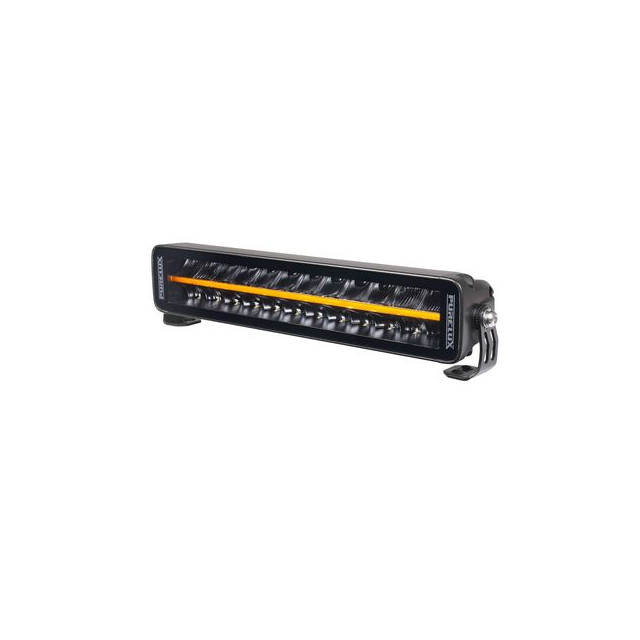

The light has a black frame and dark optics, which is already evident in the name, which give the panel an elegant and modern look. Dark optics have also been introduced to the parking light, thanks to which the parking light bar running in the middle of the lens stands out from the light only when it is on, so the light is stylish both when switched on and off. The frames of the Black series panels are made of powder-coated and durable aluminum alloy and the lenses of virtually unbreakable polycarbonate, and the lights are also fully protected against water and dust according to the IP69K rating. The frameless front part of the lights prevents the accumulation of snow, ice and dirt in front of the lens, thanks to which the light beam is not obscured as easily as with additional lights equipped with a frame.

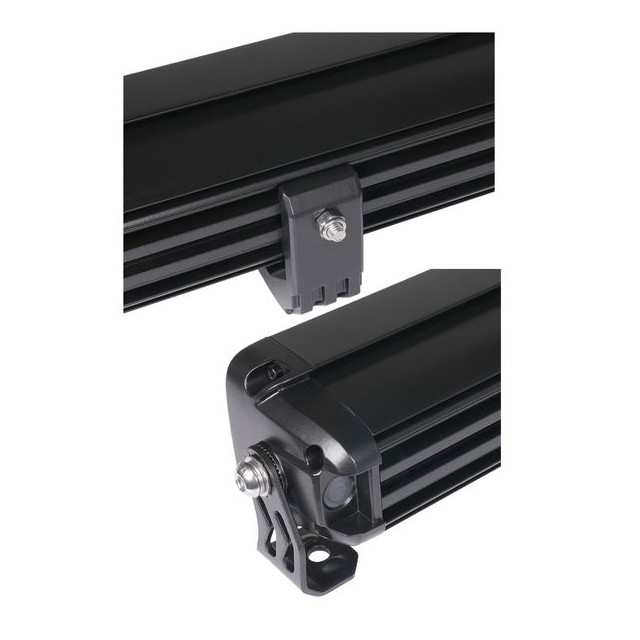

Installation is easy by using the DT-2 connector on the power cord of the light, and the width-adjustable lower legs and end legs that come with the package provide plenty of mounting options. Wide operating voltage (9-32V) enables installation in both 12V and 24V systems. The lamp is protected against radio interference according to the ECE R10 standard. Two-year (24 months) warranty!

Basic delivery content

Purelux Black Boost S360 Gen3

2 x Width adjustable lower legs

2 x Headrests

Power cable connector

Connection and installation instructions (EN/SE/NO/DK/FI)

Specifications

Brand and model: Purelux Black Boost S360 Gen3

Purpose: As an additional light in cars / Off-Road vehicles / work machines

LED: Osram

Operating voltage: 9-32 V

Reference number: 37.5

Calculated power: 120 W

Power consumption measured by laboratory

- Purelux PowerBoost®: 8.325A @ 12V / 4.16A @ 24V

- Road mode: 4A @ 12V / 2A @ 24V

Power measured by laboratory:

- Purelux PowerBoost®: 99.9 W @ 24V

- Road mode: 48W @ 24V

Light output declared by the manufacturer: 10080 lm (Purelux PowerBoost®)

- Measured by laboratory: 7723 lm (Purelux PowerBoost®)

- Measured by laboratory: 3650 lm (Road traffic mode)

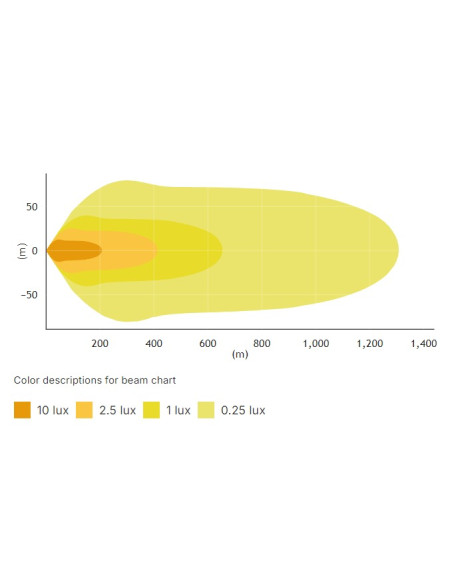

- Range measured by laboratory: 558 m @ 1 lux / 1116 m @ 0.25 lux (Purelux PowerBoost®)

- Range measured by laboratory: 383 m @ 1 lux / 766 m @ 0.25 lux (Traffic mode)

Color temperature stated by the manufacturer: 5700 K, Measured by laboratory: 5730 K

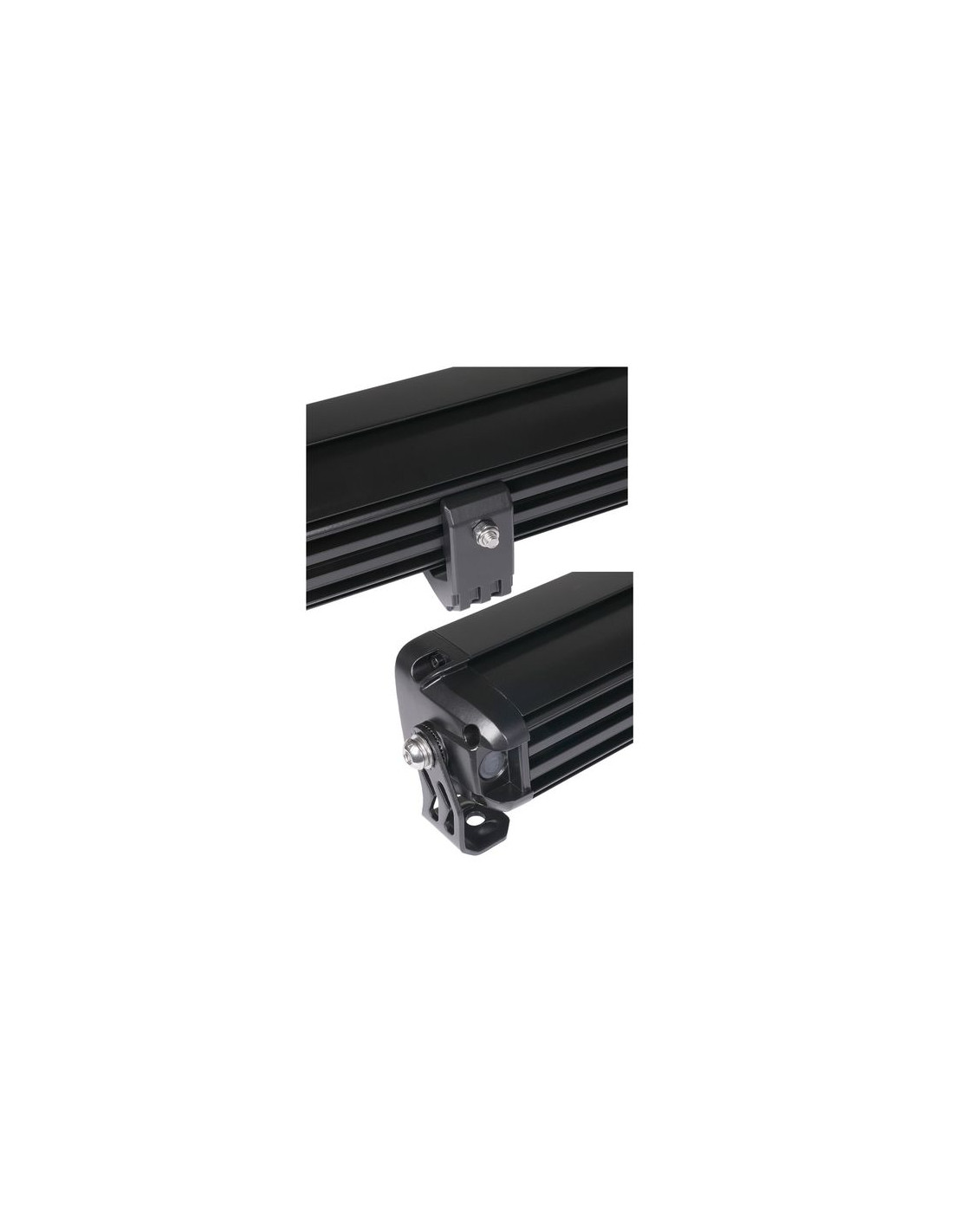

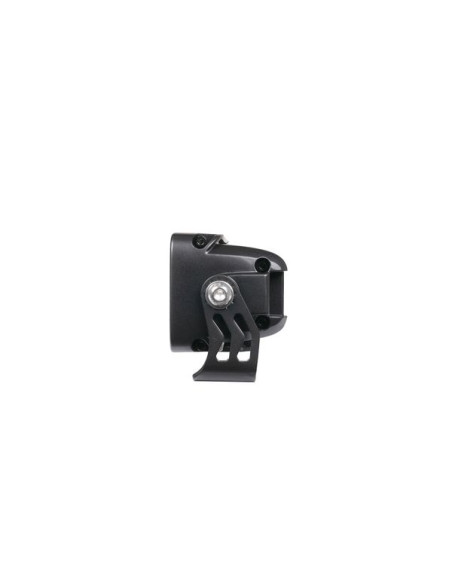

Fastening: End legs, width-adjustable lower legs

Connector: DT-2

The parking lights + wires are separate

Cable length: 50 cm

Dimensions: 357 x 70 x 67 mm (Width x Height x Depth)

Height with end legs: 86 mm

Height with lower legs: 89 mm

Weight: 1500 g

IP rating: IP69K

Approvals: ECE: R10, R148, R149*

*Road traffic approval does not apply to PowerBoost® mode

Warranty: 24 months

Installation guide

Coupling

DT-2 connector: Additional light connection

White: White parking light

Yellow: Orange parking light

Changing the power mode with UI technology: The first time the lamp is used, it lights up in the E-approved mode. Change the power mode by using the auxiliary light on for at least 2 seconds, then flash high beam twice in a row to change the power mode. Repeat to change power mode.
