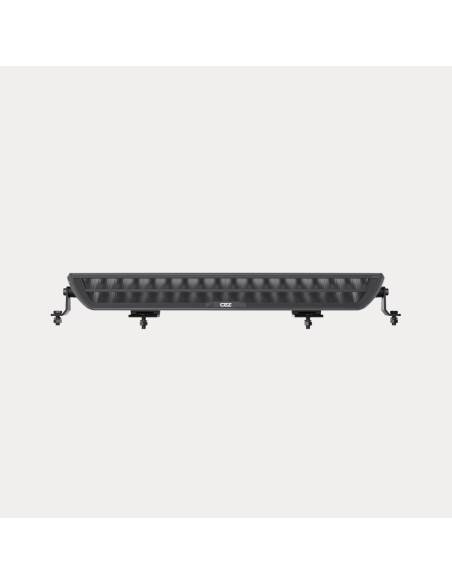

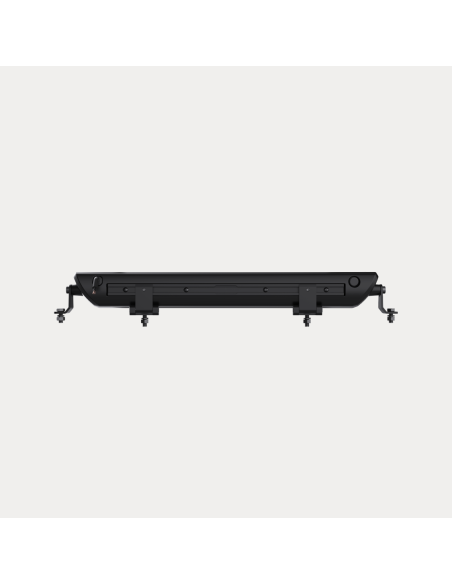

OZZ DRB1 20" Black ledbar, black housing

The OZZ DRB1 is a double row light bar designed for superior performance and durability. Featuring 34 high-performance diodes, it delivers impressive brightness with 9900 actual lumens in boost mode and 8070 in R112 mode, reaching up to 620 meters at 1 lux. This light bar combines a driving beam pattern for optimal visibility. It is built to withstand tough conditions with an IP68/IP69K rating and robust construction. Compliant with ECE R112 and EMC ECE R10 standards, the OZZ DRB1 enhances safety on your way forward. A reliable and great looking choice for enhancing your vehicle.

Technical data:

• Type of lamp - LED
• Pcs LED - 34
• Voltage - 10-32V DC
• Theoretical effect (W) 12V - 170
• Actual effect (W) 12V - R112: 106,2W, boost: 134W
• Actual effect (W) 24V - R112: 103W, boost: 131,5W
• Nominal current at 12V - R112: 8,85 A, boost: 11,6 A
• Nominal current at 24V - R112: 4,29 A, boost: 5,47 A
• Theoretical lumen (Lm) - 18020
• Actual lumen (Lm) - R112: 8070, boost: 9900
• 1 lux @ - R112: 480 m, boost: 620 m
• Kelvin (K) - 5000
• IP-class (IP) - IP68/IP69K
• Beam pattern - Driving
• Connection - 4-pin DT male + female
• Cable length (mm) - 1000
• Material bracket - Stainless steel
• Material chassi - Aluminum
• Material lens - Polycarbonate

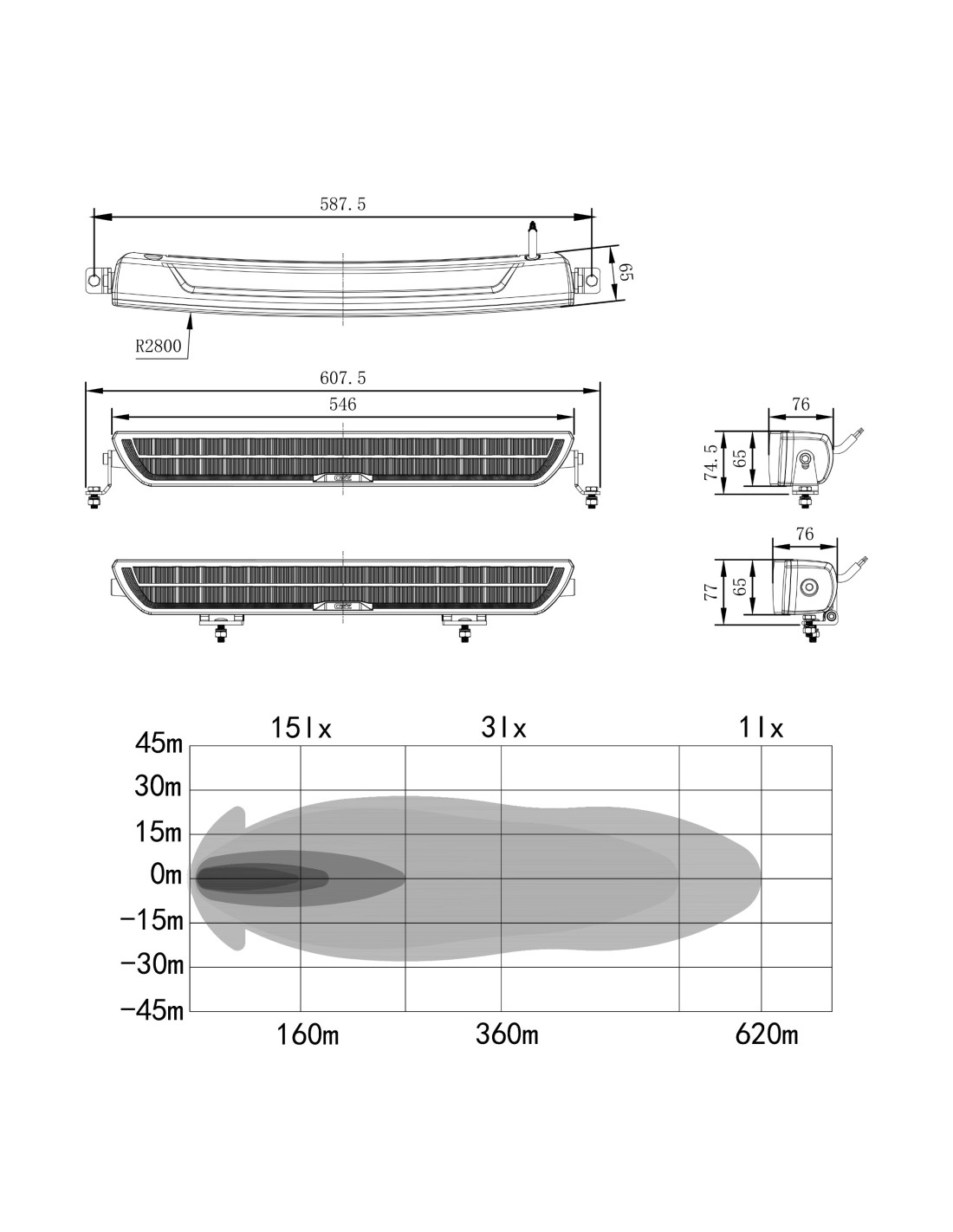

• LxDxH (mm) - 546x76x65/77
• Operating temperature - -40 – +60°C
• E-mark approval - R112, R7
• EMC - ECE R10
• Ref. no - 50
• Weight (kg) - 3,1
• Warranty - 3 years
