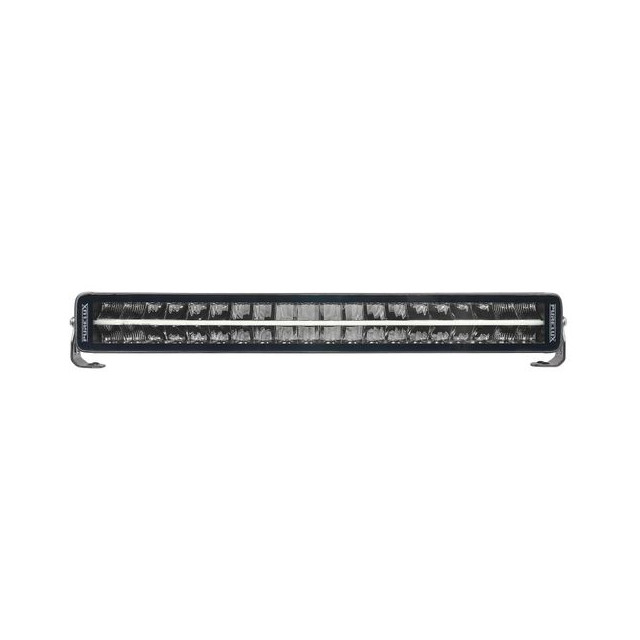

PURELUX Black Boost C560 Gen3 Curved - 56 cm 200W LEDBAR

A stylish two-row auxiliary light panel, which is equipped with e.g. with two-color dynamic parking light and two different power modes. Great performance at a great price! Measured light output 12666 lm, measured range 539 m @ 1 lux.

The Purelux Black Boost C560 Gen3 is part of its manufacturer's updated Black auxiliary light series, which brings top quality and hard performance to an affordable price range. The C560 Gen3 has the familiar two different power modes from the previous version, a wide combination beam and, of course, an edgy appearance. As a novelty, the light's two-color (orange or white) parking light has been updated to be dynamic, and switching between power modes has been made even easier. Black Boost C560 is now even more stylish and at the same time more user-friendly! Thanks to the two different power modes, the panel can be used with a selection integrated into the user interface (see more below) to switch on either the more moderate power mode approved for road traffic, or the more powerful PowerBoost® mode designed for off-road use. In the power mode approved for road traffic, the C560 Gen3 offers a light output of a measured 5988 lumens, and when PowerBoost® is switched on, the light output measured from the panel increases to up to 12666 lumens, with a measured range of an impressive 539 meters @ 1 lux.

Note! You can clearly see the difference between Purelux PowerBoost® and road traffic mode - PowerBoost® mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

The beam of the C560 Gen3 combines elements optimized for road traffic: in the middle of the light pattern there is a bright and clear main spot offering a long range, with a wide beam opening laterally from the side of the road to the side - right from the bow. The light beam is shaped flat with the help of reflectors, so that the light is not unnecessarily directed in front of the bow or at the tops of the trees. The main difference between the curved and straight Black Boost is the width of the light beam: the curved body spreads the light pattern horizontally, and the main beam in the middle is twice as wide as the straight model. Correspondingly, in a straight panel, the entire light output of the main spot is directed straight ahead, so that the range of the light can be maximized. When comparing beams, it is therefore worth choosing the curved version when looking for a wide beam and improving overall visibility, but if the car's own lights illuminate the first approx. 50-100 meters well, and you want to invest more in range, the straight model is the right choice. The color temperature of the panel is 5700 Kelvin. Due to its size, the C560 Gen3 is an excellent choice for e.g. the front of a car, either embedded in the air intake or for a traditional shield holder installation.

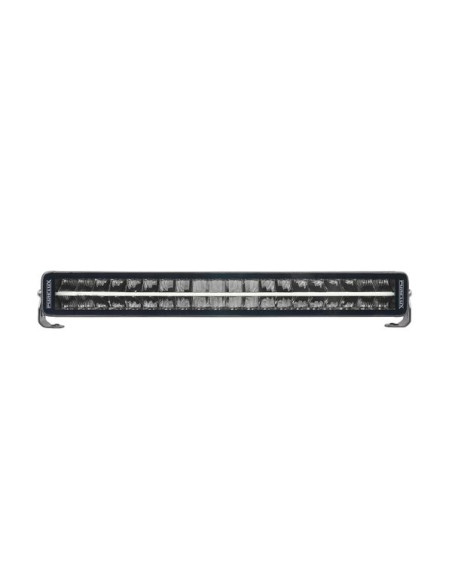

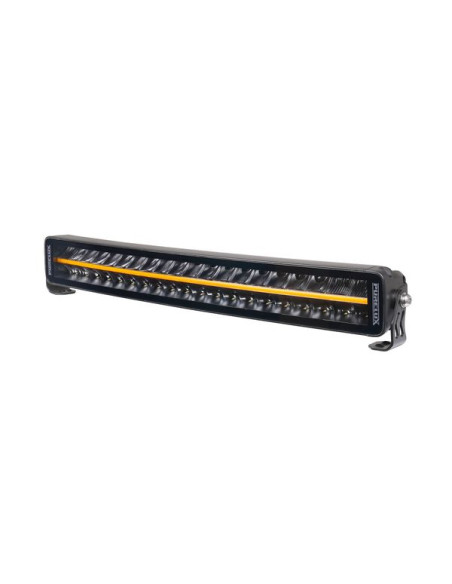

The light has a black frame and dark optics, which is already evident in the name, which give the panel an elegant and modern look. Dark optics have also been introduced to the parking light, thanks to which the parking light bar running in the middle of the lens stands out from the light only when it is on, so the light is stylish both when switched on and off. The frames of the Black series panels are made of powder-coated and durable aluminum alloy and the lenses of virtually unbreakable polycarbonate, and the lights are also fully protected against water and dust according to the IP69K rating. The frameless front part of the lights prevents the accumulation of snow, ice and dirt in front of the lens, thanks to which the light beam is not obscured as easily as with additional lights equipped with a frame.

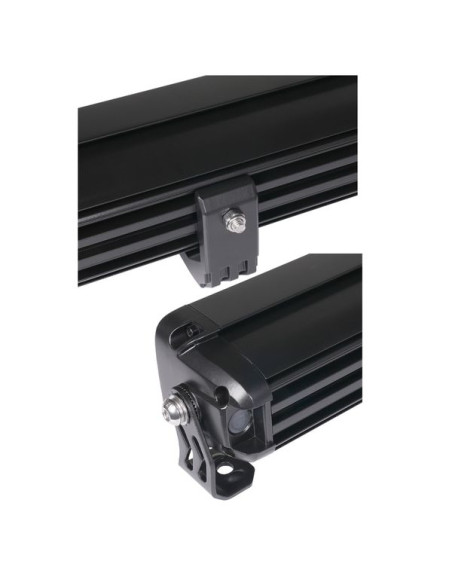

Installation is easy by using the DTP-2 connector on the power cord of the light, and the width-adjustable lower legs and end legs that come with the package provide plenty of mounting options. Wide operating voltage (9-32V) enables installation in both 12V and 24V systems. The lamp is protected against radio interference according to the ECE R10 standard. Two-year (24 months) warranty!

Basic delivery content

Purelux Black Boost C560 Gen3

2 x Width-adjustable lower legs

2 x End feet

Power cable counterpart

Connection and installation instructions (FI/SE/NO/DK/EN)

Specifications

Brand and model: Purelux Black Boost C560 Gen3

Purpose: As an additional light in cars / Off-Road vehicles / work machines

LED: Osram

Operating voltage: 9-32 V

Reference number: 50

Calculated power: 200 W

Power consumption measured by laboratory

Purelux PowerBoost®: 14.625A @ 12V / 7.31A @ 24V

Road mode: 6.925A @ 12V / 3.45A @ 24V

Power measured by laboratory:

Purelux PowerBoost®: 175.5 W @ 24V

Road mode: 83.1 W @ 24V

Light output declared by the manufacturer: 16800 lm (Purelux PowerBoost®)

Measured by laboratory: 12666 lm (Purelux PowerBoost®)

Measured by laboratory: 5988 lm (Traffic condition)

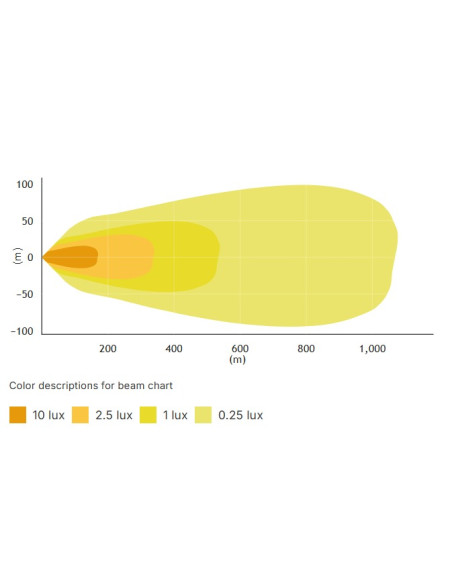

Range measured by laboratory: 539 m @ 1 lux / 1078 m @ 0.25 lux (Purelux PowerBoost®)

Range measured by laboratory: 372 m @ 1 lux / 744 m @ 0.25 lux (Traffic mode)

Color temperature stated by the manufacturer: 5700 K, Measured by laboratory: 5698 K

Fastening: End legs, width-adjustable lower legs

Connector: DTP-2

The parking lights + wires are separate

Cable length: 50 cm

Dimensions: 562.9 x 70 x 78.6 mm (Width x Height x Depth)

Height with end legs: 86 mm

Height with lower legs: 89 mm

Weight: 2300 g

Radius of curvature: 2839 mm

IP rating: IP69K

Approvals: ECE: R10, R148, R149*

*Road traffic approval does not apply to PowerBoost® mode

Warranty: 24 months

Installation guide

Coupling

DTP-2 connector: Additional light connection

White: White parking light

Yellow: Orange parking light

Changing the power mode with UI technology: The first time the lamp is used, it lights up in the E-approved mode. Change the power mode by using the auxiliary light on for at least 2 seconds, then flash high beam twice in a row to change the power mode. Repeat to change power mode.
