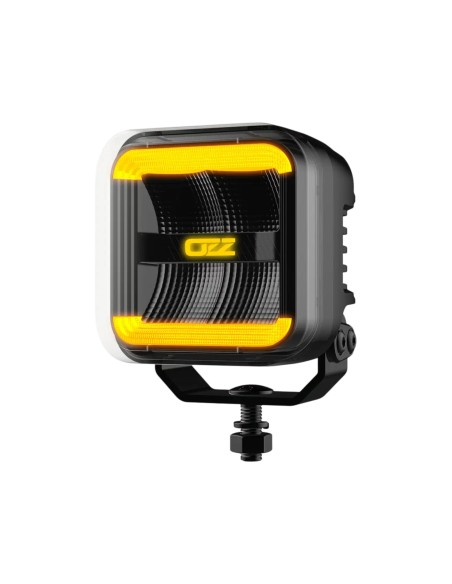

SQR 3" work lamp with position and warning light

The OZZ SQR 3’’ work light represents the next step in the evolution of the SQR series. It combines the signature squared design with high-output engineering in a compact and efficient work light. Delivering 3,500 actual lumens with a crisp 5000K color temperature, the work light provides clear and comfortable illumination for demanding work environments. A 1 lux reach at 75 meters ensures reliable forward visibility, while the flood beam creates a wide and even light spread. This makes it ideal for near-field work, job sites, equipment lighting, and general work-area illumination.

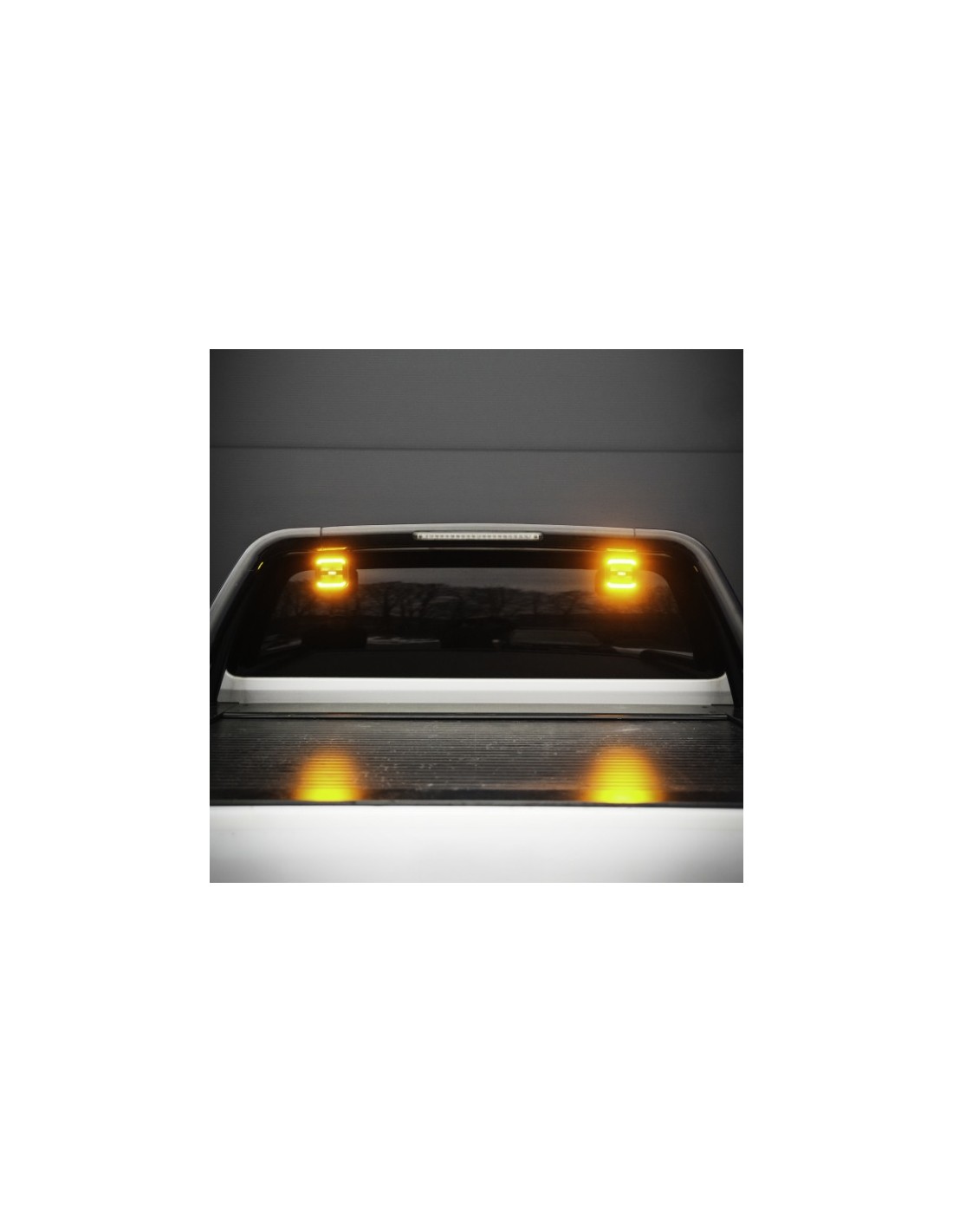

The SQR 3’’ is designed to function as both a work light and a warning light. It features a Double Flash pattern that increases visibility and safety during roadside operations, construction work, and other low-light conditions.

Technical data:

• Type of lamp - LED
• Pcs LED - 4
• Voltage - 10-32V DC
• Functions - Work light, warning light
• Theoretical effect - 60 W
• Actual effect (W) 12V - 50 W
• Actual effect (W) 24V - 46,6 W
• Nominal current at 12 V - 4,18 A
• Nominal current at 24 V - 1,94 A
• Theoretical lumen (Lm) - 4800
• Actual lumen (Lm) - 3500
• Kelvin (K) - 5000
• Beam pattern - Flood beam
• 1 lux @ (m) - 75 m

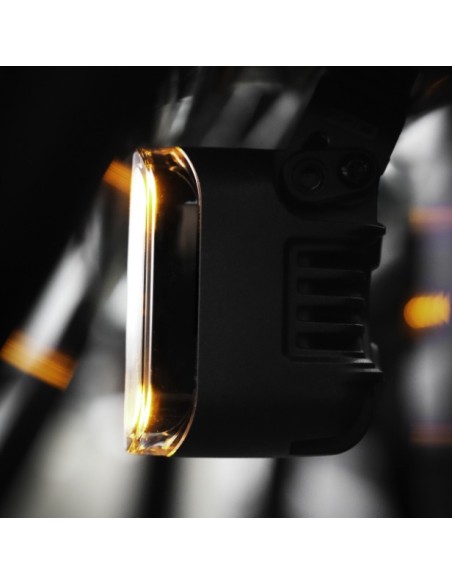

• Position light - White and amber
• Flash light patterns - Double flash
• IP-class (IP) - IP68/IP69K
• Connection - 4-pin DT male + female
• Cable length (mm) - 1000
• Material lens - Polycarbonate
• Material chassi - Aluminum
• Material bracket - Stainless steel

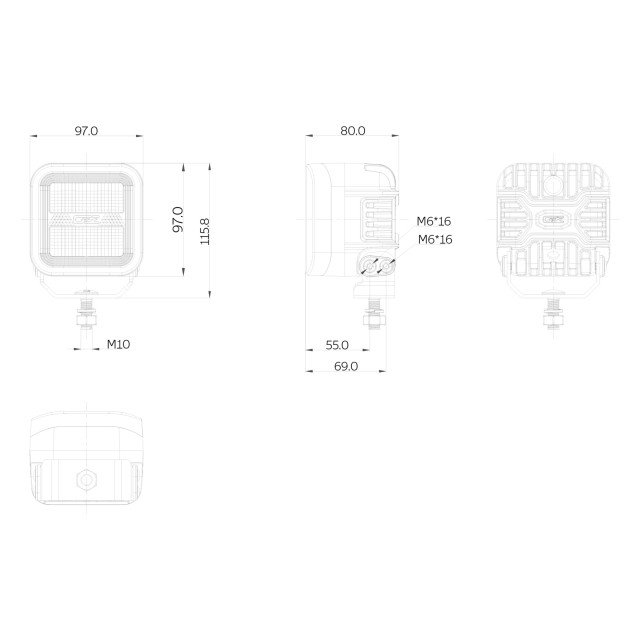

• LxDxH (mm) - 97x50x97/115,81
• Operating temperature - -40°C – +60°C
• E-mark approval - ECE R23, R65 class 2
• EMC - ECE R10
• Ref. no. - 50
• Warranty - 3 years
• EAN code - 7350166880675
