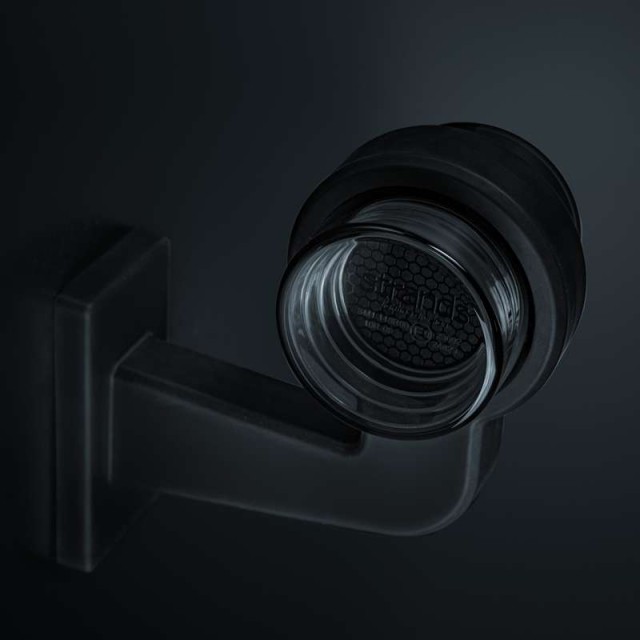

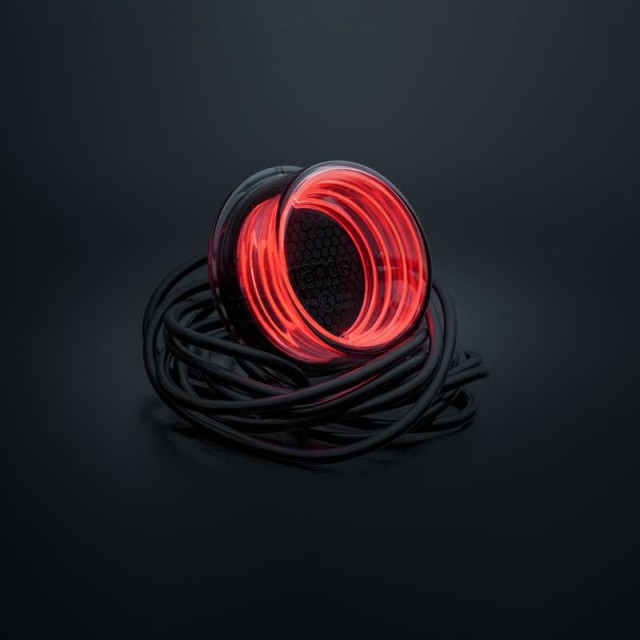

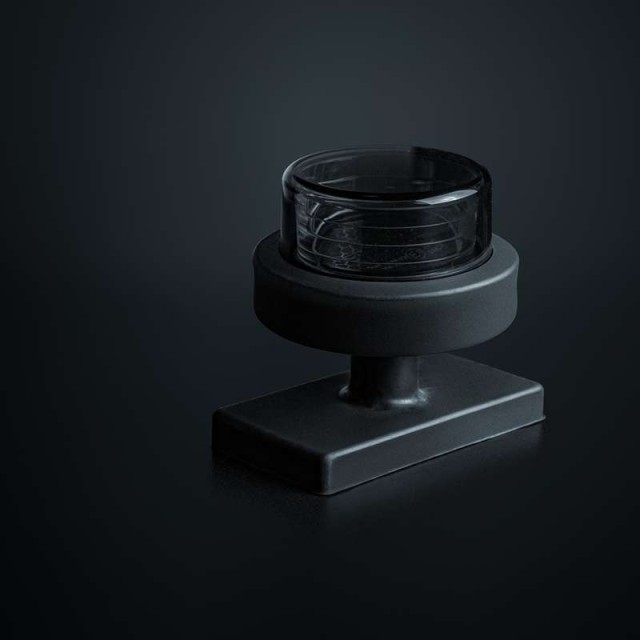

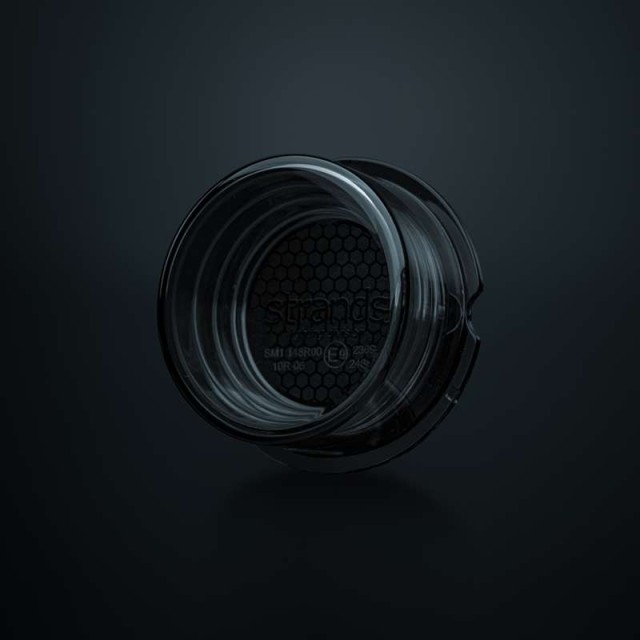

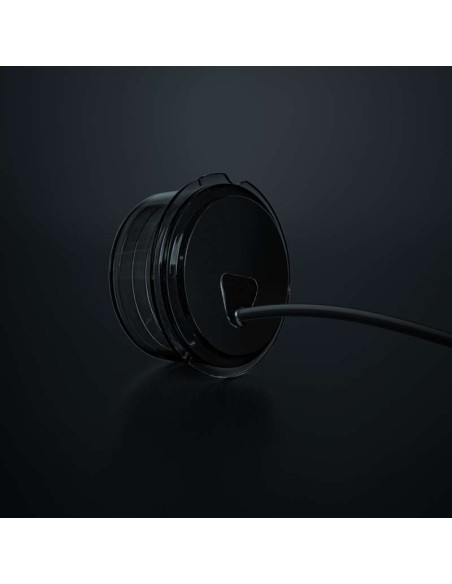

FOR9T Geo LED red marker light insert

The FOR9T Geo (Part No. 850466) is a striking Viking-style position light with the FOR9T look. It will fit most rubber arms, like the Strands Viking rubber arms (Part No. 800412-14/19). It has a diameter of 70,2 mm. It’s made of high-quality, corrosion-free polycarbonate and is IP-rated IP67, as a guarantee for a long-lasting product. Like all FOR9T products, it is covered by Strands’ 3-year function warranty. The Geo is used with 10-40 V DC, and uses only 4,5 W. Thanks to the 2,5 cable, you’ll have plenty of reach during installation. It’s E-approved according to R148. The Geo is a perfect match with all lights in the FOR9T range. The FOR9T hexagon pattern in the lens gives an extra boost to the visual expression, and the Geo is available in white, red, and amber.

FOR9T Geo inserts are compatible with all Gylle rubber supports from our range.

Technical data:

• Unit - pcs
• Voltage - 10-40V DC
• Theoretical effect - 5W
• Consumption - 4,5W
• Functions - Rear position
• Connection - Cable
• Cable length - 2500mm
• Color housing - Black
• Color lens - Dark
• Color LED´s - Red
• Material housing/chassi - Polycarbonate
• Material lens - Polycarbonate
• Depth - 35,2mm
• Diameter - 70,2mm
• Weight - 0,127kg
• IP-class - IP67
• Operating temperature - -30 - +65°C
• E-approved - Yes
• According to regulation - ECE R148
• EMC - ECE R10
• Warranty - 3 years
