Additional position light for Michelin Man - xenon white

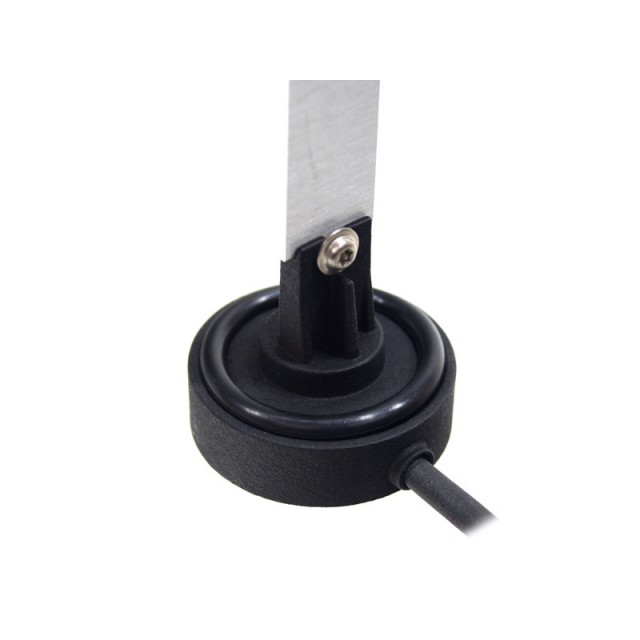

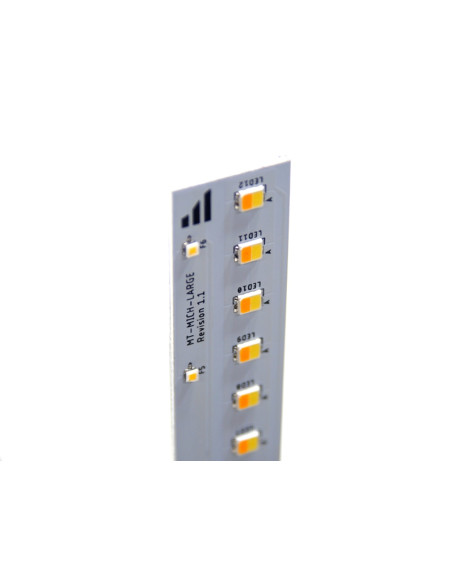

Powerful LED emitters for additional position light in the original big/large Michelin Man / Mascot / Bidendum on 42cm. Available in multiple colors, with and without strobe. The set is only available in 24V.

The emitters are available in multiple colors, with and without strobe light. They are sold as 2 emitters regardless of the type - 1 for each side.

There is 6 meter cable on the emitter with M8 connectors, that can be connected to the included controller. The controller manages the two colors, and automatically turn them off when you enable the strobe light. The controller itself has 3 meter wire. The cable has 4 wires:

Mounting

Disassemble the bracket on the bottom of the man

Drill a 20mm hole in the middle of the 3 bolts. See the drawing under pictures.

Mount the big black sealing over the emitter

Place the emitter in the hole you just drilled.

The bracket is then placed over the end of the emitter.

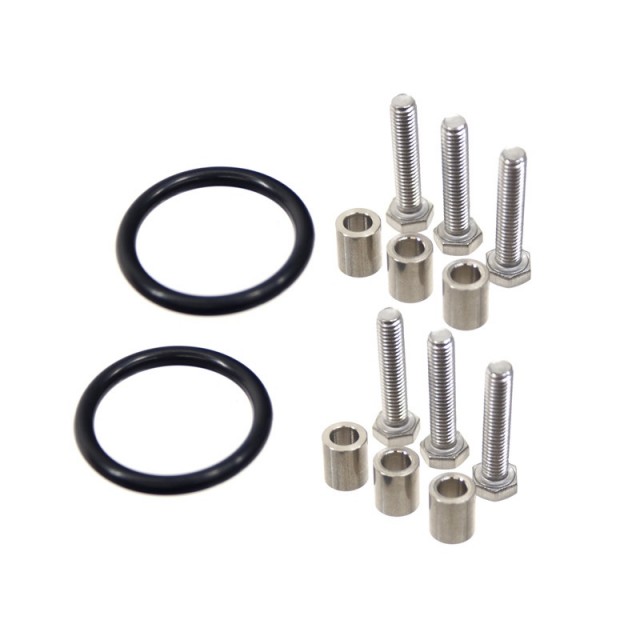

Use the supplied spacers and bolts to fasten the bracket.
