PURELUX Spectrum Newschool - pablo white/red LED light
153.66 zł € netto

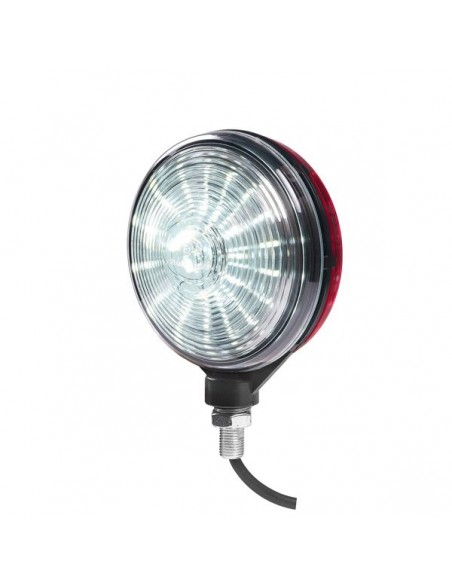

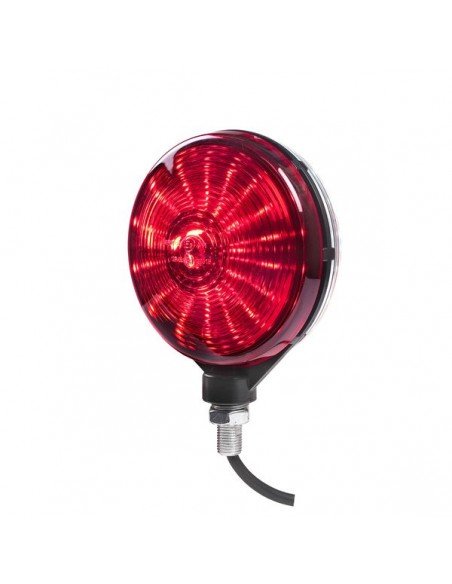

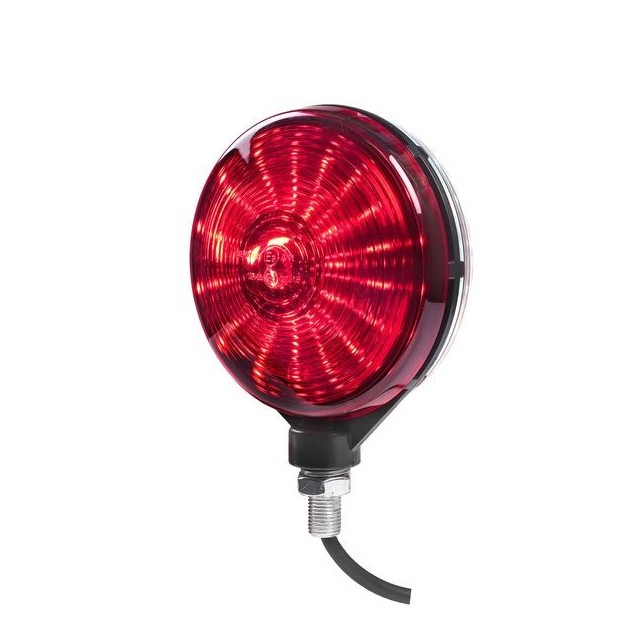

PURELUX Spectrum Newschool - pablo white/red LED light
A series of double sided position lights designed for heavy vehicles. One light has red and white, and the other has red and orange light. The lights mark the vehicle's direction of travel and help you see the rear corners and side lines in the dark! Protection class IP67, suitable for 12/24V systems.
The Purelux Spectrum Oldschool and Newschool are double-sided position/warning lights designed specifically for the needs of the professional driver. The Newschool model shines a red light on one side and a white light on the other, while the Oldschool shines a red light on one side and an orange light on the other. Purelux Spectrum can be installed, for example, on the sides of the truck, in which case they tell other road users the direction of travel of the vehicle and at the same time also help the driver to visualize the rear corners and side lines of the vehicle from the mirrors. The position lights are approved for road traffic in accordance with the ECE R7 standard: the red light is meant to point backwards, white to the front and orange to the side. Efficient and bright LEDs and good light distribution ensure that the vehicle stands out clearly even in bad weather conditions.
The use of Purelux Spectrum is not limited to only trucks, as the innovatively implemented lights also work well in, for example, work machines and vans. Position lights are easy to mount thanks to their mounting bolt. No unnecessary extra functions have been implemented in the lamps, so the connection is very easy. The position light has an enclosure class of IP67, which guarantees durability in year-round conditions, the lamps are also protected against radio interference in accordance with the ECE R10 standard. One year (12 months) warranty!
Content
- Purelux Spectrum Newschool / Oldschool
- M12 mounting bolt

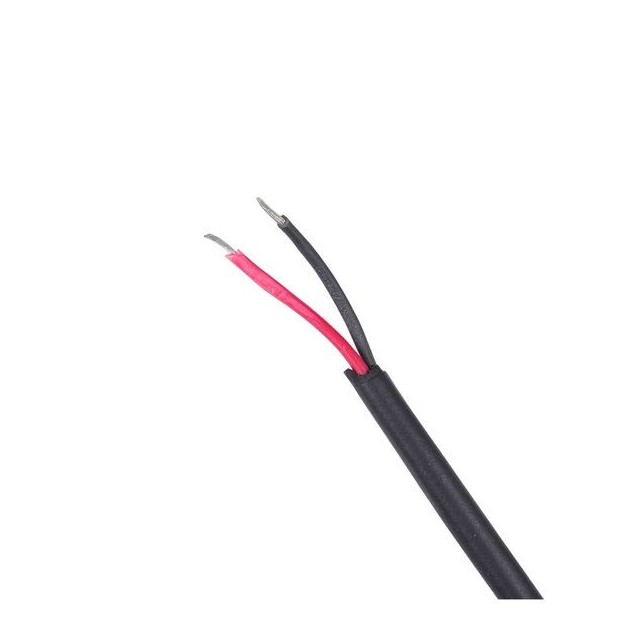

- Power cord
Technical specification
- Brand and model: Purelux Spectrum Newschool / Oldschool
- Area of use: As a spotlight/extra light in vehicles and work machines
- Operating voltage: 10-30V (DC)
- LED: 48 x 0.5 W
- Color of light
- Newschool: Red and white
- Oldschool: Red and orange
- Power: 2W
- Dimensions: 109 x 59 x 125 mm
- Cable length: 430 mm
- Mounting: M12
- Protection class: IP67
- Approvals: EMC: ECE: R7, R10
- Warranty: 12 months
Quick guide
- Installation/Connection
- Red: Power (+)
- Black: Ground (-)
