Strands Siberia XP DR 22"/56,5 cm 184W ledbar

The Siberia XP Double Row LED Light Bar has a maximum light output of 100% more than previous models. This 22-inch model has a far-reaching beam pattern, producing 1425 true lumens in E mode and 13050 in Xperience mode. A viewing range of 300-853 meters provides high forward visibility, while a color temperature of 5700 Kelvin provides sharp and clear lighting. The Siberia XP Double Row is easy to install thanks to its integrated relay and 2500 mm cable. It is extremely durable, resistant to vibration and can withstand rough roads and heavy use. The IP68/IP69K rating and new powder coating provide high protection against dirt and water. The Siberia XP is covered by a 3-year functional warranty from Strands Lighting Divisions. It is E-approved according to R148(R7) and R149(R112) regulations and ECE R10.

Technical data:

• Unit - pcs
• Voltage - 10-32V DC
• Power consumption - E-mode:19W / Xperience mode: 184W
• Functions - High beam, white and yellow position light, separate hello function for position light
• Power consumption specific function - White position light: 16.9W, yellow position light: 16.7W
• Actual lumen - E-mode: 1425lm / Xperience mode: 13050lm

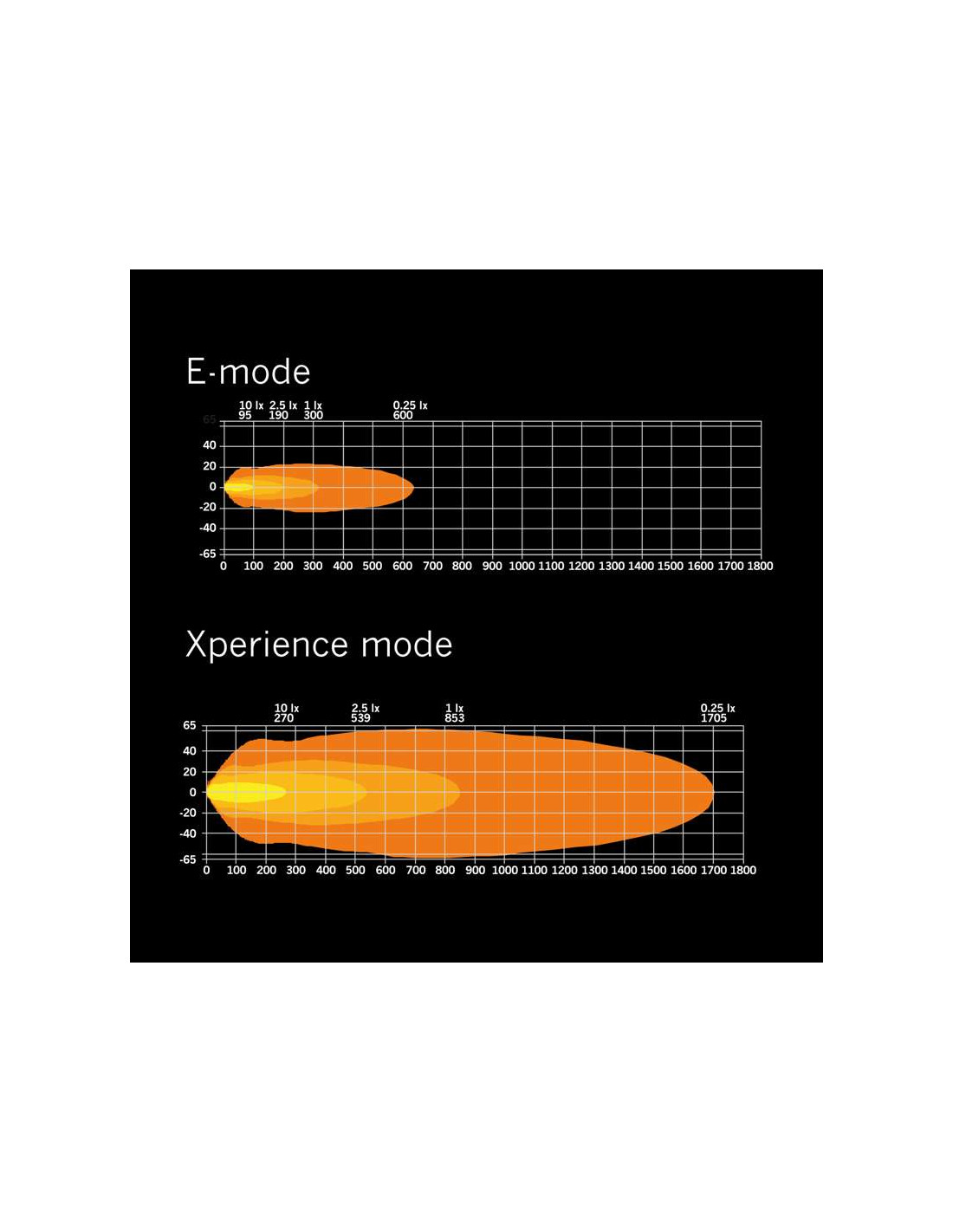

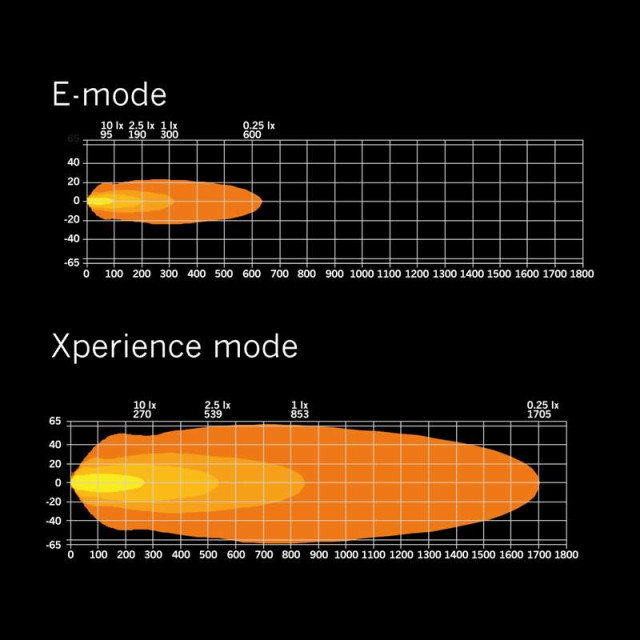

• 1 lux @ - E-mode: 300m / Xperience mode: 853m
• Color temperature - 5700K
• Beam pattern - Long range beam
• Beam angle - 12.7
• Connection - Cable
• Cable length - 2500mm
• Housing color - Black
• Lens Color - Clear
• LED Color - White/Yellow
• Bracket Material - Aluminum
• Housing/Chassis Material - Aluminum
• Lens Material - Polycarbonate

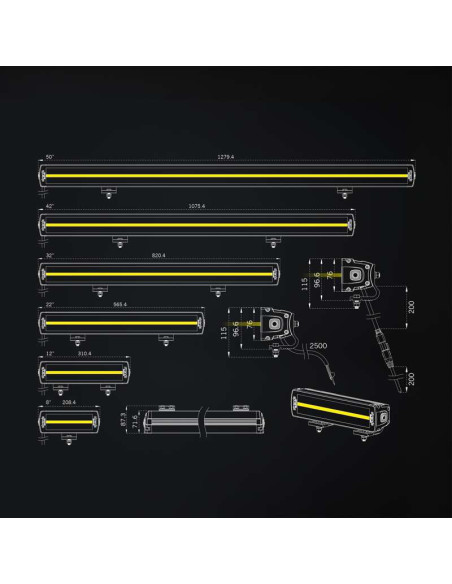

• Length - 565.4 mm
• Depth - 71.6 mm
• Height - 76 mm
• Height including bracket - 96.6 mm
• Weight - 2.97 kg
• IP Class - IP68/69K
• Operating Temperature - -35 - +65°C
• E Approved - Yes
• Compliant with regulations - ECE R148(R7),R149(R112)
• Reference Number - 20
• EMC - ECE R10
