Lazer AIR-55 LED Bar with Warning Lights and Position Lights

Stock status: Ask for availability

241001
2,029.50 zł Tax included

1 650,00 zł € tax included

Number of customers who are interested in this product: 4.
Ask for availability

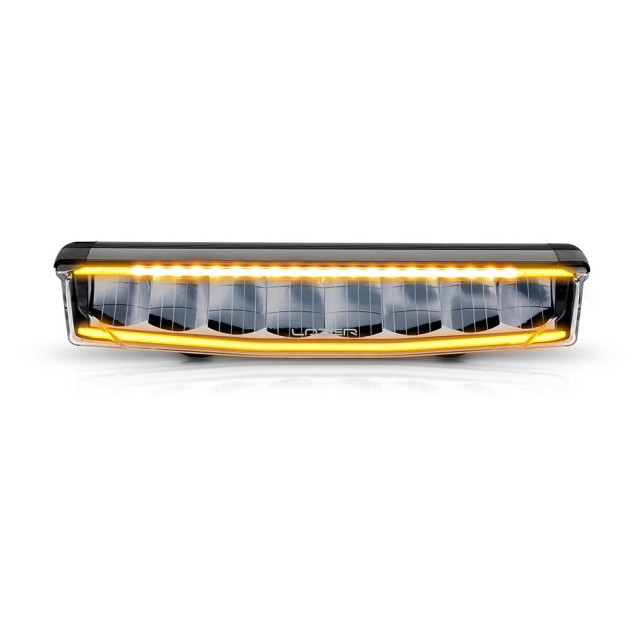

Lazer AIR-55 LED Bar with Warning Lights and Position Lights

#0A55-STRB-B

? Ask for availability

?Dłuższy czas oczekiwania na dostawę

  • Patent-pending injection moulded monocoque lens with texture effect to the underside
  • Adoption of the latest high-efficiency premium-bin LEDs
  • Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road
  • Flash-to-dim functionality for avoiding glare from road signs (for example)
  • Dual-output functionality – High and Low output modes
  • UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Low output mode only)
  • Integrated white (UNECE Reg 148 approved) or amber position light function
  • Integrated amber flashing beacon function – UNECE Reg 65 (XA1)
  • Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point.
  • Dynamic start-up / Welcome Mode – two options activated as/if required.
  • CAE optimised heatsink offers improved thermal dynamics
  • Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
  • Electronic thermal management
  • ‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee
  • IP68 watertight
  • 5-year warranty
  • 20cm lamp cable complete with male/female 6-pin Superseal connectors
  • Designed & manufactured in Britain

Technical Specifications

1x AIR-55 with Beacon

BOOST
MODE

LOW OUTPUT/
E-MARK MODE





Voltage Range (DC)

10-32V

LED Life

50,000 hours

Weight

1.65 kg



HIGH BEAM FUNCTION

Total Luminous Flux

6,800 Lm

1,224 Lm

Total Driver 'FOV' Flux †

4,488 Lm

808 Lm

Colour Temperature

5000K

Power Consumption

55 Watts

9 Watts

Peak Current Draw

6.1 Amps

1.05 Amps

Current Draw (14.4V)

4 Amps

0.9 Amp

Connector

6-Pin Superseal (+20cm Cable)



DIMENSIONS

Width

411 mm

Depth

106 mm

Height

82 mm



CERTIFICATION

IP Rating #

IP68

High Beam (E9 approval)

ECE R149 - Ref: 12.5 (in Low Output Mode only)

Position Light (white only)

ECE R148

Beacon Function

ECE R65 (XA1)

EMC Certification

ECE R10

Salt Spray Test

ISO 9227

Dump Load Protection

ISO 7637-2



PHOTOMETRIC DATA

Horizontal / Vertical Beam Angle

34° / 13°

0.25 lx Line

1049m

445m

0.5 lx Line

742m

315m

1 lx Line

524m

222m

3 lx Line

303m

128m



IDP
