DRL modules for Mercedes Actros 2020+ - xenon white

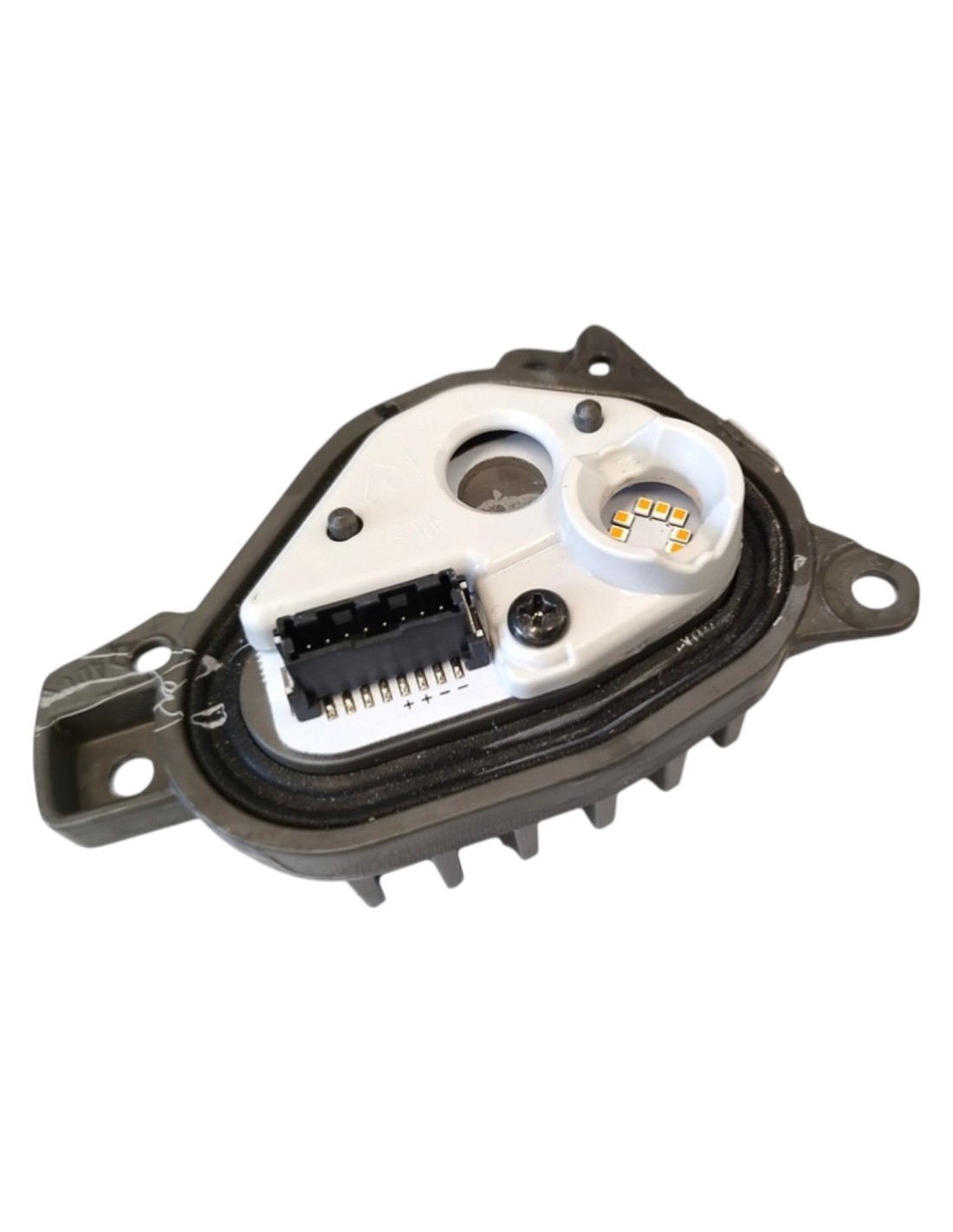

Complete LED DRL conversion kit for Mercedes Actros 2020 and the facelifted from 2023 and forward.  Allows you to change from white DRL to eg. yellow. The xenon white emitters can also be used if the original are defective. The emitters have LEDs for both indicators and DRL.

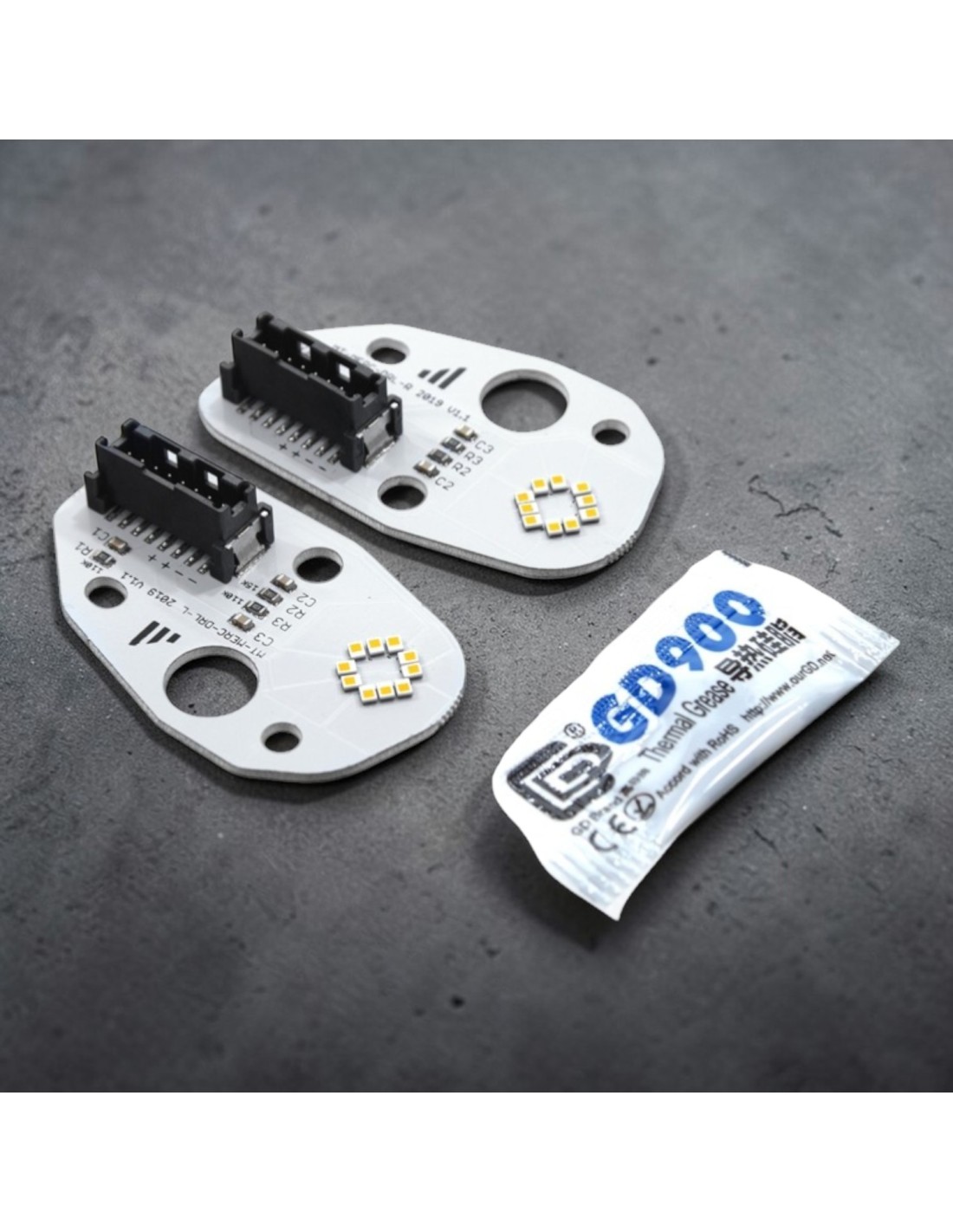

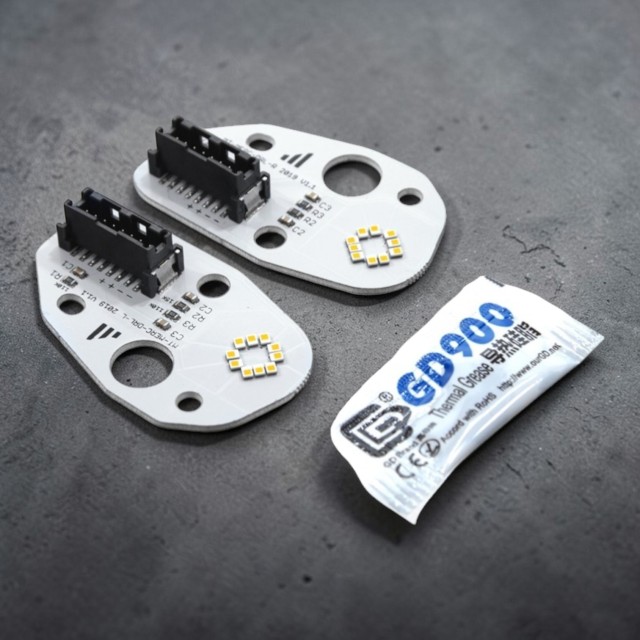

The set consists of 2 emitters for the left and the right side respectively and thermal paste. It is easy to replace them, as they use the original connector, and have the same shape. Replacing them takes ½ to 1 hour.

Mounting

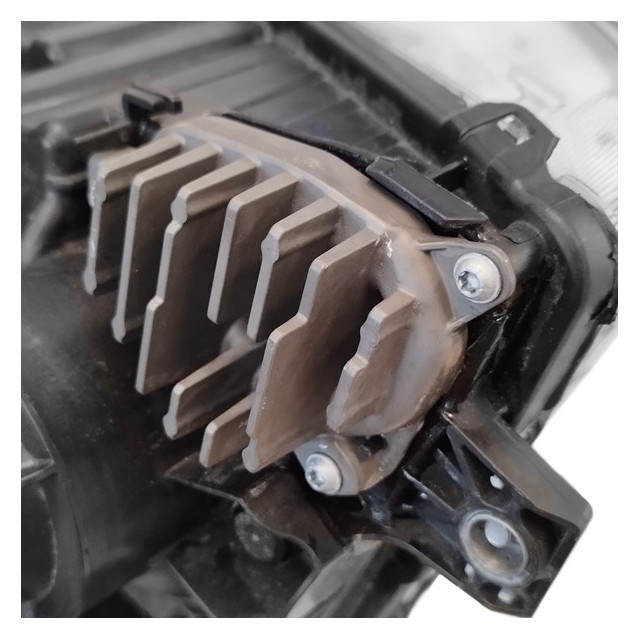

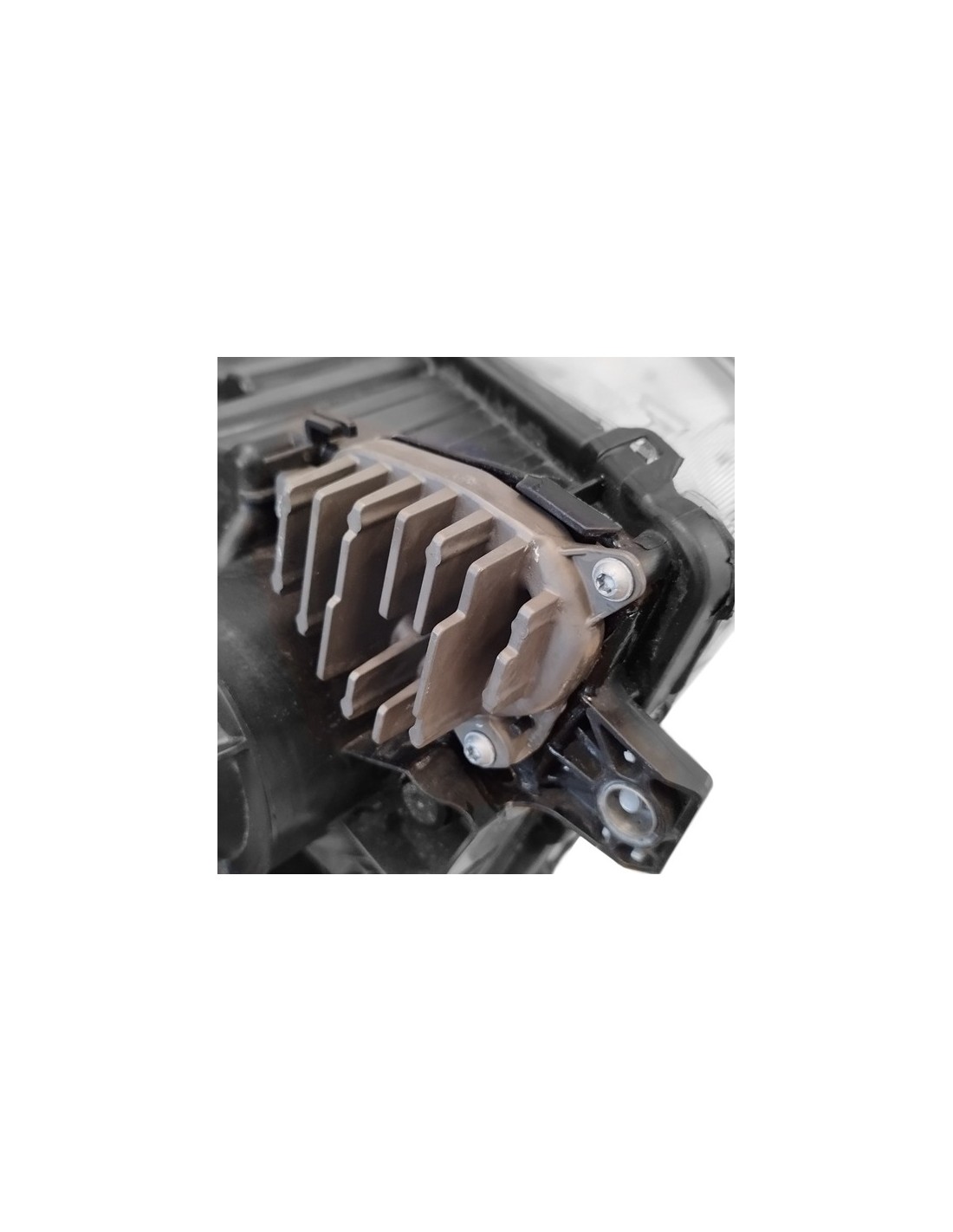

The emitters are mounted on the heatsinks accessible on the backside of the headlights. The easiest option is to remove the headlight completely.

• Heat sink removed
• Connector on emitter loosened
• Emitters are fastened with screws that are loosened
• The original emitters are removed
• Thermal paste applied on new emitters
• New emitters are fastened on the heat sink, and everything is assembled again

White connectors not fitting

In some newer Mercedes trucks, there is a problem where white connectors do not fit in to the emitters. In this case, you will have to adapt the original connectors. Look in the photos where you can see which change is needed. This is easiest done with a small cutting plier. Black connectors do not need any change.

Only suitable for the lights with LED and Xenon low beam. The halogen version uses other PCBs
