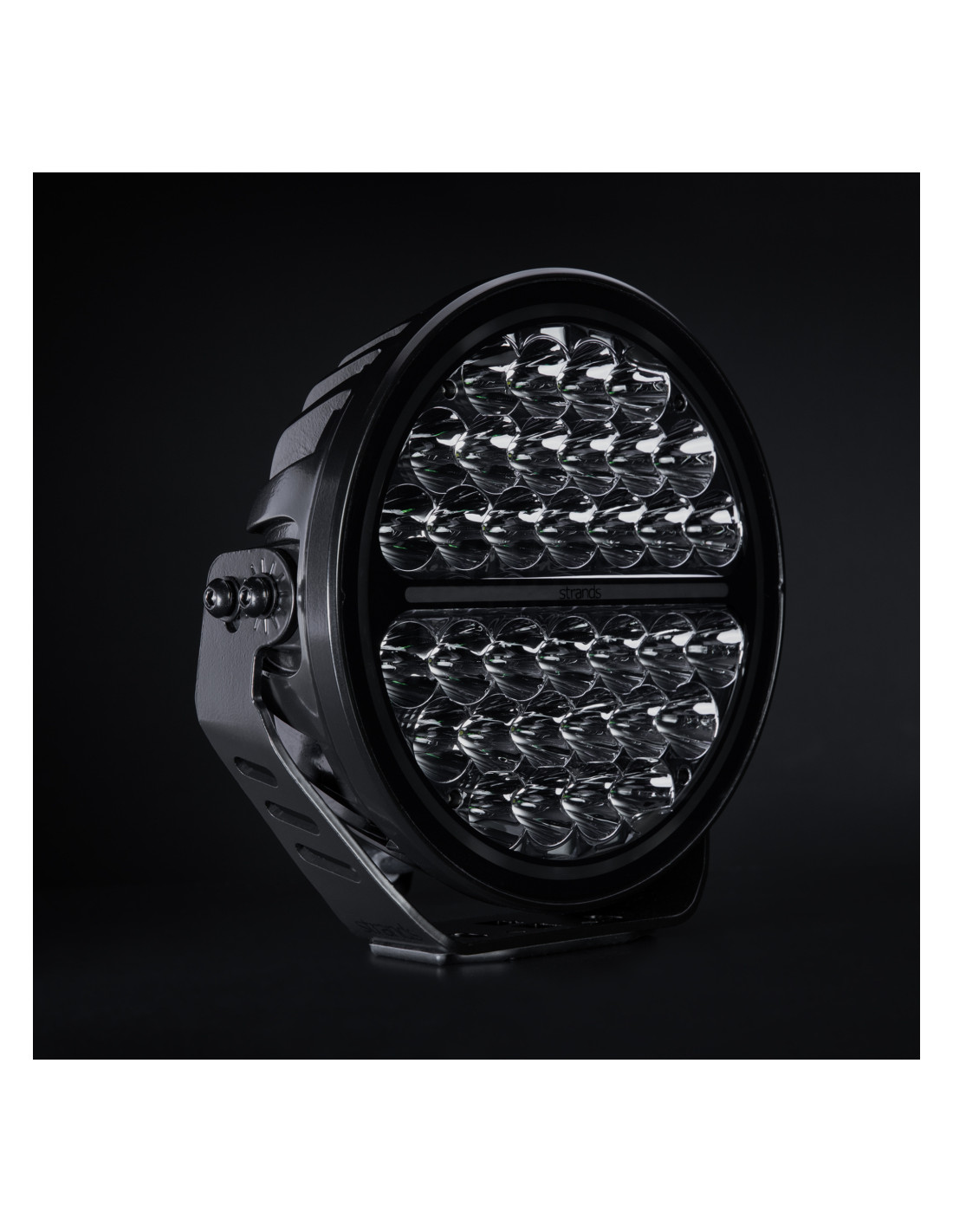

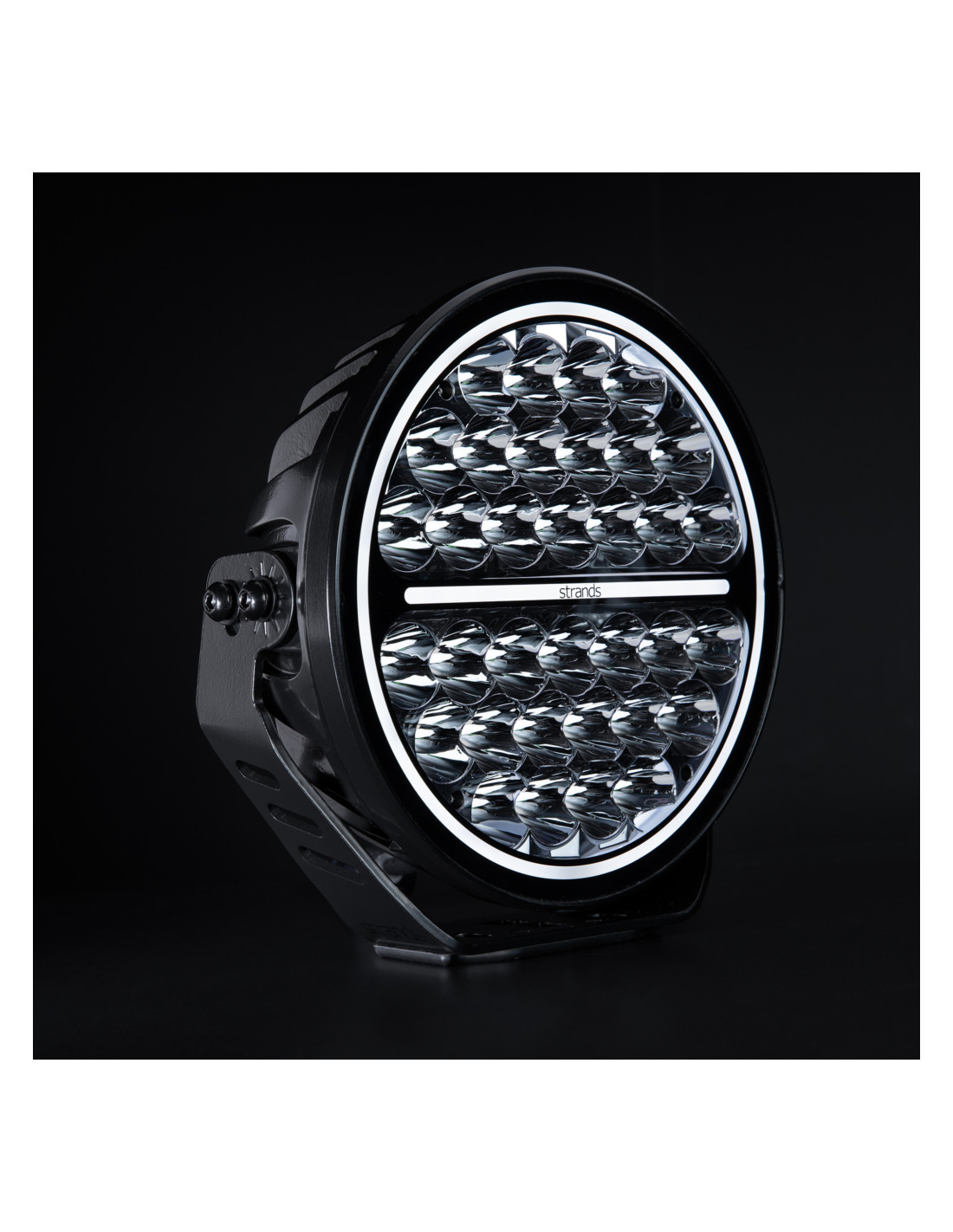

STRANDS Siberia Night Ranger 9" LED driving lamp
Strands1048.780488 netto

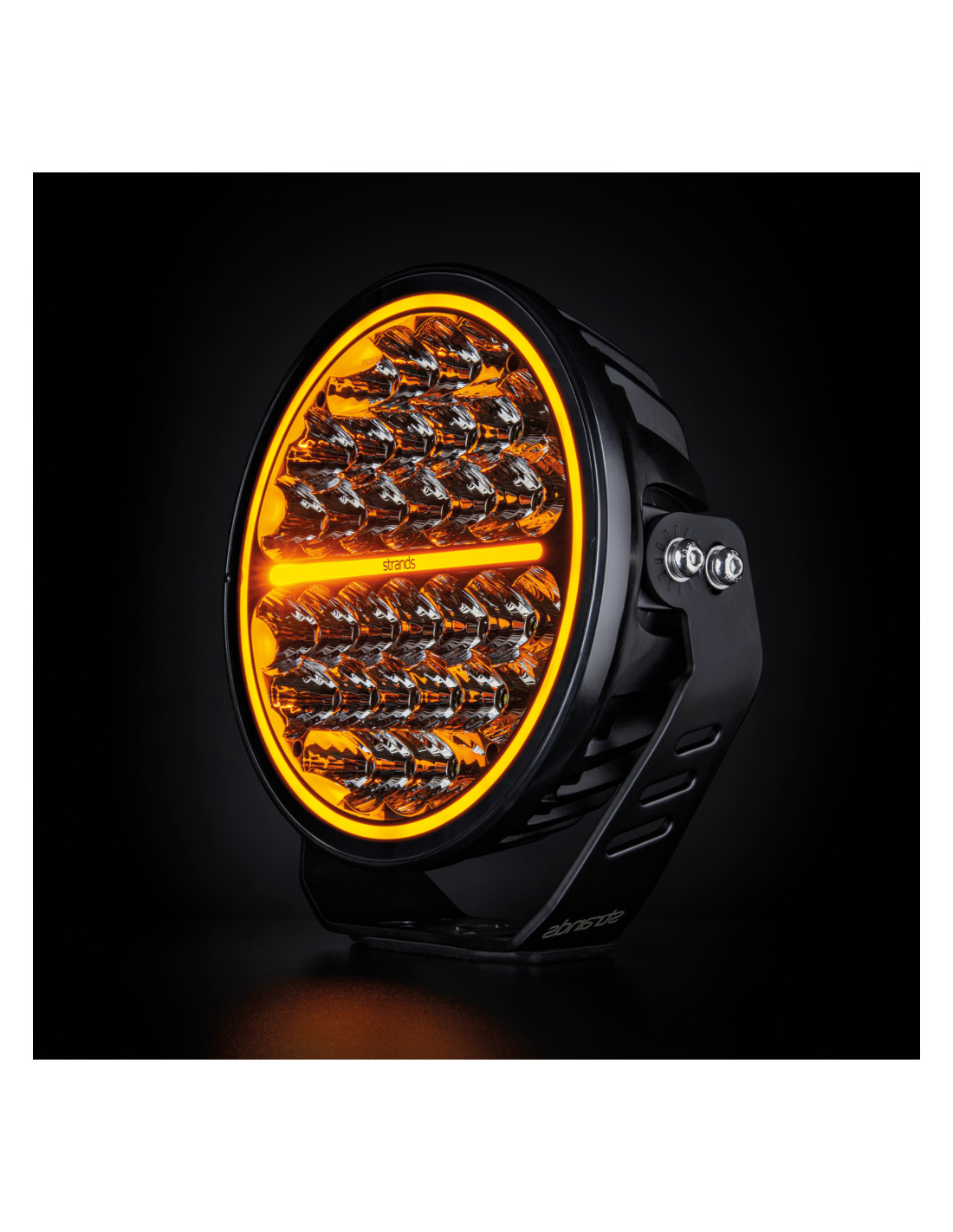

STRANDS Siberia Night Ranger 9" LED driving lamp with dual color position light
Type of lamp LED
Type of LED Osram
PCS LED´s 34
Voltage (V DC) 9-32V DC
Theoretical effect (w) 12V 170
Theoretical effect (w) 24V 170
Consumption (w) 12V 145.3
Consumption (w) 24V 144.6
Theoretical lumen 20400
Actual lumen 13377

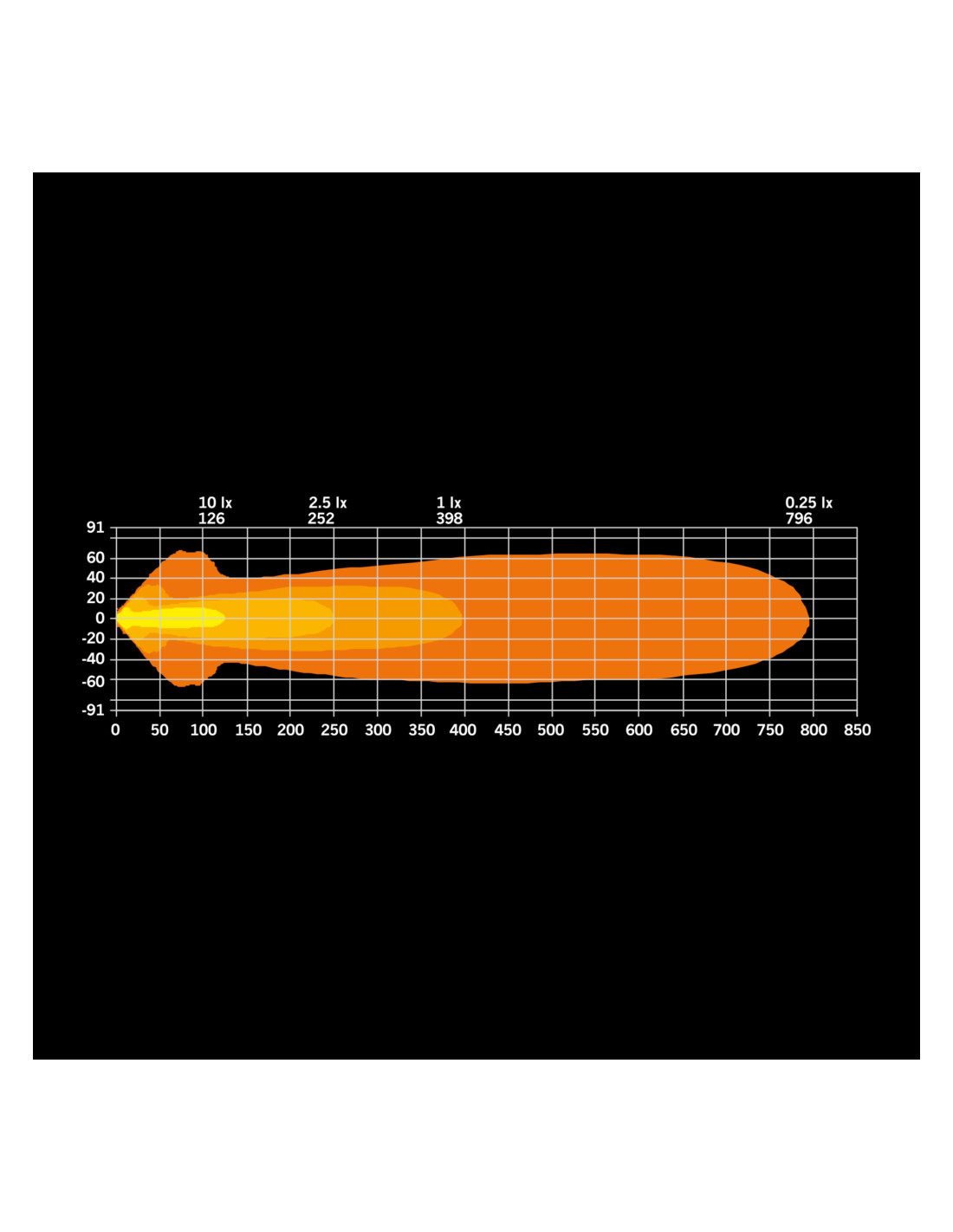

1 LUX @ m 465
Kelvin 6000
IP-class 67/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and Amber
Beam pattern Flood

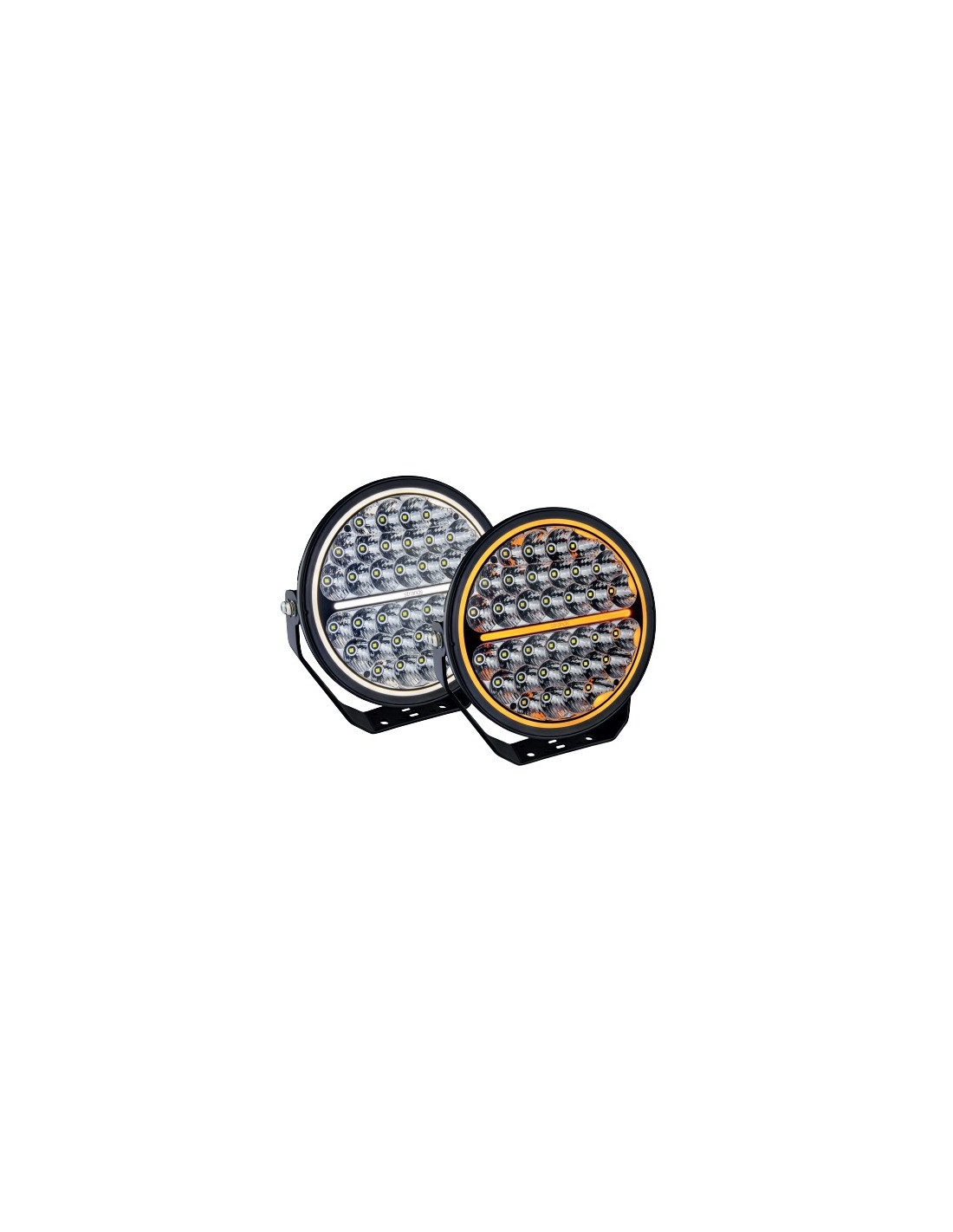

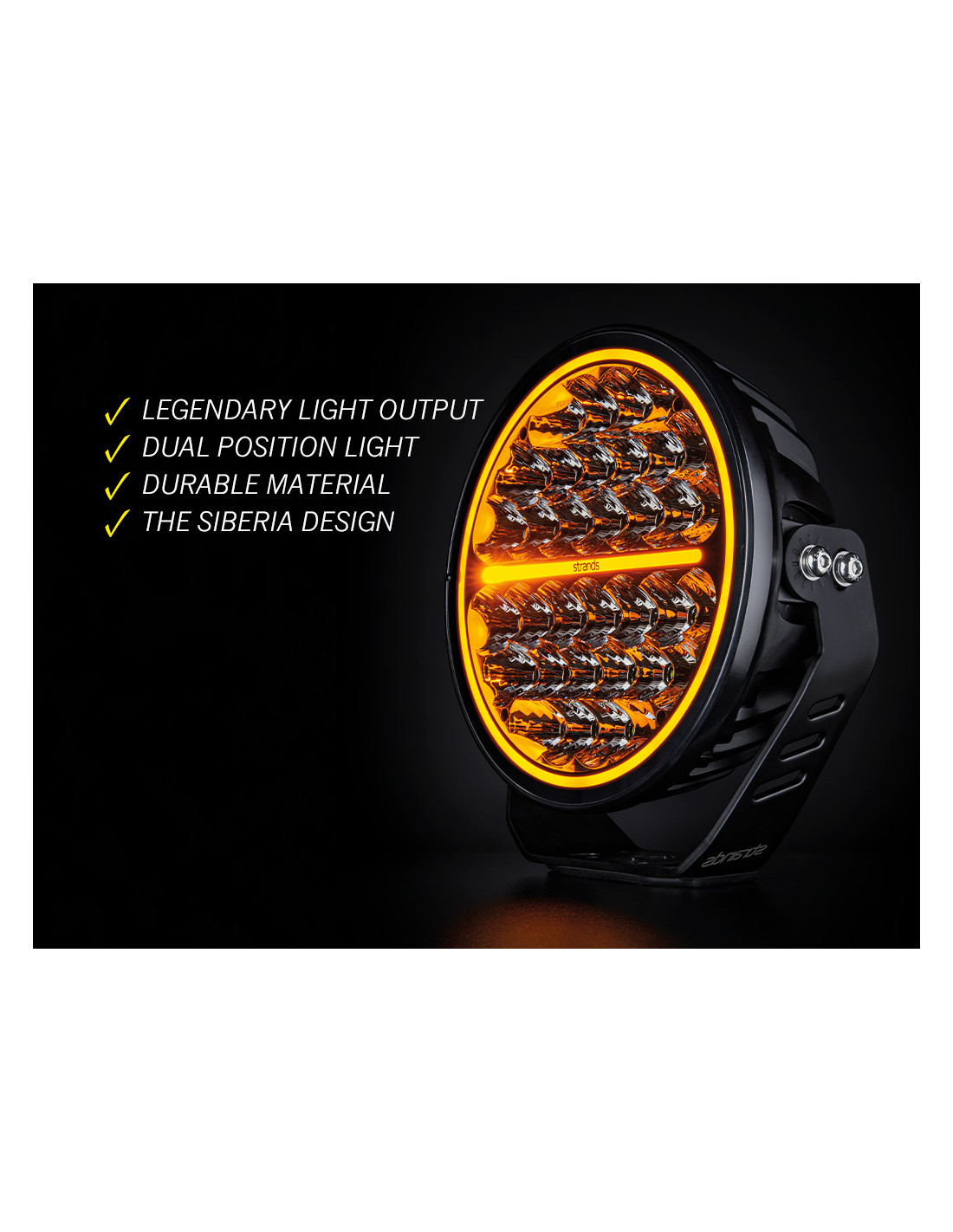

Position light Yes. amber and white

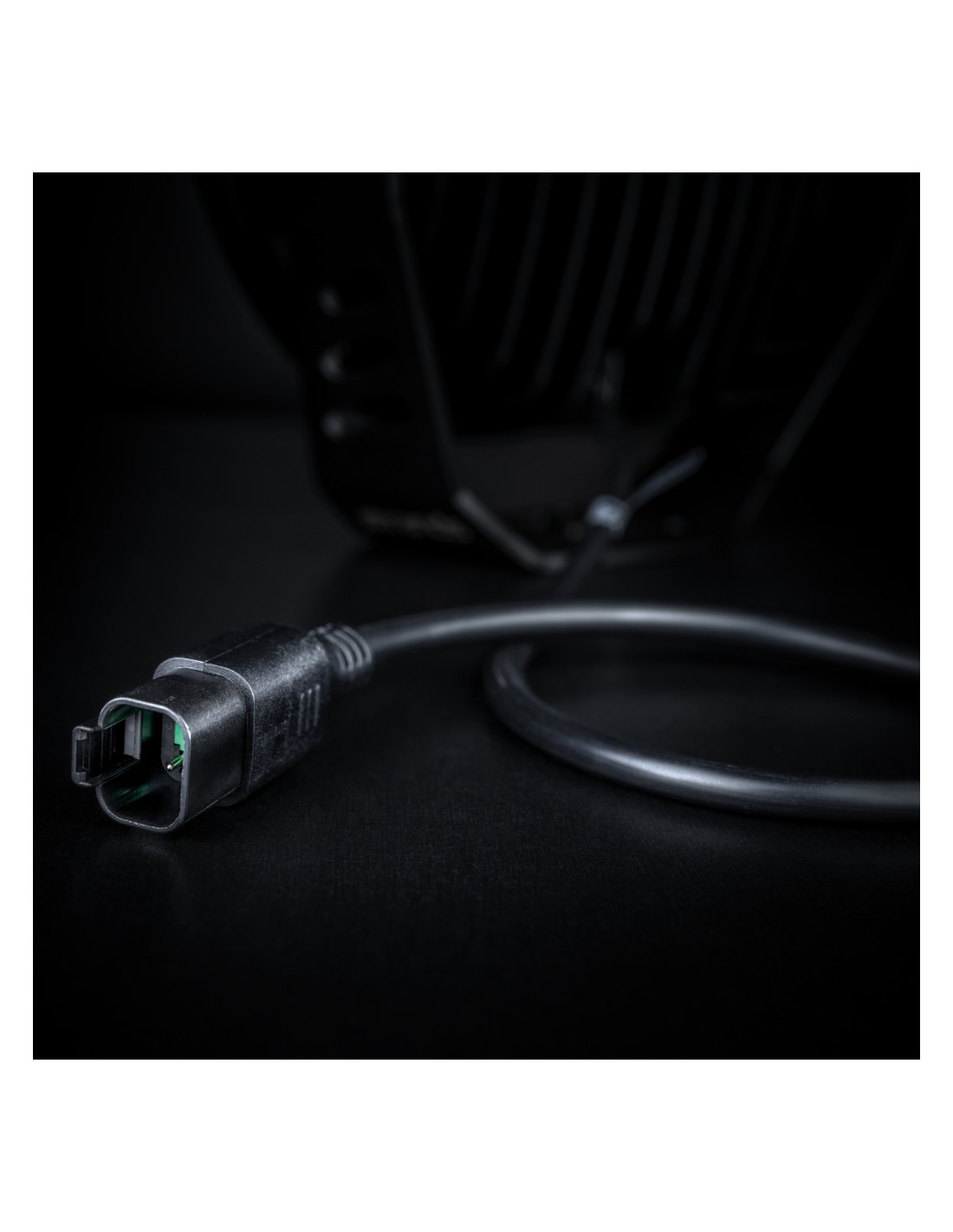

Connection DT-4
Cable length (mm) 500

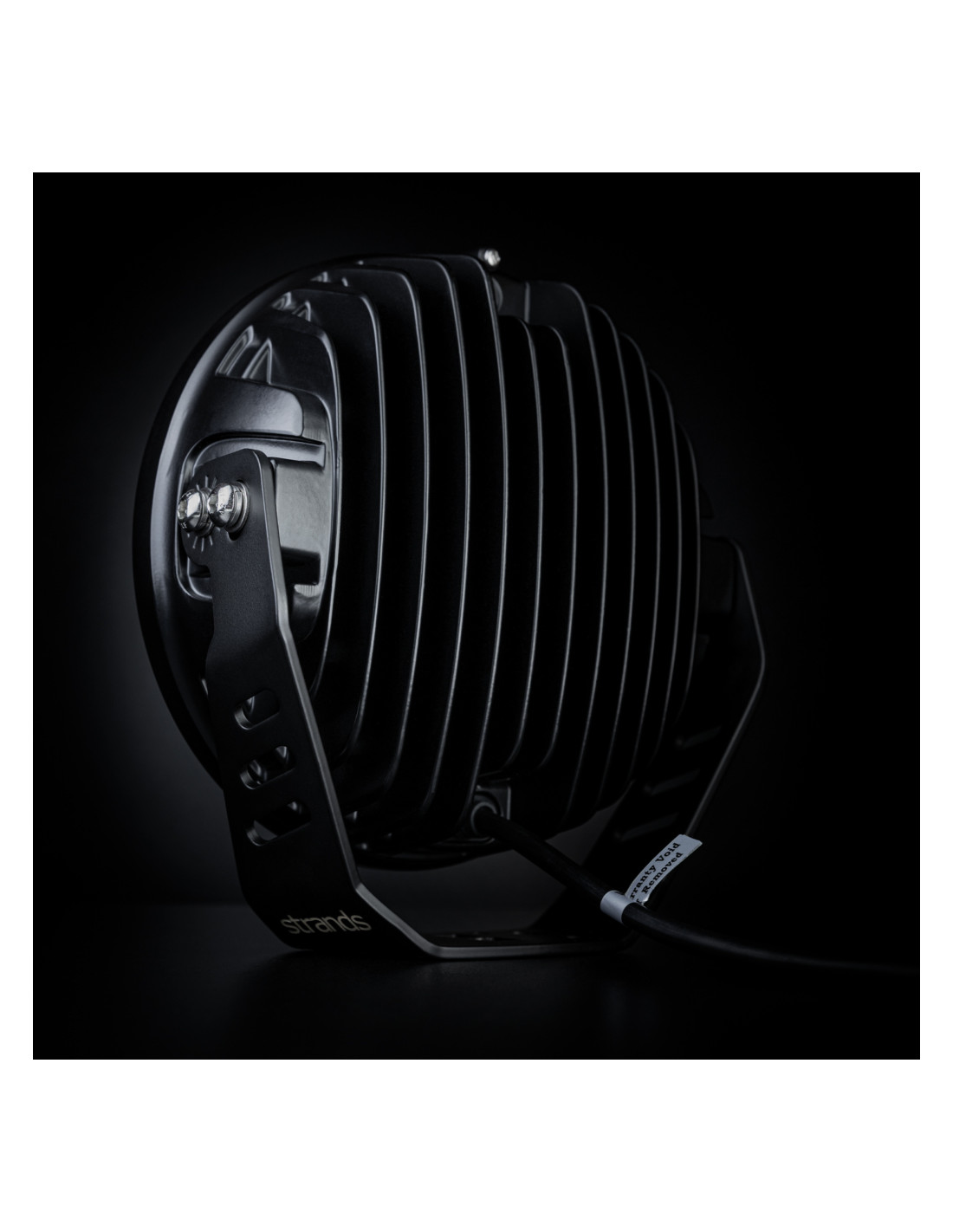

Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate

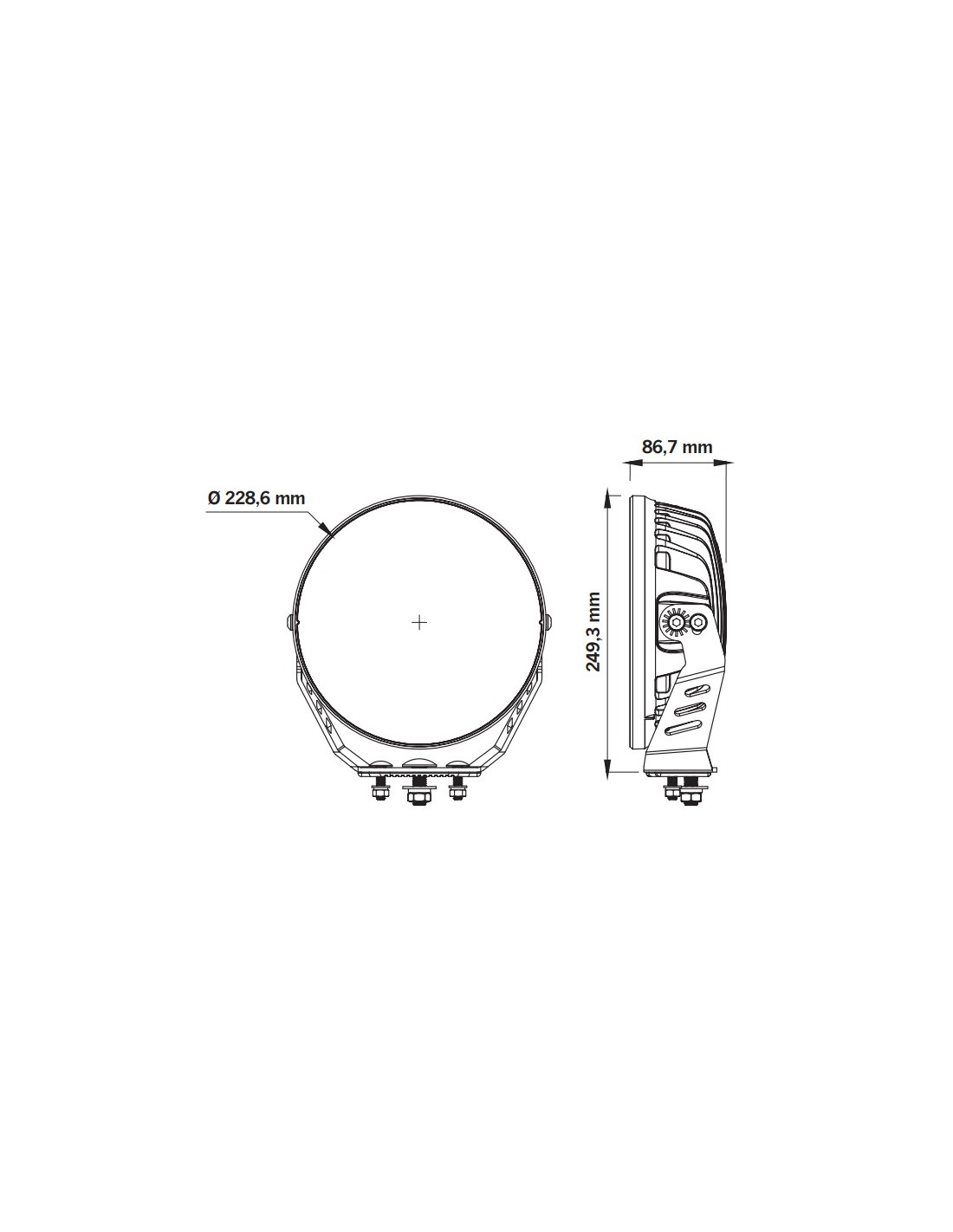

Length (mm) 228.6
Depth (mm) 86.7
Height (mm) 228.6
Height including bracket (mm) 249.3
Diameter (mm) 228.6
Operating temperature -20°C – +45°C
E-approved Yes
According to regulation ECE R112. R7
Reference number 30
EMC ECE R10
