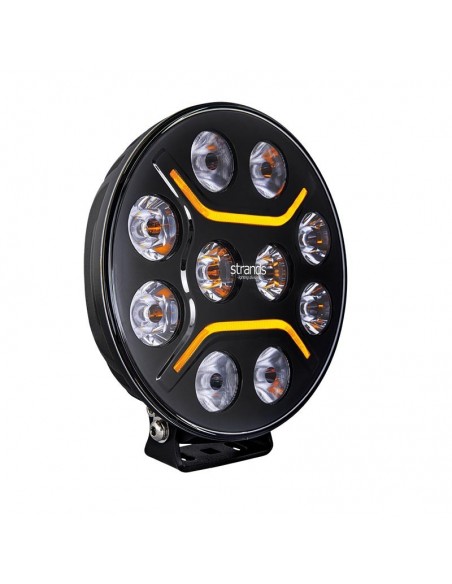

STRANDS Dark Knight Intense 9" LED driving lamp
Strands1052.845528 netto
STRANDS Dark Knight Intense 9" LED driving lamp with dual color position light
Type of lamp LED
Type of LED LP
PCS LED´s Driving beam: 10
Position light: 4
Voltage (V DC) 9-36V DC
Theoretical effect (w) 12V 150
Theoretical effect (w) 24V 150
Consumption (w) 12V 125
Consumption (w) 24V 115
Theoretical lumen 14000
Actual lumen 11000
1 LUX @ m 445
Kelvin 6000
IP-class 68/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and amber
Beam pattern Combo
Position light Yes white and amber
Connection DT4
Cable length (mm) 500
Material bracket Stainless steel(sus304)
Material housing/chassi Aluminium
Material lens Polycarbonate
Depth (mm) 70
Height including bracket (mm) 233.5
Diameter (mm) 218
Operating temperature -40°C – +60°C
ADR-approved No
E-approved Yes
According to regulation ECE R7 R112
Reference number 45
EMC ECE R10
Black cable – (Negative)
Red cable + (Positive)
White cable + White Position light(Positive)
Yellow cable + Amber Position light(Positive)
Delivery within 5 days
