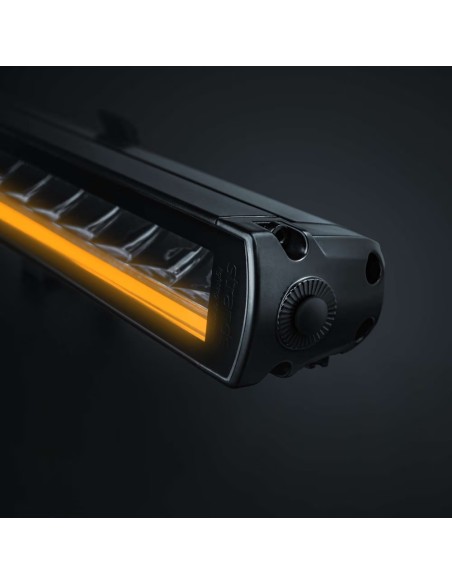

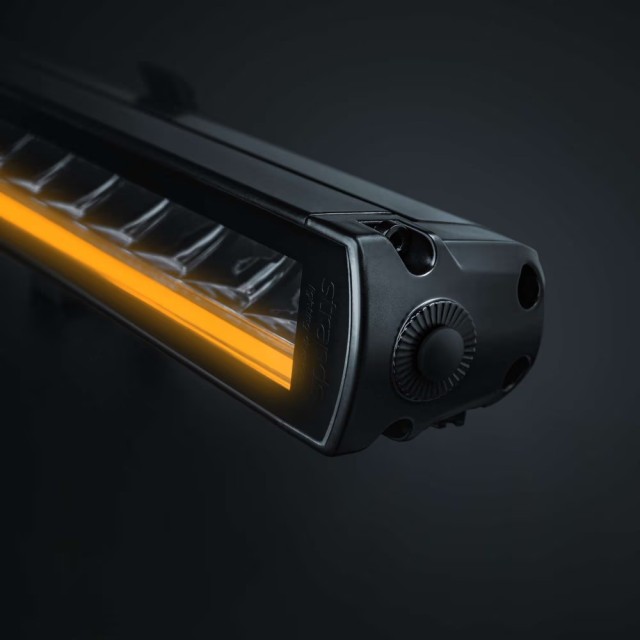

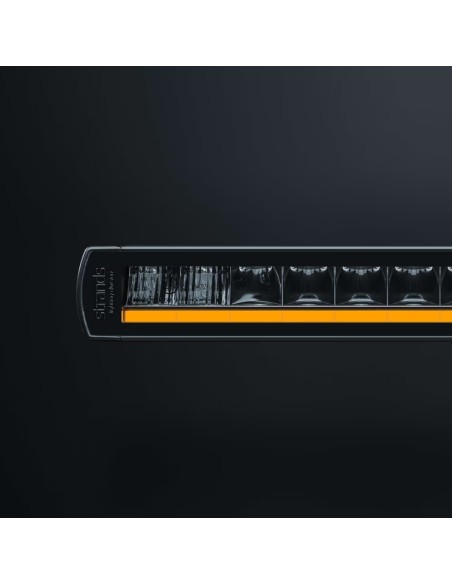

Siberia XPA SR 32" Ledbar

With more than 10900 actual lumens and over 700-meter range in Xperience mode, the Siberia XPA Single Row 32“ LED bar will light up the darkest nights with its long-distance beam pattern. This means a 100% higher output than previous models and a very high forward visibility. If you like the amber glow, the XPA LED bars have an amber and white position light. Like all XP products, the XPA Single Row features the Hello function. Flash your high beam twice in quick succession, and the position lights will signal a Hello to your fellow drivers. The durable materials and powder coating make this LED bar a long-lived addition to your vehicle. It has an IP rating of IP68/IP69K, which ensures high protection against dirt and water. The installation is easy thanks to the DT-4 connector and 550 mm cable, saving you the hassle of connecting cables. The E-mode is E-approved ECE R149/148 with reference number 20. As with all XP products, the XPA LED bars are covered by Strands Lighting Division’s 3-year function warranty.

Technical data:

• Unit - PCS
• Voltage (DC) - 10-32V DC
• Theoretical effect - 160W
• Consumption - 160.00W
• Functions - Xperience mode,E-approved mode,White pos.,Amber pos.,Hello function
• Consumption specific function - X-mode 160W,E-mode 30W,White pos. 15W,Amber pos. 15W
• Theoretical lumen - 12,000lm
• Actual lumen - 10950lm
• 1 lux @ - 734m
• Color temperature - 5,700K
• Beam pattern - Long-distance beam
• Beam angle - 14.4°
• Connection - DT-4PIN
• Cable length - 550mm
• Color housing - Black
• Color lens - Clear
• Color LED's - White/amber
• Material bracket - Aluminium alloy
• Material housing/chassi - Aluminium
• Material lens - Polycarbonate
• Length - 814.7mm
• Depth - 55.5mm
• Height - 45mm
• Height including bracket - 64.5mm
• Weight - 2.52kg
• IP-class - IP68/69K
• Operating temperature - -35 - +60°C
• E-approved - Yes
• Reference number - 20
• According to regulation - ECE R148, R149
• EMC - ECE R10
• Warranty - 3 years
