Purelux Multi-switch Radio Controlled Lighting Controller 10-30V

A very versatile switch panel that allows you to control up to 8 different electrical devices either from the switch panel itself, using the included wireless remote control, or by utilizing a mobile application installed on your smartphone! Excellent for controlling the lights of a construction machine, truck, or SUV, for example.

Delivery content

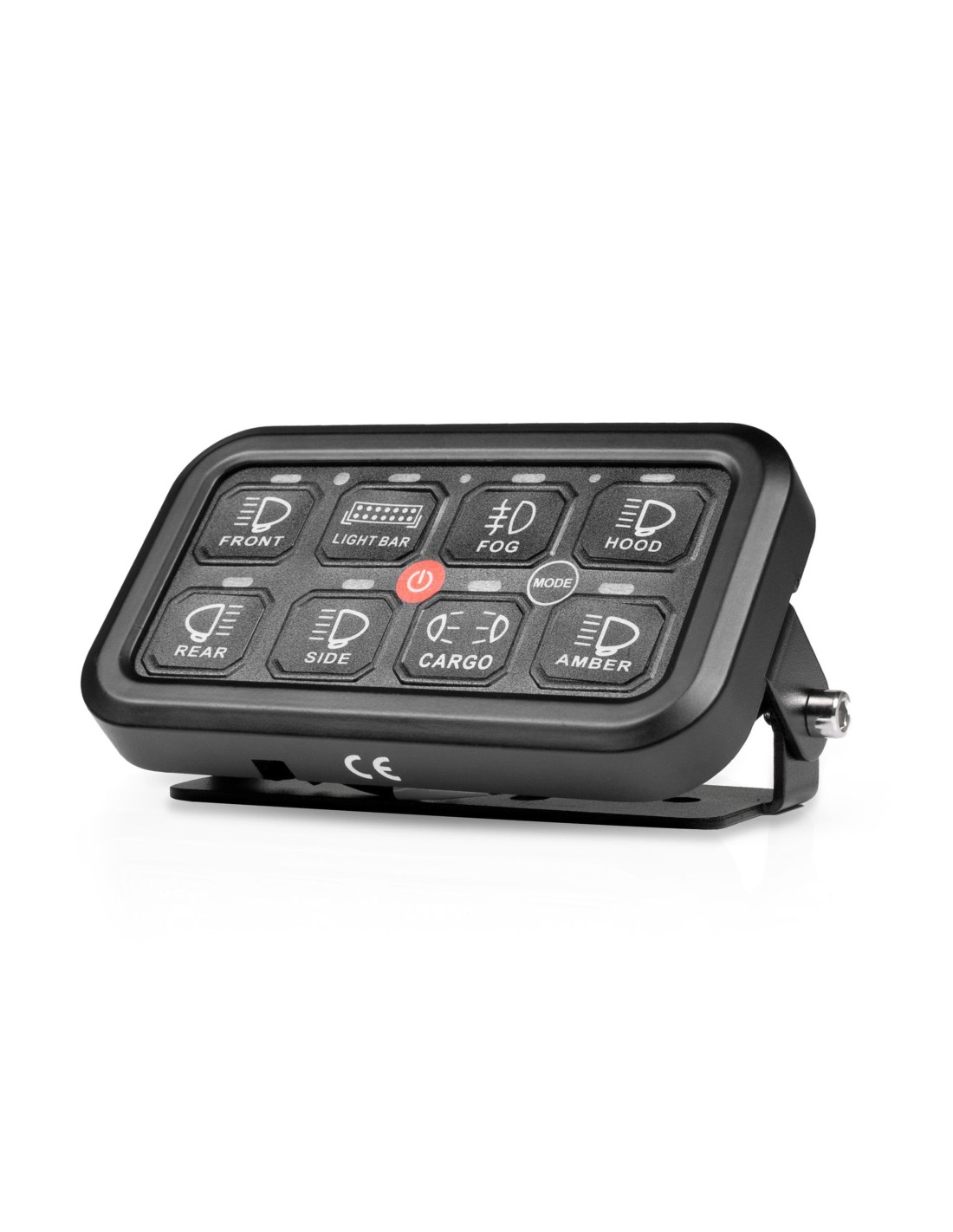

• Switch panel (8 switches)

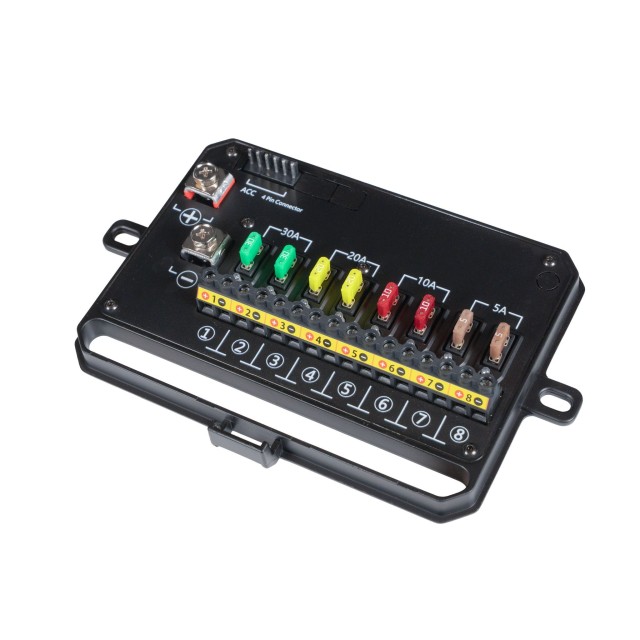

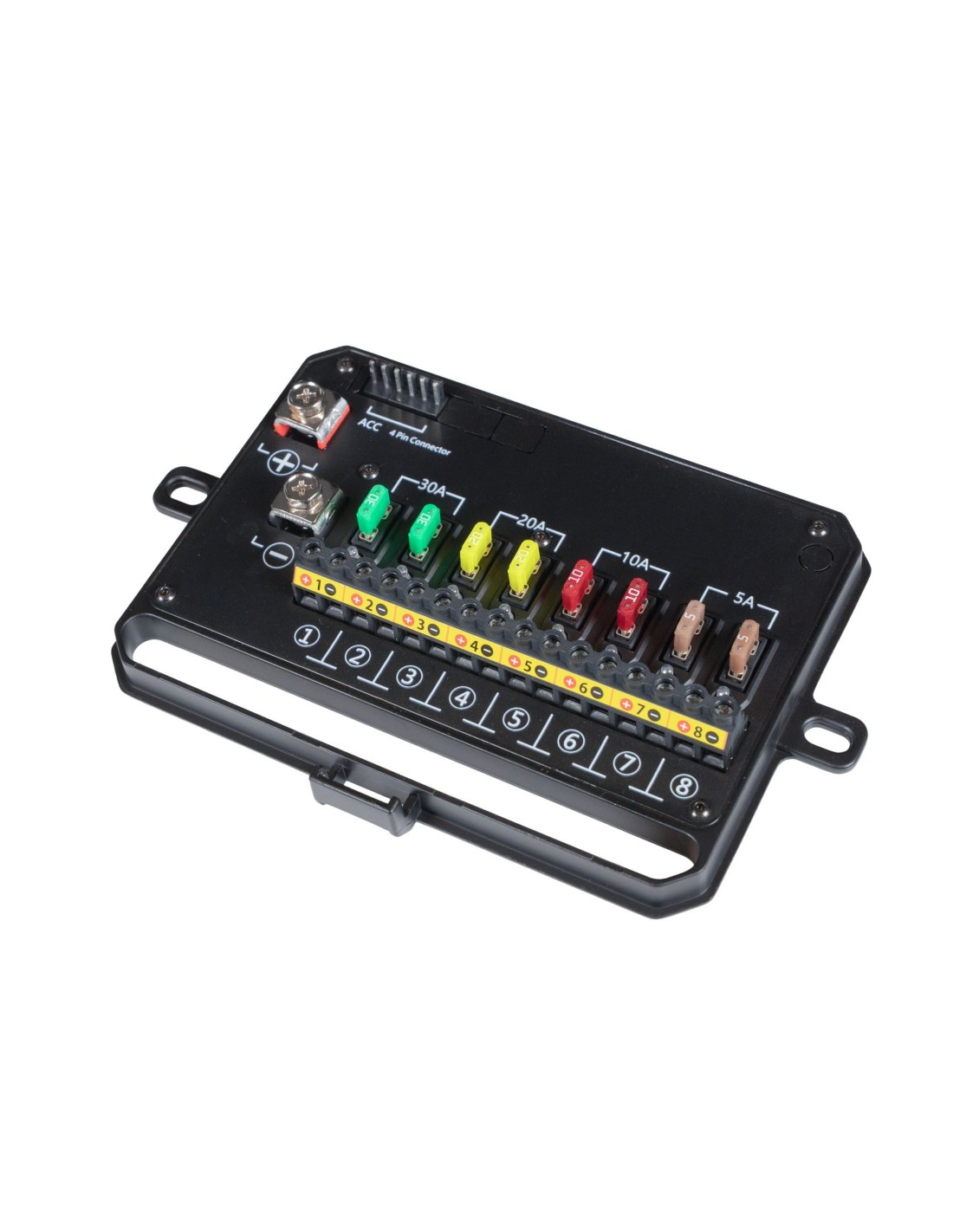

• Fuse box
• Residual current device (60A)

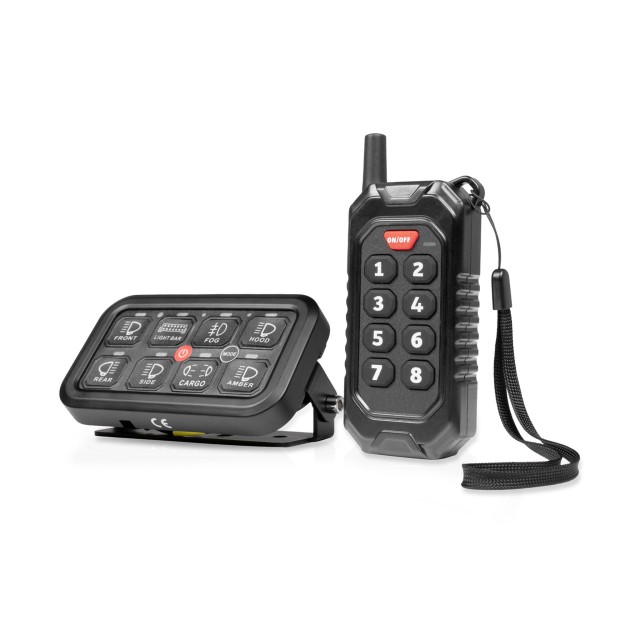

• Remote control
• Remote control battery (CR2477 3V)
• Antenna
• 4-pole cable
• 2-pole cable
• Power cable
• 2 different mounting brackets for the switch panel
• Fuse box mounting bracket
• 50 marking stickers for marking buttons
• Screw set
• Cable ties
• User manual (FI/SV/NO/DK/EN)

Specifications

• What: Switch panel Purelux Multi-Switch Dashboard Controller Bluetooth/RF, 10-30V
• Purpose: operating up to 8 electrical devices from the same switch panel
• Allows, for example, the use of additional lights, side and rear work lights and beacon panel separately
• Operating voltage: 10-30 V
• Power rating: 600W @12V, 1200W @24V
• Maximum current: 60 A
• Includes 50 marking stickers
• Includes remote control + battery (CR2477)
• Bluetooth connection: Max 10 m
• Radio frequency connection: Max 30 m
• Switch panel size: 116 x 66 x 14 mm (W x H x D)
• IP rating: IP65
• Operating temperature: -40 - +105°C
• Approvals: CE marked
• Other: The panel has a memory function, can also be controlled with the SwitchPanel mobile app (Bluetooth)
• Warranty: 12 months
