PURELUX Multi-switch 10-30V - dashboard controller

A very versatile, RGB backlit switch panel for controlling up to 8 different devices from the same place. Excellent for e.g. controlling the lights of a work machine, truck or SUV.

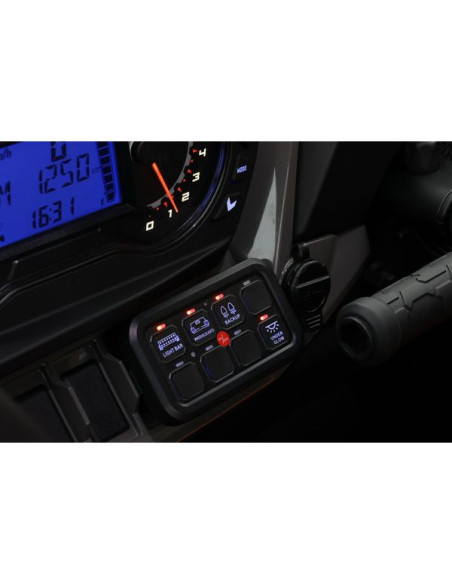

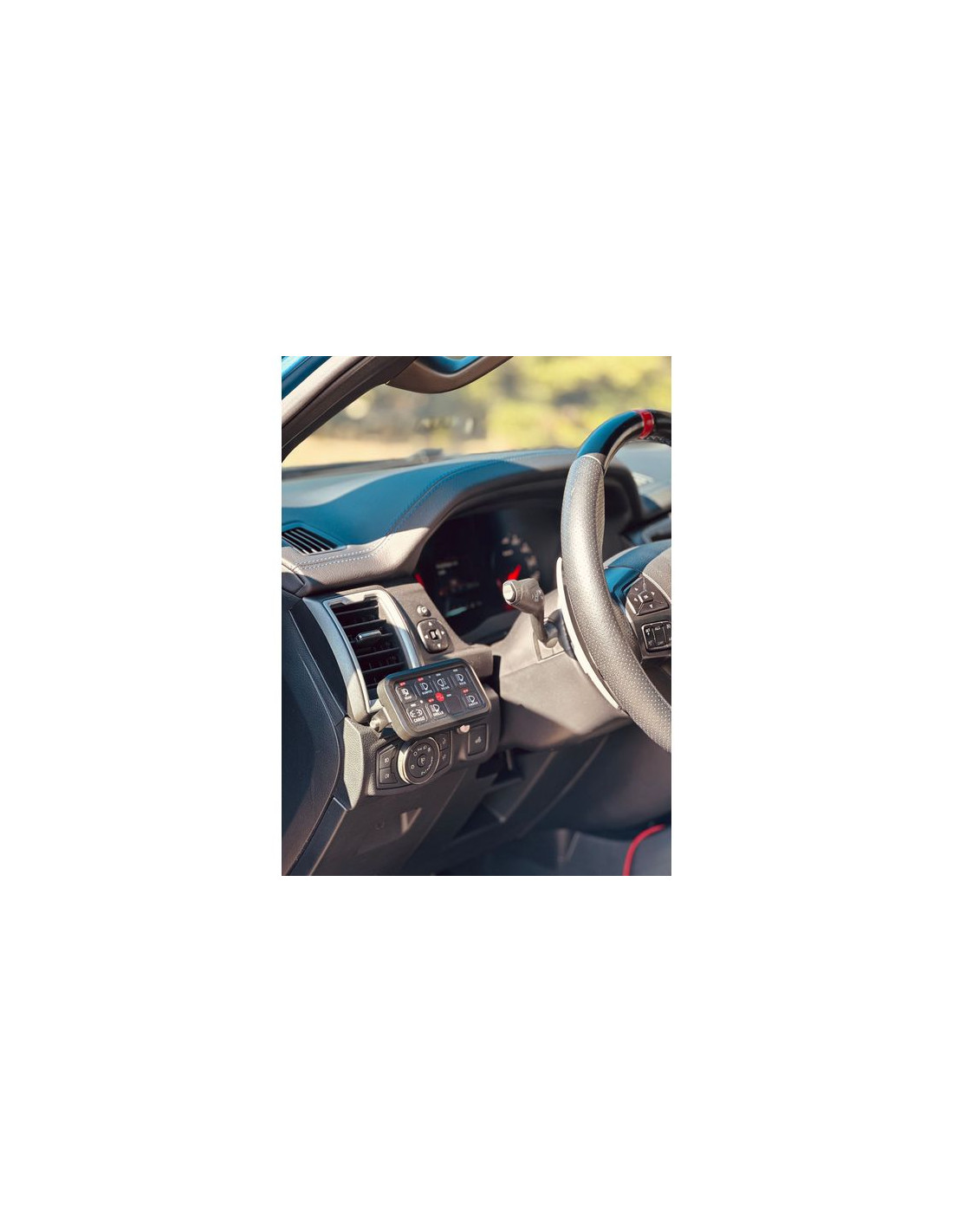

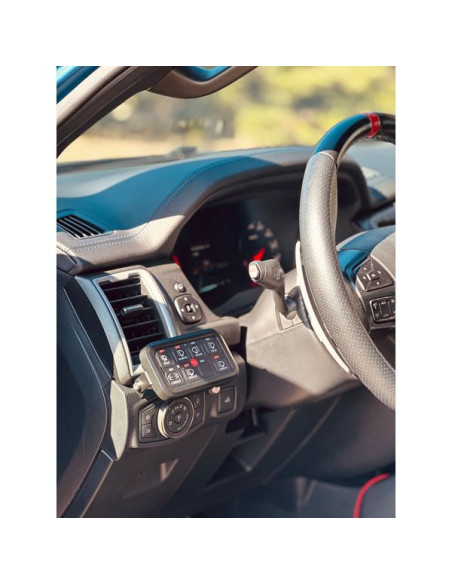

The Purelux Multi-Switch Dashboard Controller is a very versatile and convenient switch panel for controlling up to eight different electrical devices (lights, beacons, engine fan or even a seat heater). With the help of the switch panel, for example, the front, rear and side work lights and the beacon can be controlled separately in the work machine, and the switches for all lights are conveniently in the same place. The lights can be turned on and off individually, and with the switch in the middle, all devices installed behind the panel can be turned off at the same time. All lights connected to the switch panel (and other devices as well) can be turned on either steadily (i.e. turn the button on and off with another click), momentarily (the light turns on when the button is held down) or flashing.

The switch panel has an RGB backlight that automatically adjusts to the brightness of the environment, the color of which can be selected to please the eye. The backlight can also be turned off by pressing the "Mode" switch once. A total of 45 different picture stickers and five black, self-cutting stickers for marking the switches are included. In this way, the switch intended for each different device or light can be marked to prevent confusion. Thanks to the backlight, the symbol on the switch shines clearly even in the dark.

From the switch panel, all the lights connected behind it can be made to light either steadily, momentarily (by pressing the button at the bottom) or flashing. The function can be changed by quickly pressing the Mode button in the middle of the panel twice, after which the led indicators above the switch start flashing. After that, press the switch whose function you want to change. This way, for example, a separate flasher relay is not needed to make the lights flash! In addition, the panel is equipped with a convenient memory function, i.e. it turns on the lights in the same mode that was used before turning off the power.

NOTE! The current rating of the switch panel is 600W @12V and 1200W @24V. The power of electrical devices that are on at the same time may therefore be a total of 600W (or 1200W). Circuits 1 and 2 can withstand a maximum current of 30A, circuits 3 and 4 a current of 20A, circuits 5 and 6 a current of 10A and circuits 7 and 8 a current of 5A. Each circuit has its own fuses in the control box.

Delivery content

Switch panel (8 switches)

Fuse box

Residual current protection (60A)

4-pole cable

2-pole cable

Power cable

2 different fixing irons for the switch panel

Fuse box fixing iron

50 labeling stickers for labeling buttons

Screw set

Ties

Manual

Technical information

What: Switch panel Purelux Multi-Switch Dashboard Controller, 10-30V

Purpose: operating up to 8 electrical devices from the same switch panel

Enables e.g. additional lights, side and rear work lights and the beacon panel to be used separately

Operating voltage: 10-30 V

Power rating: 600W @12V, 1200W @24V

Maximum current: 60 A

Includes 50 marking stickers

Switch panel size: 116 x 66 x 14 mm (W x H x D)

IP rating: IP65

Operating temperature: -40 to +105°C

Approvals: CE marked

Change: Memory function in the panel

Warranty: 12 months
