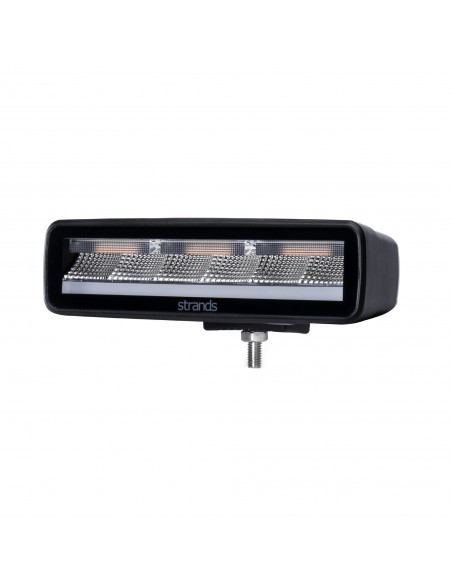

STRANDS - SIBERIA MO LED Tail light with warning light

One light. Multiple options. Meet Siberia MO, a brand-new tail light in the Siberia family with four E-approved functions. Delivering the perfect lighting solution in one light with revolutionary mounting possibilities.

Siberia MO comes in two versions, delivering all the features you want in a tail light, where every function is equally essential. This version provides a warning light, brake light, reversing light, and red position light approved as a tail light. The other version (part. no. 809224) has the same functions. But the warning light is replaced with an indicator function. Combine them with Siberia Tail light (part. no. 809226) to get the perfect mix and unit.

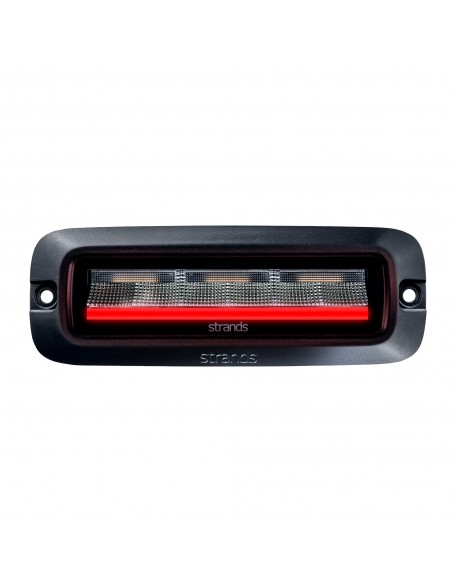

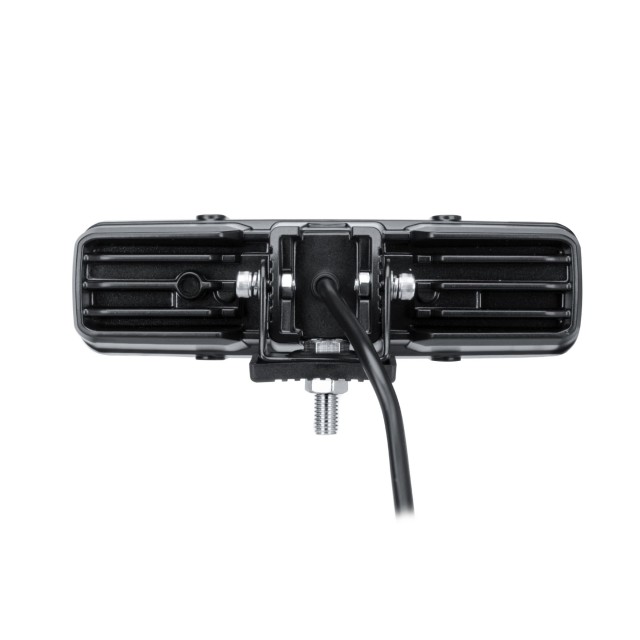

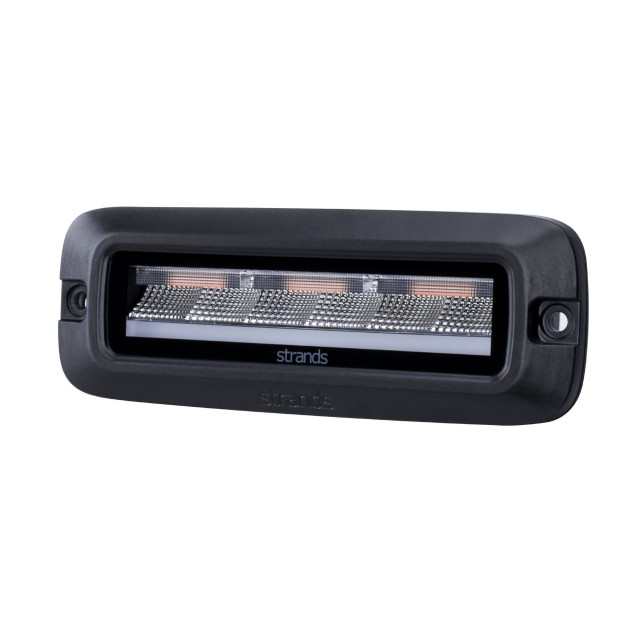

The multiple options allow you to mount Siberia MO for different purposes and the mounting possibilities are revolutionary. The 10-32 V DC voltage makes Siberia MO perfect for mounting on vehicles like UTVs, scooters, cars or trucks, trailers, and tractors. Mount either by flush mounting with an included solid frame and rubber gasket. Designed to blend in seamlessly within the vehicle and deliver a seamless montage. Or mount Siberia MO with the angle bracket on the back of the lamp. The angle bracket can be adjusted 180 degrees, making it possible to mount Siberia MO at the angle that best suits your vehicle. Comes with a 2.5-meter cable for easy installation.

Siberia MO has a typical no-edge Siberia design. The house is made of aluminum, and the lens is made of unbreakable polycarbonate and is treated with UV coating for the most challenging climate. Waterproof according to IP67 and can withstand demanding environments according to IP-class IP69K. All functions are fully E-approved, and the warning light function is E-approved according to ECE R65. Standing behind Strands Lighting Division´s unique three-year function warranty. An obvious choice for you who want the perfect lighting solution in one light.

Type of Lamp: LED

Type of LED:
- Brake: Zeme
- Reverse: OSRAM
- Tail light: Zeme
- Warning light: Refond

PCS LED´s
- Brake: 21
- Reverse: 6
- Tail light: 9
- Warning light:21

Voltage (V DC): 10-32V DC

Theoretical effect (w) 12V|
- Brake: 21W
- Reverse: 6W
- Tail light: 9W
- Warning light: 31.5W

Theoretical effect (w) 24V
- Brake: 21W
- Reverse: 6W
- Tail light: 9W
- Warning light: 31.5W

Consumption (w) 12V
- Brake: 10.2W
- Reverse: 3.9W
- Tail light: 5.4W
- Warning light: 9.5W

Consumption (w) 24V
- Brake: 10.4W
- Reverse: 4.2W
- Tail light: 5.5W
- Warning light: 9.7W

Functions
- Brake light
- Reverse light
- Tail light
- Warning light

Theoretical lumen
- Reverse light: 546

Actual lumen
- Reverse light: 322

1 LUX @ m
- Reverse light: 14

Kelvin 6000

IP-class 67/69K

Colour housing: Black

Colour lens: Clear

Colour LED´s: Red/white/amber

Beam pattern: Flood

Connection: Cable

Cable length (mm): 2500

Material bracket
- Flush mount: Alumimun
- U bracket: Metal plate

Material housing/chassis: Aluminium

Material lens: Polycarbonate

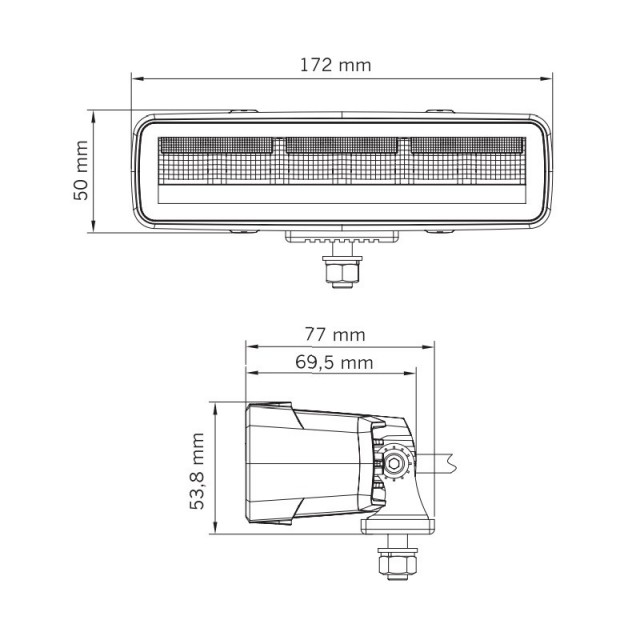

Length (mm)
- Flush mount: 214
- U-bracket: 172

Depth (mm)
- Flush mount: 71,5
- U-bracket: 77

Height (mm)
- Flush mount: 77
- U-bracket: 50

Height including bracket (mm)
- U-bracket: 53,8

CC (mm)
- Flush mount: 196

Operating temperaturę: -30°C - +65°C

ADR-approved: No

E-approved: Yes

According to regulation: ECE R148

EMC: ECE R10
