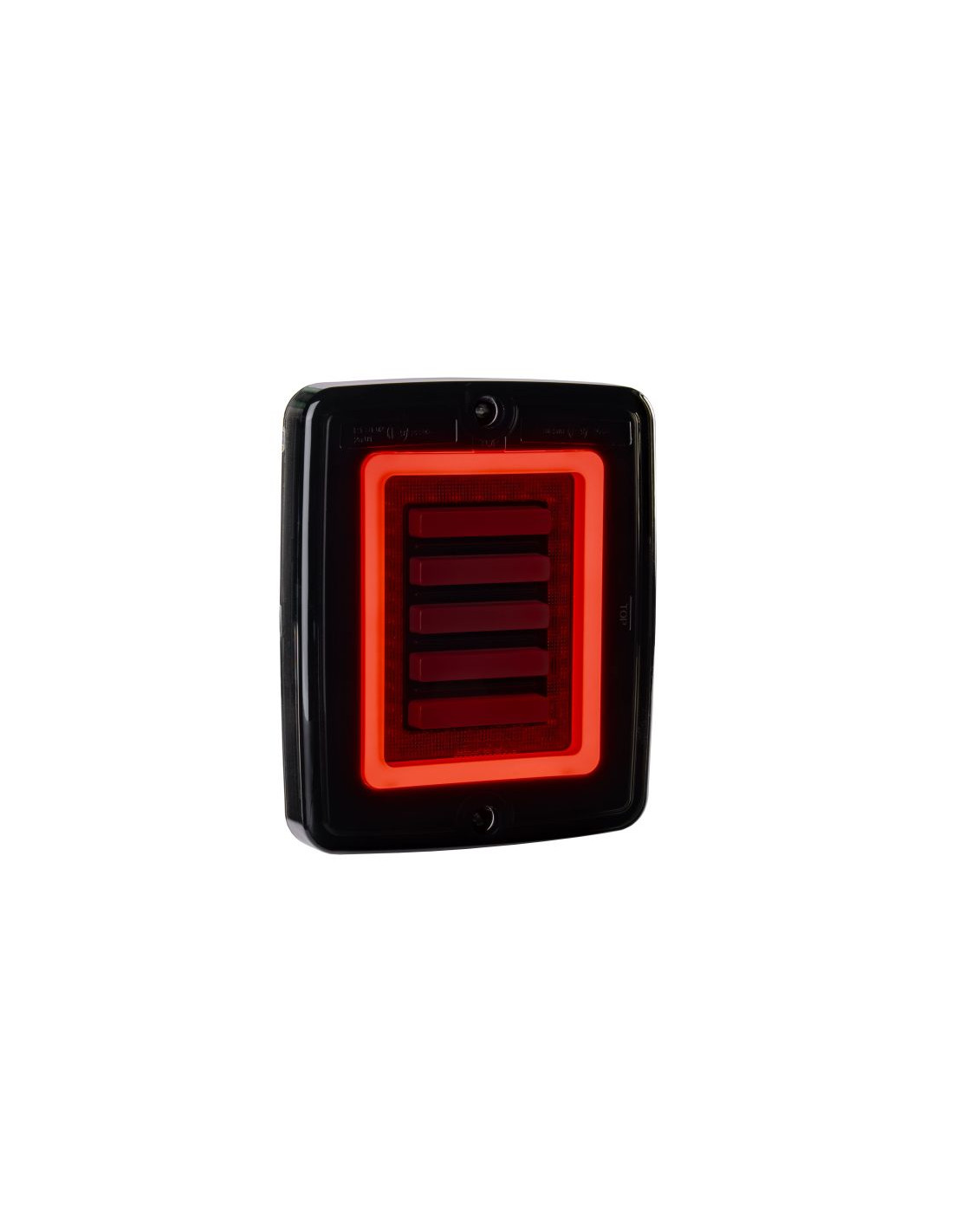

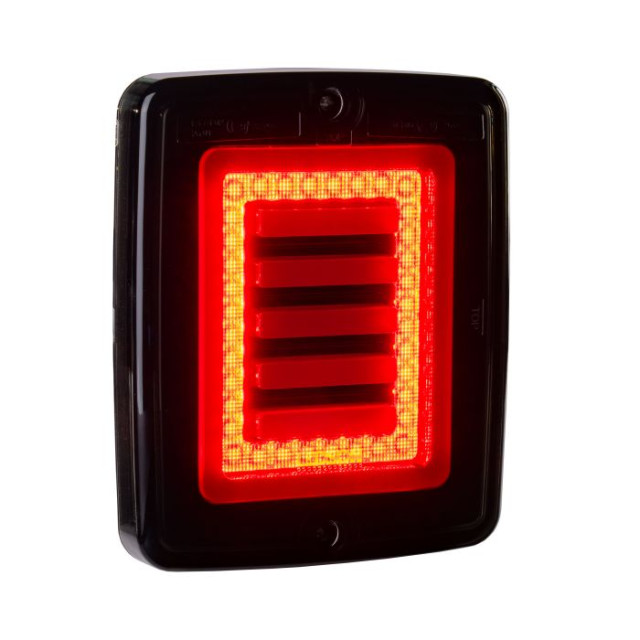

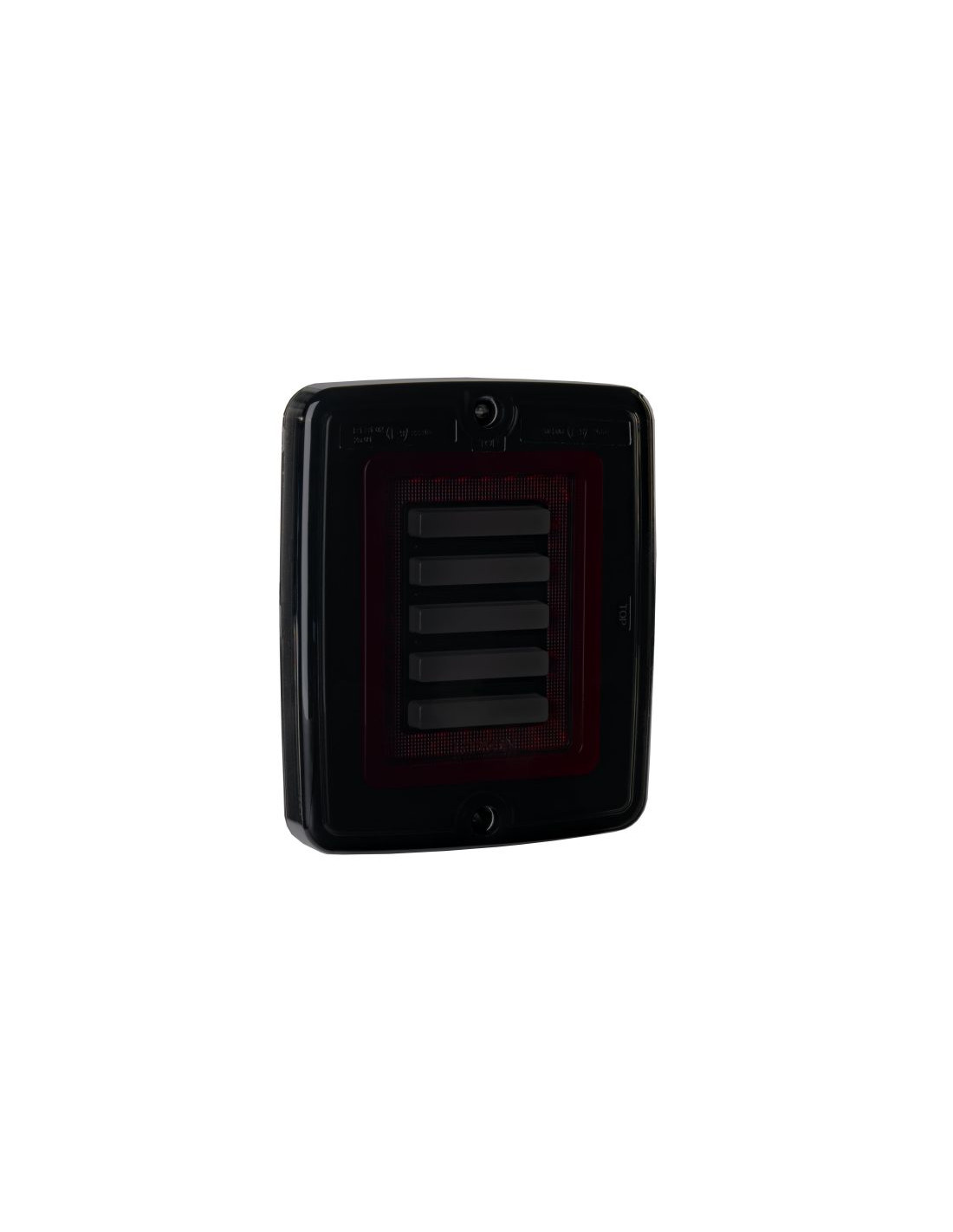

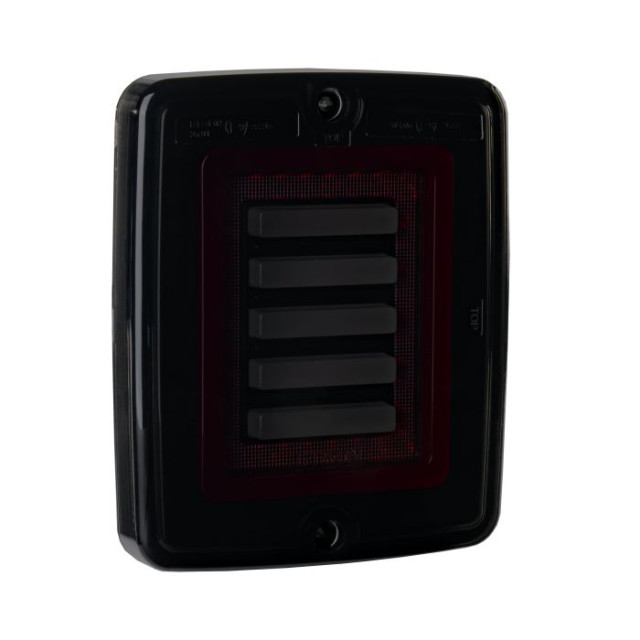

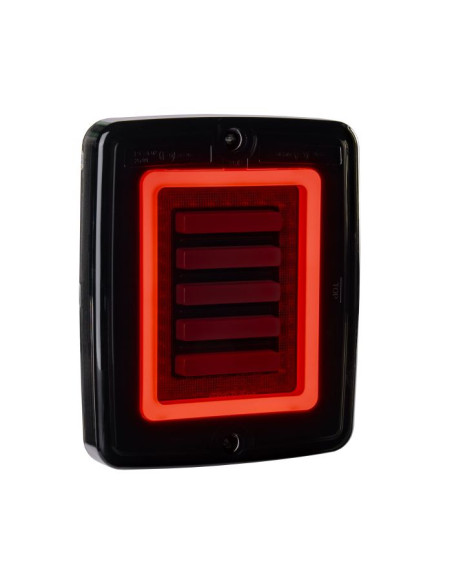

Breeze X1 3-function LED rear light with smoked lens

The Breeze X1 from Ledson is an ultra-slim rear light measuring just 28mm in depth, combining sleek, modern design with cutting-edge technology. Perfect for those looking to give their vehicle a sophisticated and contemporary look without compromising on functionality. The rear light has three fully approved functions: tail light, brake light and indicator light. The ultra-slim design and long 2.5m cable make this rear light easy to fit.

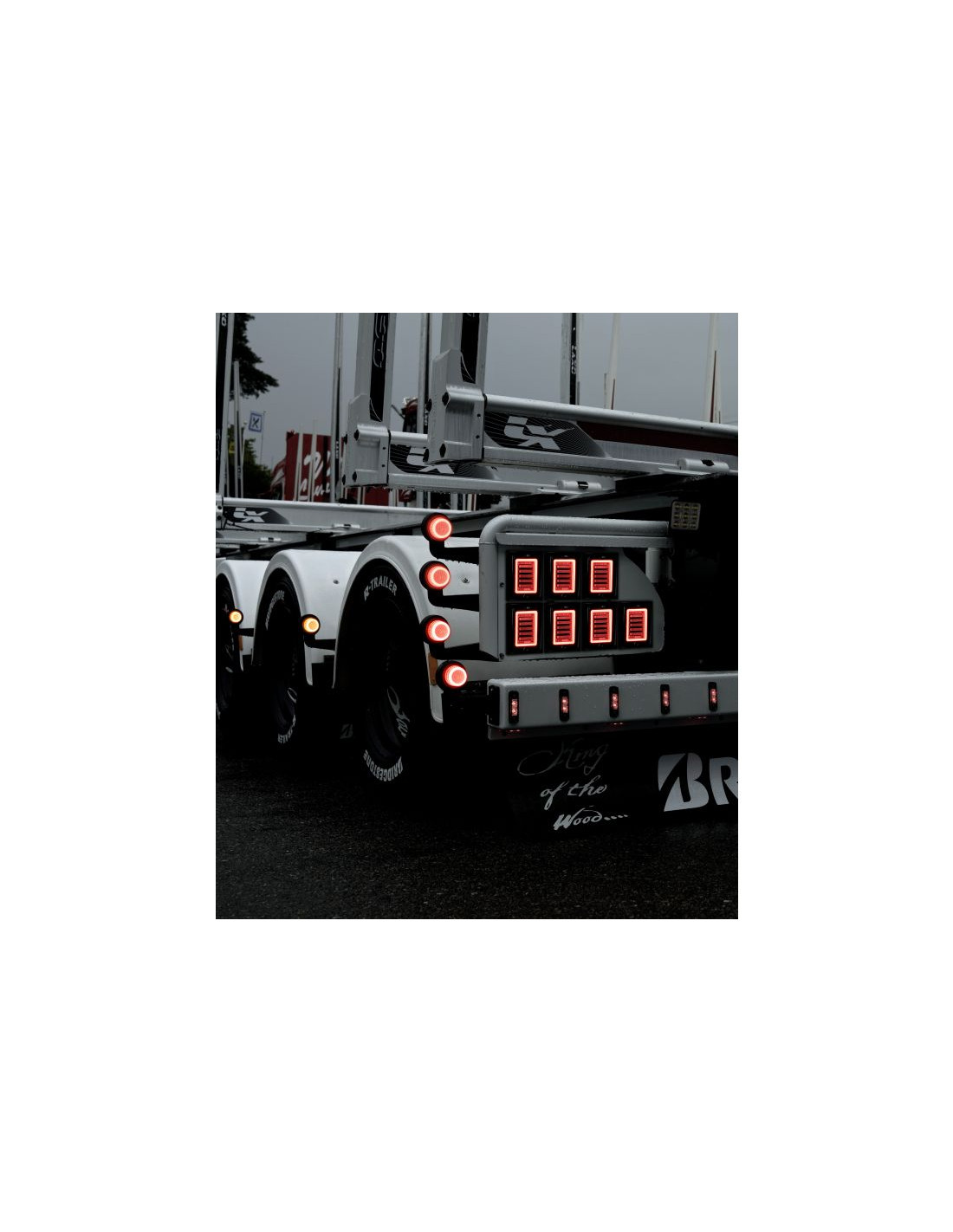

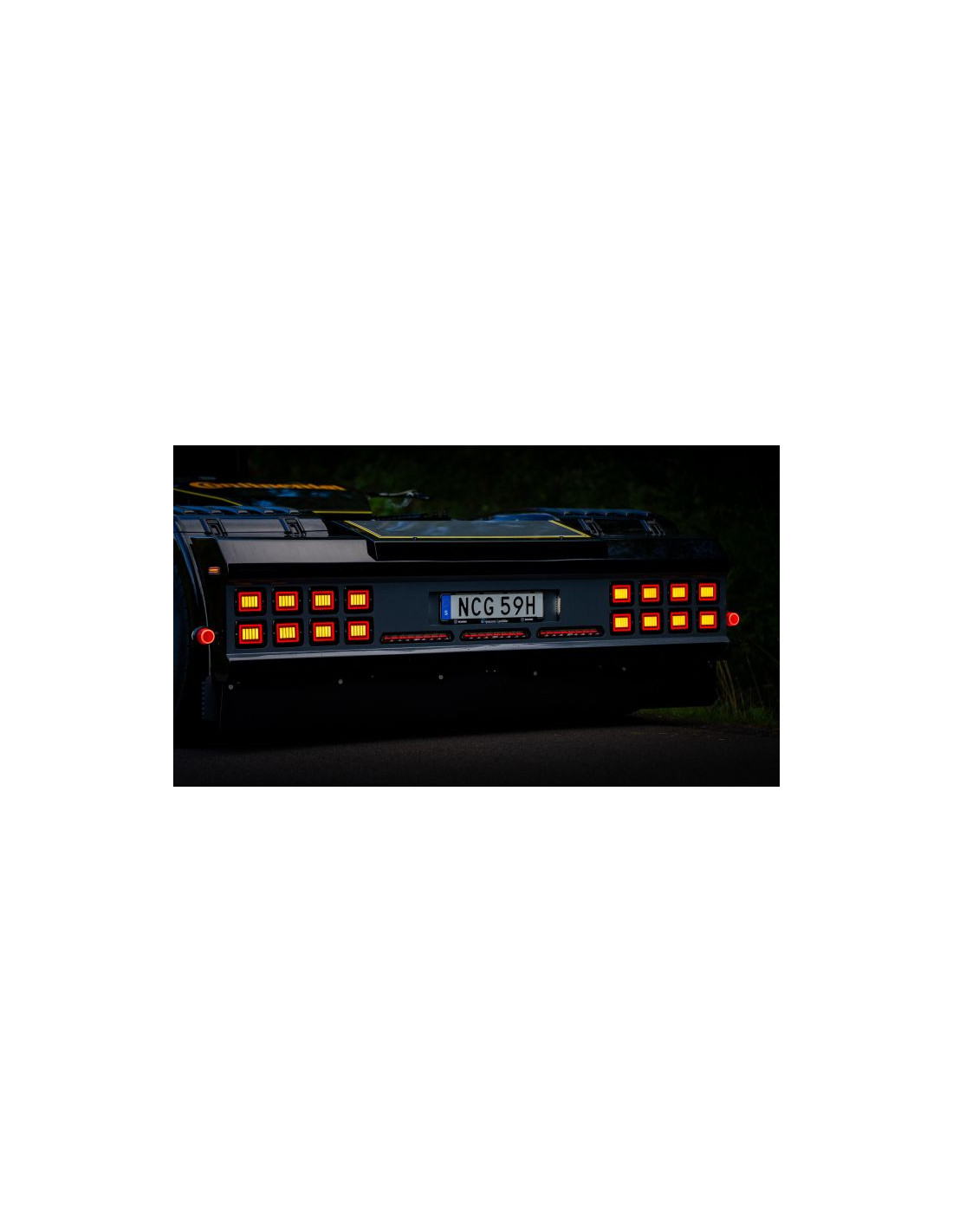

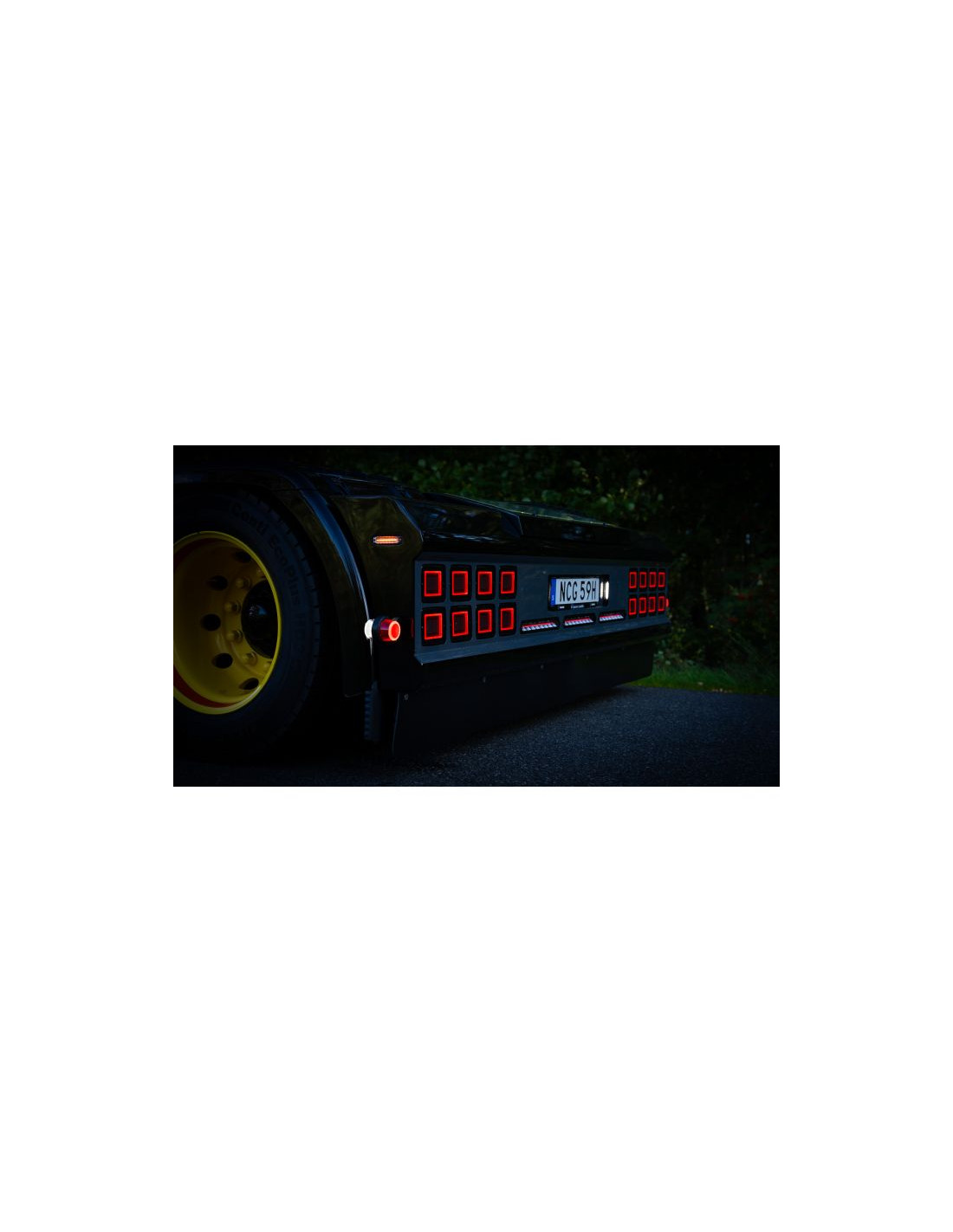

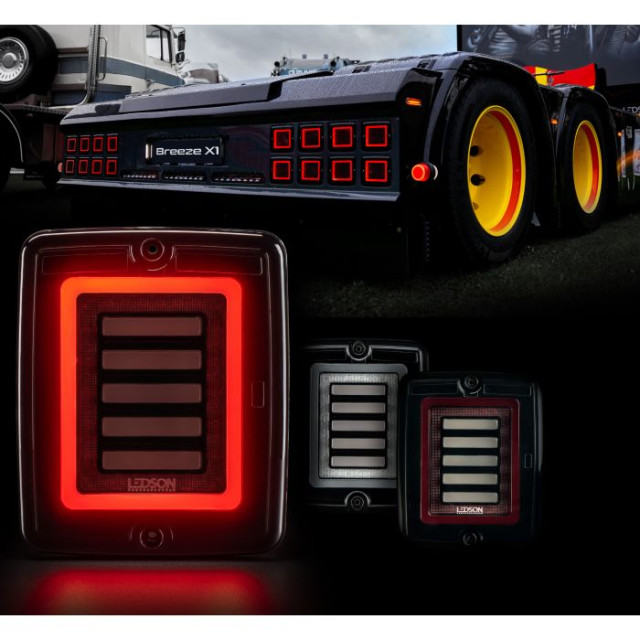

In addition, the Breeze X1 features a built-in dynamic indicator function, allowing you to connect up to four lights on each side. They can be mounted both horizontally and vertically, with both mounting options being E-marked according to ECE R148.

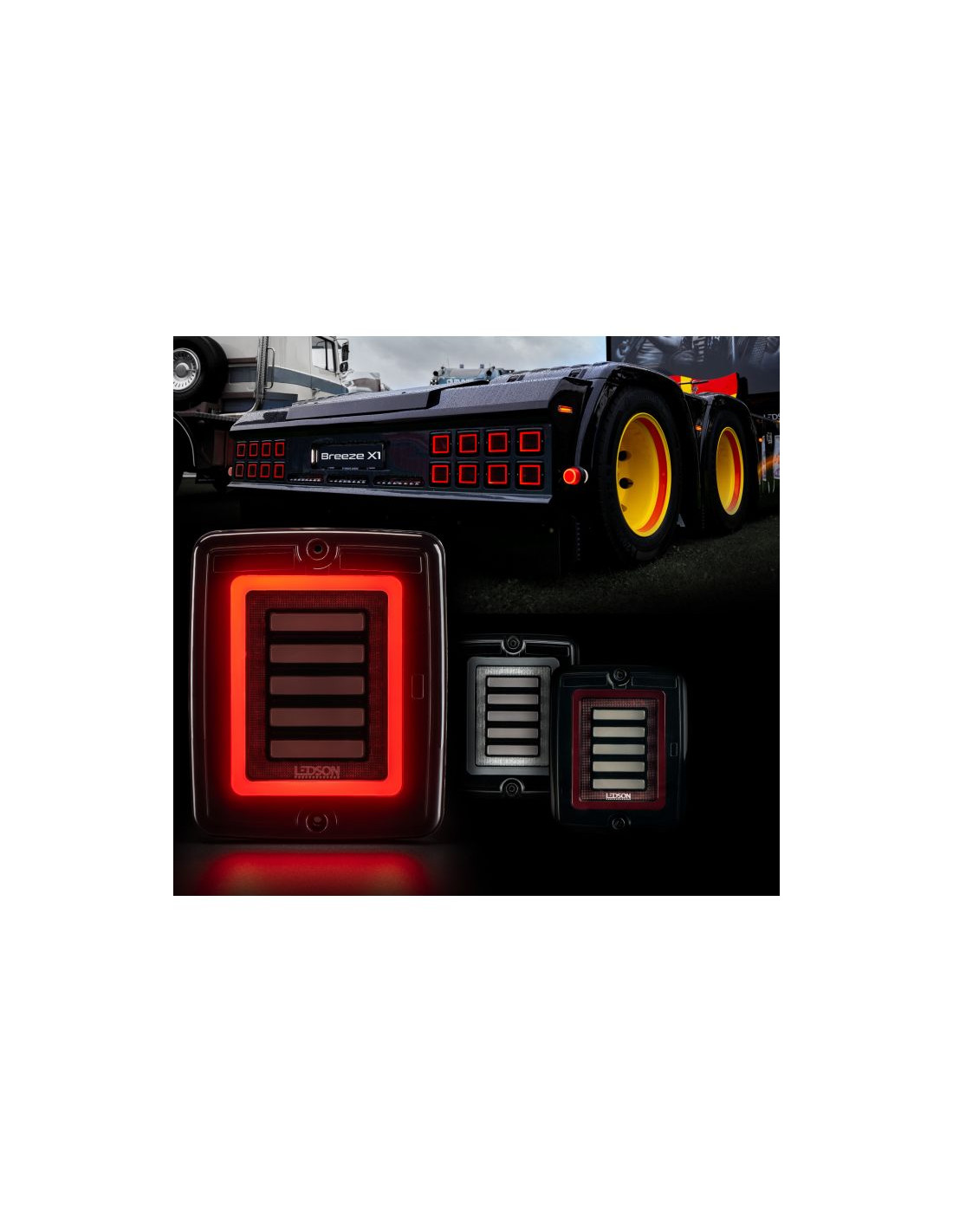

The Breeze X1 is available with either a smoked lens or a clear/transparent lens.

Mounting using Strands IZE LED mounting frames - available separately

Specifications:

• Smoke or clear lenses

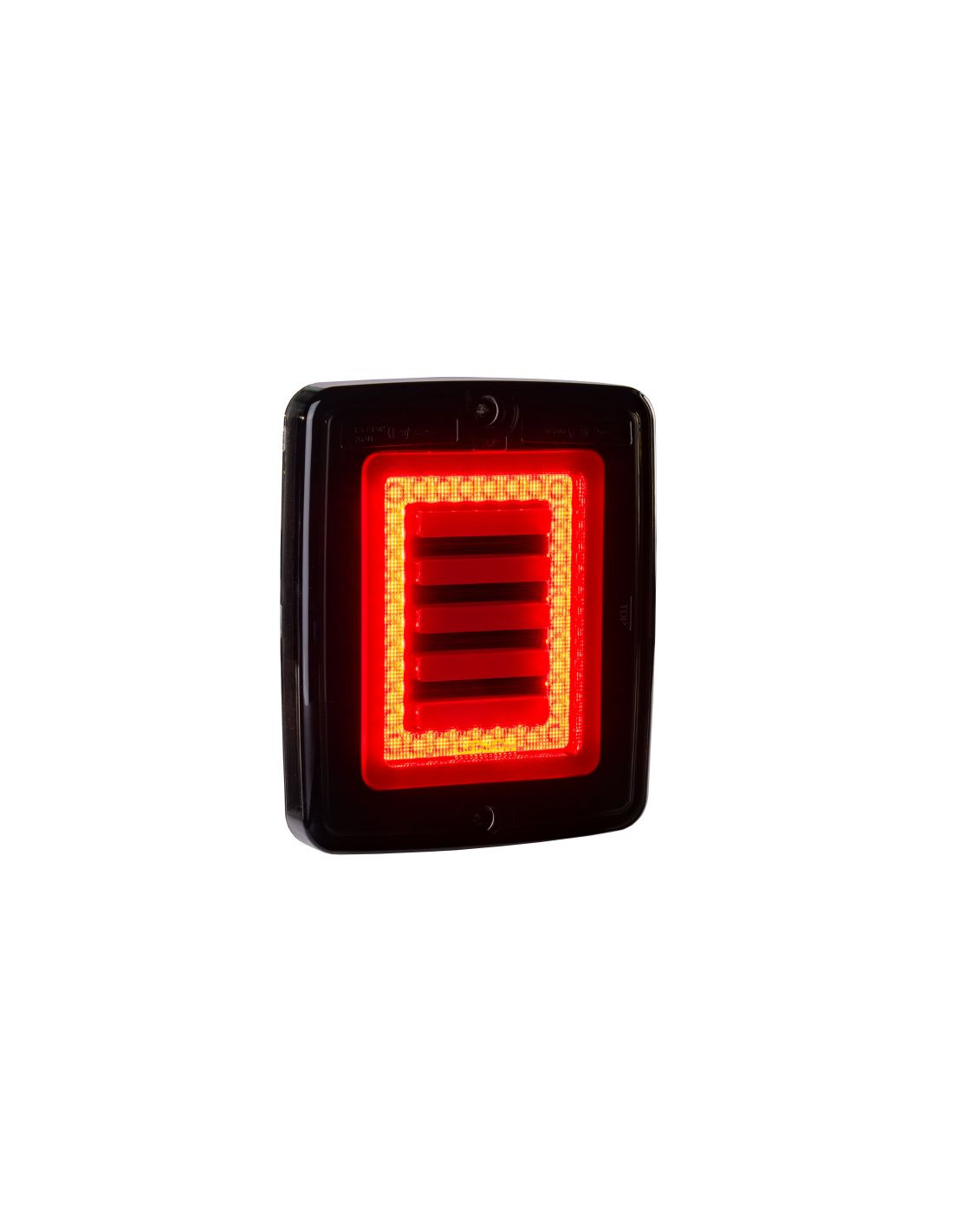

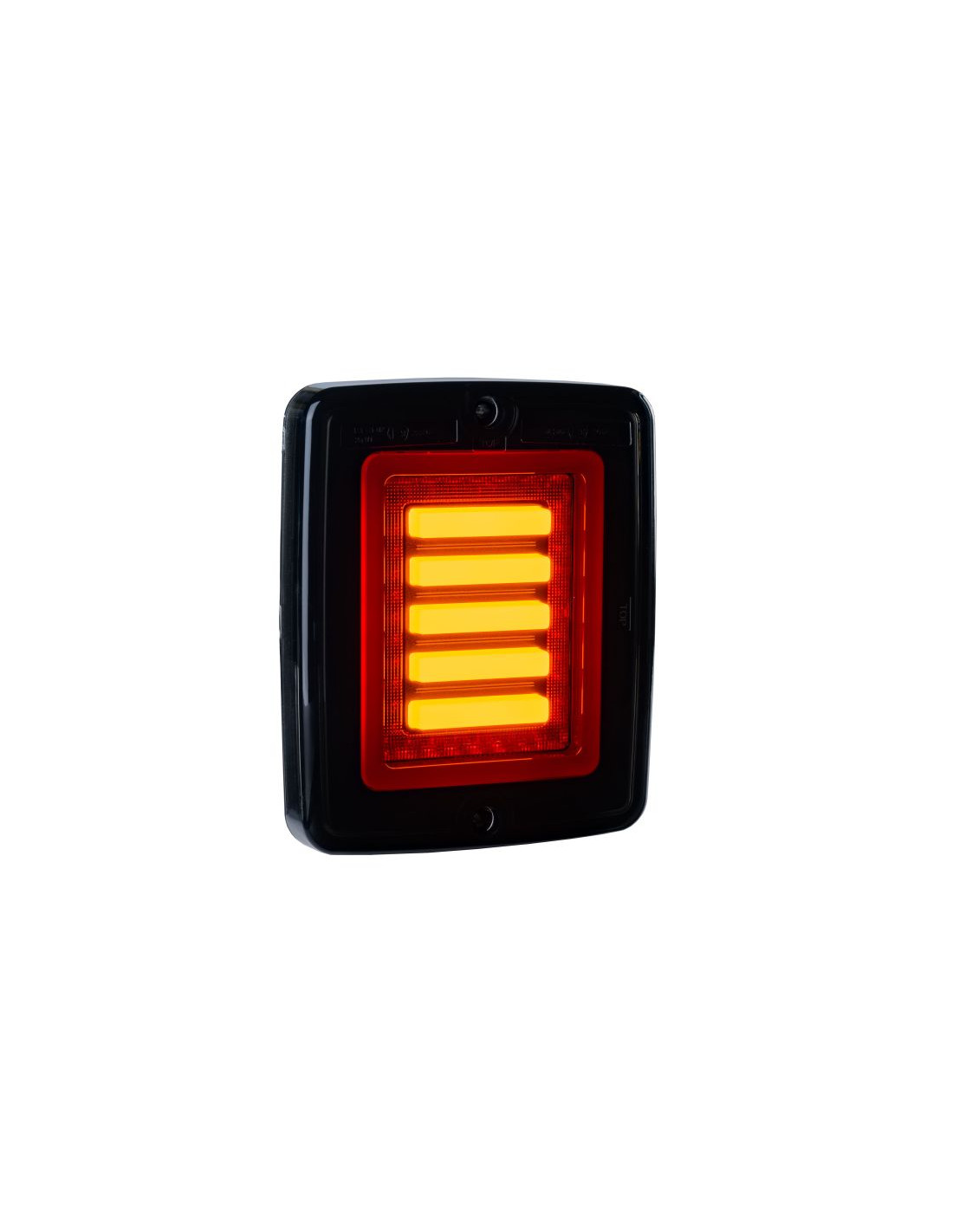

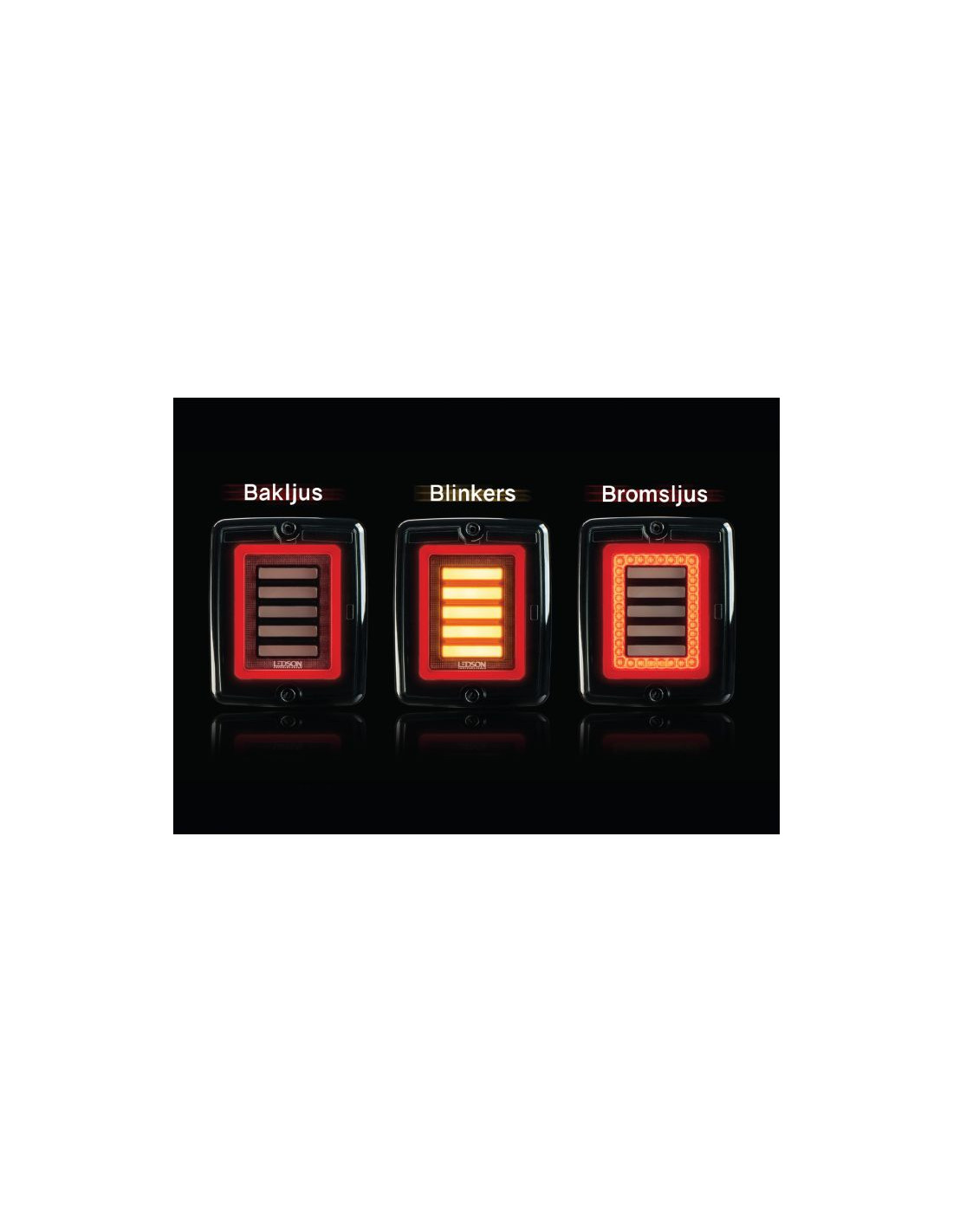

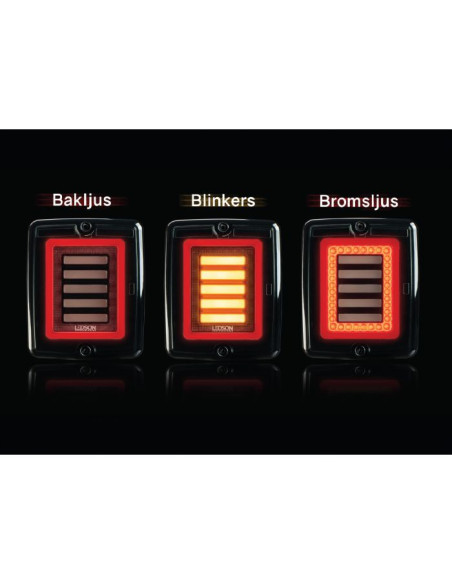

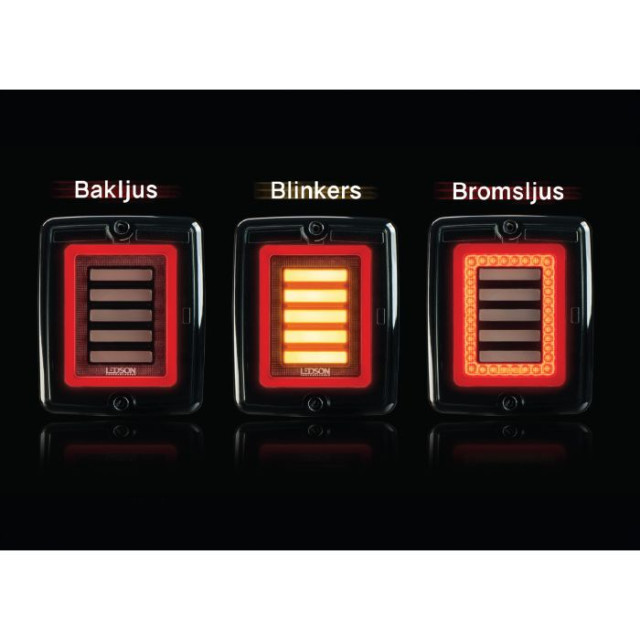

• Multi-function: tail light, brake light and indicator light
• ECE R148 (approved for all three functions)
• 162 LEDs in total
• IP67 protection class (waterproof and dustproof)
• Voltage: 10-48 V
• Warranty: 36 months
• Includes two screws and user manual.

Dimensions:

• Width: 110 mm
• Height: 133 mm
• Depth (total): 28 mm
• Depth (recess): 10 mm
• Cable: 2.5 m
• CC: 115 mm

Synchronised indicators: To ensure that all indicators on the same side flash simultaneously, connect all yellow cables on that side.

Dynamic turn signal: For a dynamic turn signal, connect the yellow cable from the innermost light as you would the signal from your existing turn signal. Then connect the green cable from the innermost light to the yellow cable on the light next to the first one and continue this pattern from the inner to the outer light. See the illustration in the owner's manual.

Wire colors:

• Black - ground (earth)
• White - tail light
• Red - brake light
• Yellow - turn signal (input signal)
• Green - turn signal output to the next light
