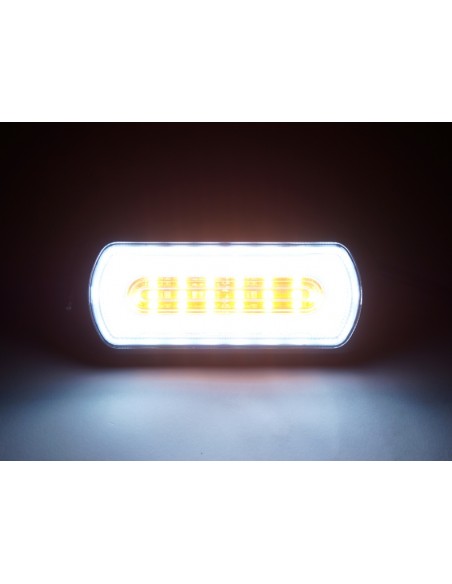

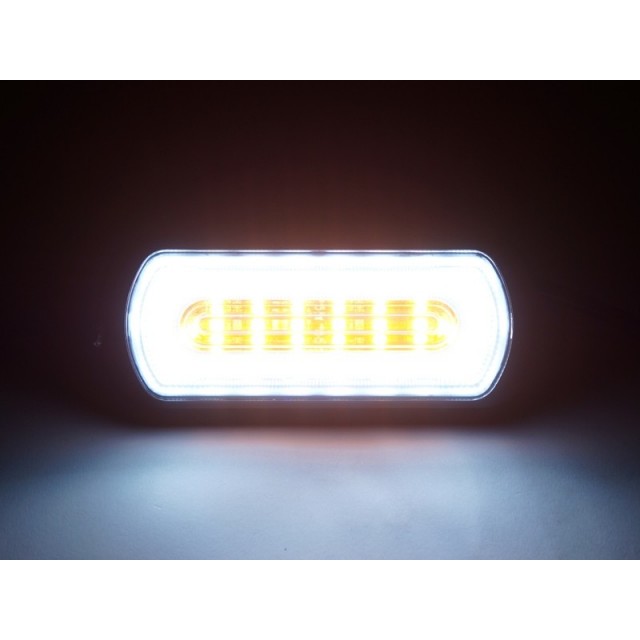

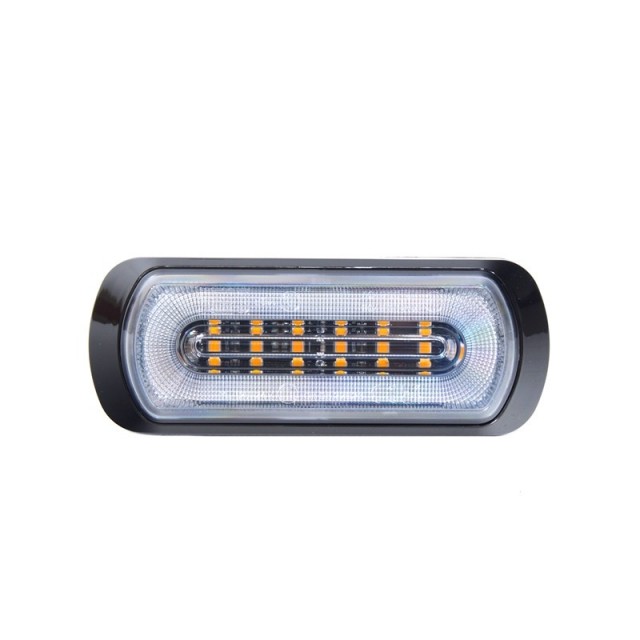

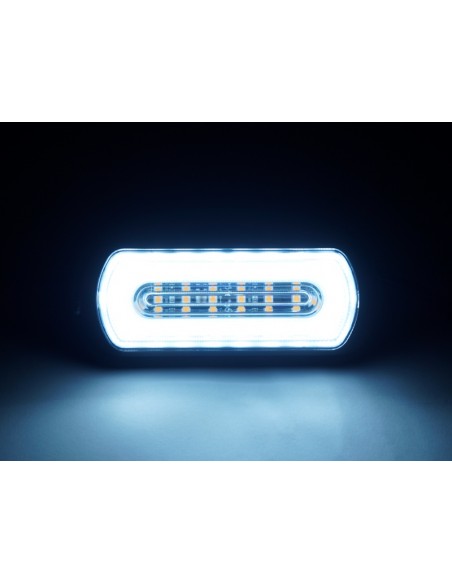

PROSTROBE HALO R65 - White marker light with yellow strobe 12-24V

LED marker lamp with light filling its perimeter, also equipped with a warning strobe light

The strobe and marker lights can be controlled individually or switched on simultaneously. It's a great looking lamp and a cheaper solution than the alternative if you need both a marker and a beacon. You avoid an additional unit that also needs to be mounted and connected.

The beacon has 21 different patterns and the lights can be arranged in alternating groups to flash to the right/left or up/down of the vehicle.

The beacon and clearance light have ECE approval (R65 warning light, R7/R91 position light, R10 EMC and CE), which allows them to be used on public roads and motorways.

Connection:

The strobe and beacon light is connected as shown below:

Gray = Plus Clearance Light (12V-24V)

Red = Plus Warning Light (12V-24V)

Black = Minus / Ground

Yellow = flash pattern

White = night strobe light reduction by connecting to black/negative

Flash selection:

Single connection of the yellow wire to + - switching the mode to the next one

Quick triple connection of the yellow wire to + - switching the mode to mode No. 1

Grouping:

When you connect red and yellow to the plus at the same time, the grouping setup will start. The light flashes once or twice to show the grouping of settings. You can change the group by pulsing the yellow wire to the plus. As soon as you turn off the light, it will remember the grouping you set.

Specification:

Average consumption: 9W

Lifetime: 100,000 hours

Maximum power: 18W

Voltage: 12-24V DC

Operating temperature: -30°C to +60°C
