Marker light FT-195 LED orange 12-36V

1-functional LED lamp - low power consumption

EMC electromagnetic compatibility approval

Lamp structure resistant to shocks and mechanical damage - Body and PC diffuser

The lamp connection polarity is optional

The lamp is equipped with a 2 x 0.75mm² cable with a length of 0.5 m

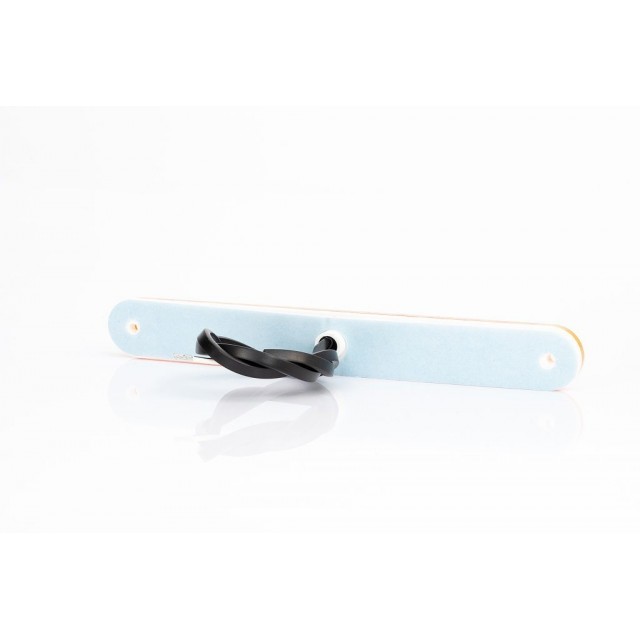

Mounting the lamp horizontally and vertically with double-sided tape and / or with two screws

LAMP PARAMETERS:

supply voltage range: 12-36V DC

working temperature: -40 ° C to + 55 ° C

lamp resistant to weather conditions

the lamp is hermetic

Power consumption:

- 12V / 24V = 0.08A / 0.08A (FT-195 B LED)

- 12V / 24V = 0.025A / 0.025A (FT-195 C LED)

- 12V / 24V = 0.05A / 0.05A (FT-195 Z LED)

Power consumption (rated power):

- 12V / 24V = 1W / 2W (FT-195 B LED)

- 12V / 24V = 0.3W / 0.6W (FT-195 C LED)

- 12V / 24V = 0.6W / 1.2W (FT-195 Z LED)
