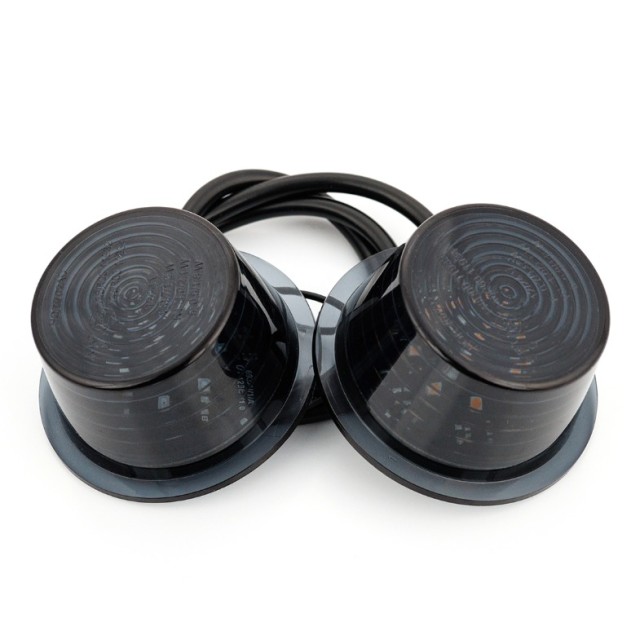

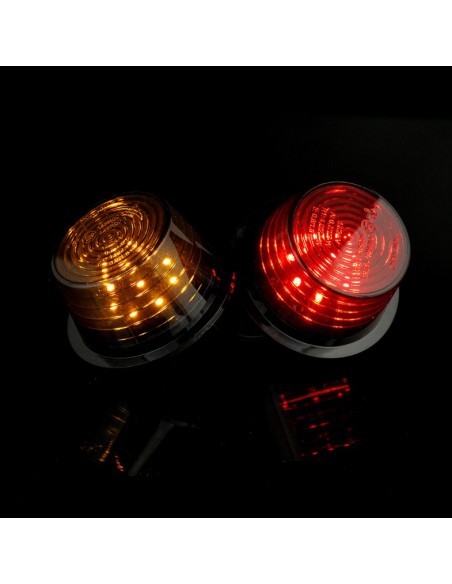

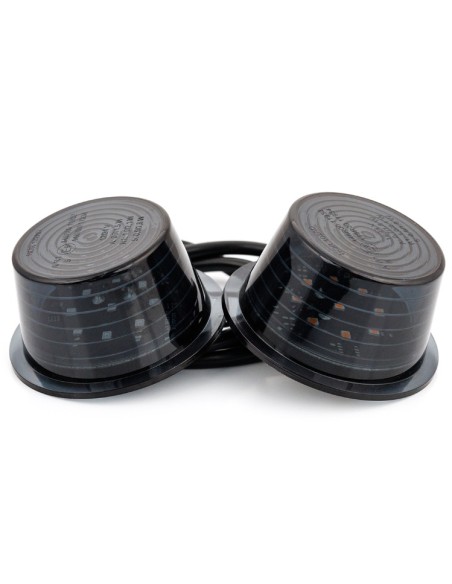

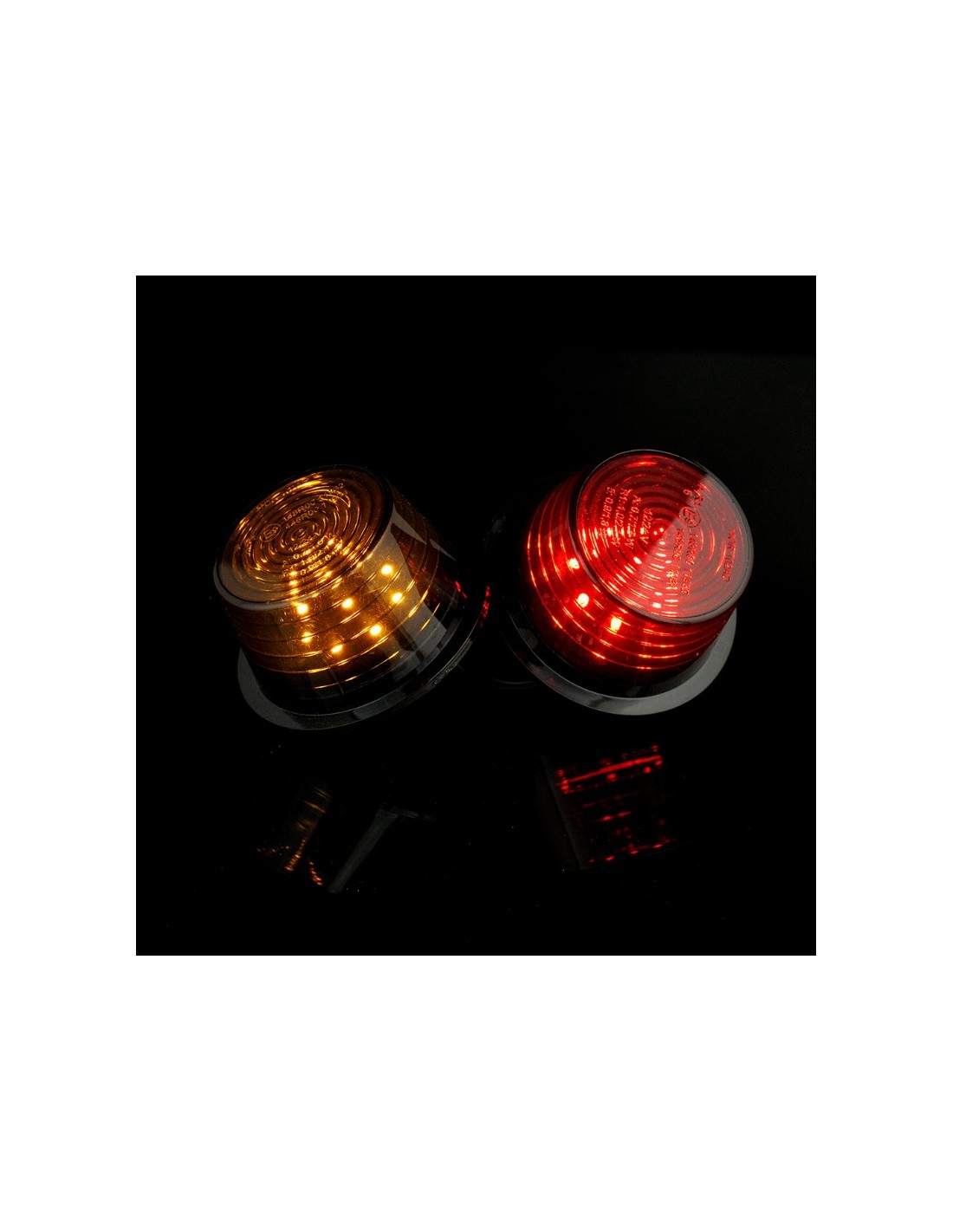

Gylle type orange-red LED module MDPC 2623/GRAPHITE

The MDPC 2623/GRAPHITE is an orange-red LED module for a boom marker lamp from the HOR 102AD group. The product offers universal mounting, allowing installation on both the left and right side of the vehicle. It is designed for use on everything from small trailers to trucks and semi-trailers.

Lamps from the GRAPHITE collection feature an elegant, dark shade that combines modern design with functionality, ensuring excellent visibility.

The module operates on a universal 12/24 V voltage and features low energy consumption. Only brand-name LEDs are used in the production of this lamp, which significantly enhance the quality of its lighting and attractively highlight the outline of the moving vehicle. Its high IP 68 rating and operating temperature range of -30°C to +50°C make it a top-quality product.

Ensure your safety on the road! Discover the GRAPHITE lamp collection, a stylish solution for the automotive industry.

Technical Specifications:

• Lamp group - HOR 102AD
• Number of LEDs - 10
• Lamp category - clearance
• Rear position light - yes
• Power supply voltage - 12/24 V
• Light color - orange-red
• Rated power - 1.9/3.9 W
• Operating temperature range - -30°C to +50°C
• Cable - 2×0.75 mm2; cable length 0.7 m
• Mounting side - universal
• LED lamp - yes
• Ingress protection class - IP 68
