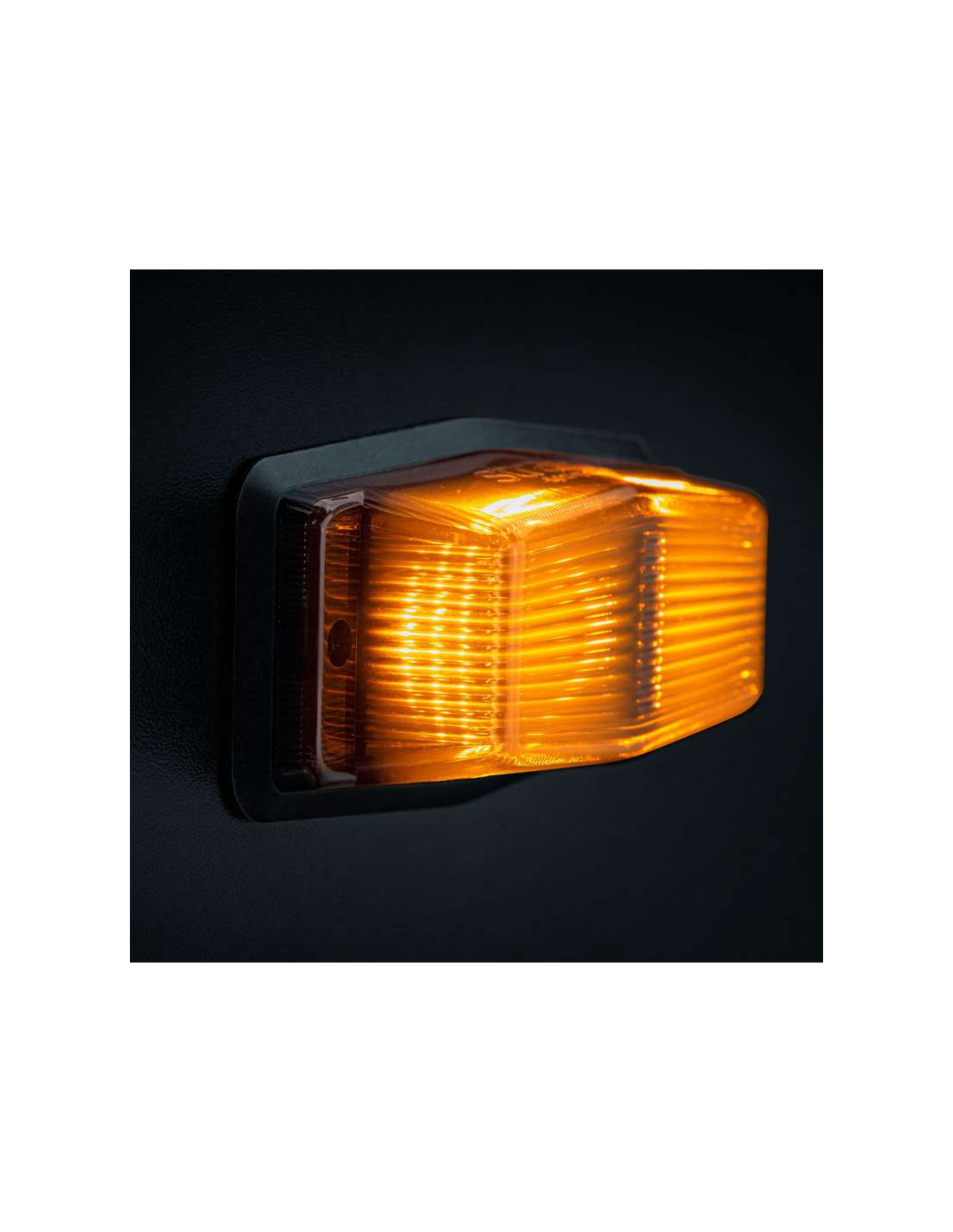

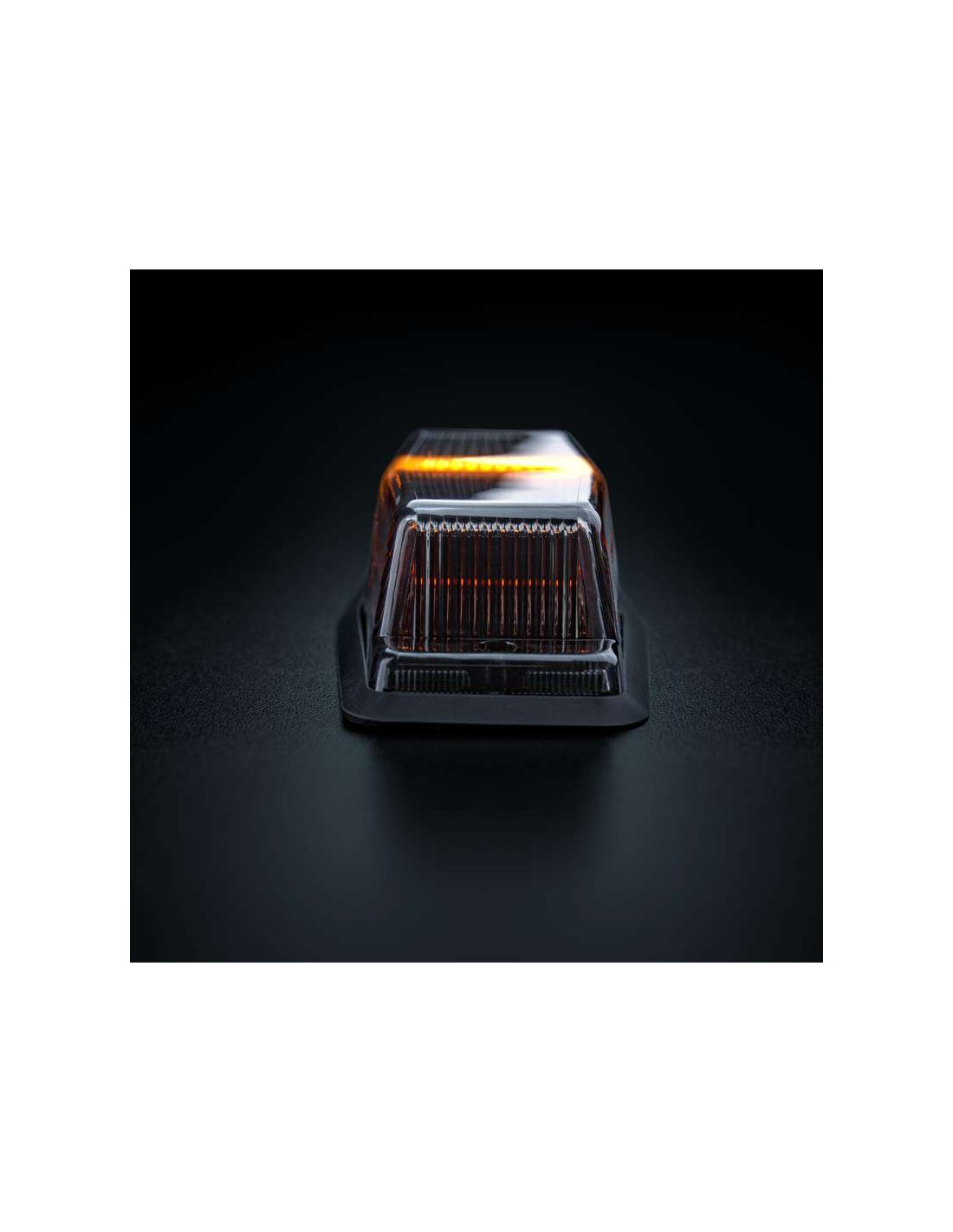

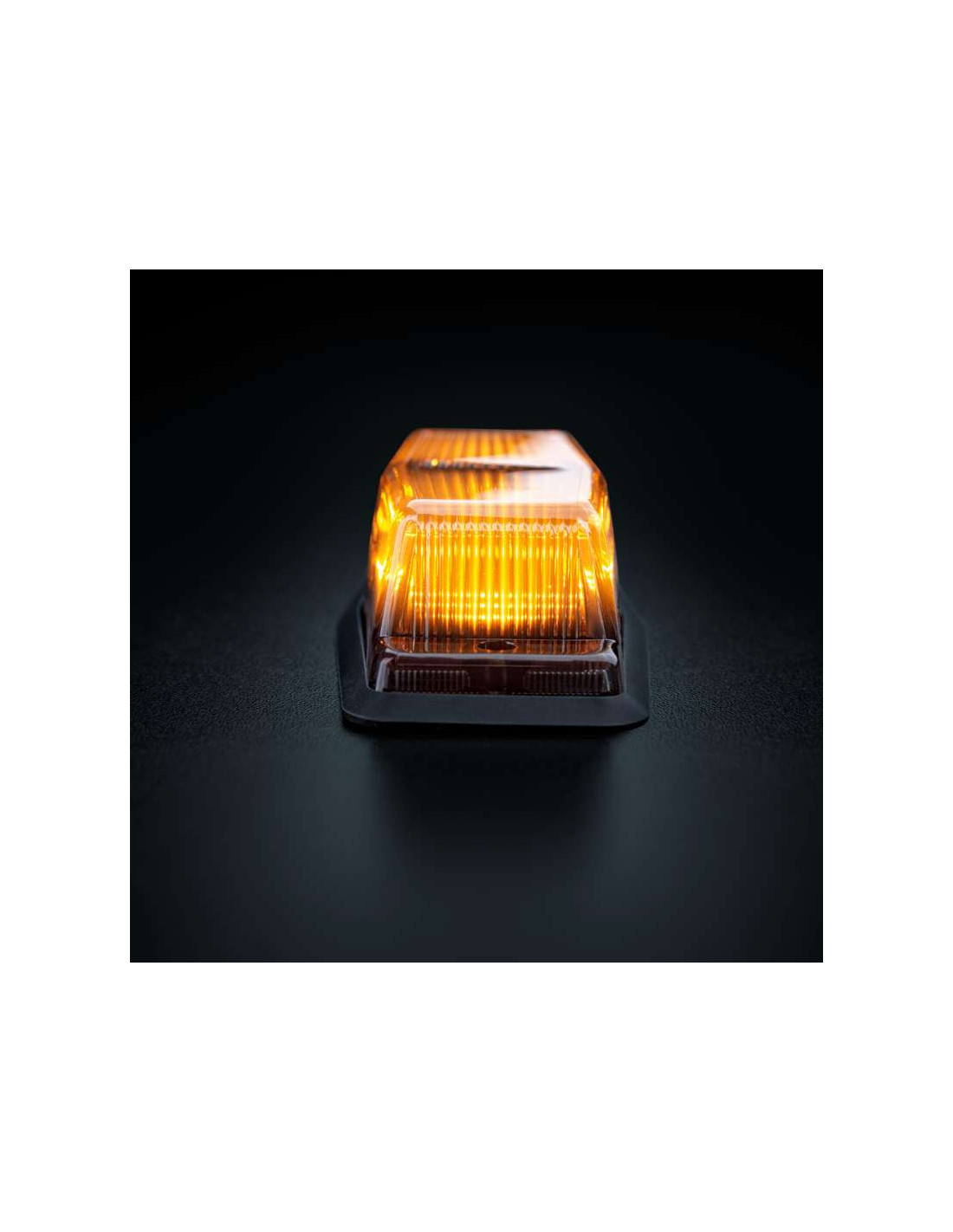

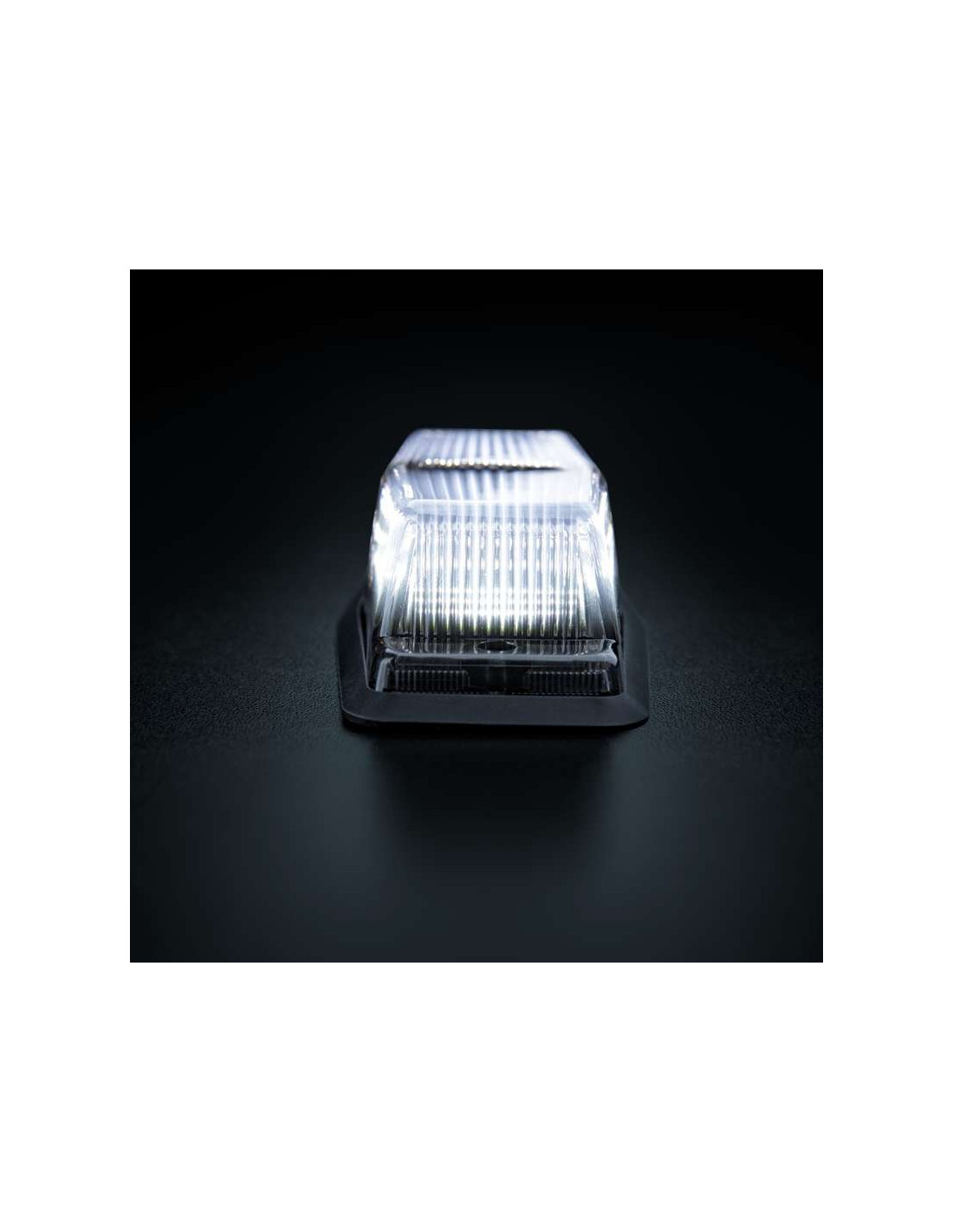

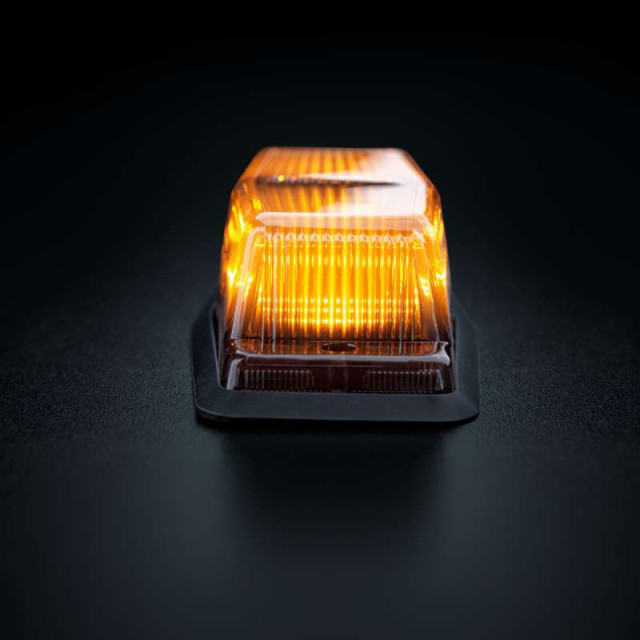

Strands Black Bullet Double burner - LED marker light with strobe

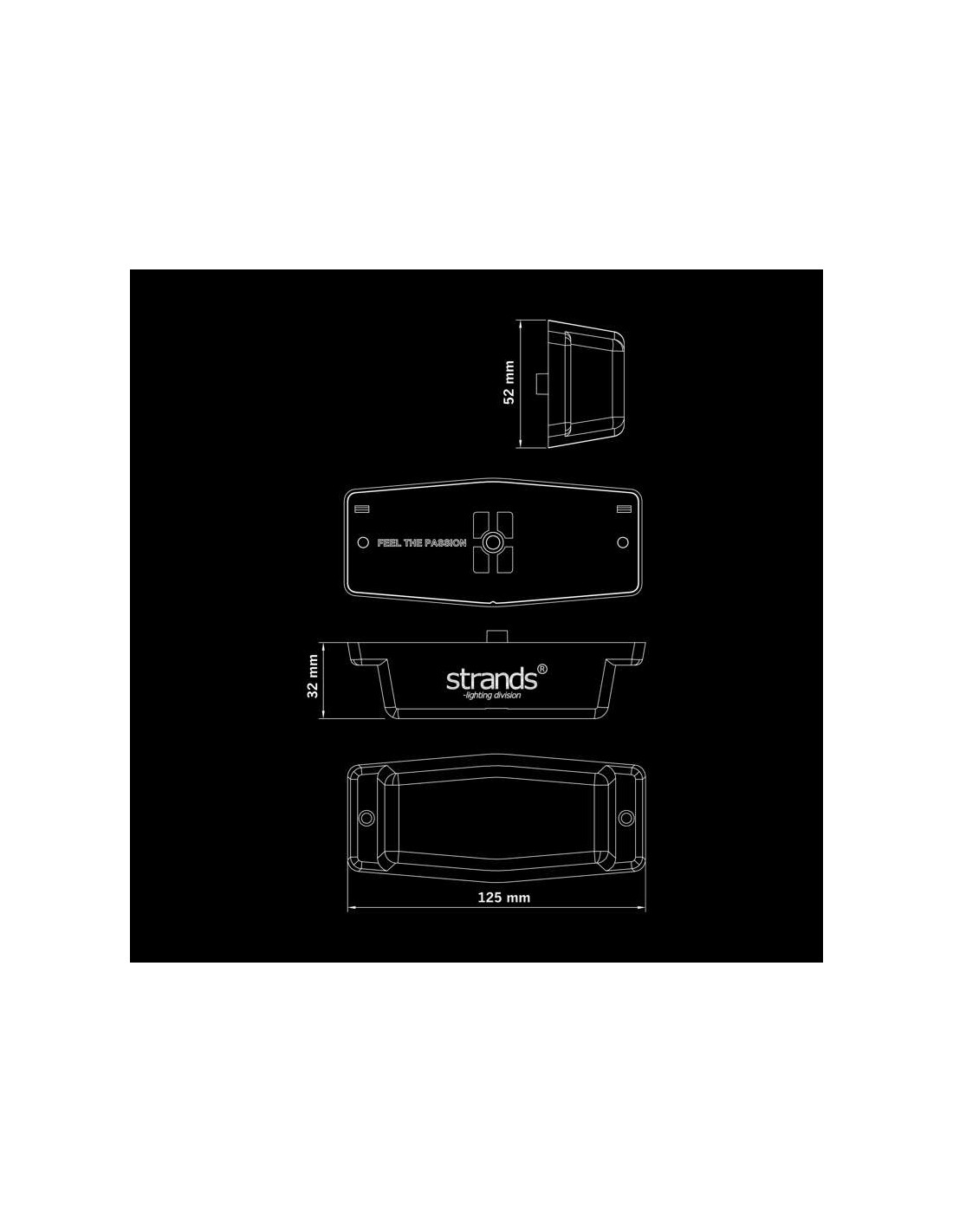

You want it old-school, we make it pro. White and amber position light, built-in warning light with 21 patterns, dark lens, and lasting quality make this light a perfect companion for years to come. Strands’ 3-year function warranty guarantees the quality. Made from corrosion-free polycarbonate and IP-rated IP69K, you can be sure this light will tackle heavy rain, dirt, and extreme temperatures with flying colors. So you don’t need to miss out on either old-school style or cutting-edge quality. The IZE LED Black Bullet is E-approved ECE R148 (ECE R7, R91) and EMC-certified ECE R10. It is sturdy and compact, measuring 125x52x32 mm and 109 mm CC, with a 1000 mm cable.

Unit - pcs

Voltage - 10-32V DC

Theoretical effect - 10W

Consumption - 8,5W

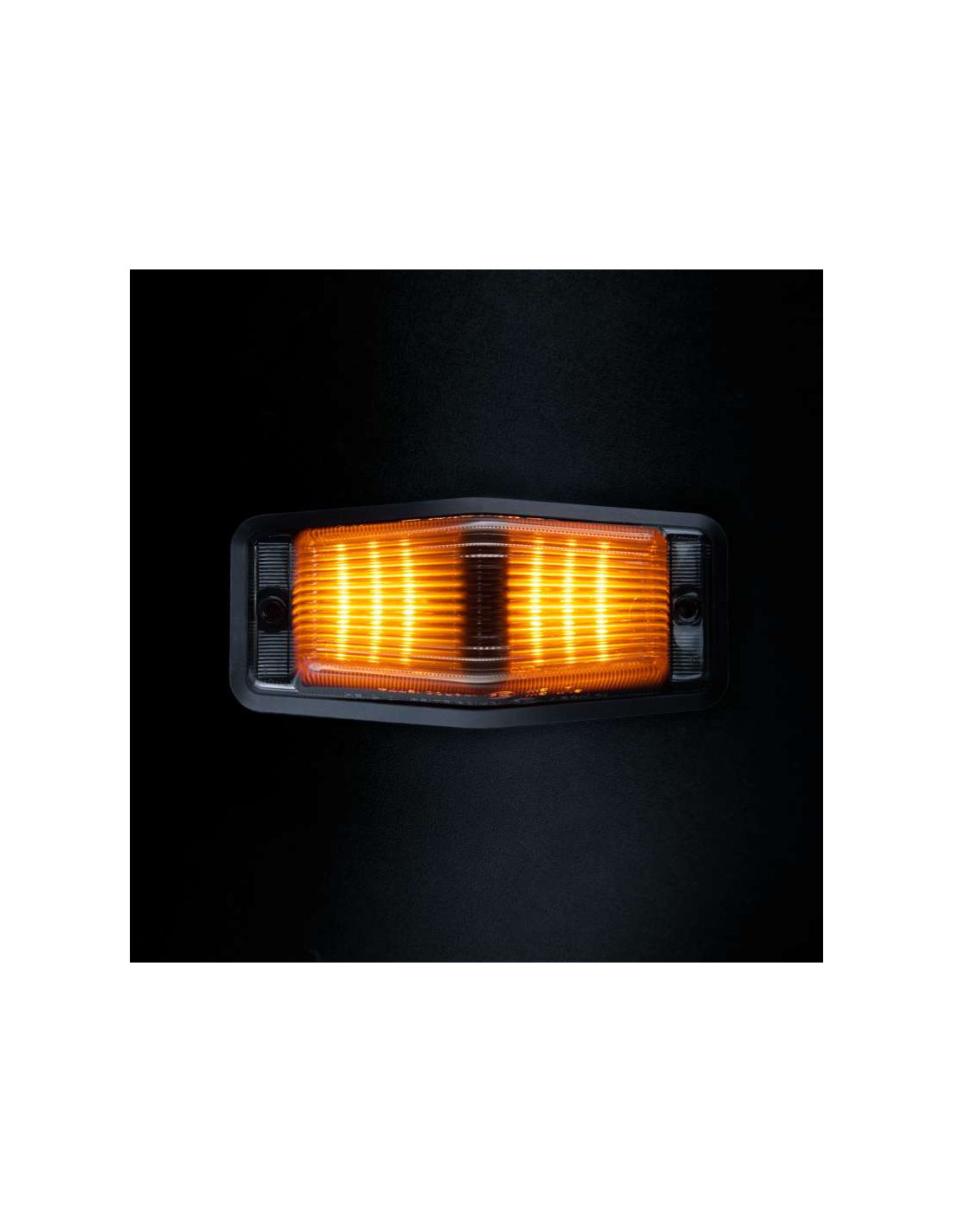

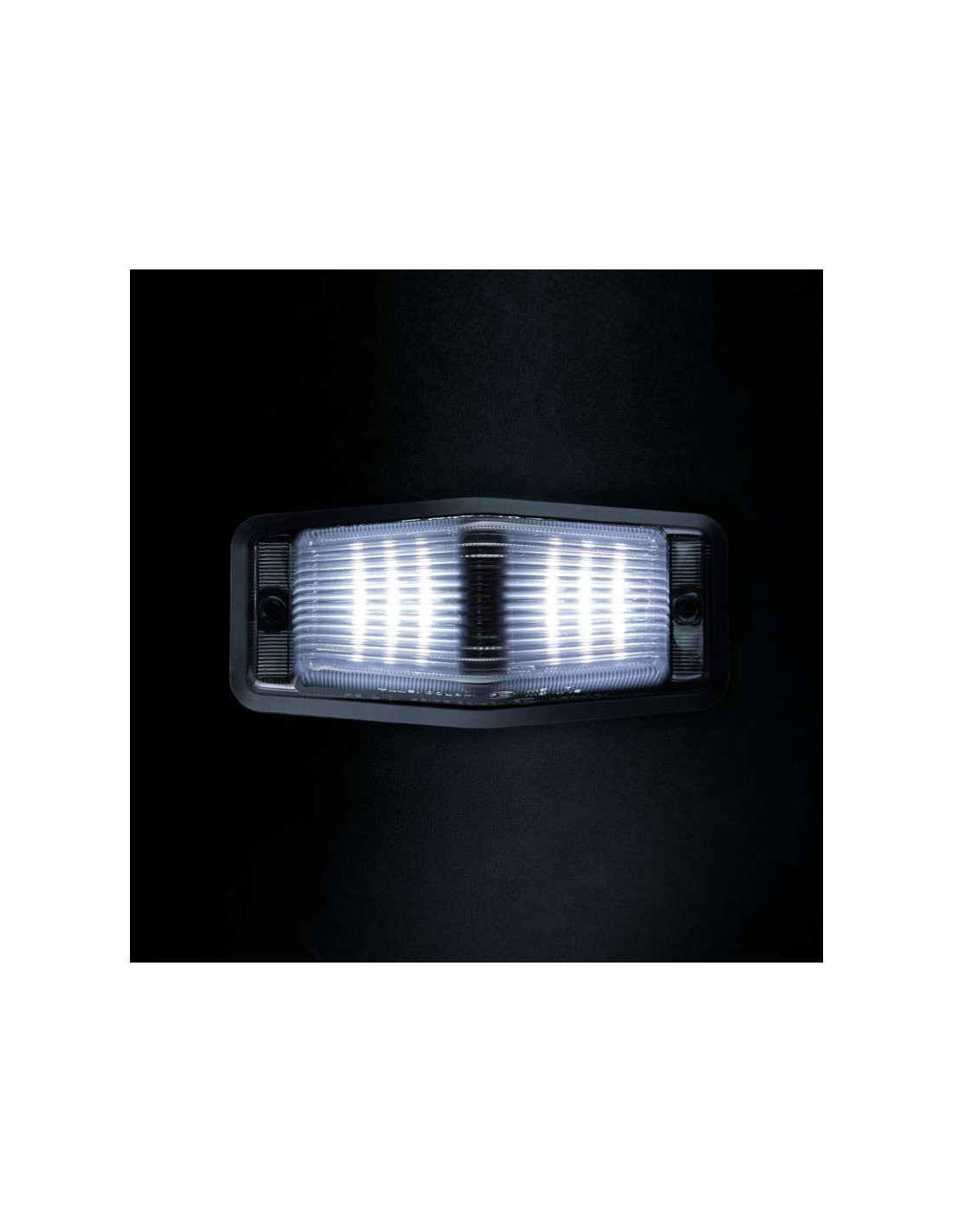

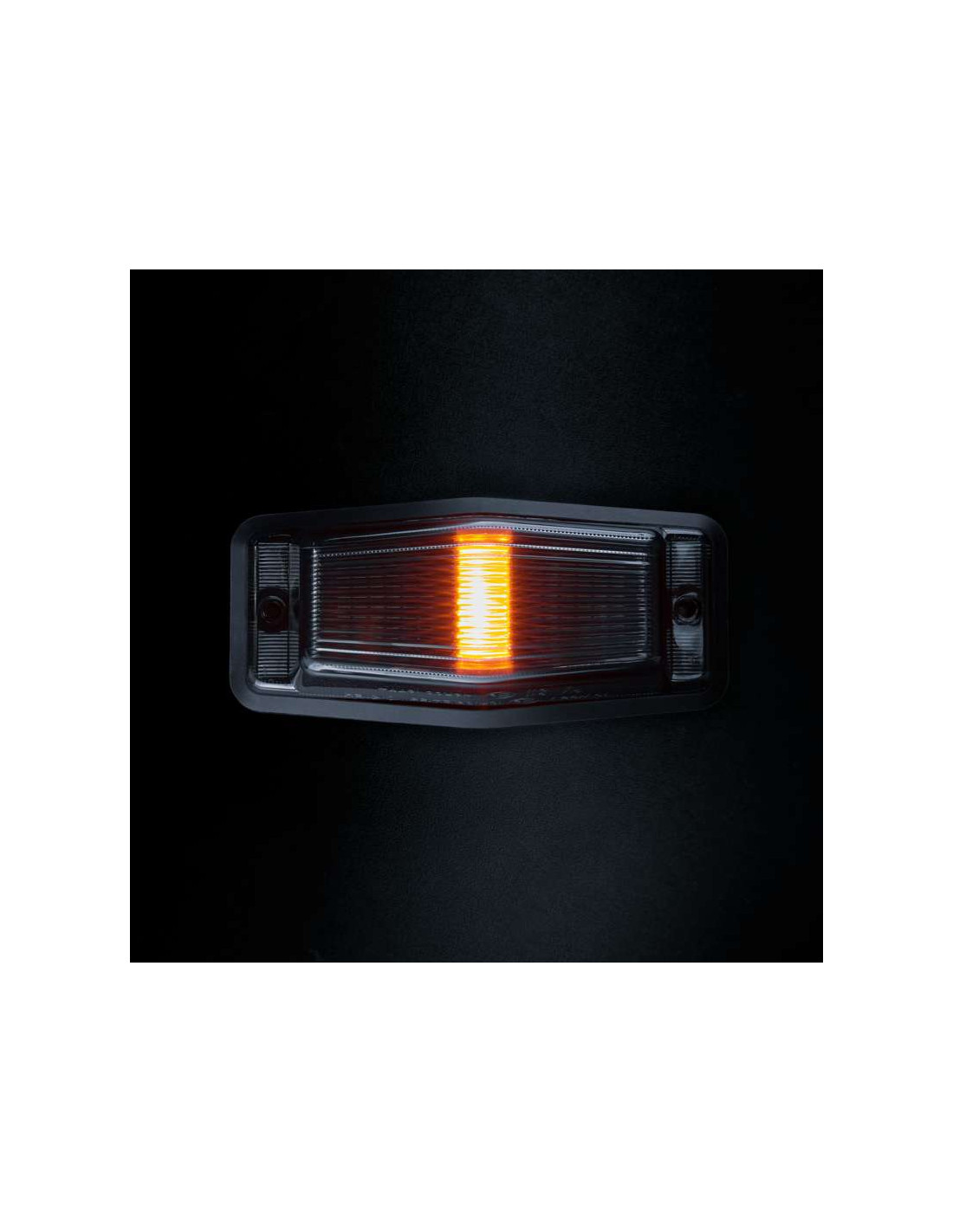

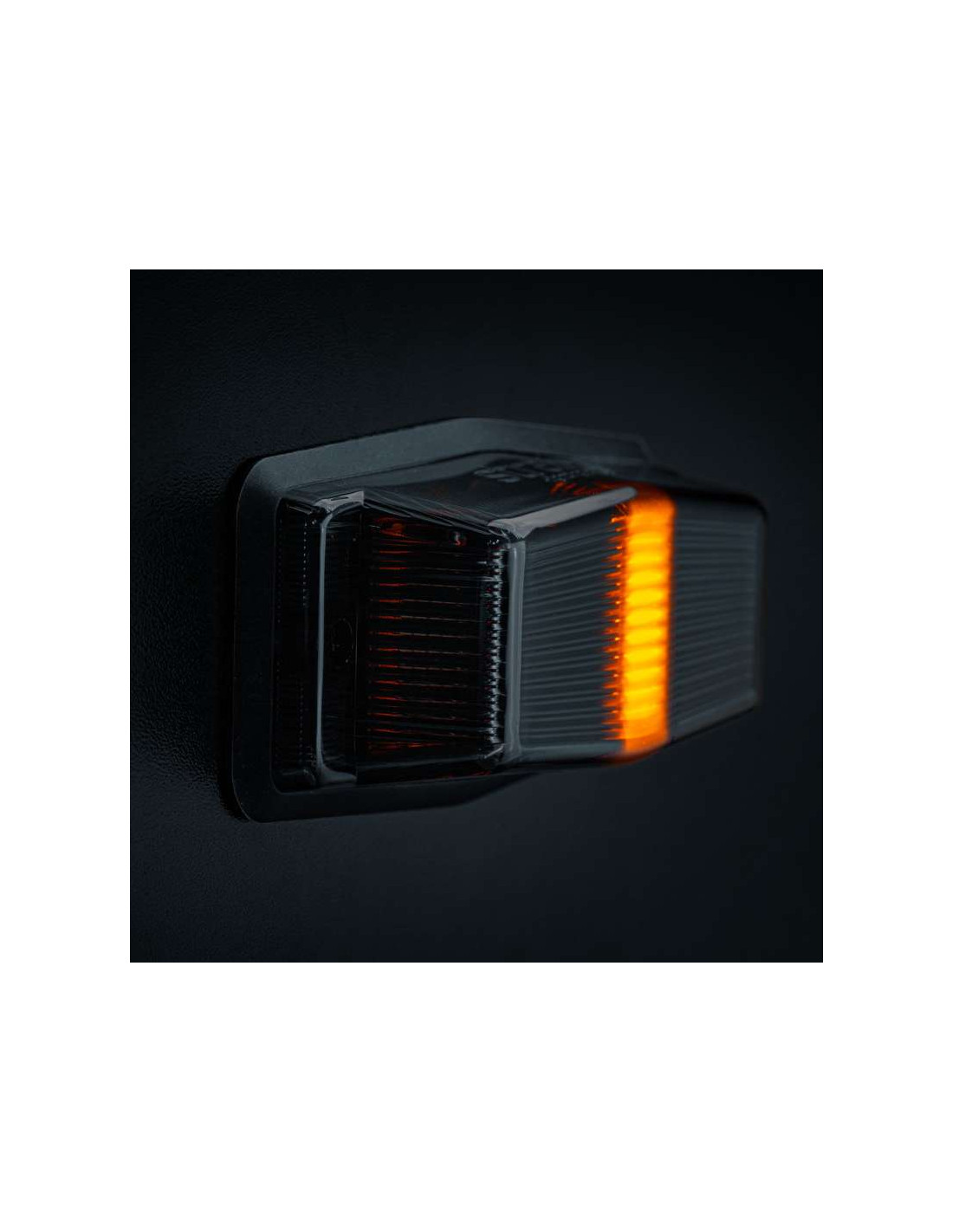

Functions - Front position white, Amber position light, Warning light middle part

Consumption specific function - White position light: 3W, Amber position light: 3W, Warning light: 2,5W

Patterns - 21

Connection - Cable

Cable length - 1000mm

Color housing - Black

Color lens - Dark tinted

Color LED´s - White/amber

Material housing/chassi - Polycarbonate

Material lens - Polycarbonate

Length - 125mm

Depth - 32mm

Height - 52mm

CC - 109mm

Weight - 0,0963kg

IP-class - IP69K

Operating temperature - -30 - +60°C

E-approved - Yes

ADR-approved - No

According to regulation - ECE R148 (R7,R91)

EMC - ECE R10

Connection

Black cable - - (Negative)

Red cable - + (Positive for warning light middle part only)

White cable - + White Position light(Positive)

Yellow cable - Pattern selection,Synchronization

Grey cable - + Amber position light(Positive)

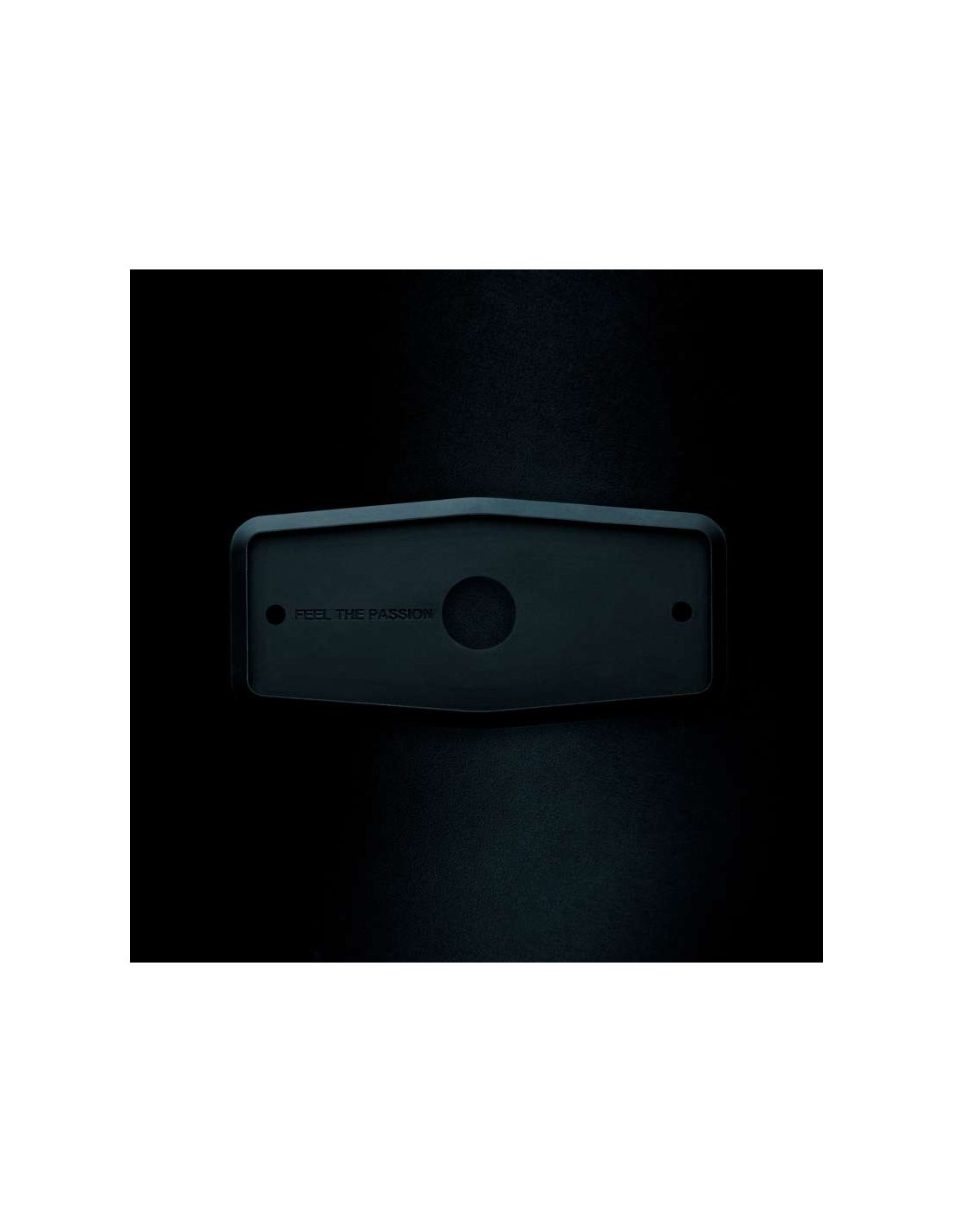

Included in package - Silicon pad, screws , washers , bolts
