SCANIA NG headlight extra light - dualcolor xenon white/amber + strobe

Yellow strobe - we offer versions with a different flashing light color on request

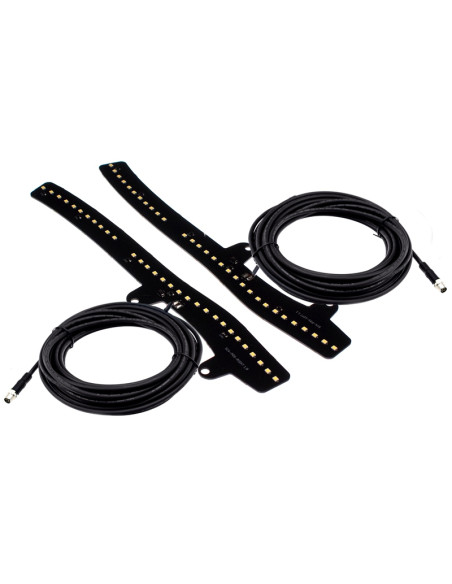

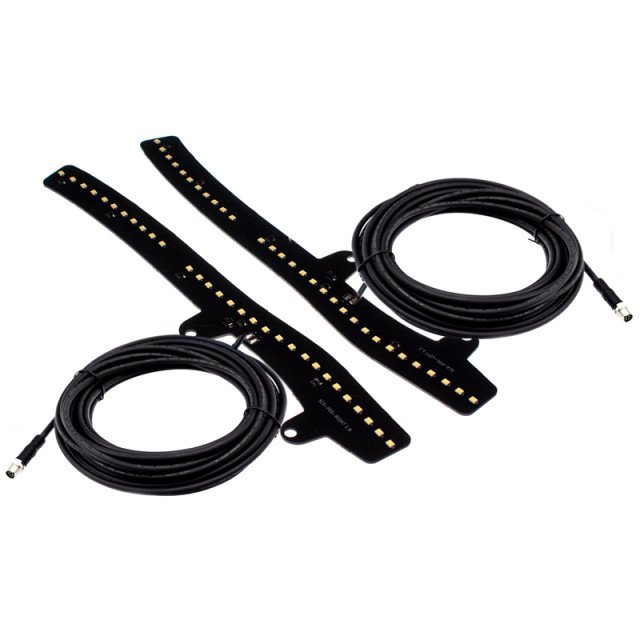

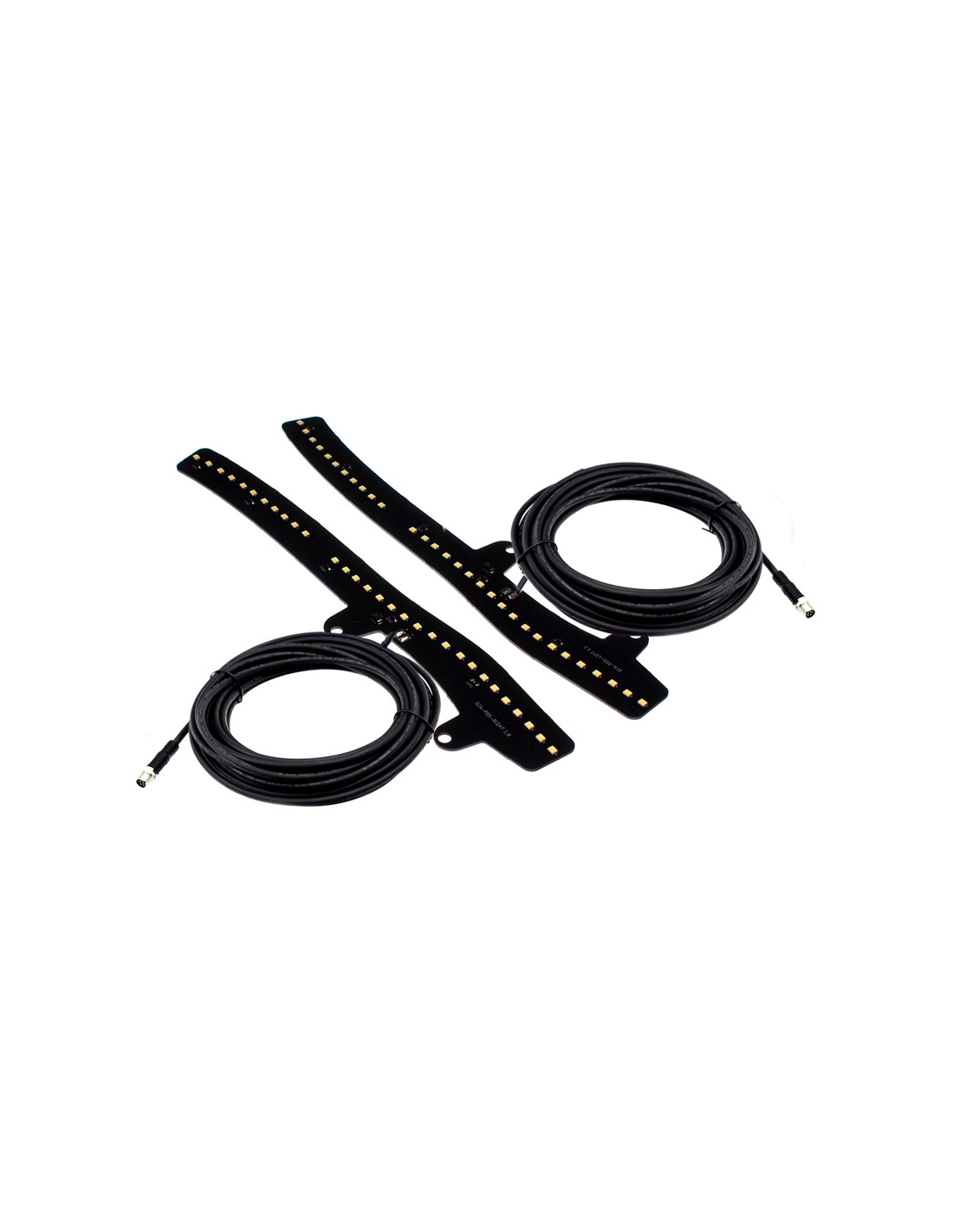

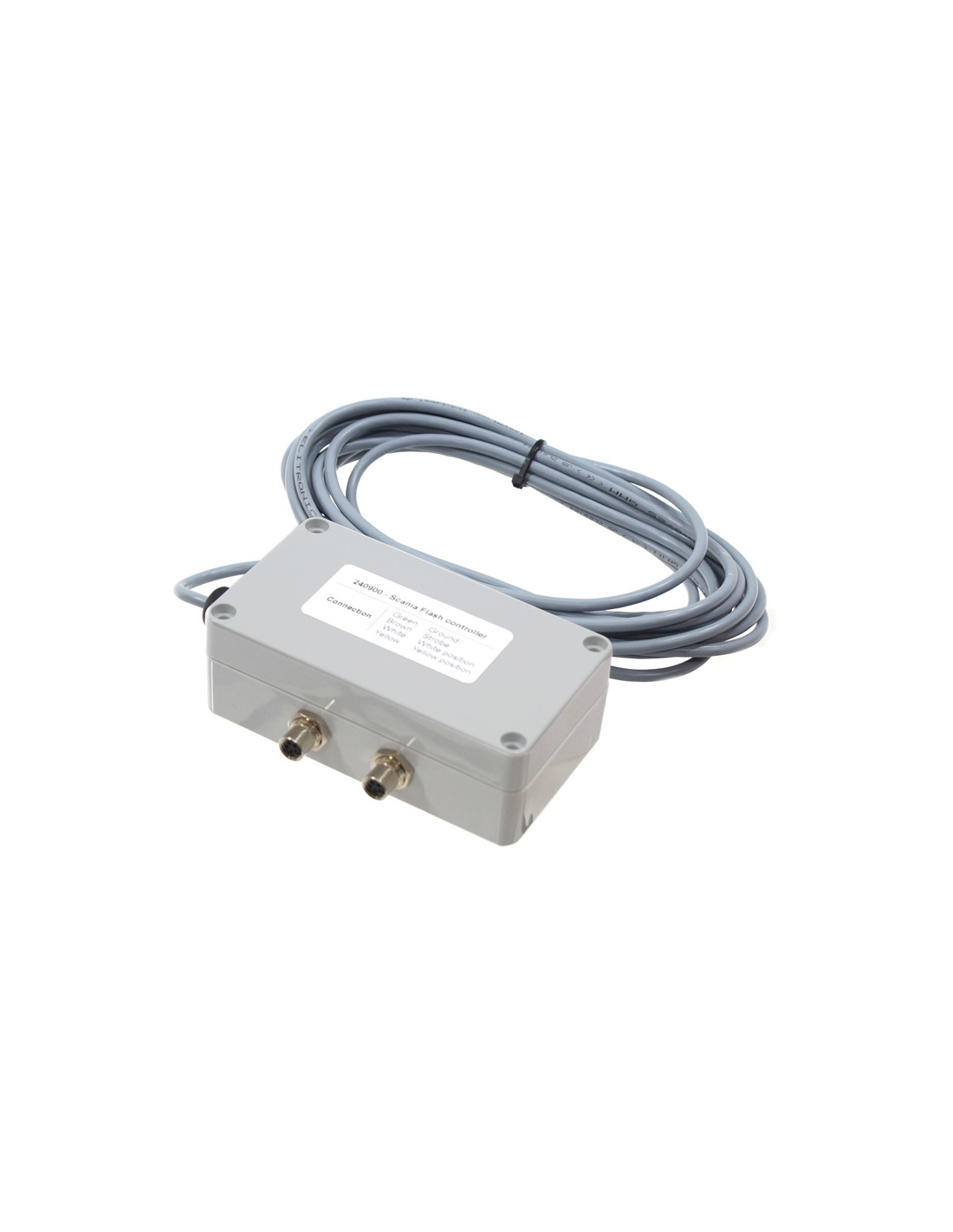

The emitter has a 6-meter cable with M8 connectors, which can be connected to the included controller. The controller manages two colors and automatically turns them off when you turn on the strobe light. The controller itself has a 3-meter cable and 5 wires:

• Gray: Ground (-)
• White: Plus (+)
• Blue: Yellow DRL (+)
• Brown: Flash (+)
• Black: Welcome (+)

During assembly, it is necessary to cut the cables with M8 connectors, so make sure the assembly is waterproof and connect the wires to the correct colors.

Assembly

• Assembly is easy, and the only permanent change to the reflector is a single hole that can be easily re-sealed. The emitters are mounted inside the reflector and secured with two existing screws.

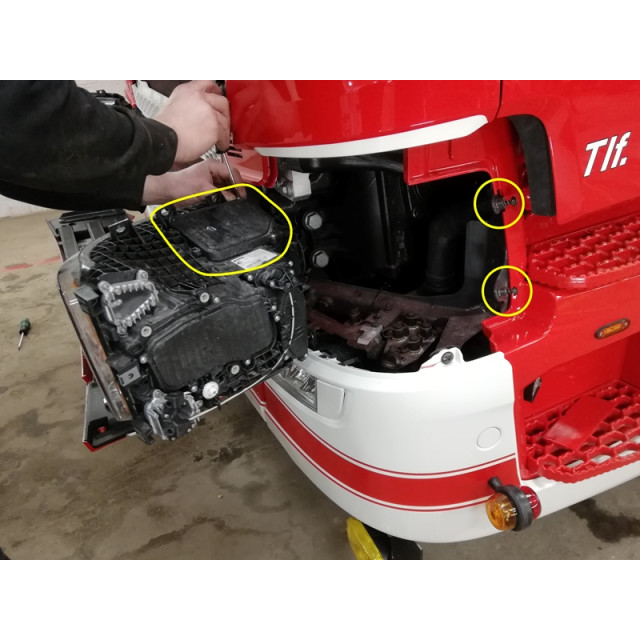

• There are two screws near the door that hold the reflectors in place. These are loosened and the reflector can then be tilted to the side.
• At the top of the reflector is a large cap that can be loosened and removed. Under the cap is a large radiator.

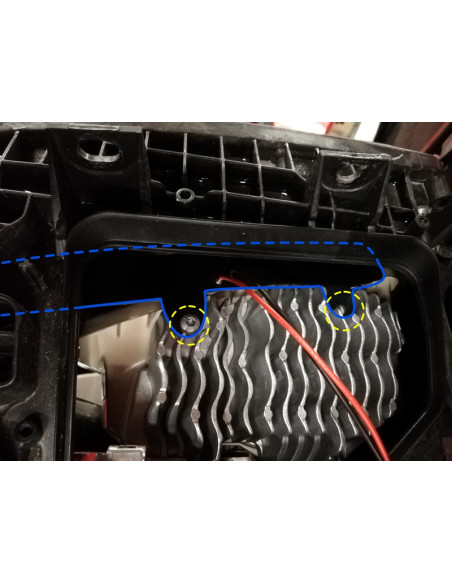

• The two front screws on the radiator are loosened and removed.

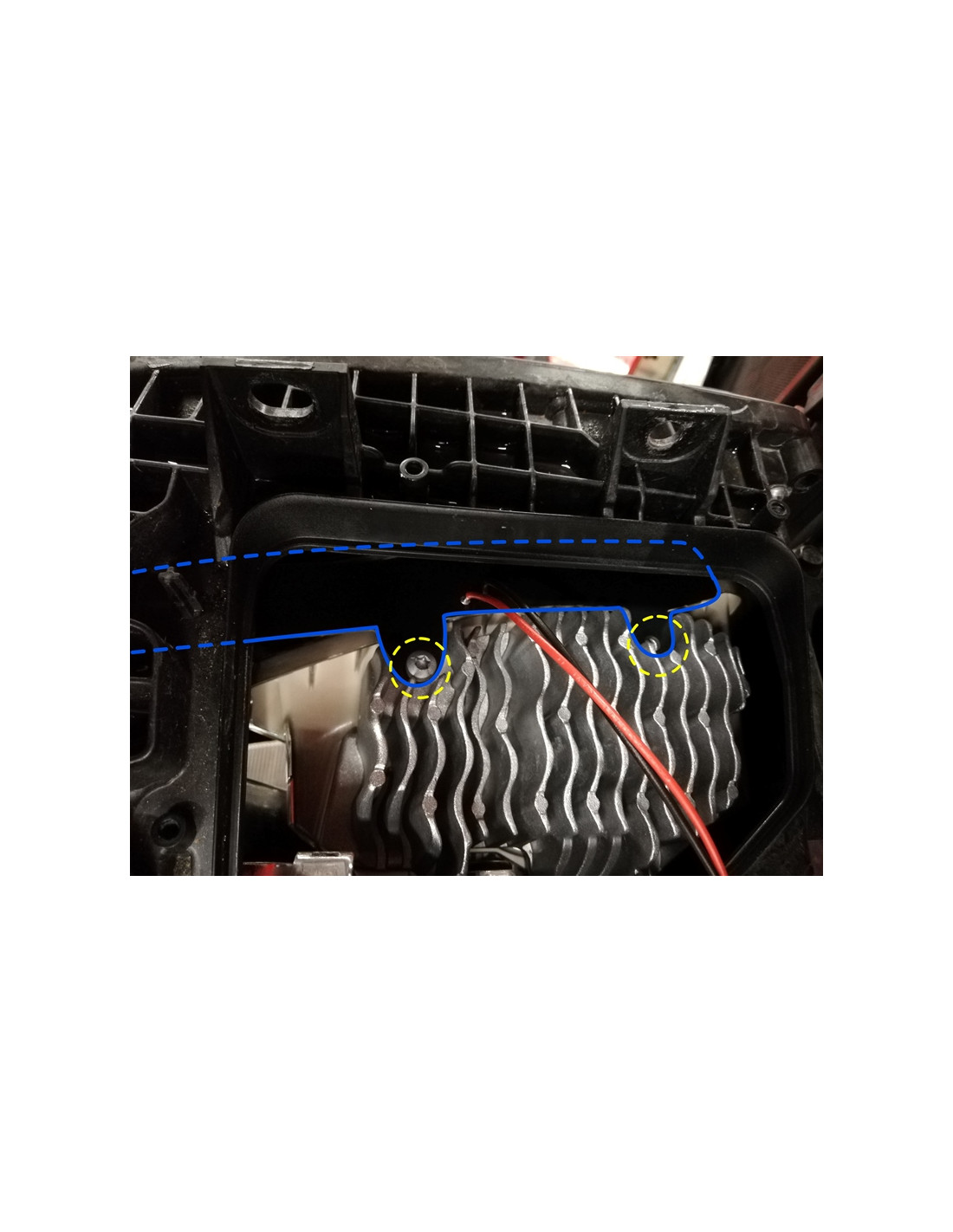

• Push the emitter sideways into the reflector so that the two tabs fit into the holes in the radiator. It is important that the emitter is positioned above the reflector. You should not be able to see the emitter inside the reflector when it is fitted.
• The two screws are held through the emitters to the radiators.

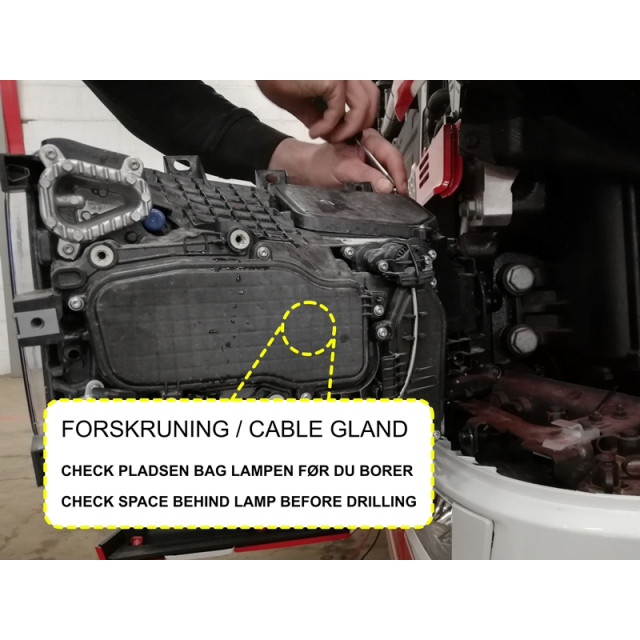

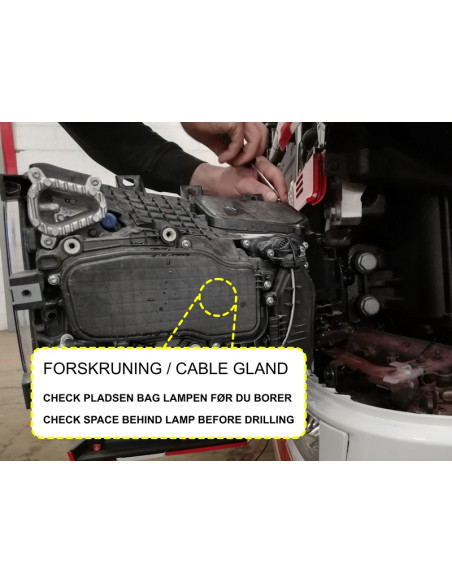

• We recommend drilling a hole in the back plate of the light to feed the wire through.
