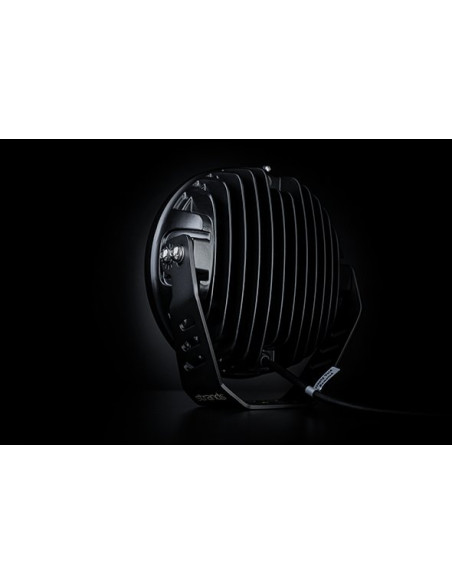

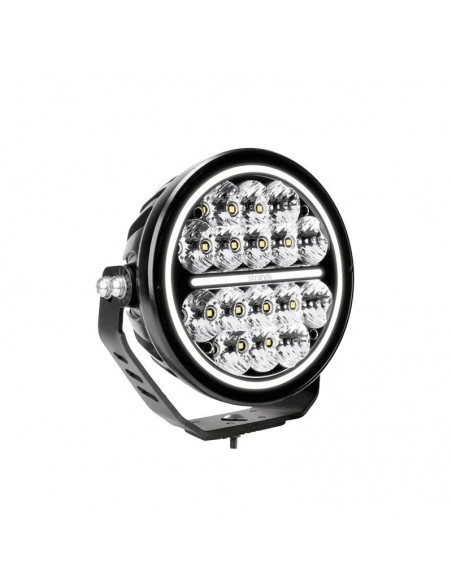

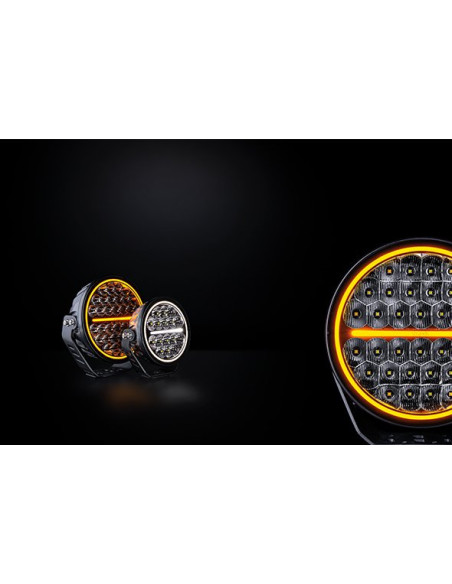

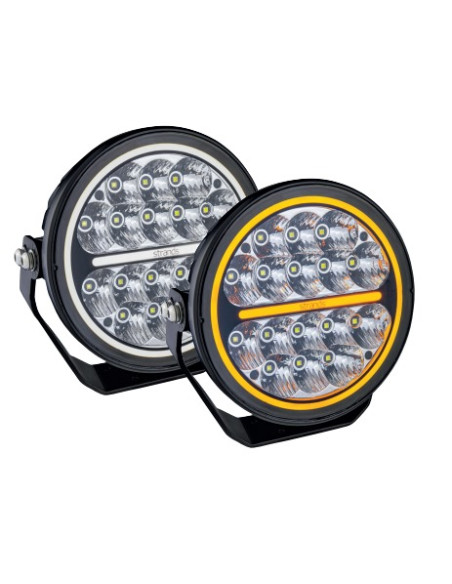

STRANDS Siberia Night Ranger 7" LED driving lamp

Type of lamp LED

Type of LED Osram

PCS LED´s 16

Voltage (V DC) 9-32V DC

Theoretical effect (w) 12V 80

Theoretical effect (w) 24V 80

Consumption (w) 12V 68.4

Consumption (w) 24V 69.36

Consumption specific function (w) 12V White position light: 5.5

Amber position light: 5.2

Consumption specific function (w) 24V White position light: 5.5

Amber position light: 5.2

Theoretical lumen 6720

Actual lumen 5130

1 LUX @ m 631

Kelvin 6000

IP-class 67/69K

Colour housing Black

Colour lens Clear

Colour LED´s White and Amber

Beam pattern Spot

Position light Yes amber and white

Connection DT-4

Cable length (mm) 500

Material bracket Stainless steel

Material housing/chassi Aluminium

Material lens Polycarbonate

Length (mm) 178

Depth (mm) 78.2

Height (mm) 178

Height including bracket (mm) 194.7

Diameter (mm) 178

Operating temperature -20°C – +45°C

ADR-approved No

E-approved  No

EMC ECE R10
