Stainless toolbox for VOLVO Boogie mounted between axles

Pgtech Screen Box Volvo Slim - SLIM

This toolbox fits the original Volvo mudguards, brackets are included!

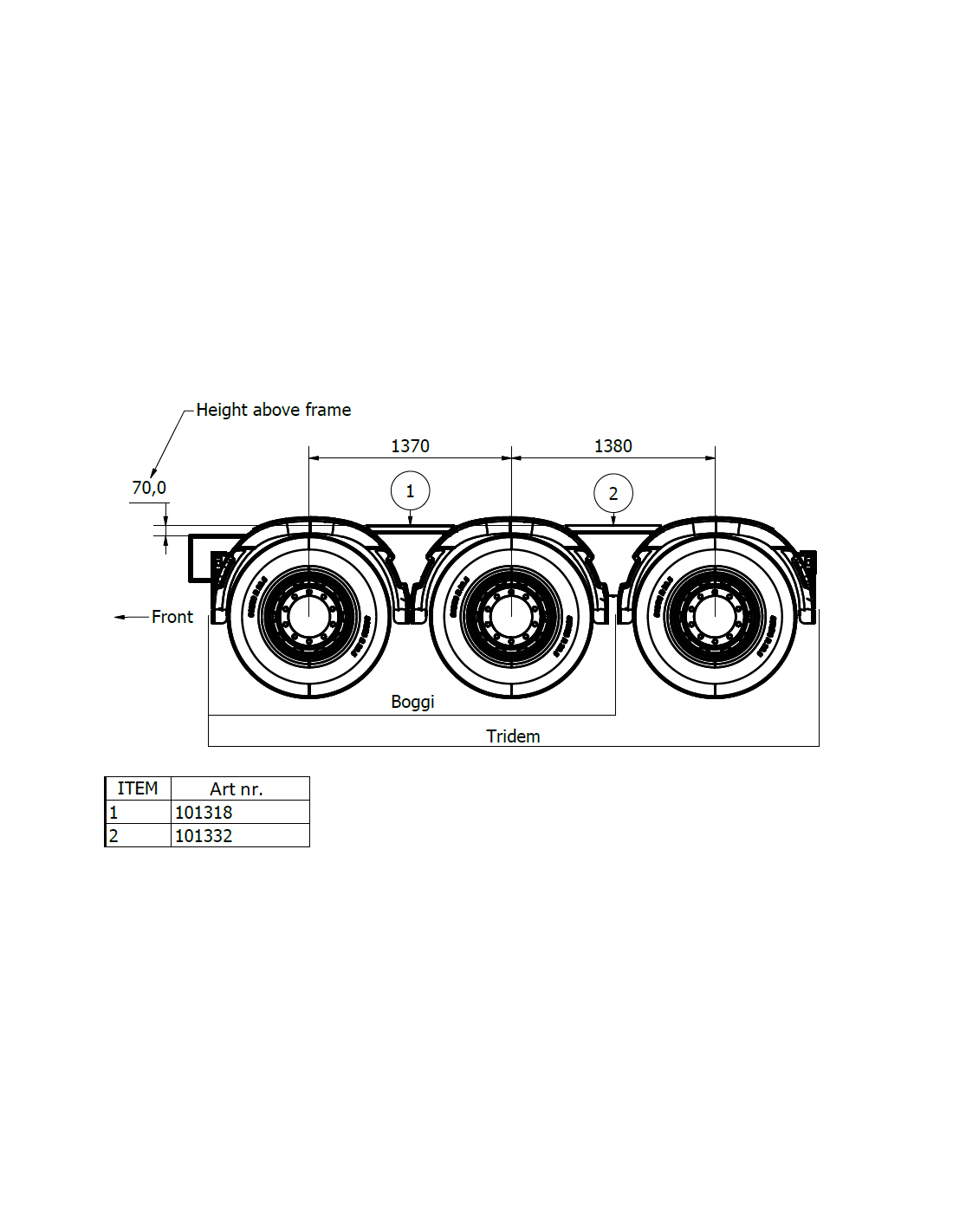

This is a narrower mudguard model designed for a wheelbase of 1370 mm and a mudguard to frame distance of 1350 mm, i.e. a pair of front wheels in a tridem configuration!

For the rear pairs of wheels, the wheelbase is 1380 mm and the mudguard clearance is cm3: 1400 mm. Then you can choose a slightly wider mudguard or both.

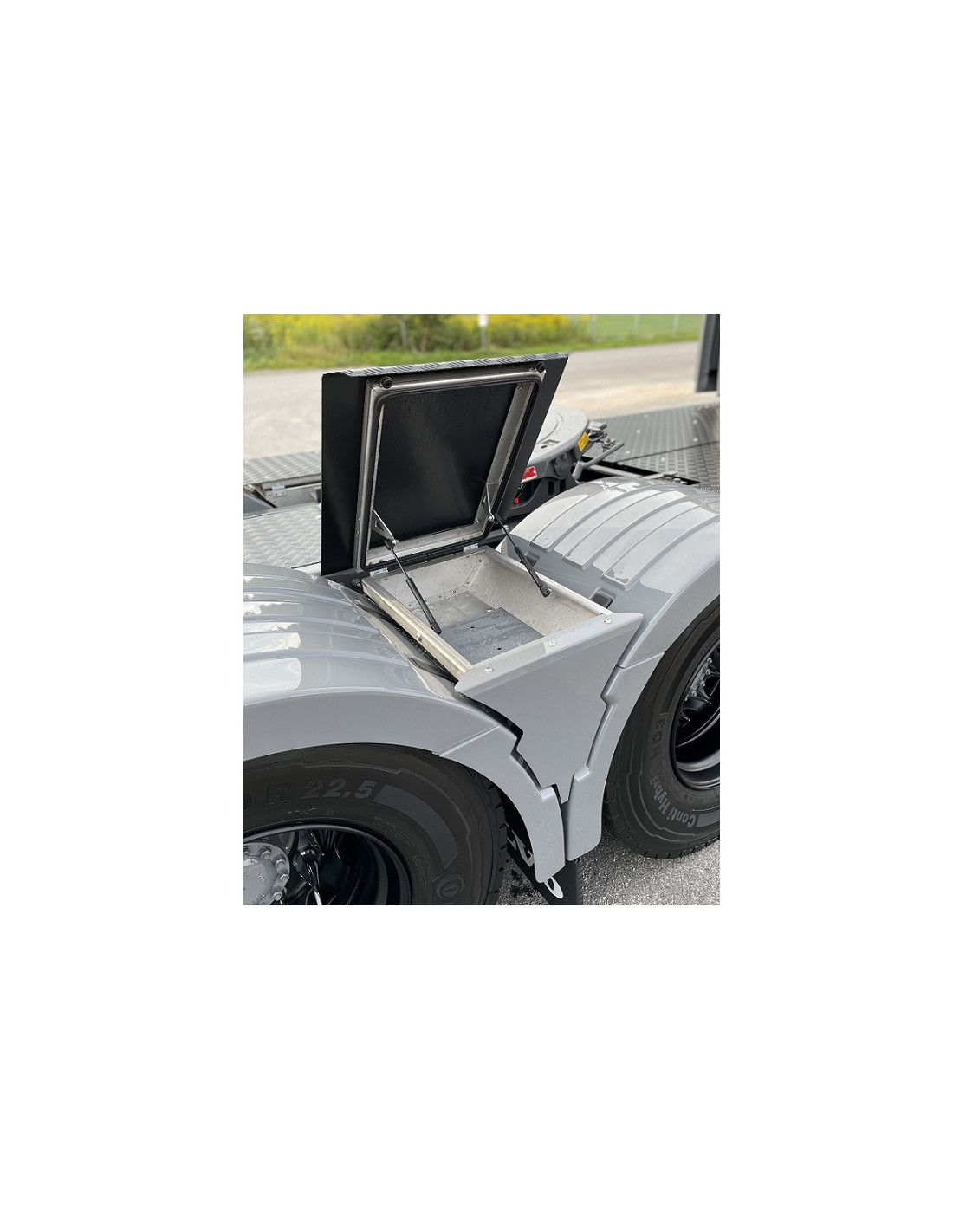

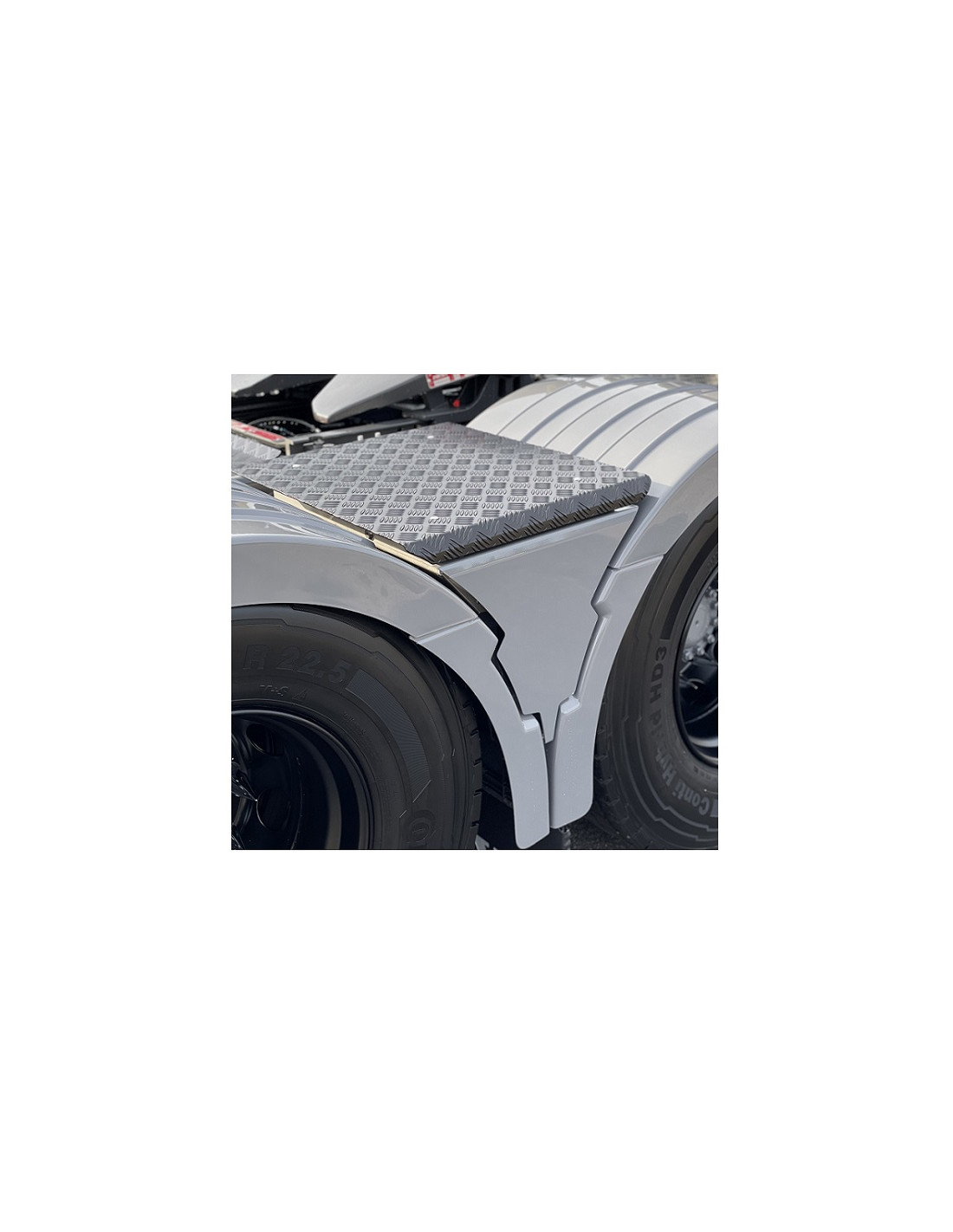

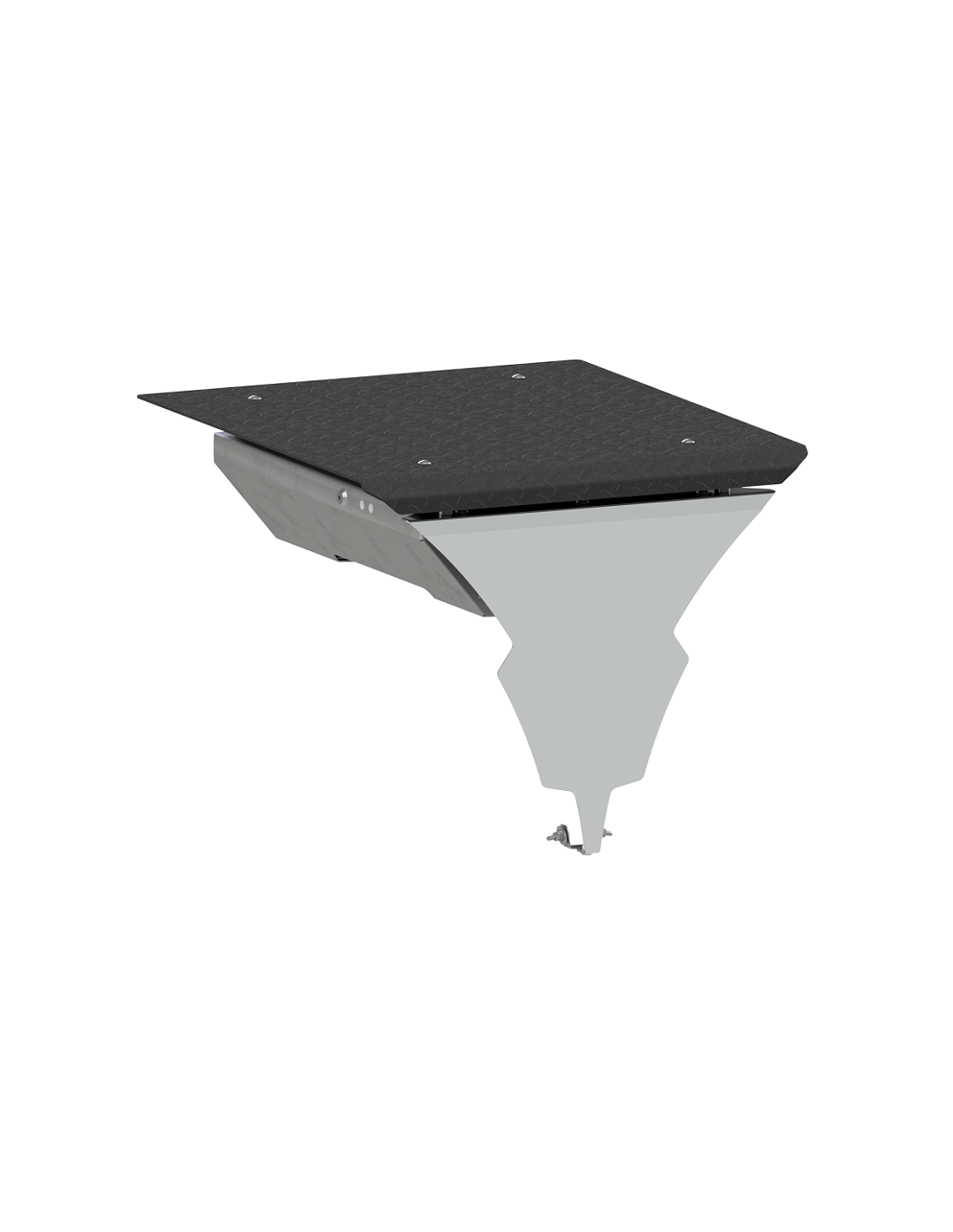

On the outside there is a wedge made of mirror stainless steel, which fits into the space between the screens, on top there is an opening cover made of a floor plate.

The frame, i.e. the storage box itself, is made of matt stainless steel.

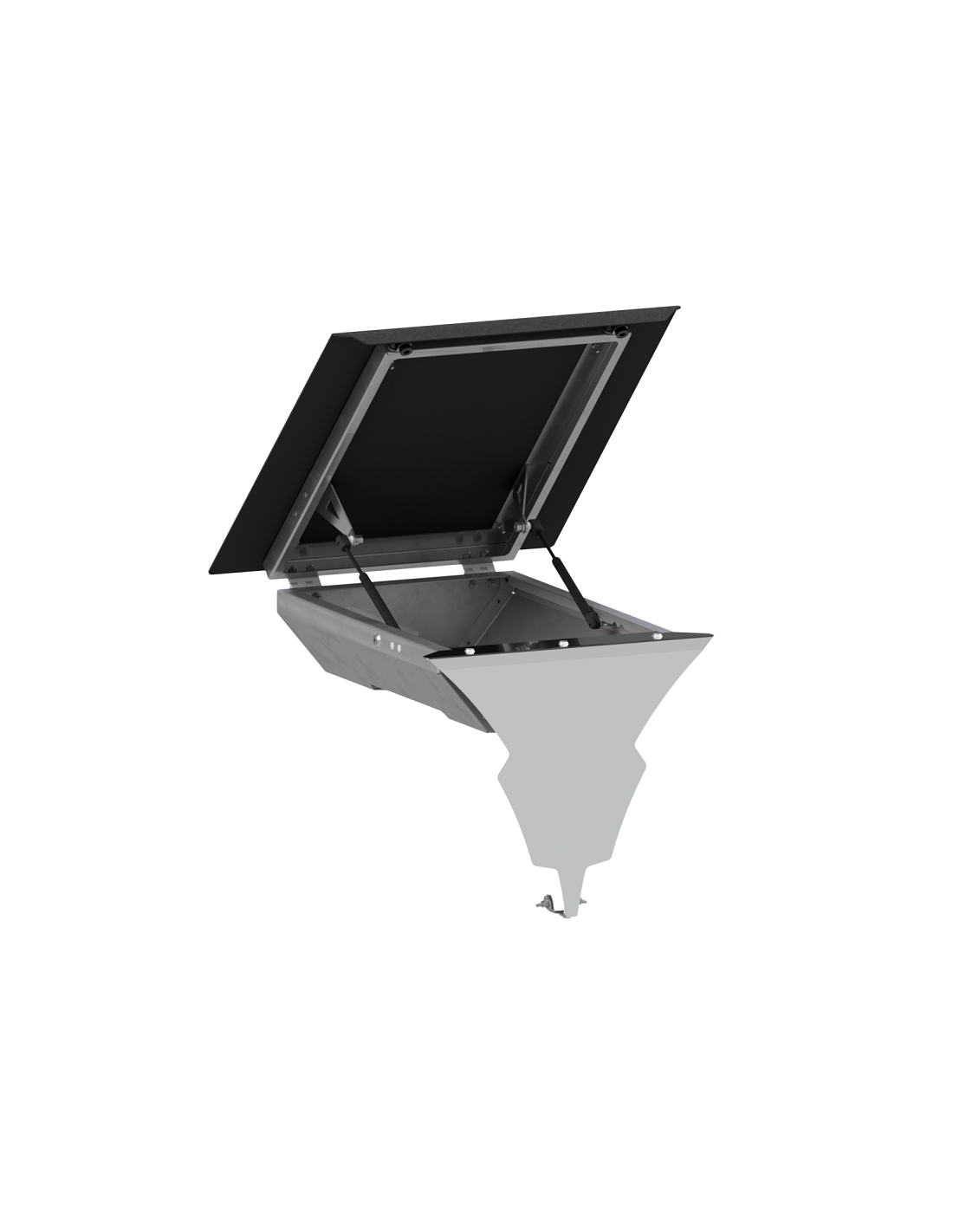

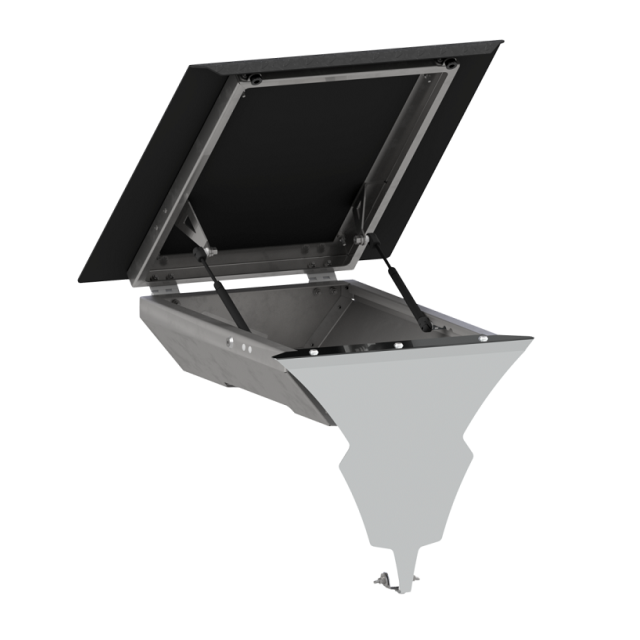

Under the floor plate there is a gas strut that holds the door open and presses it down when closed.

The opening angle of the cover can be adjusted by moving the gas strut brackets.

To keep the screens straight and more stable after the sieve boxes have been installed, we have also developed sieve brackets that are replaced with the original brackets. Instead, this will be a permanent mount, unlike the current rubber mounts.

This way, the tool boxes will fit better and the wedges will fit into the cutout, add in the "buy together" section

Ready-made products for self-assembly save many hours of work in the workshop!

Sales unit - 1 piece. For mounting on both sides of the vehicle, you need 2 pieces
