PURELUX Panther 9 White - LED high beam light 210W

Exceptionally stylish, powerful auxiliary light equipped with a wonderful combination beam and an R65-approved warning light. It also has two different power modes and a two-color parking light. The perfect lamp to tame the darkness! Measured light output 12314 lm, range 709 m @ 1 lux.

PowerBoost® technology

A wonderful, long throw yet wide beam

Warning light approved for road traffic

12314 lumens, 709 meters (@ 1 lux)

Optimal 5000K color temperature

Stylish two-color parking light

Frameless Lexa polycarbonate lens

Purelux Panther 9 White is a shockingly powerful auxiliary light that shakes up the market of round additional lights with a fierce performance, one of the best combination light beams on the market, an R65-approved warning light function and a unique appearance. The light has two different power modes, i.e. it can be switched on either the more moderate power mode approved for road use or the PowerBoost® mode that releases unlimited light output. The innovative user interface switch integrated into the light allows you to change the power modes easily and quickly, even directly while driving, so there is no need to make any additional connections!

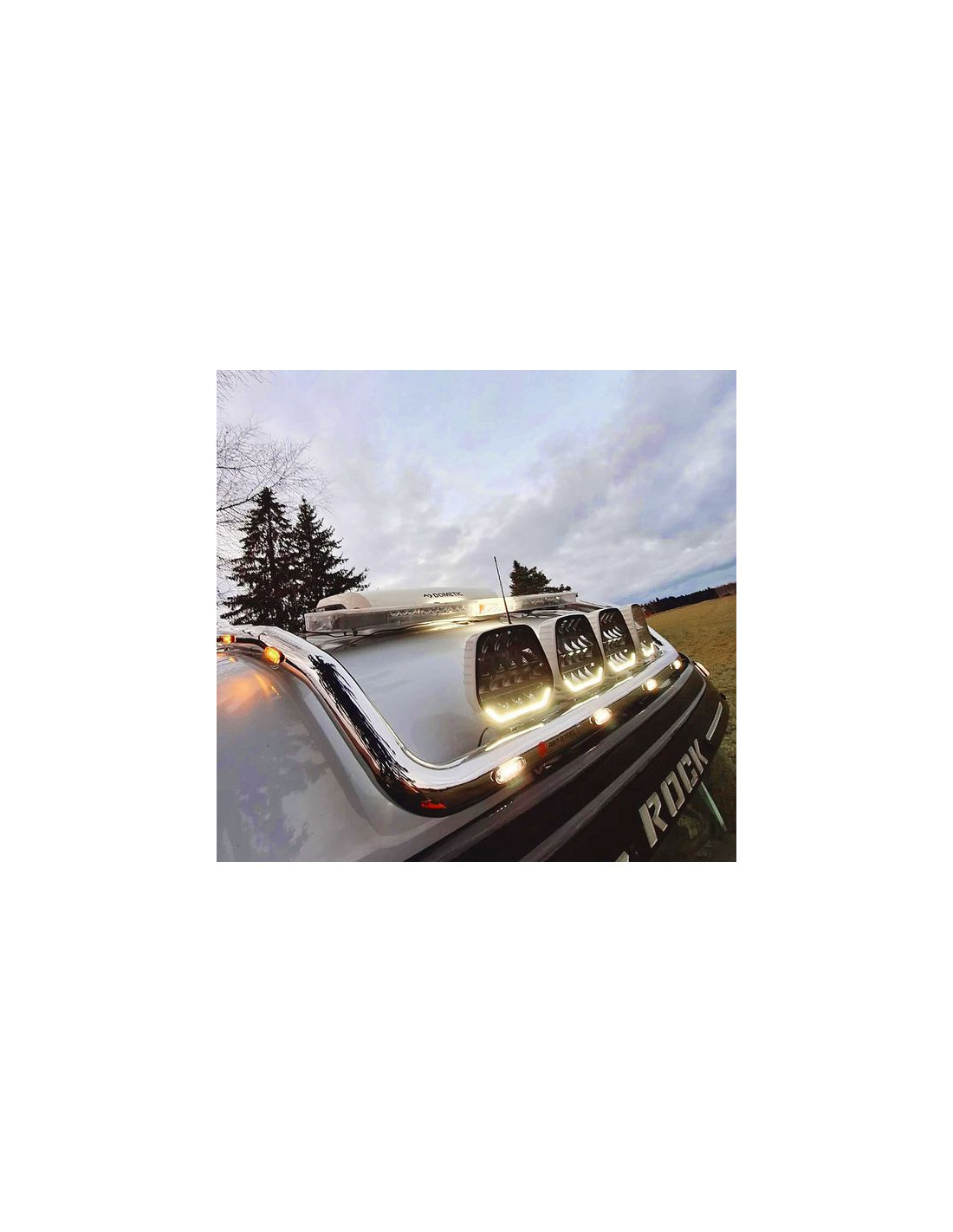

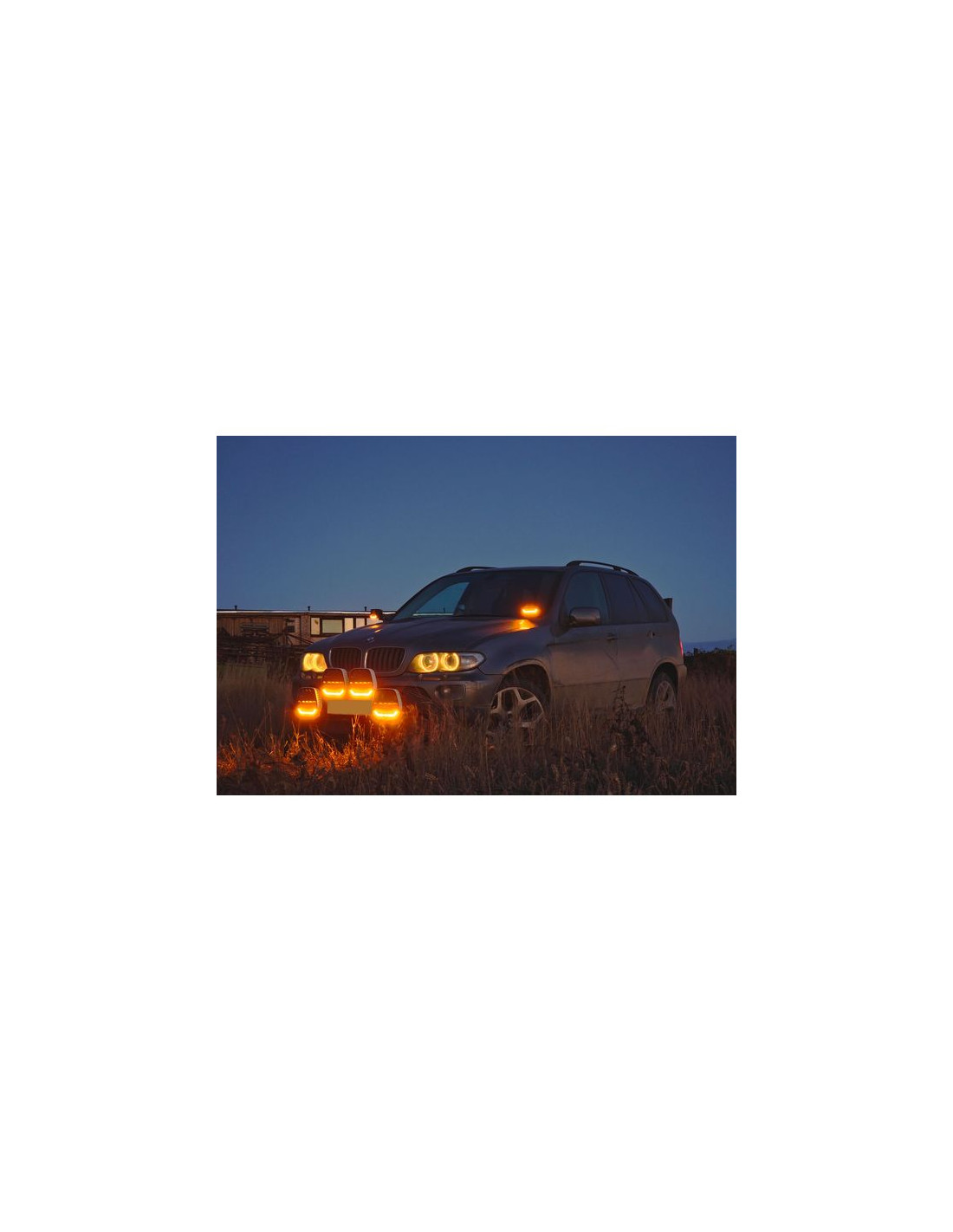

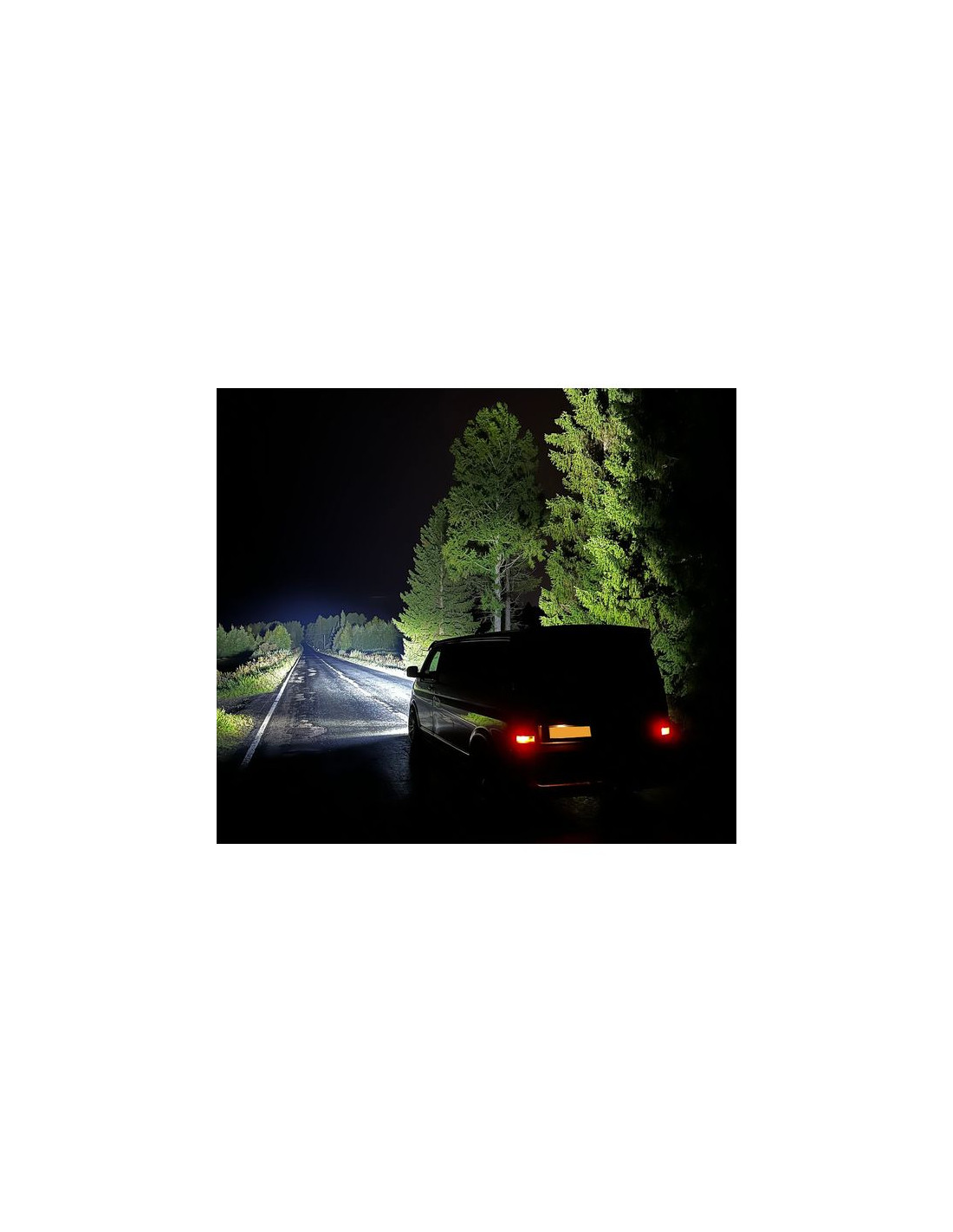

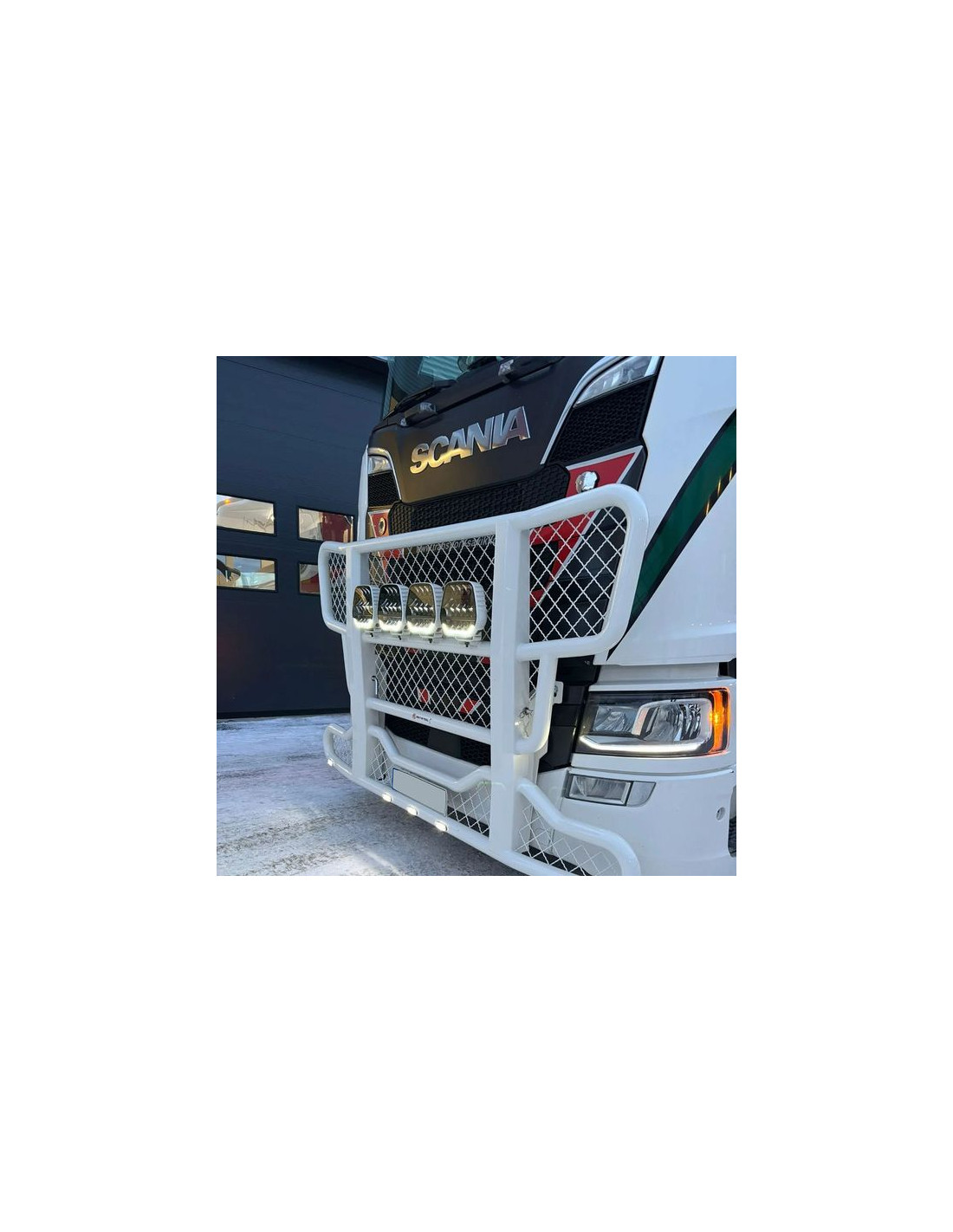

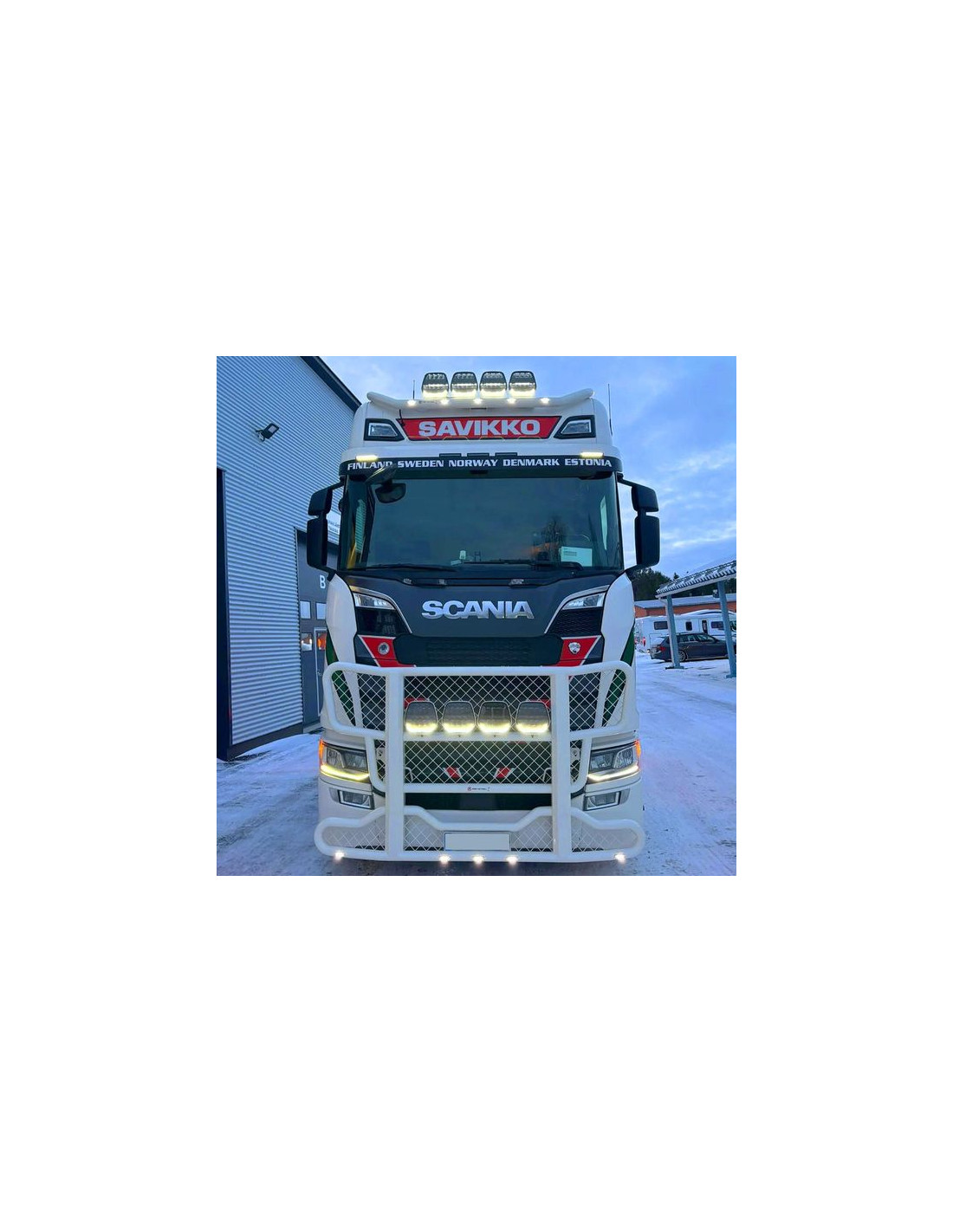

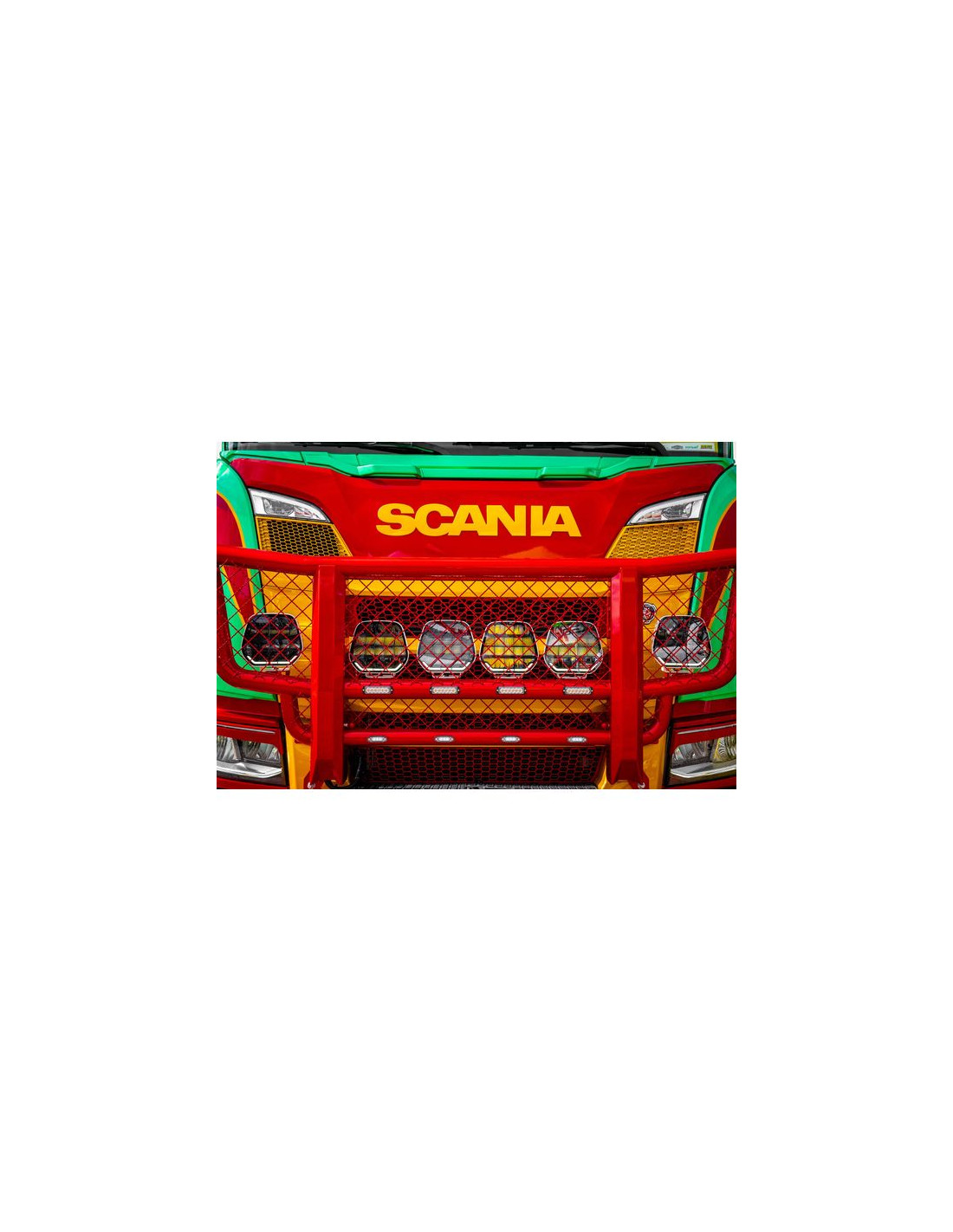

In PowerBoost® mode, the measured (in ValoLab) light output of just one light is 12314 lumens, with a range of up to 709 meters @ 1 lux, and when two or more lights are installed side by side, in the darkness of the night, the unnoticeable line of panthers turns into a light phenomenon that signals the way ahead in an unprecedented way. The attention-grabbing design, stylish details and the orange or white parking light at the bottom of the light makes the Panther 9 White an eye-catching revelation, and thanks to the white color it fits neatly especially on light-colored vehicles.

Note! You can clearly see the difference between Purelux PowerBoost® and road traffic mode - PowerBoost® mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

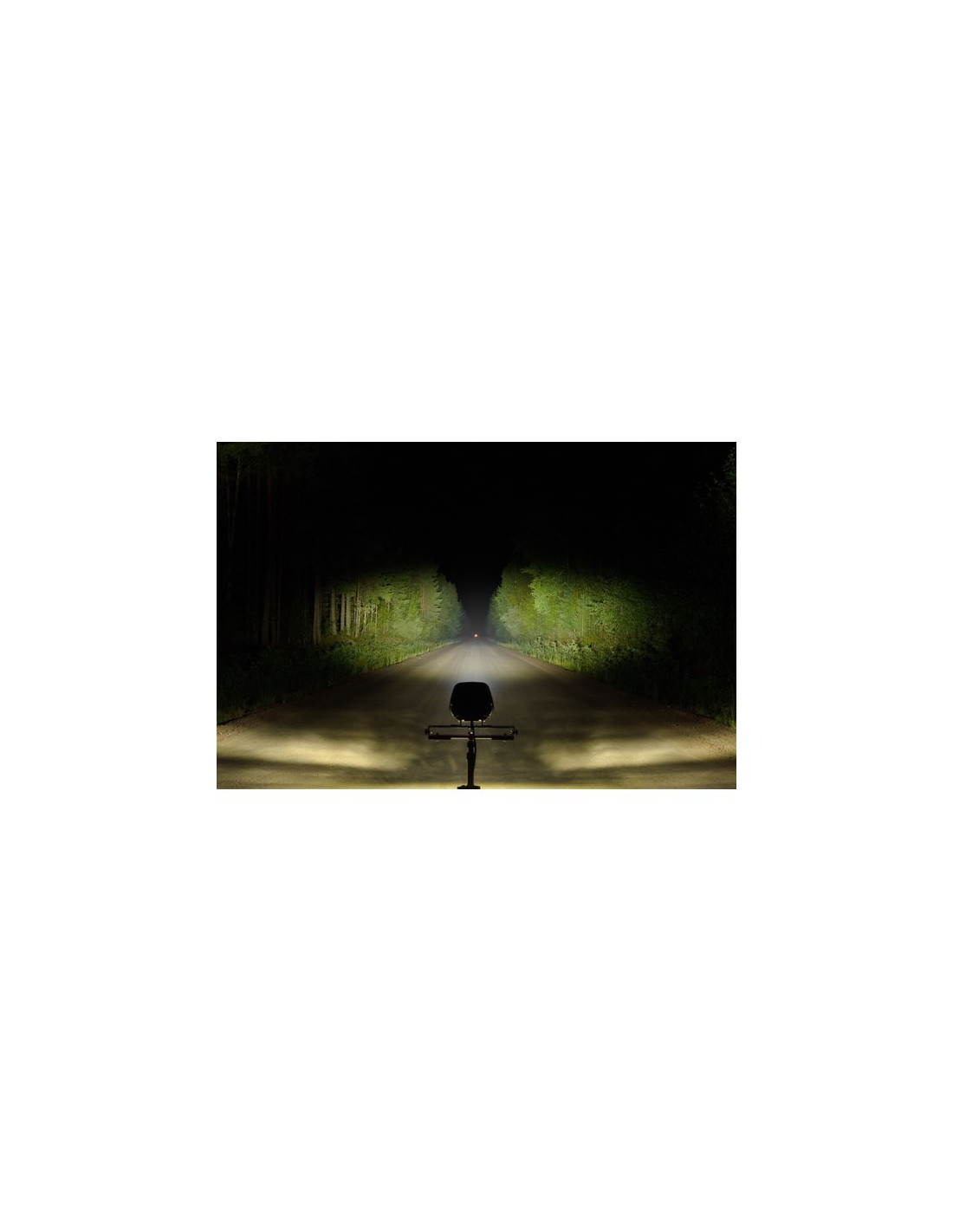

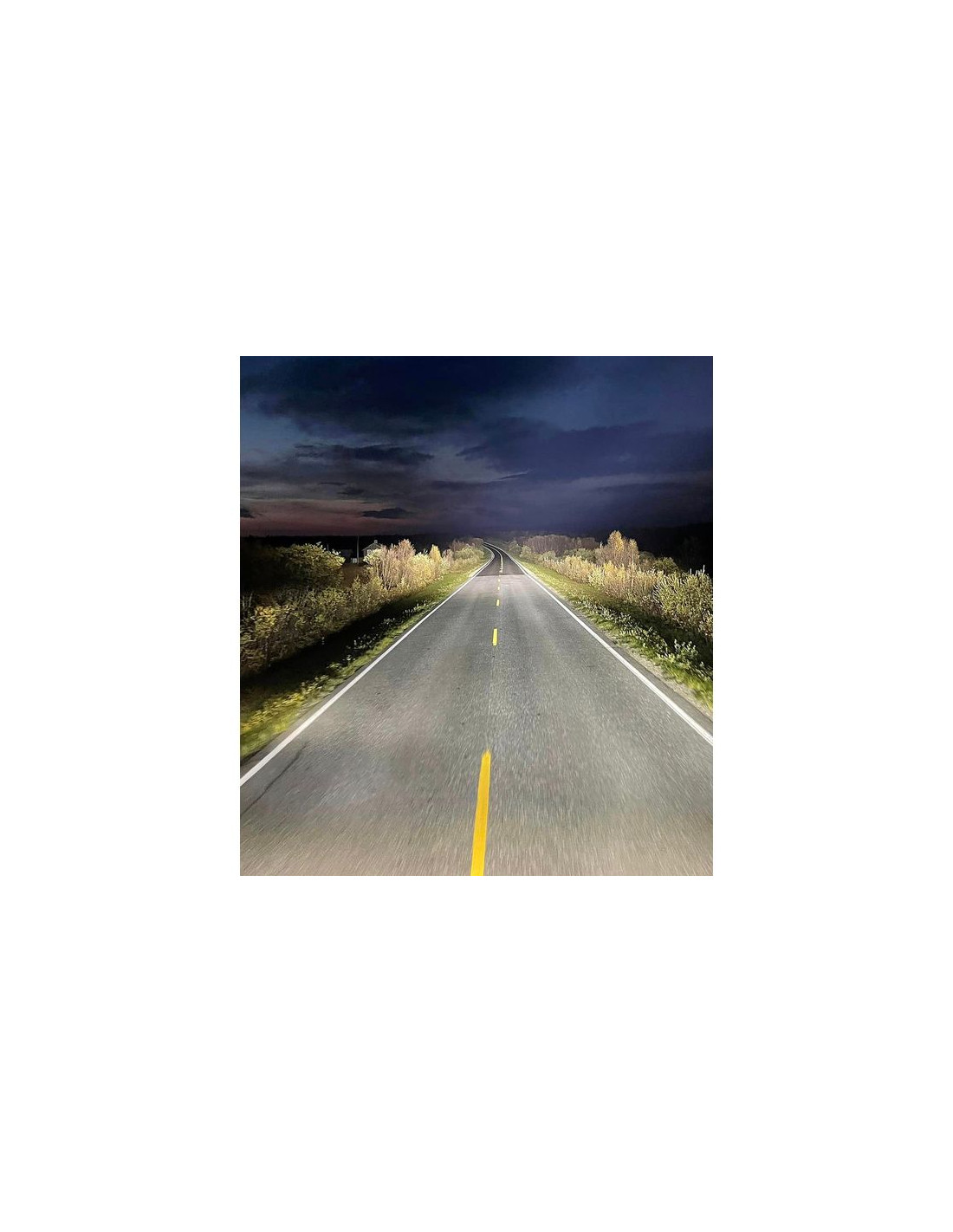

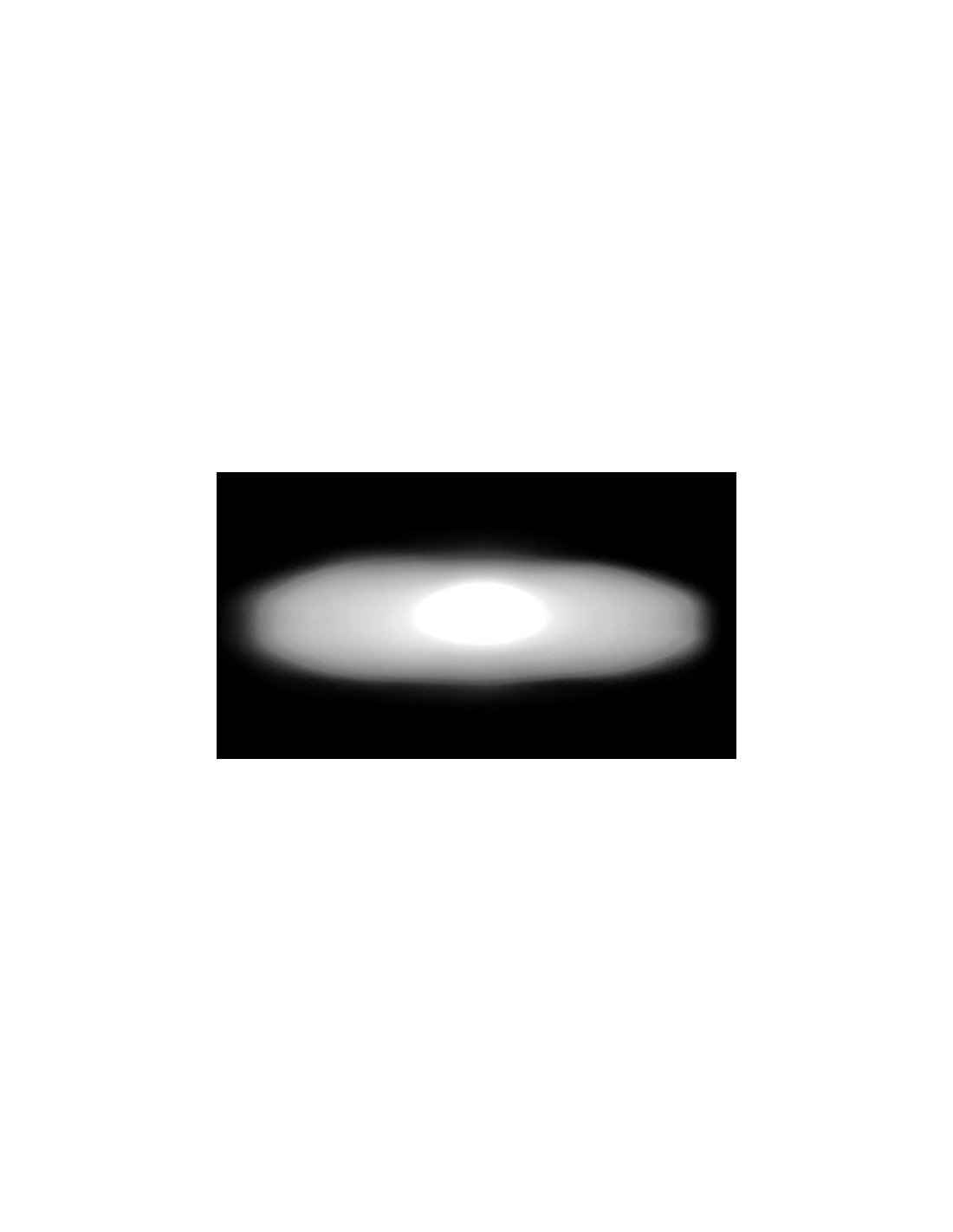

The light beam of the Panther 9 consists of a rectangular wide main beam, which is a perfect combination of both range and width. The light beam opens right away and illuminates the whole road from side to side, while the brighter main spot in the middle of the beam directs the light far ahead. In the vertical direction, the light beam is softly delimited, as usual from other lights of the Panther series, thanks to which the light is not lost in the sky and a ball of light does not form in front of the car. However, the height of the beam is optimized to be sufficient for hilly terrain and roof installations of heavy equipment.

Unlike many other auxiliary lights on the market, the Panther 9 is equipped with an R65-approved orange warning light, which can be used e.g. in special transports, when the vehicle moves from the highway to a construction site or, for example, in traffic control. A bright, brilliant warning light will not go unnoticed by anyone, so the safety of those working on the vehicle can be guaranteed without separate warning lights. The warning light can be installed, for example, behind a separate switch, so that it can be used whenever necessary. The warning light has five different flashing functions, and in addition, the lights can be synchronized with each other, so that they flash at the same time and the overall appearance of the vehicle is uniform.

In addition to the precisely finished light beam, a feature that significantly improves the driving experience is the light's neutral color temperature of 5000 Kelvin. Neutral color temperature is optimal for road traffic, as it facilitates the observation of terrain shapes and obstacles and does not distort the color of the object. In addition, it dazzles less cool tones from e.g. snow cover or in fog and rain, and reduces the strain on the eyes. The 5000K color temperature also suits newer cars with LED or Xenon lights as standard, and brings the desired brightness and sharpness even alongside traditional halogen lights.

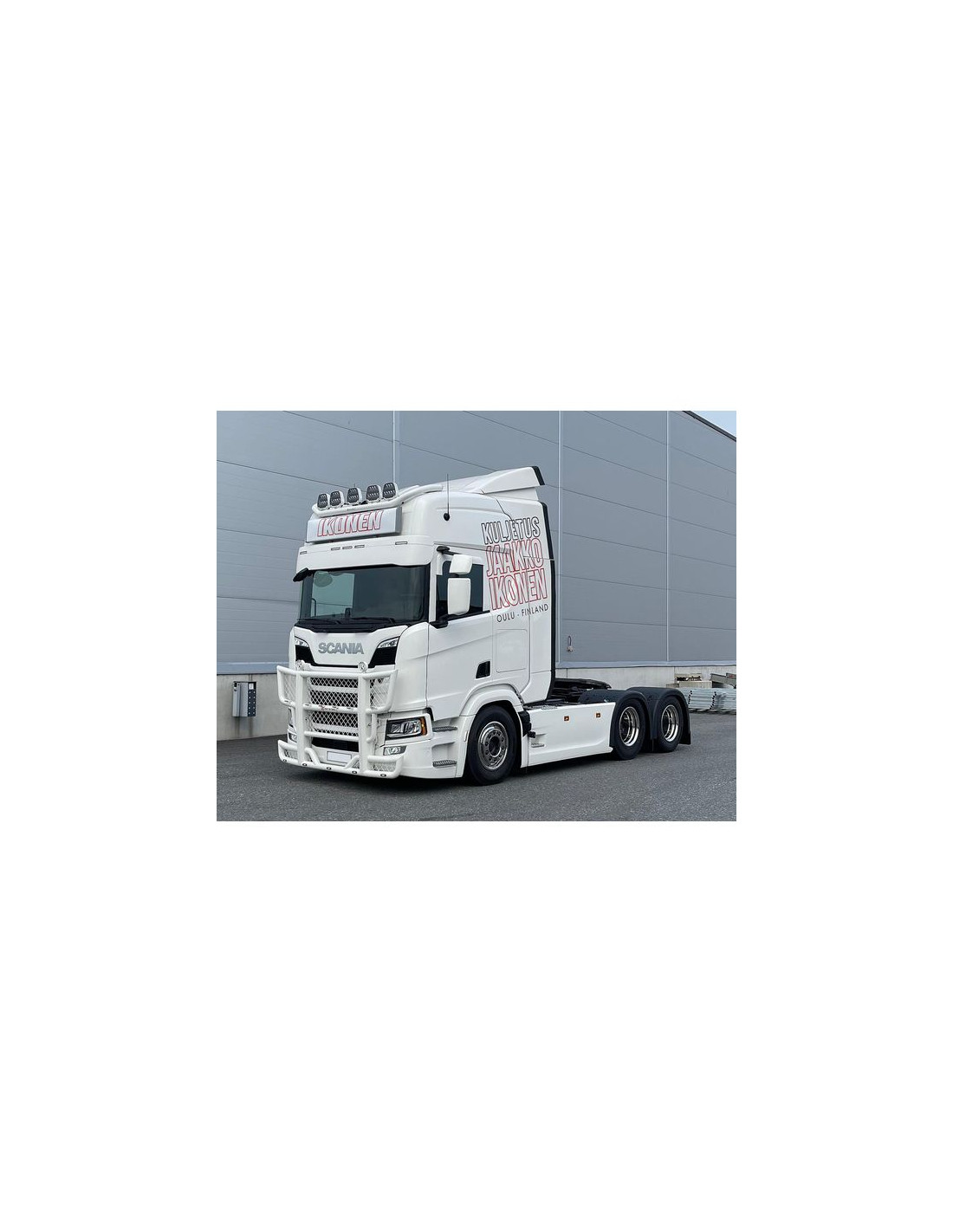

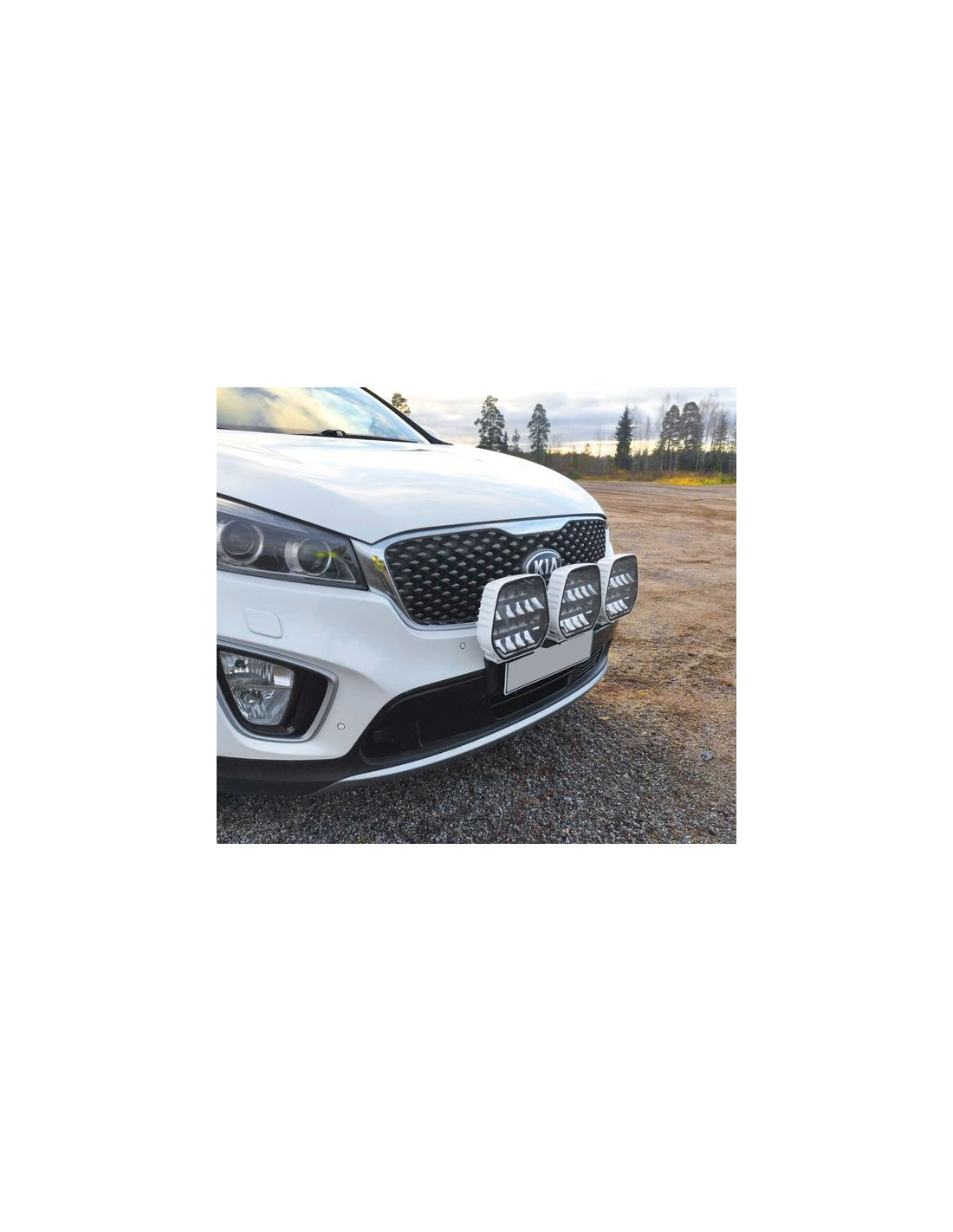

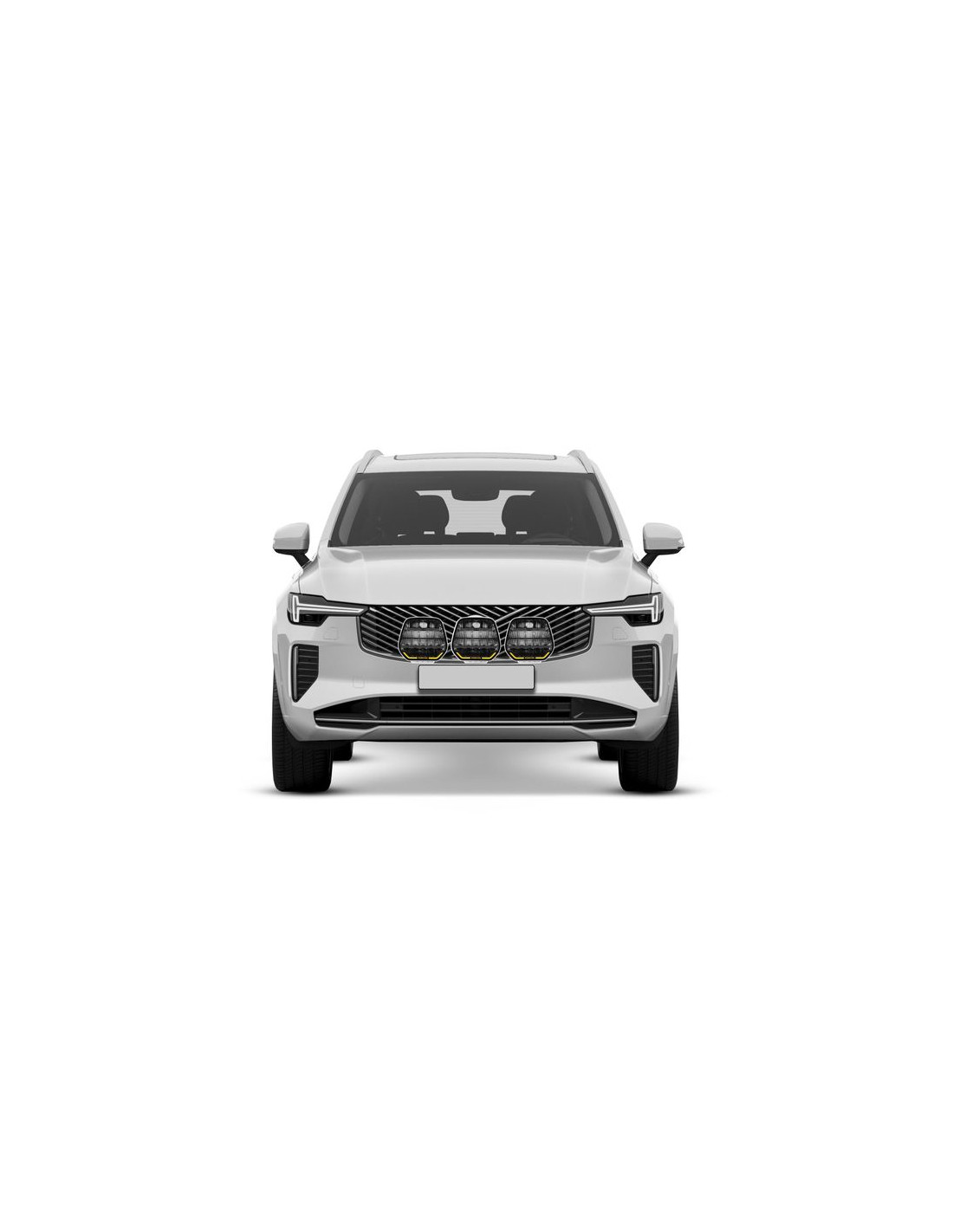

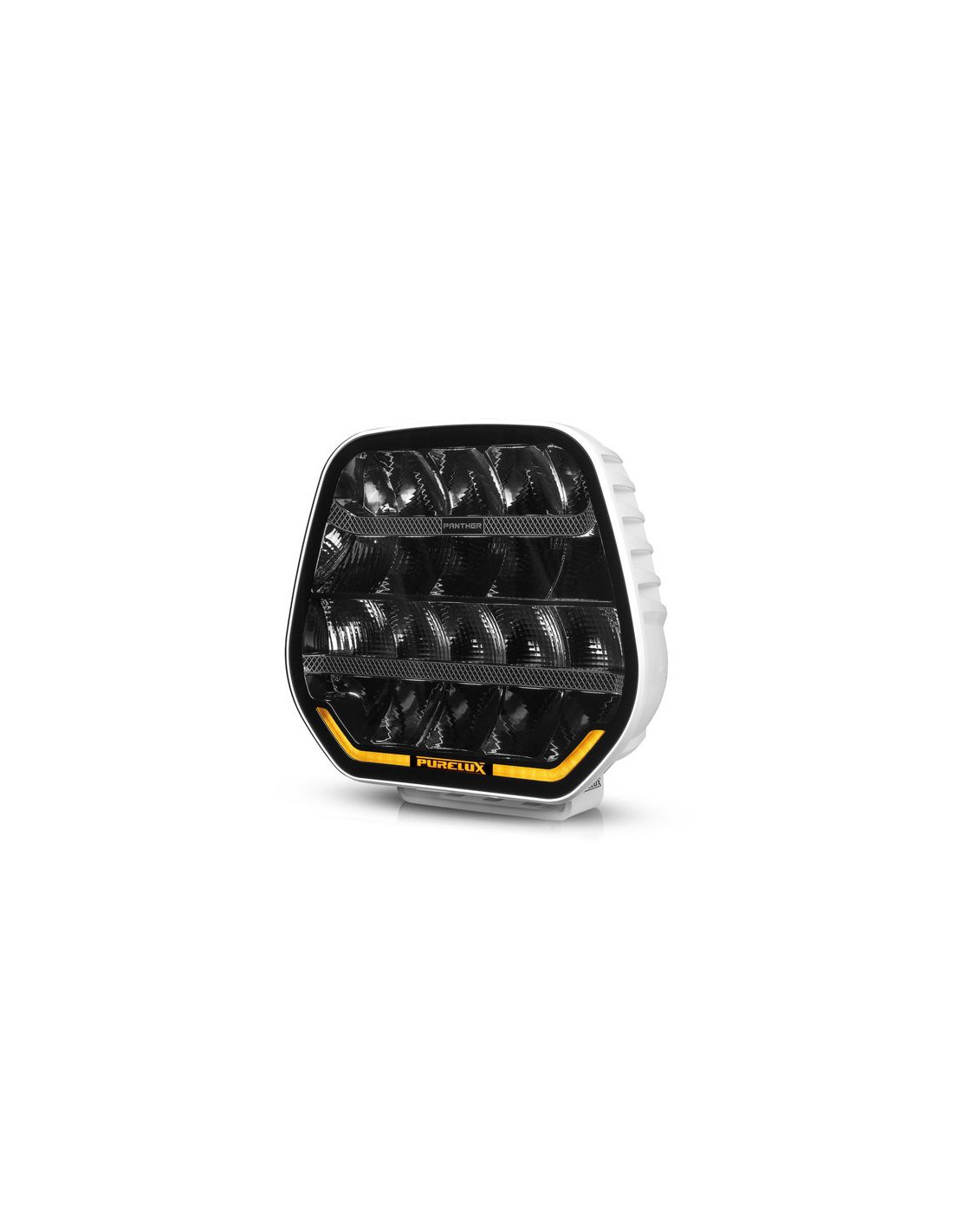

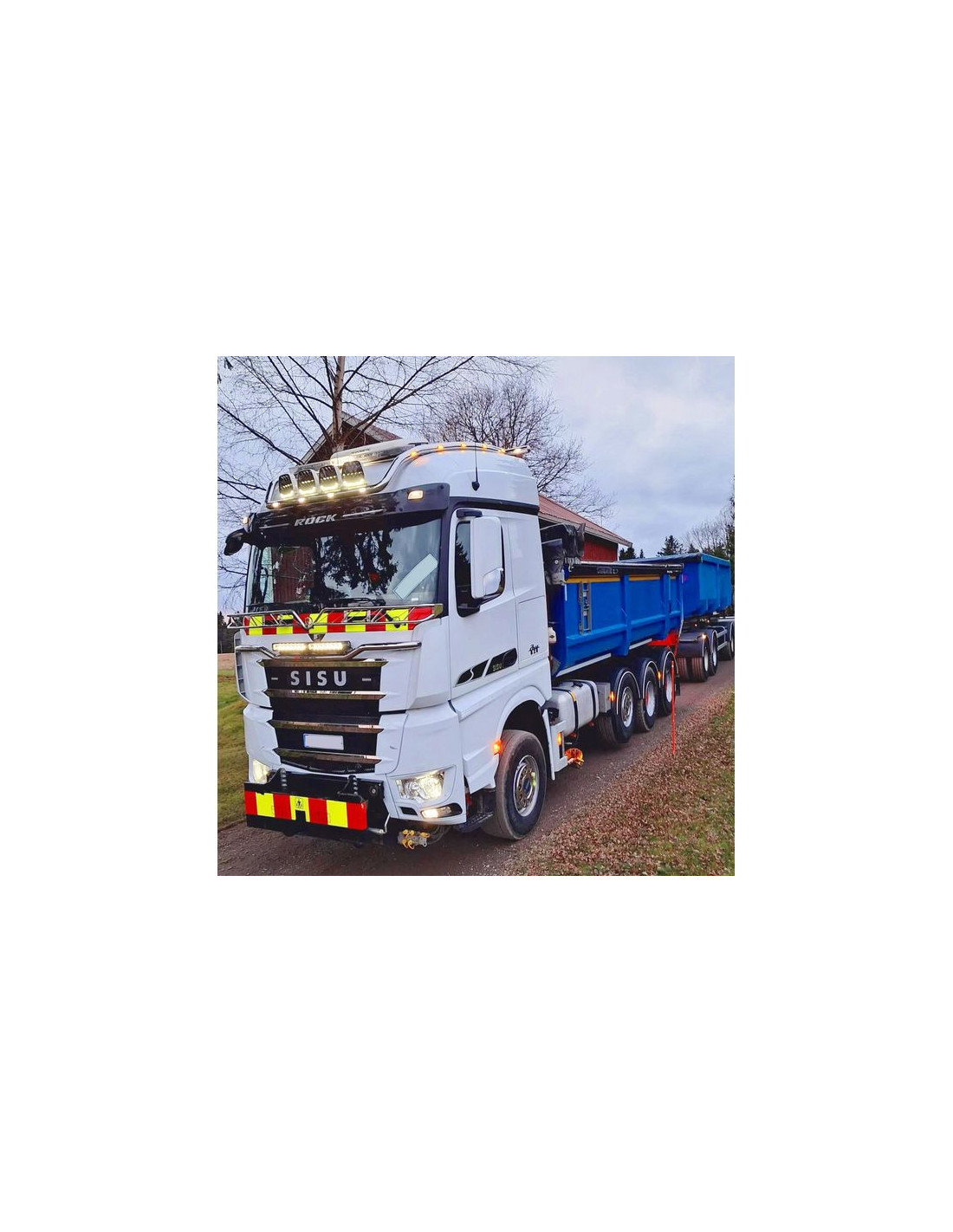

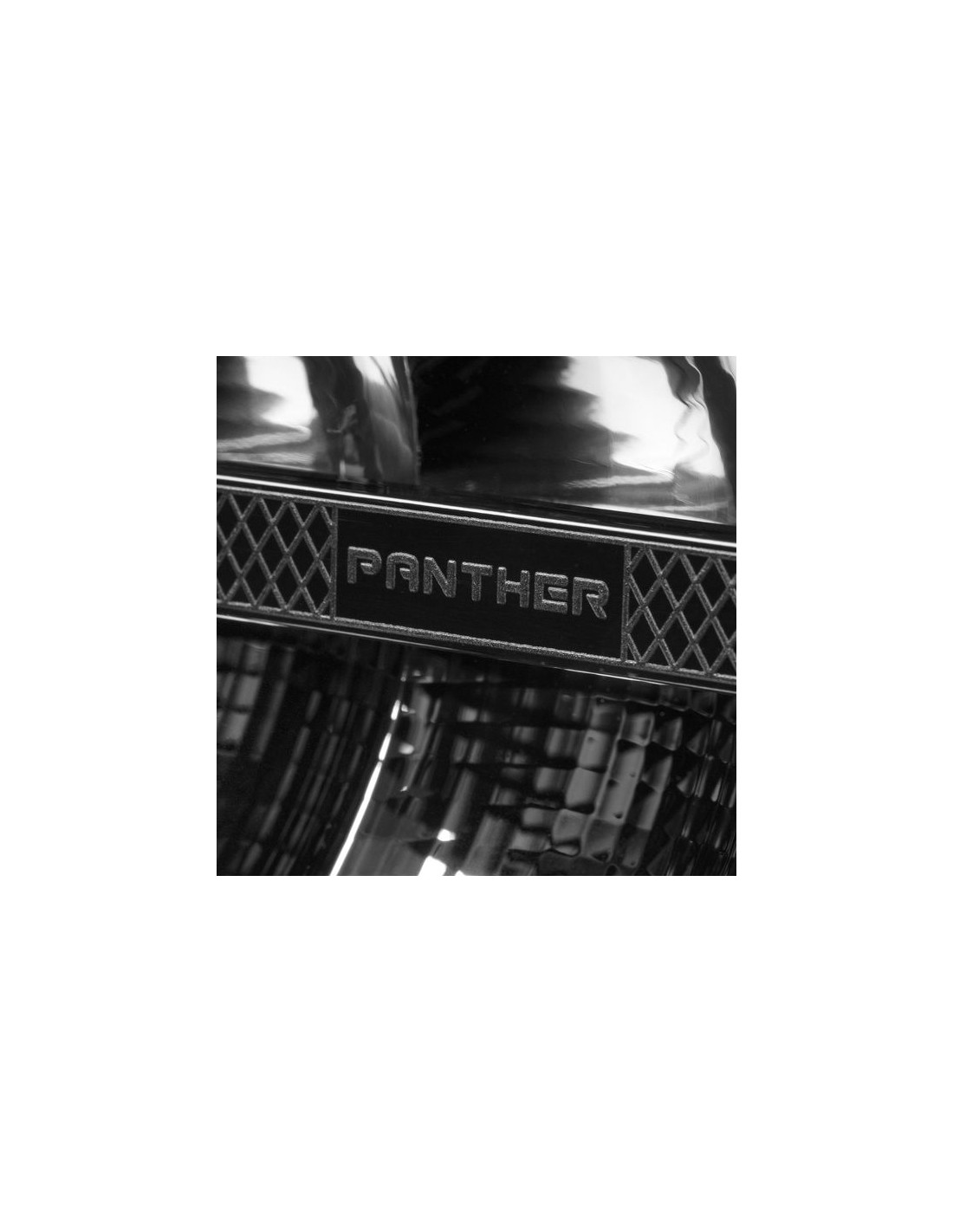

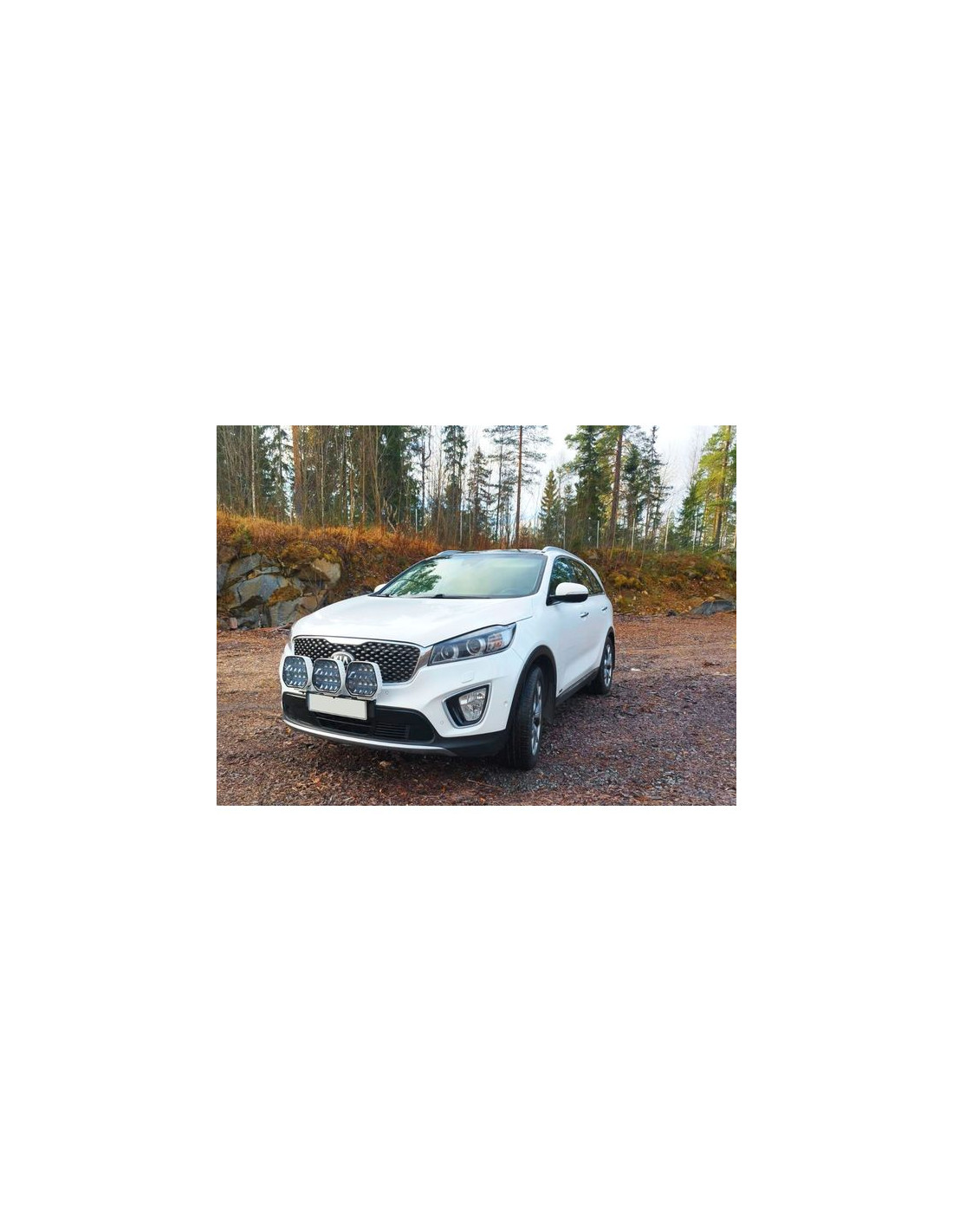

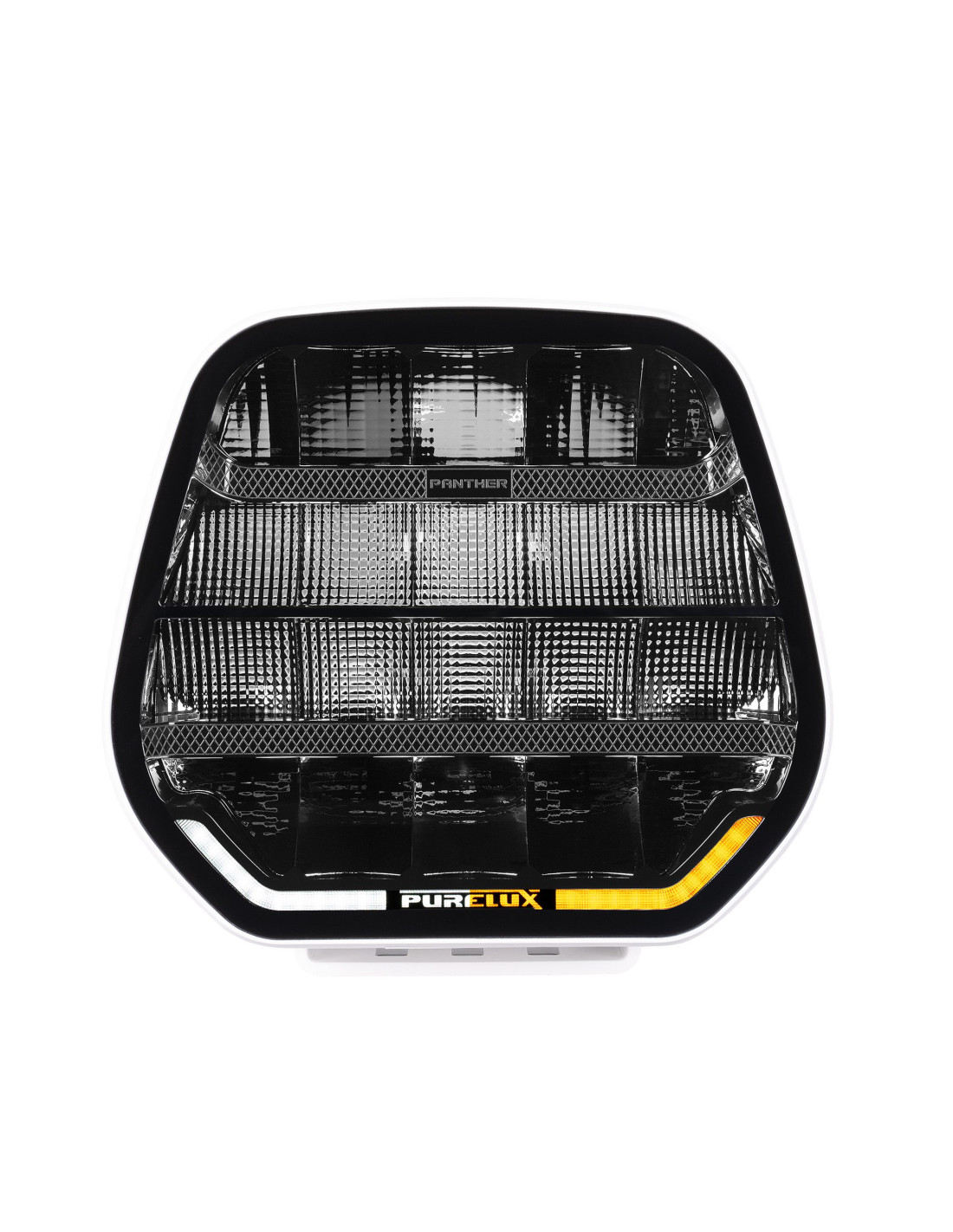

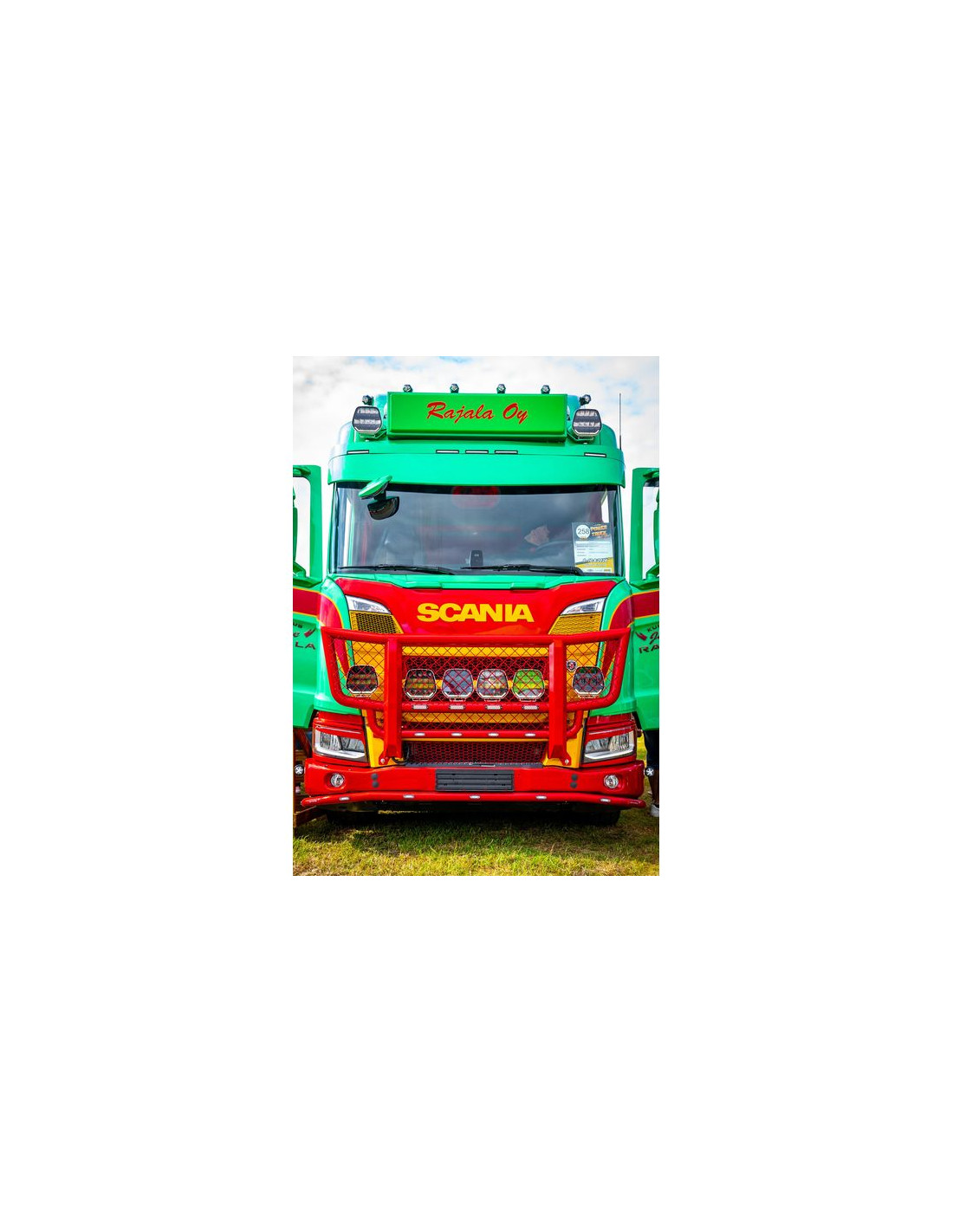

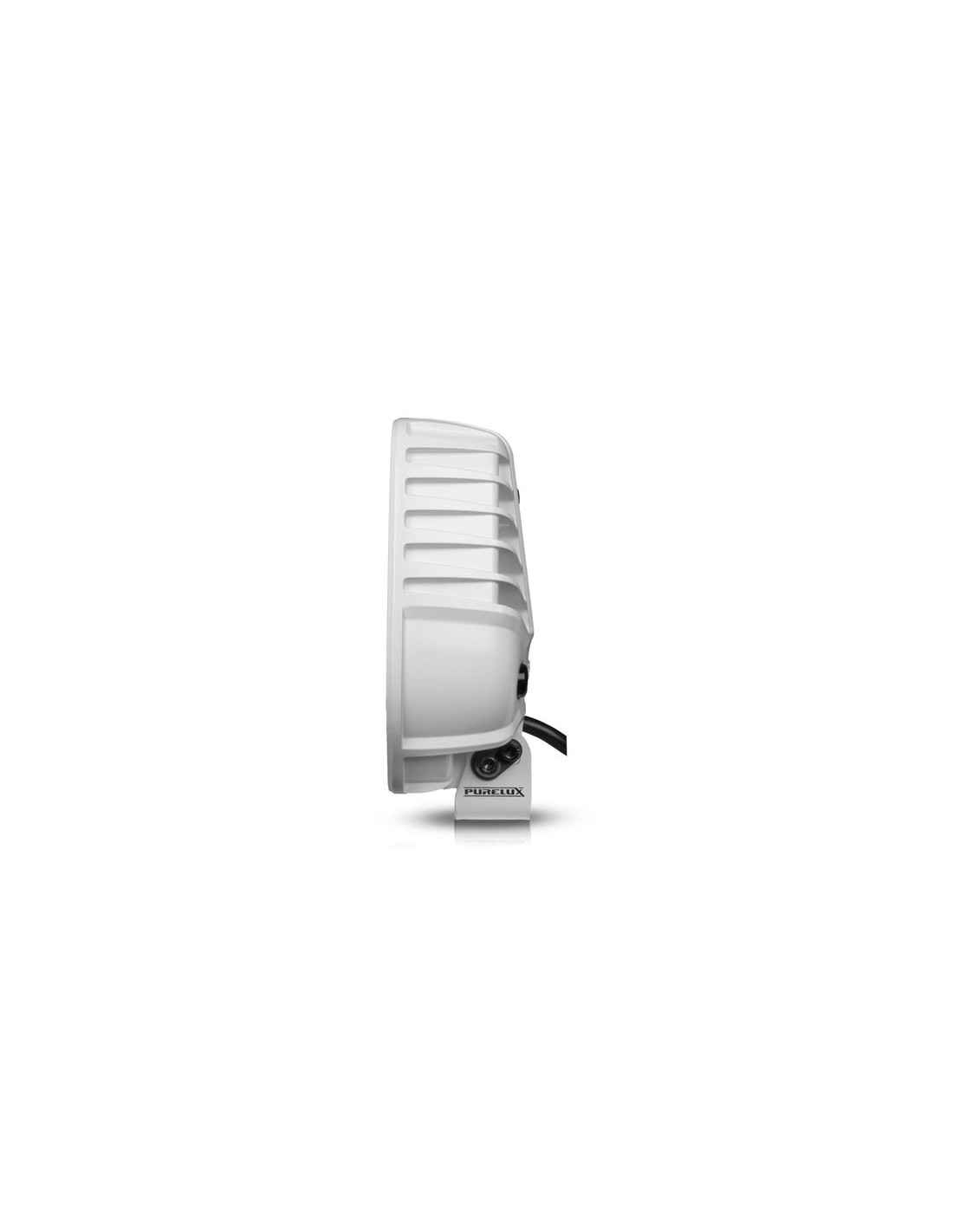

The appearance of Panther 9 differs from the usual, and its unique design, the orange or white parking light running spectacularly at the bottom of the lens, and the dark optics give the lamp a unique and street-credible overall look. The brazenly non-standard appearance, combined with the 9" size and ferocious performance, make the Panther 9 an excellent addition to the equipment of heavy equipment and construction site vehicles as well as vans and SUVs. The lamp's exceptionally low reference number (25) allows several lamps to be installed in the same vehicle without affecting the car's own high beams need to be cut out of use, so this light cannon can also be installed in passenger cars!

"Purelux Panther series is made with uncompromising quality and top of the line performance. Every feature is finely tuned to fit any type of situation and vehicle. Don't hesitate, ride with the Panther!” - Purelux

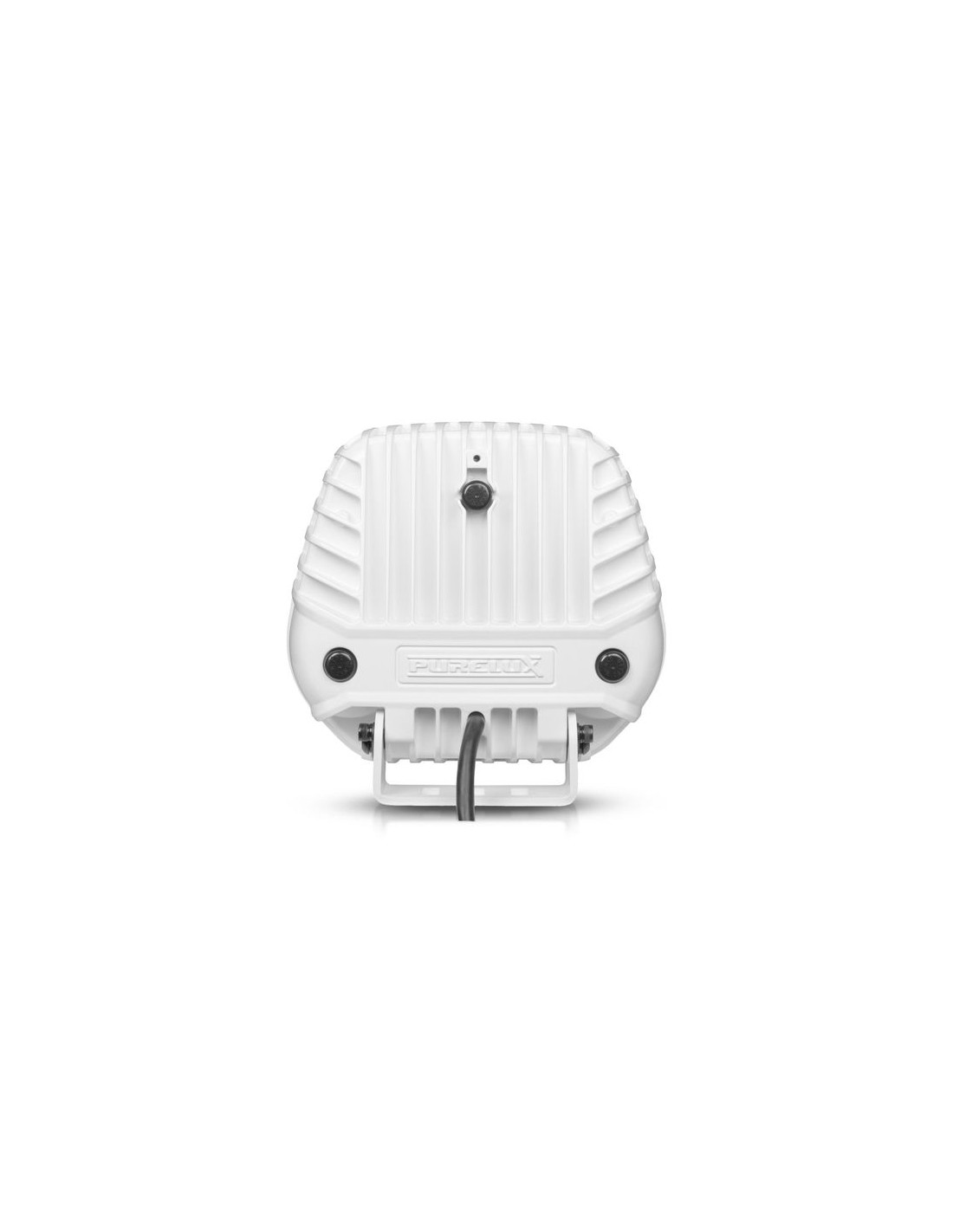

The light is supplied with a mounting foot, and the installation is facilitated by the 2-pole DTP connector already in place in the lamp's power cord, as well as separate wires from the power cord for the parking lights, warning light, and warning light synchronization. Unlike many other additional lights of the same size, the Panther 9 also has a ready-made mounting hole for the upper support bar, which enables a sturdy installation. The wide operating voltage range (9-36V) enables installation in both 12V and 24V systems. The lamp is protected against radio interference in accordance with the ECE R10 standard. Three-year (36 months) warranty!

Basic delivery content

Purelux Panther 9

Mounting leg

Power cord with DTP-2 connector

Connection and installation instructions (FI/SE/NO/DK)

Technical specification

Brand and model: Purelux Panther 9

Purpose: As an additional light in cars / work machines

Operating voltage: 9-36 V (DC)

Reference number: 25

Calculated power: 210 W

Power consumption measured by laboratory

Purelux PowerBoost®: 8.125A @ 24V

Road mode: 1.79A @ 24V

Warning light: 0.61A @ 24V

Power measured by laboratory

Purelux PowerBoost®: 195 W

Road traffic mode: 43 W

Warning light: 14.7 W

Parking lights: 4.1 W

Light output measured by laboratory: 12314 lm (Purelux PowerBoost®) / 3872 lm (Road traffic mode)

Range measured by laboratory: 709 m @ 1 lux / 1418 m @ 0.25 lux (Purelux PowerBoost®)

Range measured by laboratory: 387 m @ 1 lux / 774 m @ 0.25 lux (Traffic mode)

Range with more light, measured (PowerBoost® / E-approved, @ 1 lux):

With two: 1003 m / 547 m (@ 1 lux)

With three: 1228 m / 670 m (@ 1 lux)

With four: 1418 m / 774 m (@ 1 lux)

Color temperature stated by the manufacturer: 5000 K, Measured by laboratory: 5019 K

Mounting: Mounting leg

Connector: DTP-2

Separate parking lights and warning light + wires

Cable length: approx. 100 cm

Dimensions: 225 x 200 x 77 mm (Width x Height x Depth)

Height with mounting foot: 214 mm

Weight: 2470 g

IP rating: IP69K

Approvals: ECE R10, R148, R149, R65, CE, RoHS

Road traffic approval does not apply to the Purelux PowerBoost® mode

Other: The light has a ready-made place for stabilizer

Warranty: 36 months

Installation guide

Coupling

DTP connector: Additional light

Yellow: Orange parking light

White: White parking light

Green: Warning light (R65)

Grey: Synchronizing the warning light / changing the operating mode of the warning light

Changing the power mode with UI technology: The first time the lamp is used, it lights up in PowerBoost mode. To change the power mode, turn the light off, then turn the light on for two seconds, and turn the light off and on 2 times in 1.5 seconds to change the power mode. Repeat to change the power mode again.

Synchronization and warning light functions:

Warning light: Connect green wire to power (+)

Synchronization: Synchronize multiple warning lights by connecting the gray wires together

Warning light pattern: Connect the gray wire to power (+) for less than 1 second, the pattern will change

Reset: Connect the gray wire to power (+) for at least 3 seconds to return directly to the first pattern of the warning light
