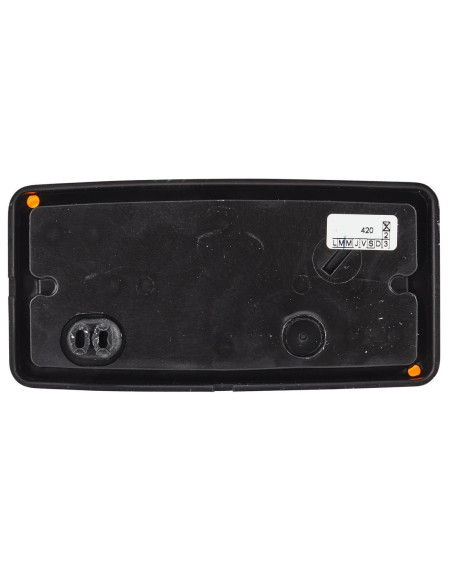

Orange marker lamp R5W 12/24V

Description:

Length: 124[mm] - Width: 62[mm] - Height: 43[mm] - Lamp type: R5W - without bulb

Light functions: 2 - with lighting at the rear of the vehicle/with side marker light

Registration type: ADR/GGVS - meets the requirements of ECE Standards: R3/R91 - Protection type: IP5K9K

plastic housing - Housing color: black

Mounting type: for horizontal mounting/for vertical mounting

Side reflector for surface mounting (horizontal/vertical, left/right) - with ECE approval, ADR/GGVS tested

The side marker light has 2 light functions: Side marker light / reflector

Lamp type: R5W, without bulbs, with eyelet, base plate with black edge, 10 holes Ø 5.5 mm, optional for attachment

HELLA side marker lights. Side marker lights are an important safety feature that makes the vehicle's outline more visible to other road users, especially in the dark. Large vehicles in particular, such as combine harvesters, long transporters, etc., can be significantly better highlighted in this way. In some countries, active side marker lights are required by law from a certain vehicle length. HELLA side marker lights meet the highest requirements even in demanding application areas and impress with their durability and the well-known high HELLA quality.

Technical data:

Assortment specification - Socket; Screw connection

Type of attachment - for vertical attachment; for horizontal attachment

Lamp design - Halogen

Lamp type - R5W

Voltage [V] - 12; 24

Fitting Position - left; right

Height [mm] - 43

Width [mm] - 62

Length [mm] - 124

Lamp function - with lighting at the rear of the vehicle; with marker light

Number of light functions - 2

Protection type (IP code) - IP5K9K

meets the requirements of ECE Standard - R3; R91

Registration type - Tested in accordance with ADR/GGVS regulations

Housing type - plastic housing

Housing color - black

Reflector glass color - yellow

Power consumption [W] - 5

without bulb

Quantity - 1
