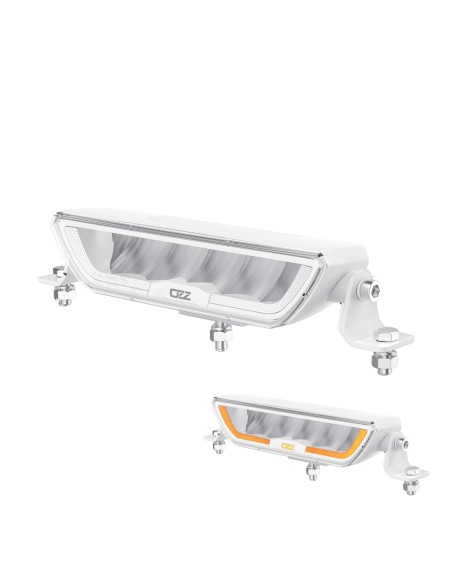

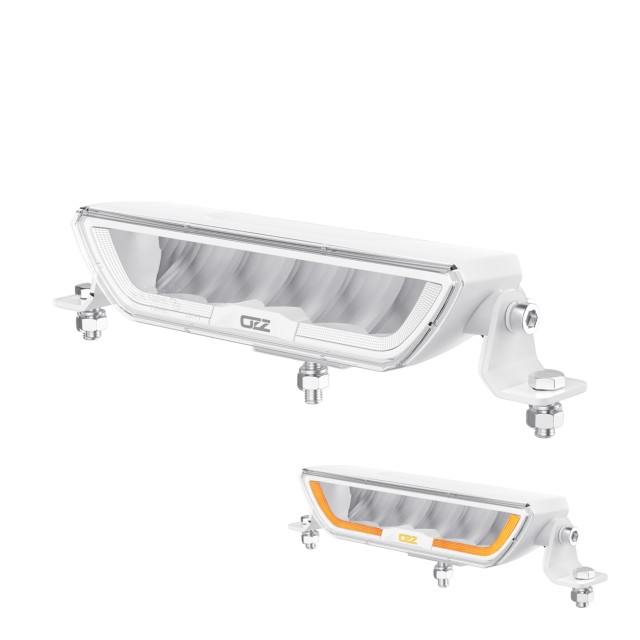

OZZ XB1 P9" White, ledbar with position light, white housing

Experience the power of light with OZZ XB1 P9″ dynamic LED light bar. This innovative light bar features dynamic start-up position light in white and amber, creating a modern look for your vehicle. This 228 mm bar delivers 3100 lumen, providing 1 lux at a distance of 315 meters. The driving beam pattern ensures optimal visibility with a wide and long-range reach. The light has a color temperature of 5000 K, offering pleasant illumination in all conditions.

Technical data:

• Type of lamp - LED
• Type of LED - Osram P9
• Pcs LED - 6
• Voltage - 10-32V DC
• Theoretical effect (W) 12V - 60
• Theoretical effect (W) 24V - 60
• Actual effect (W) 12V - 42
• Actual effect (W) 24V - 42
• Nominal current at 12V - 3.34 A
• Nominal current at 24V - 1.67 A
• Theoretical lumen (Lm) - 4960
• Actual lumen (Lm) - 3100
• 1 lux @ - 315 m
• Kelvin (K) - 5000
• IP-class (IP) - IP68/IP69K
• Beam pattern - Driving
• Position light - dynamic white and amber
• Connection - 4-pin DT male + female
• Cable length (mm) - 1000 (800+200)
• Material bracket - Stainless steel
• Material chassi - Aluminum
• Material lens - Polycarbonate
• LxDxH (mm) - 228x70x50
• Height including bracket (mm) - 55/62,3
• Operating temperature - -40 – +60°C
• E-mark approval - R112, R7
• EMC - ECE R10
• Ref. no - 27,5
• Weight (kg) - 0,75
• Warranty - 3 years
